ASUS
ASUS ROG Crosshair 2006 AM5 ATX AMD motherboard
An AMD X870E ATX motherboard for Ryzen 7000, 8000 and 9000 series CPUs with DDR5 up to 9600 MT/s, 256 GB capacity, WiFi 7, 10 Gb and 5 Gb LAN, five M.2 slots, two USB4 ports and a 2-inch OLED display
- CPU Socket TypeAM5
- CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- ChipsetAMD X870E
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
- Maximum Memory Supported256GB
- Supports Ryzen 7000, 8000 and 9000 series processors with AM5 socket
- Dual PCIe 5.0 x16 slots enable x16 or x8/x8 graphics configurations
- 256 GB DDR5 capacity across four slots with AMD EXPO profiles
- 10 Gb and 5 Gb Ethernet plus WiFi 7 for high-speed networking
- Two USB4 ports at 40 Gbps and 2-inch OLED display for system monitoring
Retro-inspired copper aesthetic

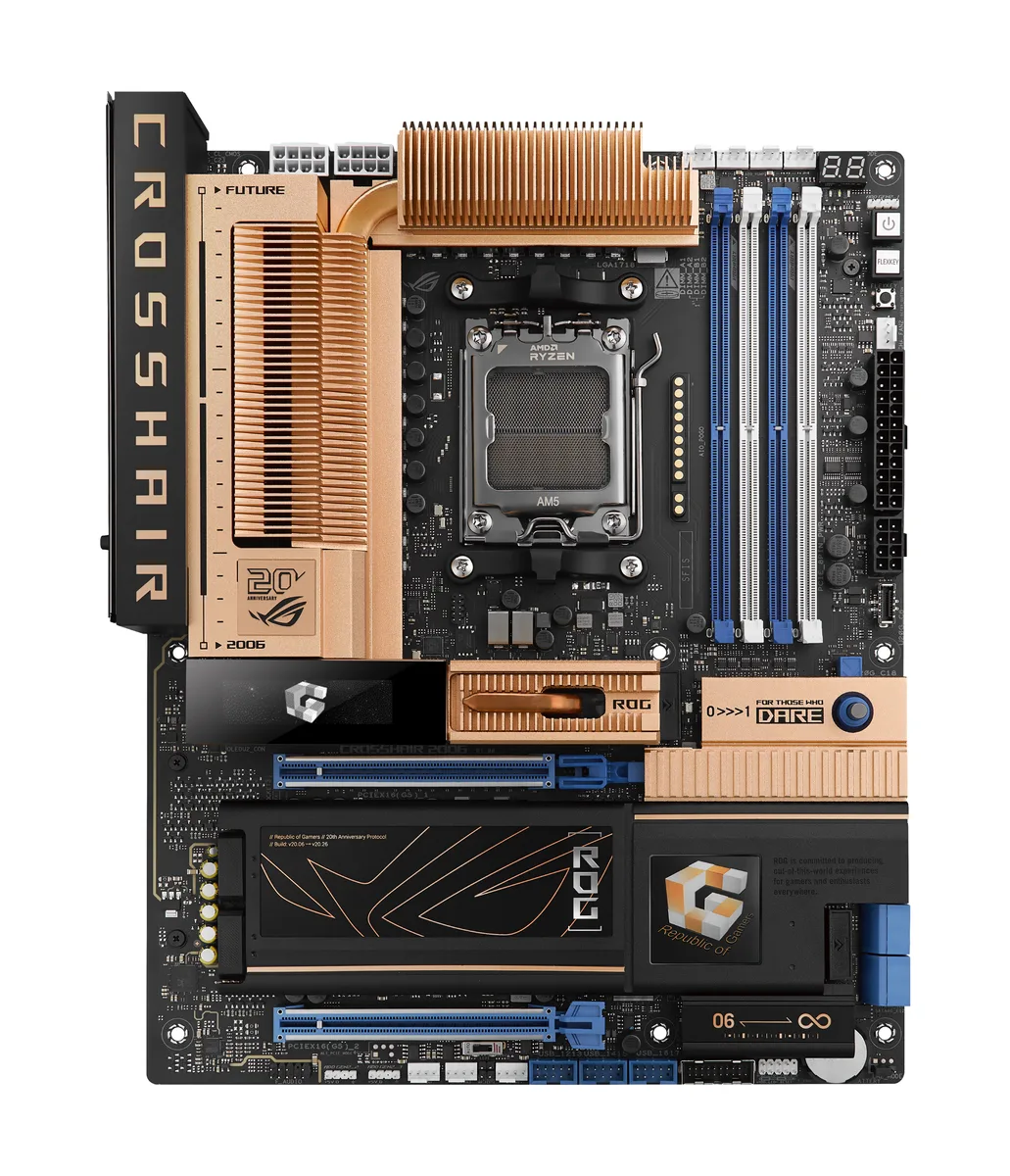

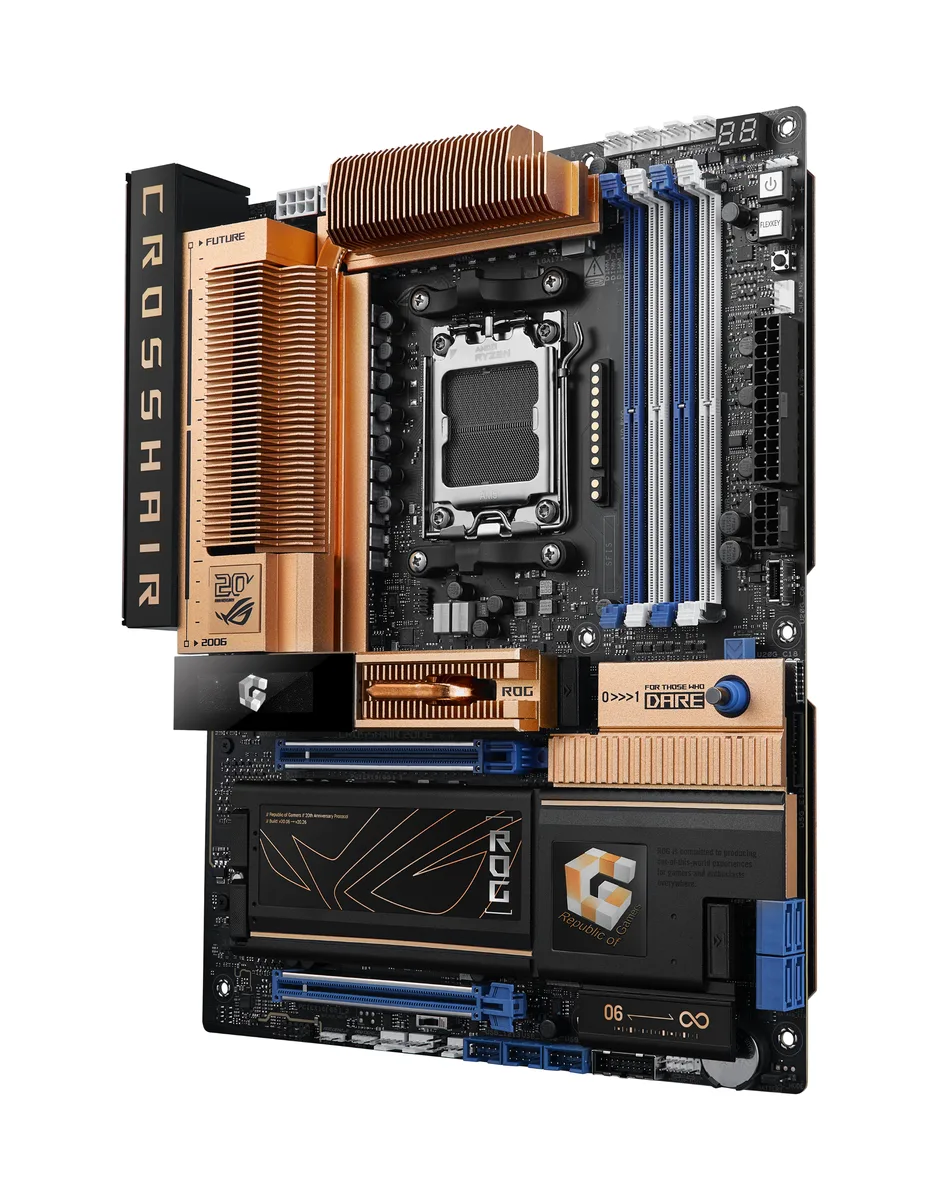

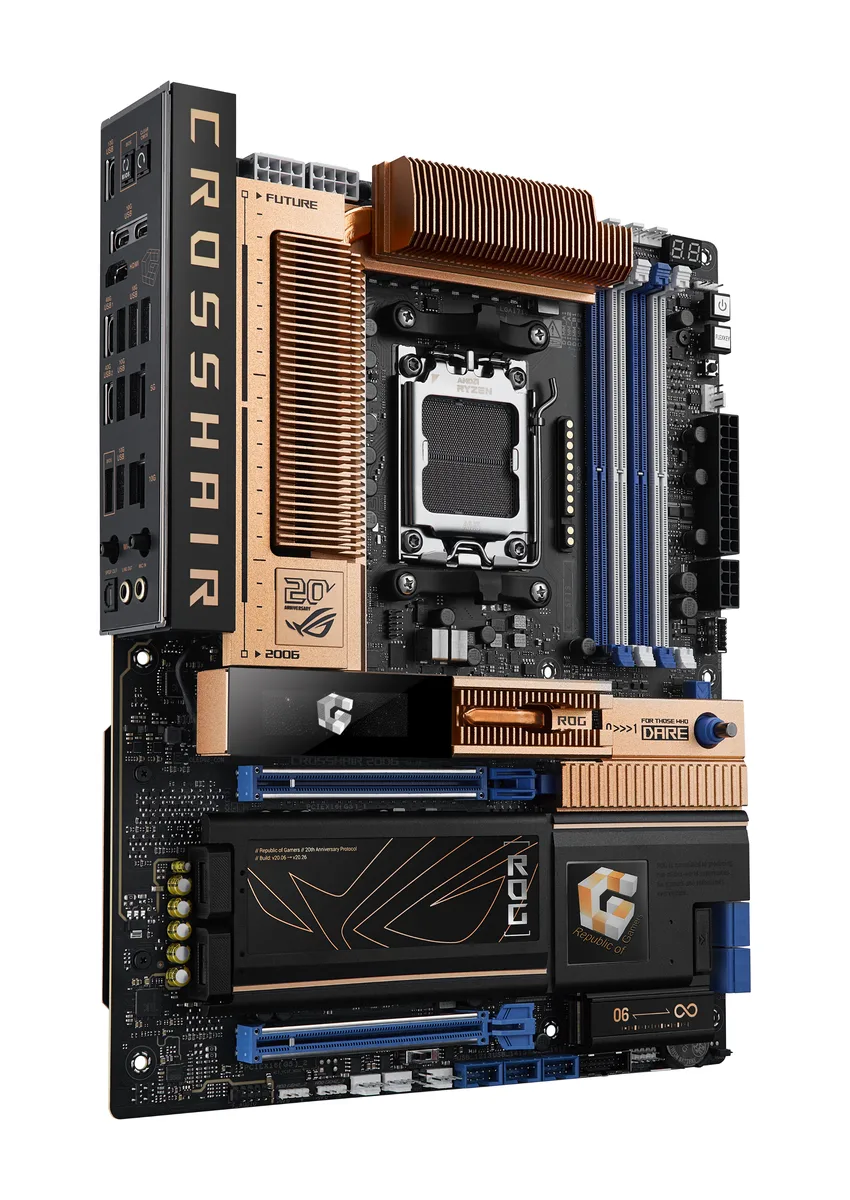

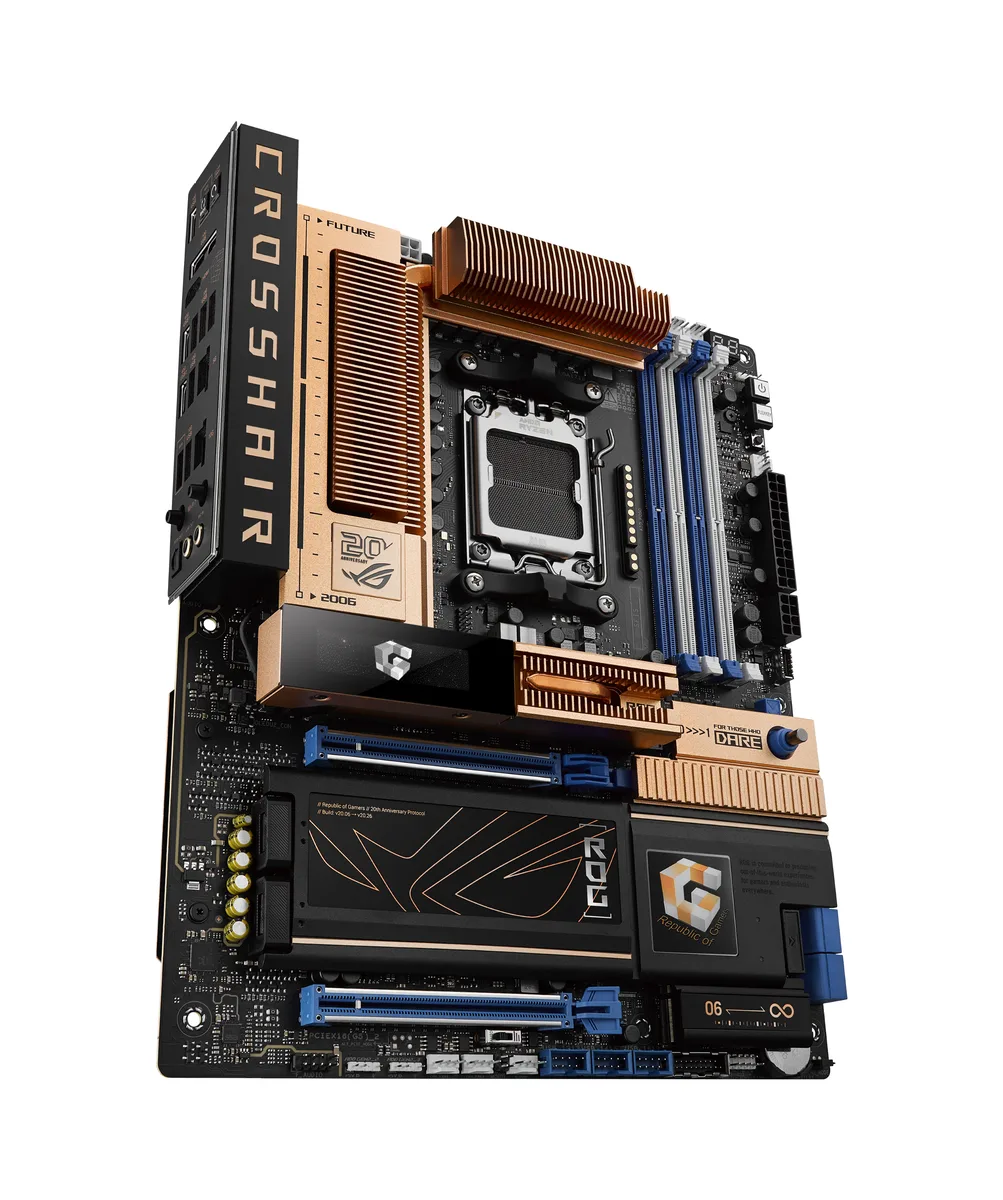

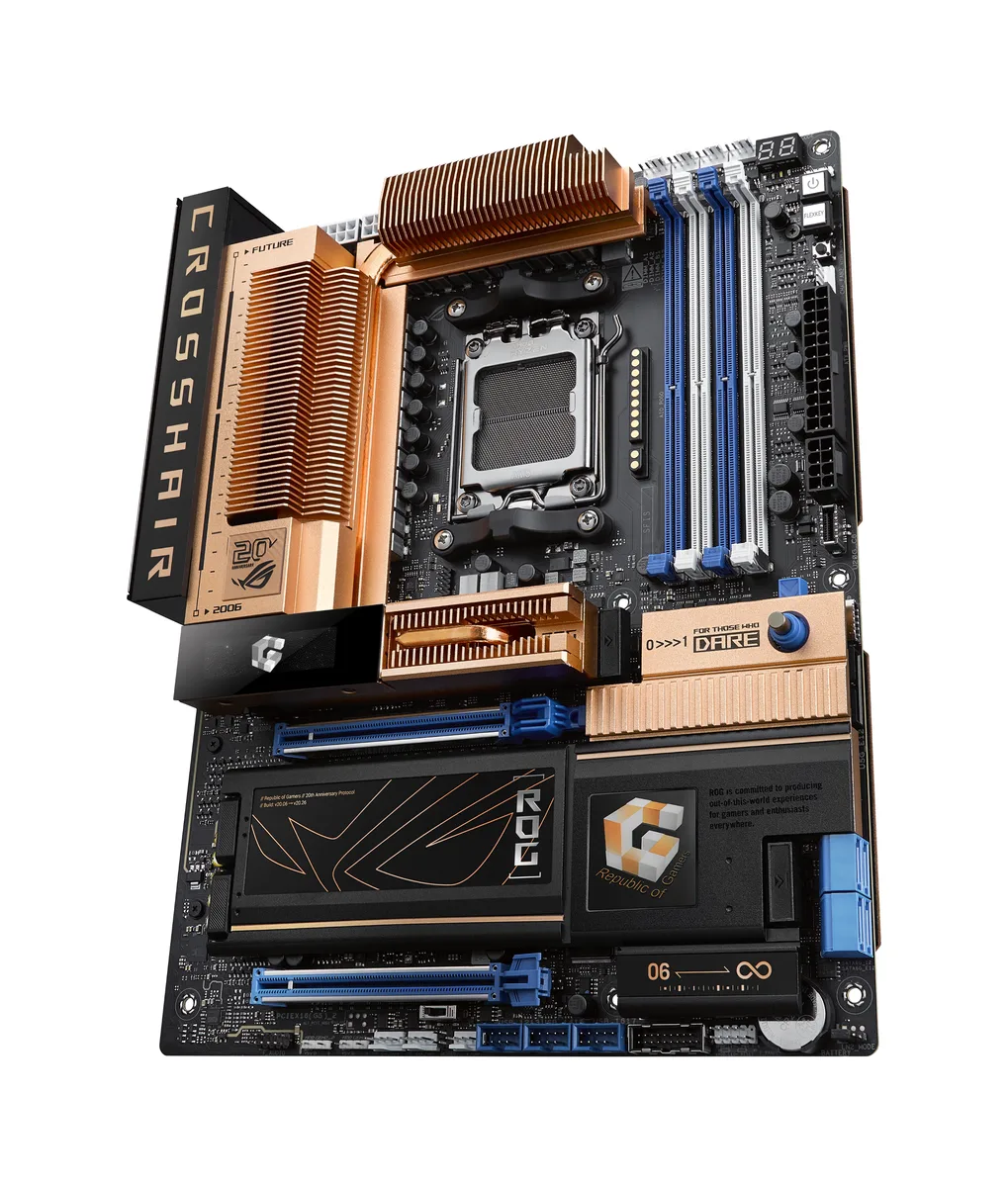

The ASUS ROG Crosshair 2006 AM5 ATX motherboard uses the AMD X870E chipset and AM5 socket to support Ryzen 7000, 8000 and 9000 series processors. A predominantly copper finish with blue and white accents references the original ROG board. It targets builders who want a distinctive look alongside current-platform compatibility.
Four DDR5 slots and five M.2 sockets
Four 288-pin DDR5 slots accept up to 256 GB in dual-channel mode with AMD EXPO profiles and ECC support. Five M.2 slots take 2242, 2260, 2280 or 22110 modules, with the top two running at PCIe 5.0 x4 on Ryzen 9000 and 7000 CPUs. Two SATA 6 Gb/s ports and RAIDXpert2 RAID 0, 1, 5, 10 remain available for additional storage.
Twenty 110 A power stages and massive heatsinks
The VRM uses twenty 110 A stages plus two more 110 A stages and two additional stages, fed through ProCool II connectors with MicroFine alloy chokes and metallic capacitors. Large heatsinks integrated with the I/O cover join via an L-shaped heatpipe and high-conductivity thermal pads to the power stages. AI Cooling II and AI Networking II manage fan curves and traffic during extended workloads.
Highlights
- Supports Ryzen 7000, 8000 and 9000 series processors with AM5 socket
- Dual PCIe 5.0 x16 slots enable x16 or x8/x8 graphics configurations
- 256 GB DDR5 capacity across four slots with AMD EXPO profiles
- 10 Gb and 5 Gb Ethernet plus WiFi 7 for high-speed networking
- Two USB4 ports at 40 Gbps and 2-inch OLED display for system monitoring
Specifications
| Brand | ASUS |
|---|---|
| Model | ROG Crosshair 2006 AM5 ATX |
| Part Number | 90MB1PP0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8333 / DDR5 8400 / DDR5 8600 / DDR5 8666 / DDR5 8800 / DDR5 8933 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9333 / DDR5 9466 / DDR5 9500 / DDR5 9600 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4) ** When PCIEX16_1 runs at PCIe 5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS. |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* AMD Ryzen 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10* * SATA ports from ASM1162 cannot support RAID |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound a |
| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Onboard USB | 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x AIO Q-Connector Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| BIOS Feature | 64 MB (512Mb) Flash ROM, UEFI AMI BIOS |
| Features | Ready for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors Retro-Inspired Design: Predominantly copper aesthetic with touches of blue and white pays tribute to the very first ROG motherboard Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and |

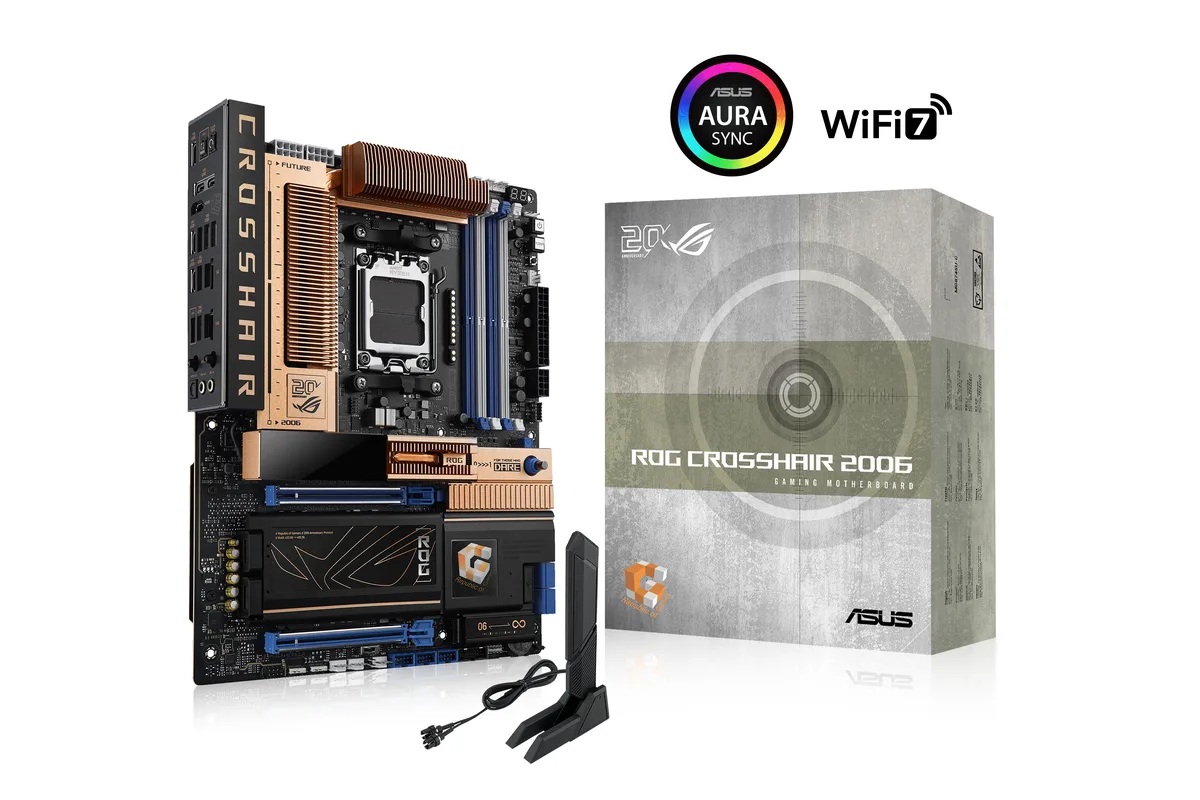

| Package Contents | Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 backplate rubber packages 1 x ROG stickers 1 x ROG screwdriver Documentation 1 x Quick start guide |
| Shipping weight | 5.17 kg |
| Package size | 409 × 333 × 132 mm |
Questions about this item
Will the 20 110A power stages handle continuous all-core loads on a Ryzen 9000 CPU without throttling?
The 20 110A stages with ProCool II connectors and MicroFine alloy chokes are designed for sustained high-current delivery to the CPU socket.
How loud does the chipset fan get when the 10Gb LAN and five M.2 slots run 24/7?
Massive heatsinks integrated with the I/O cover, an L-shaped heatpipe and high-conductivity thermal pads passively cool the VRM and chipset area.
Which DDR5 kits and CPU cooler mounting hardware must I already have to populate the four 288-pin slots?
Any DDR5 DIMM up to 256 GB total with AMD EXPO support fits the four slots; the board uses the standard AM5 cooler mounting pattern.
