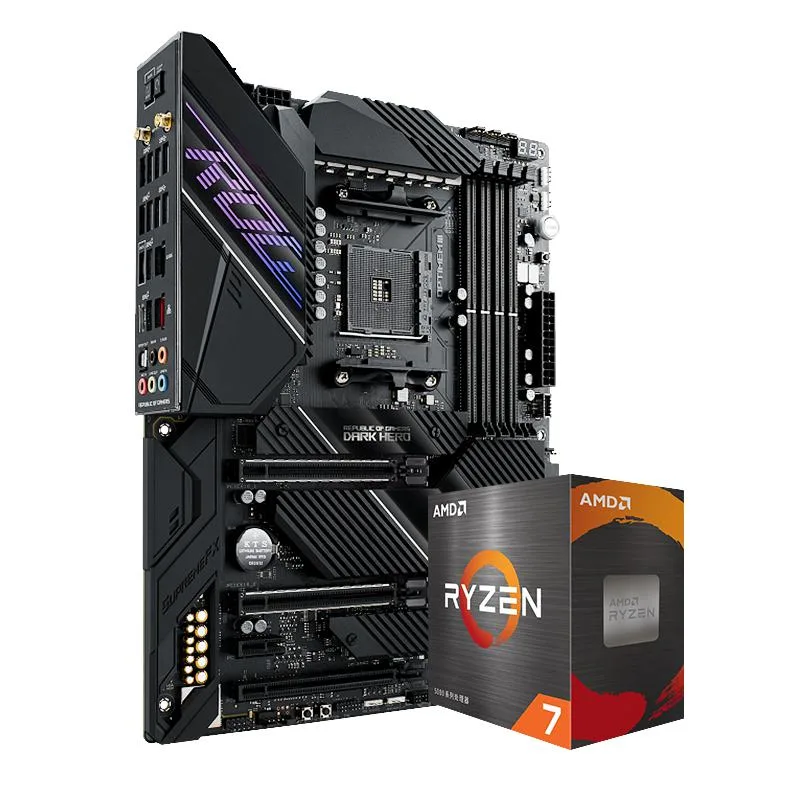

ATX motherboard in dark finish with matching Ryzen 7 5800X processor

ASUS

ASUS ROG Crosshair VIII Dark Hero X570S AMD motherboard and Ryzen 7 5800X 8-Core 3.8 GHz 105W

SKU CH-FVPE-BEVN4

X570S board with eight SATA ports, dual LAN and 7.1 audio bundled with an 8-core 3.8 GHz 105 W Ryzen 7 5800X CPU

  • CPU Socket TypeAM4
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardAMD Ryzen 5000 Series/3000 Series Desktop Processors DDR4 48
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel
  • 8-core Ryzen 7 5800X processor delivers 3.8 GHz base speed for strong multi-threaded performance
  • X570 chipset on AM4 socket supports Ryzen 5000 and 3000 series CPUs with PCIe 4.0 lanes
  • Four DDR4 slots accept up to 128 GB memory with overclocked speeds to 4866 MHz
  • Eight SATA 6Gb/s ports plus one M.2 socket for 2242, 2260, 2280 drives give flexible storage options
  • Dual LAN with Intel I211-AT and Realtek 8125-CG plus 7.1 SupremeFX audio covers networking and sound

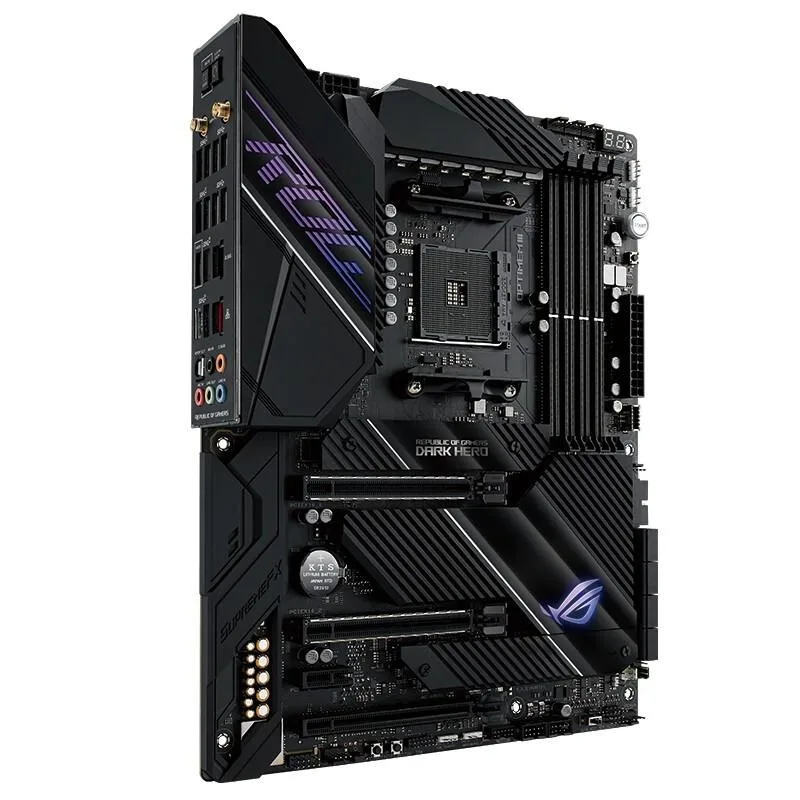

ROG Crosshair VIII Dark Hero X570S combo

This bundle pairs an ASUS ROG Crosshair VIII Dark Hero motherboard with an AMD Ryzen 7 5800X 8-Core 3.8 GHz 105W processor. The board uses the AMD X570 chipset and AM4 socket, supporting Ryzen 5000, 4000 G-Series, 3000 and 2000 Series desktop CPUs. It is built for enthusiasts who want a high-end platform for gaming or content creation with extensive connectivity options.

Suits single-GPU builders with heavy storage needs

The motherboard provides two PCIe 4.0 x16 slots that run at x16 or dual x8 with Ryzen 5000 or 3000 Series processors, plus one PCIe 4.0 x1 slot and one PCI Express 3.0 x16 slot. Eight SATA 6Gb/s ports and one M.2 socket supporting 2242, 2260 and 2280 drives give plenty of room for SSDs and hard drives. Builders needing multiple full-length PCIe 4.0 x16 devices or more than one M.2 slot should consider a different platform.

Deciding spec: one M.2 socket

The board includes a single M.2_1 socket with M Key, accepting Type 2242, 2260 and 2280 drives in PCIe 4.0 x4 or SATA modes. This single high-speed M.2 connection is the limiting factor for fast storage expansion. If the build requires more than one primary M.2 drive, this motherboard will not meet that requirement.

Highlights

  • 8-core Ryzen 7 5800X processor delivers 3.8 GHz base speed for strong multi-threaded performance
  • X570 chipset on AM4 socket supports Ryzen 5000 and 3000 series CPUs with PCIe 4.0 lanes
  • Four DDR4 slots accept up to 128 GB memory with overclocked speeds to 4866 MHz
  • Eight SATA 6Gb/s ports plus one M.2 socket for 2242, 2260, 2280 drives give flexible storage options
  • Dual LAN with Intel I211-AT and Realtek 8125-CG plus 7.1 SupremeFX audio covers networking and sound

Specifications

BrandASUS
SeriesROG
ModelCrosshair VIII Dark Hero
CPU Socket TypeAM4
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory StandardAMD Ryzen 5000 Series/3000 Series Desktop Processors
DDR4 4866(O.C)/ 4800(O.C.)/ 4666(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen 4000 G-Series Desktop Processors
DDR4 5100(O.C)/ 5000(O.C)/ 4866(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen 2000 S
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x16AMD Ryzen 5000 Series/3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
AMD Ryzen 4000 G-Series/2000 Series Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen 3000 G-Series/2000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x16None
PCI Express x11 x PCIe 4.0 x1
Serial ATA (SATA)8 x SATA 6Gb/s
M.2AMD Ryzen 5000 Series/3000 Series Desktop Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen 4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Desktop Processors:
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD X570 chipset:
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID0/1/10
Audio ChipsetROG SupremeFX Surround Sound High Definition Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek RTL8125-CG
Second LAN ChipsetIntel I211-AT
Max LAN Speed2.5Gbps + 1Gbps
Wireless LANIntel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
BluetoothBluetooth v5.1*
* BT 5.1 function will be ready in Windows 10 build 19041 or later.
Back I/O Ports1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x BIOS FlashBack Button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports
HDMI1 x HDMI
USB 3.14 x USB 3.1
USB 3.04 x USB 3.0
Onboard USB2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Other Connectors1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Node Connector(s)
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x TPM connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x Start button
1 x Speaker connector
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Windows 11Supported
FeaturesMulti-GPU Support:
AMD Ryzen 5000 Series/4000 G-Series/3000 Series/2000 Series Desktop Processors:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
AMD Ryzen 3000 G-Series/2000 G-Series Desktop Processors:
Supports AMD 2-Way CrossFireX Technology
Special Features:
AURA:
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS EZ DIY:
- ASUS USB BIOS FlashBack
ASUS Q-Design:
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
BIOS:
256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Man
Package ContentsAccessories:
User's manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card
1 x M.2 SSD screw package(s)

Questions about this item

What size case and power connectors does the ATX board with the 105W CPU need?

The board uses standard ATX mounting holes and requires a 24-pin ATX plus two 8-pin EPS connectors for the 105W processor.

Which BIOS step is often missed when installing the Ryzen 7 5800X on this X570S board?

Update the BIOS to a version that supports Ryzen 5000 series before first boot, otherwise the system will not post with the 3.8 GHz 8-core CPU.

When should the CMOS battery be replaced on this motherboard?

Replace the coin cell when the system loses date and time settings after being unplugged, typically after several years of use.
