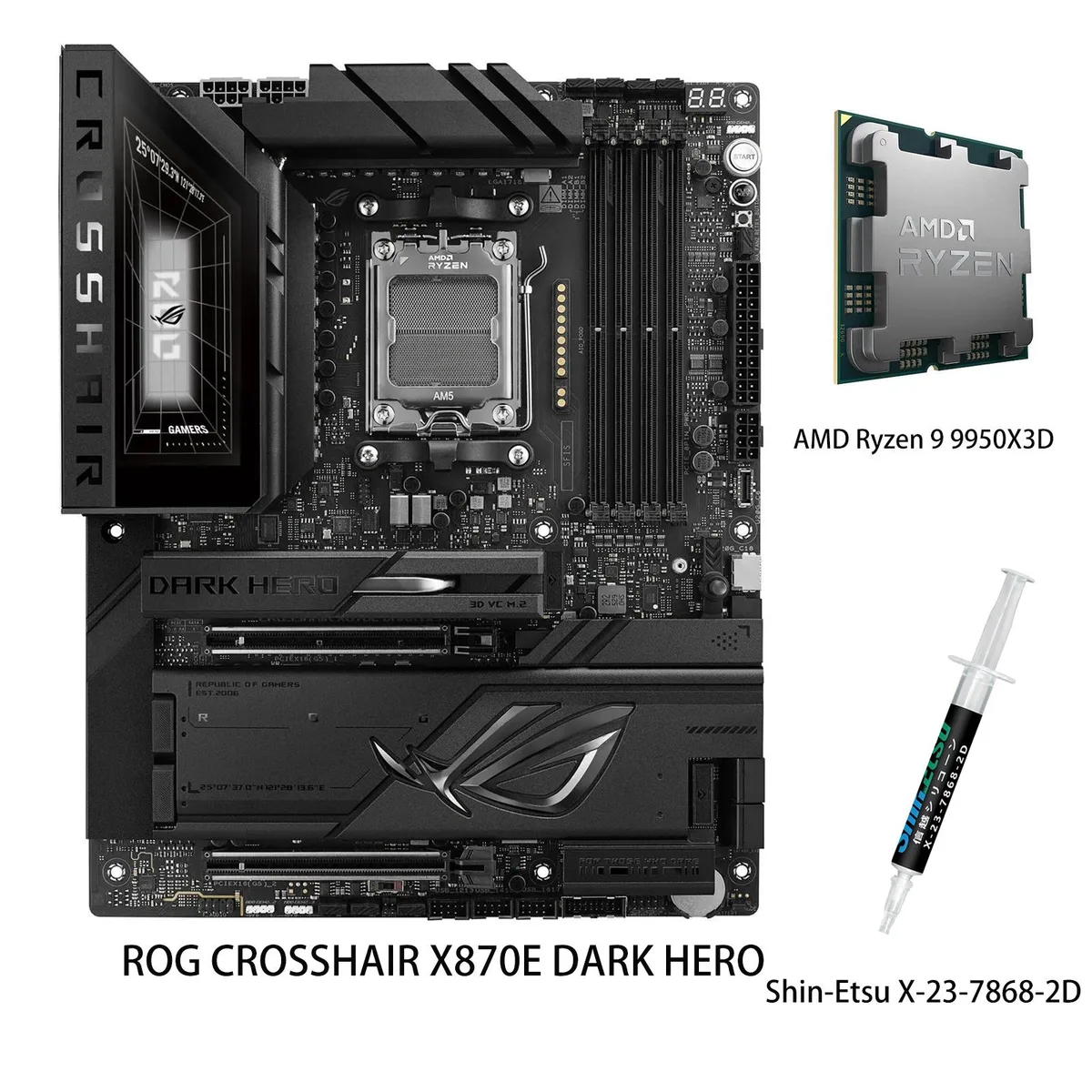

Dark Hero ATX motherboard with Ryzen 9 9950X3D CPU installed, black finish, silver heatsinks, I/O shield integrated

ASUS

ASUS ROG Crosshair X870E Dark Hero AMD motherboard & Ryzen 9 9950X3D CPU Combo

SKU CH-XYDM-5A6SE

AM5 motherboard and Ryzen 9 9950X3D CPU combo with DDR5 support up to 9600 MT/s, dual USB4 40Gbps ports, five M.2 slots including two PCIe 5.0, and 10Gbps plus 5Gbps LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E DARK HERO

+CPU +Ryzen 9 950X3D

  • AM5 socket ready for Ryzen 9000 and 7000 series processors
  • 20 power stages rated 110A with ProCool II connectors for stable delivery
  • 3D vapor-chamber M.2 heatsink cools one PCIe 5.0 slot
  • Dual USB4 Type-C ports at 40Gbps plus nine 10Gbps ports
  • ROG SupremeFX 7.1 audio with ALC4082 codec and impedance sensing

ROG Crosshair X870E Dark Hero AM5 Combo

This combo pairs the ROG Crosshair X870E Dark Hero motherboard with a Ryzen 9 9950X3D processor on the AM5 socket. It targets enthusiasts building high-end workstations or gaming rigs that demand maximum CPU performance and extensive platform connectivity. The bundle simplifies procurement by matching a flagship CPU with a feature-complete board.

Suits AI workloads and multi-GPU builds.

The board delivers dual 10Gbps and 5Gbps Ethernet, Wi-Fi 802.11 be, Bluetooth 5.4, and dual USB4 40Gbps ports for advanced AI PC workflows. Five M.2 slots with substantial cooling support large storage arrays. Builders needing only mainstream gaming performance or fewer expansion lanes can save money with an alternative chipset.

256GB DDR5 capacity ceiling across four slots

The motherboard supports up to 256GB of un-buffered DDR5 across four 288-pin slots in dual-channel mode with ECC capability. Supported speeds reach 8600+MT/s OC with Ryzen 9000 series and 9600+MT/s OC with Ryzen 8000 series. This memory ceiling decides whether the platform fits your dataset or virtualisation requirements.

Highlights

  • AM5 socket ready for Ryzen 9000 and 7000 series processors
  • 20 power stages rated 110A with ProCool II connectors for stable delivery
  • 3D vapor-chamber M.2 heatsink cools one PCIe 5.0 slot
  • Dual USB4 Type-C ports at 40Gbps plus nine 10Gbps ports
  • ROG SupremeFX 7.1 audio with ALC4082 codec and impedance sensing

Specifications

BrandASUS
ModelROG CROSSHAIR X870E DARK HERO +(R9 9950X3D)
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
*When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode.
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors
2 x PCIe 4.0 x16 slots (Total bandwidth for x8)
AMD Ryzen 8500 & 8300 Series Desktop Processors
2 x PCIe 4.0 x16 slots (Total bandwidth for x4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)
*When both PCIEX16_1 a
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound au
Max LAN Speed10Gbps + 5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 10Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x AIO Q-Connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature64 MB (512Mb)
Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- HWiNFO
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
ASUS GlideX
- USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- A
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Fan bracket
- 3D VC M.2 Heatsink
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mo
Package ContentsCables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x DDR5 fan holder
1 x ROG assistant fan (60mm)
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Documentation
1 x Quick start guide
Shin-Etsu X-23-7868-2D
CPU

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 3D VC M.2 heatsink on the M.2_1 slot, and what step is often missed?

Remove the protective film from the thermal pad, place the heatsink over the drive, then secure it with the captive screws; the step people skip is peeling that film, which leaves an air gap and defeats the cooling.

What maintenance will the ROG SupremeFX ALC4082 audio codec and its impedance-sensing jacks need over time?

No scheduled maintenance is required; keep the rear and front-panel jacks free of dust and oxidation, and update the Realtek driver through Armoury Crate when a new version appears.

Which thermal limit appears first on the VRM during a sustained all-core load on the Ryzen 9 9950X3D?

The 20+2+2 110A power stages and MicroFine alloy chokes are cooled by the integrated I/O heatsink and L-shaped heatpipe; under prolonged full-load the VRM temperature will hit its throttle point before the CPU package does.
