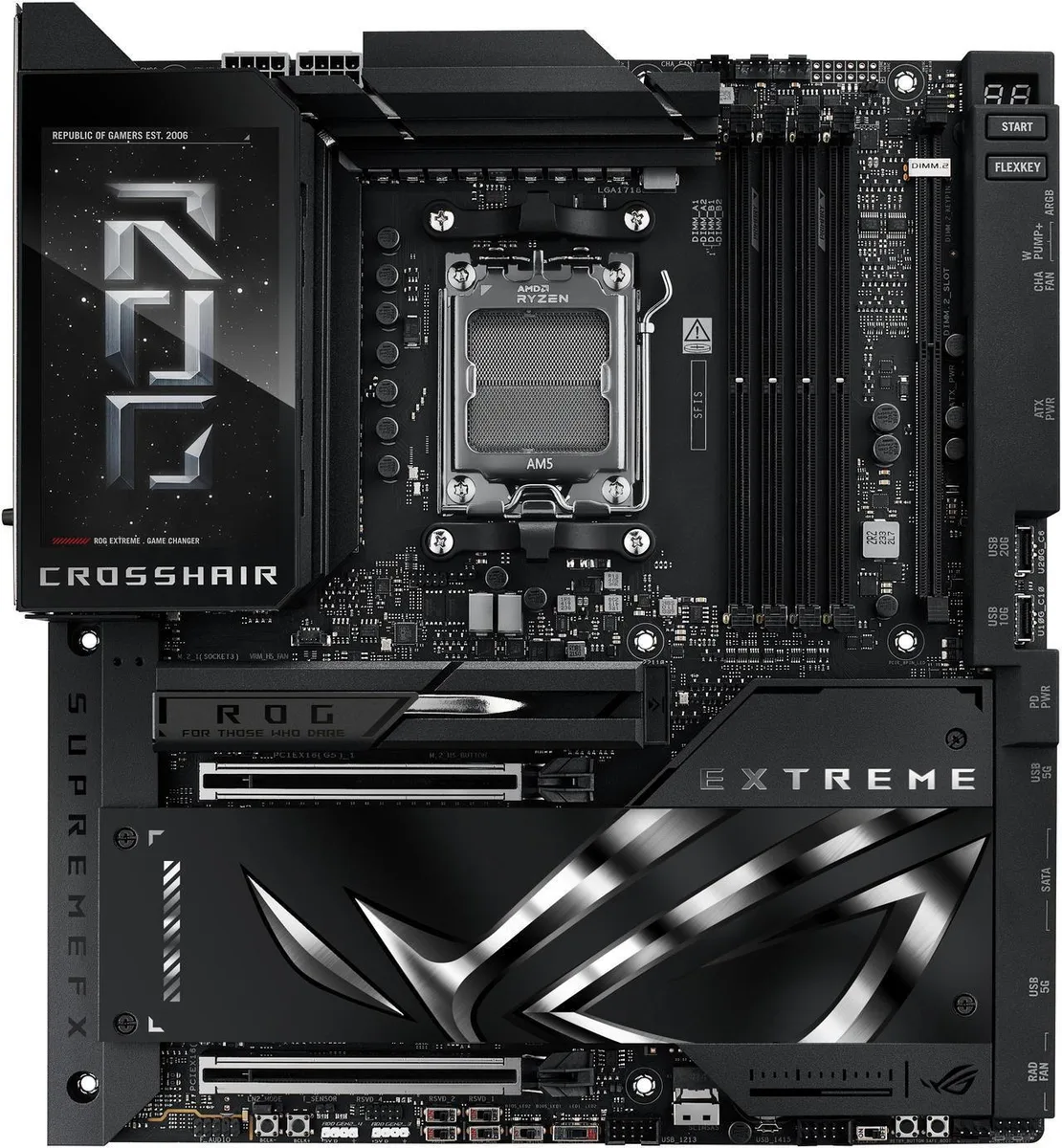

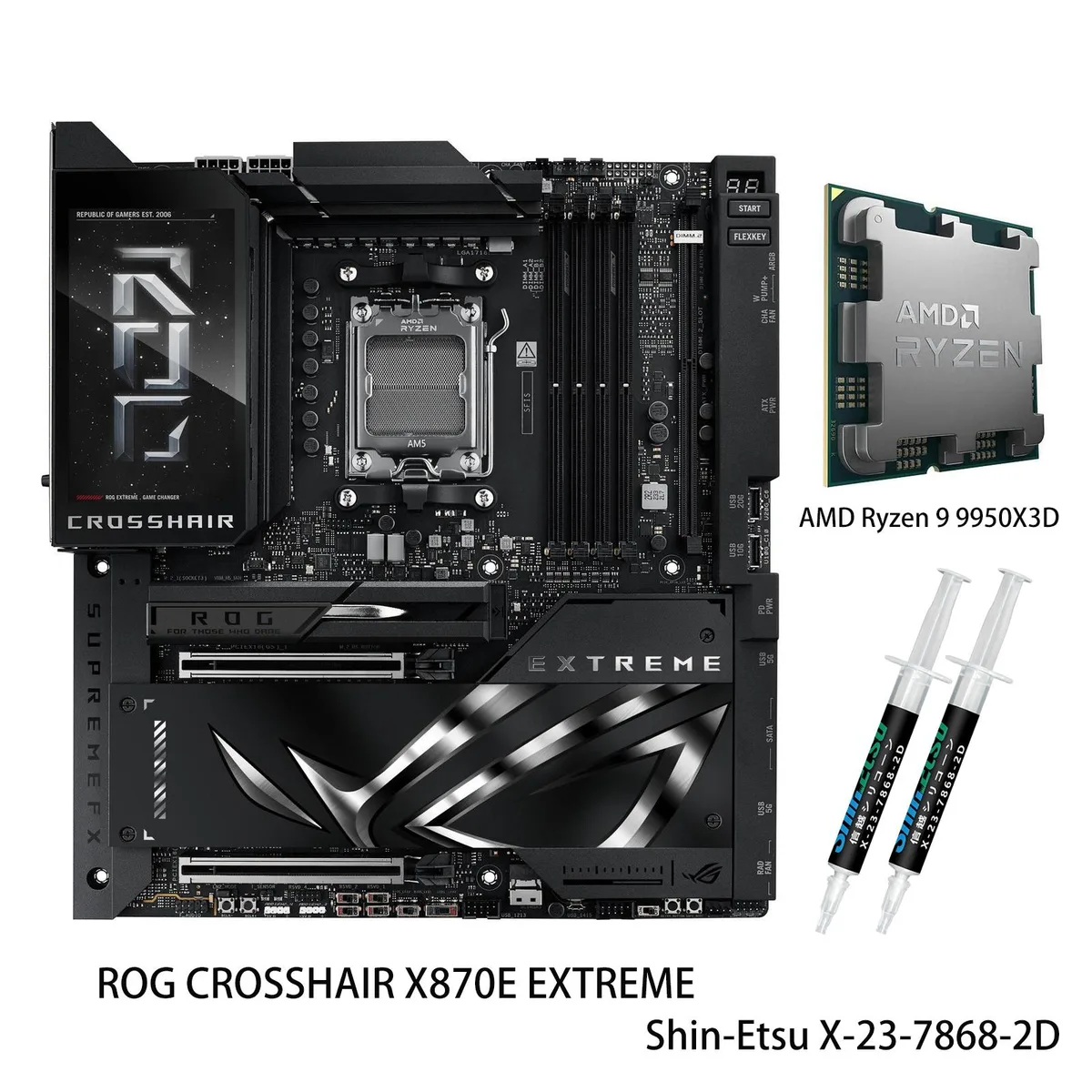

Large E-ATX motherboard with massive heatsinks, integrated I/O cover, 5-inch LCD panel, and Ryzen 9 9950X3D CPU installed

ASUS

ASUS ROG Crosshair X870E Extreme+ R9 9950X3D AMD motherboard CPU combo

SKU CH-44EJ-H6H4Z

AMD AM5 motherboard and Ryzen 9 9950X3D processor combo with 20+2+2 power stages, DDR5 to 8200 MT/s, three PCIe 5.0 M.2 slots, 5G and 10G LAN, Wi-Fi 7 and a 5-inch LCD

  • CPU Socket TypeAM5
  • CPU TypeSupports up to 8200+MT/s(OC) with Ryzen 9000 Series Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E EXTREME

+CPU +Ryzen 9 950X3D

  • AI-ready platform with power and connectivity for demanding workloads
  • 20+2+2 power stages rated at 110A with ProCool II connectors and MicroFine alloy chokes
  • Massive heatsinks with dual U-shaped heatpipes and 3D VC M.2 heatsink for one PCIe 5.0 slot
  • Three onboard PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots via Q-DIMM.2
  • Ryzen 9 9950X3D with 128MB L3 cache and AMD Radeon graphics

Combo for AI and high-end gaming

This bundle pairs an ASUS ROG Crosshair X870E Extreme motherboard with an AMD Ryzen 9 9950X3D processor. The platform targets builders who want a ready-made foundation for advanced AI workloads and competitive gaming. The AM5 socket supports Ryzen 9000, 8000 and 7000 series CPUs. The chip delivers 128MB L3 cache and integrated Radeon graphics.

E-ATX board with extensive M.2 and LAN

The E-ATX motherboard requires a matching case and a DDR5 kit up to 256GB across four 288-pin slots. It provides three onboard PCIe 5.0 M.2 slots plus two PCIe 4.0 slots via a Q-DIMM.2 add-in card, all with substantial heatsinks. Networking includes 5G and 10G Ethernet plus Wi-Fi 7. A 5-inch LCD and USB4 Type-C sit on the rear I/O.

Suits AI developers and enthusiast overclockers

This combo suits users who need maximum core count, large cache and robust power delivery for local AI inference or heavy multitasking. The 20+2+2 110A power stages and AI overclocking tools cater to manual tuning. Builders on a strict budget or using smaller cases should consider a less feature-dense platform.

Highlights

  • AI-ready platform with power and connectivity for demanding workloads
  • 20+2+2 power stages rated at 110A with ProCool II connectors and MicroFine alloy chokes
  • Massive heatsinks with dual U-shaped heatpipes and 3D VC M.2 heatsink for one PCIe 5.0 slot
  • Three onboard PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots via Q-DIMM.2
  • Ryzen 9 9950X3D with 128MB L3 cache and AMD Radeon graphics

Specifications

BrandASUS
SeriesROG
ModelROG CROSSHAIR X870E EXTREME+(R9 9950X3D)
CPU Socket TypeAM5
CPU TypeSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors
8600+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC) with Ryzen 7000 Series Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8.
***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
PCI Express 4.0 x16AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (su
SATA RAID0/1/5/10
Audio ChannelsAudio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
LAN Chipset1 x Realtek 5Gb Ethernet
Second LAN Chipset1 x Marvell AQtion 10Gb Ethernet
Max LAN Speed10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Sy
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backpla

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 170 W CPU hit the VRM thermal limit before the 20+2+2 power stages saturate?

The board uses 20+2+2 power stages rated at 110 A each with massive heatsinks, U-shaped heatpipes and high-conductivity thermal pads, so the VRM thermal capacity is built to handle the 170 W Ryzen 9 9950X3D under sustained load.

How loud and hot does the VRM area get when the 170 W processor runs all day?

Large heatsinks integrated with the I/O cover, dual U-shaped heatpipes and thermal pads spread heat from the 20+2+2 power stages, while AI Cooling II adjusts fan curves to keep noise and temperature in check during extended sessions.

Do I already need DDR5 memory and an AM5 cooler for this combo to work?

Yes — the board has four 288-pin DDR5 slots supporting up to 256 GB dual-channel, and the AM5 socket requires a compatible cooler; neither DDR5 modules nor a cooler are included in the combo.
