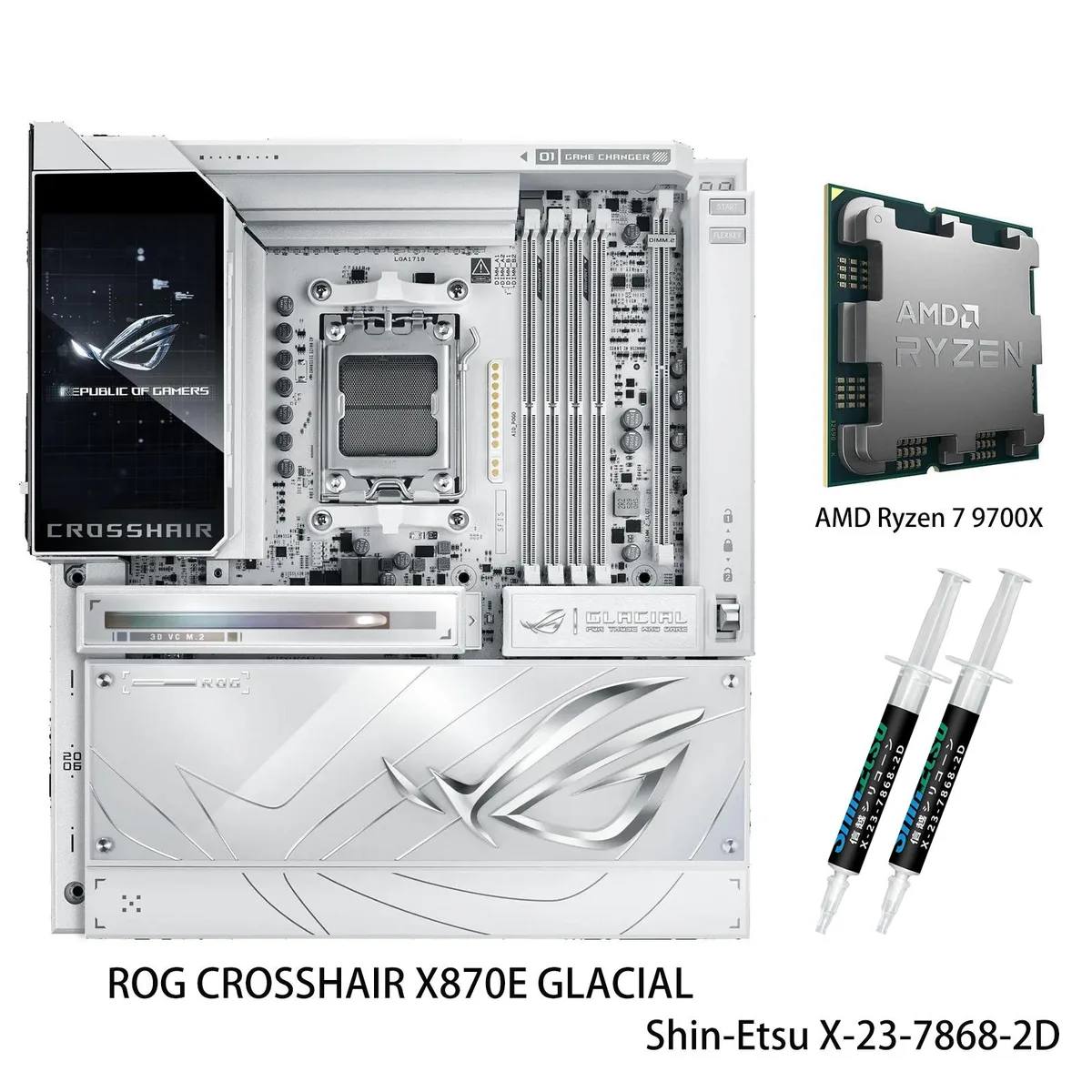

White extended ATX motherboard with silver heatsinks, CPU installed, in anti-static bag

ASUS

ASUS ROG Crosshair X870E Glacial AMD motherboard & Ryzen 7 9700X CPU combo

SKU CH-S70Y-9CM5G

AM5 motherboard paired with a Ryzen 7 9700X CPU, offering DDR5 memory up to 8600 MT/s, dual 10Gb Ethernet, Wi-Fi 802.11 be and Bluetooth 5.4

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E GLACIAL

+CPU +Ryzen 7 9700X

  • Ready for demanding AI workloads with robust power and connectivity
  • 24 plus 2 plus 2 power stages rated at 110A each with ProCool II connectors
  • 3D vapor-chamber M.2 heatsink cools one PCIe 5.0 slot plus massive heatsinks linked by heatpipes
  • Dual USB4 Type-C ports at 40Gbps plus twelve USB 10Gbps ports and dual 10Gb Ethernet
  • Supports DDR5 up to 8600 MT/s overclocked with Ryzen 9000 series and 256GB maximum capacity

Combo for AM5 builders

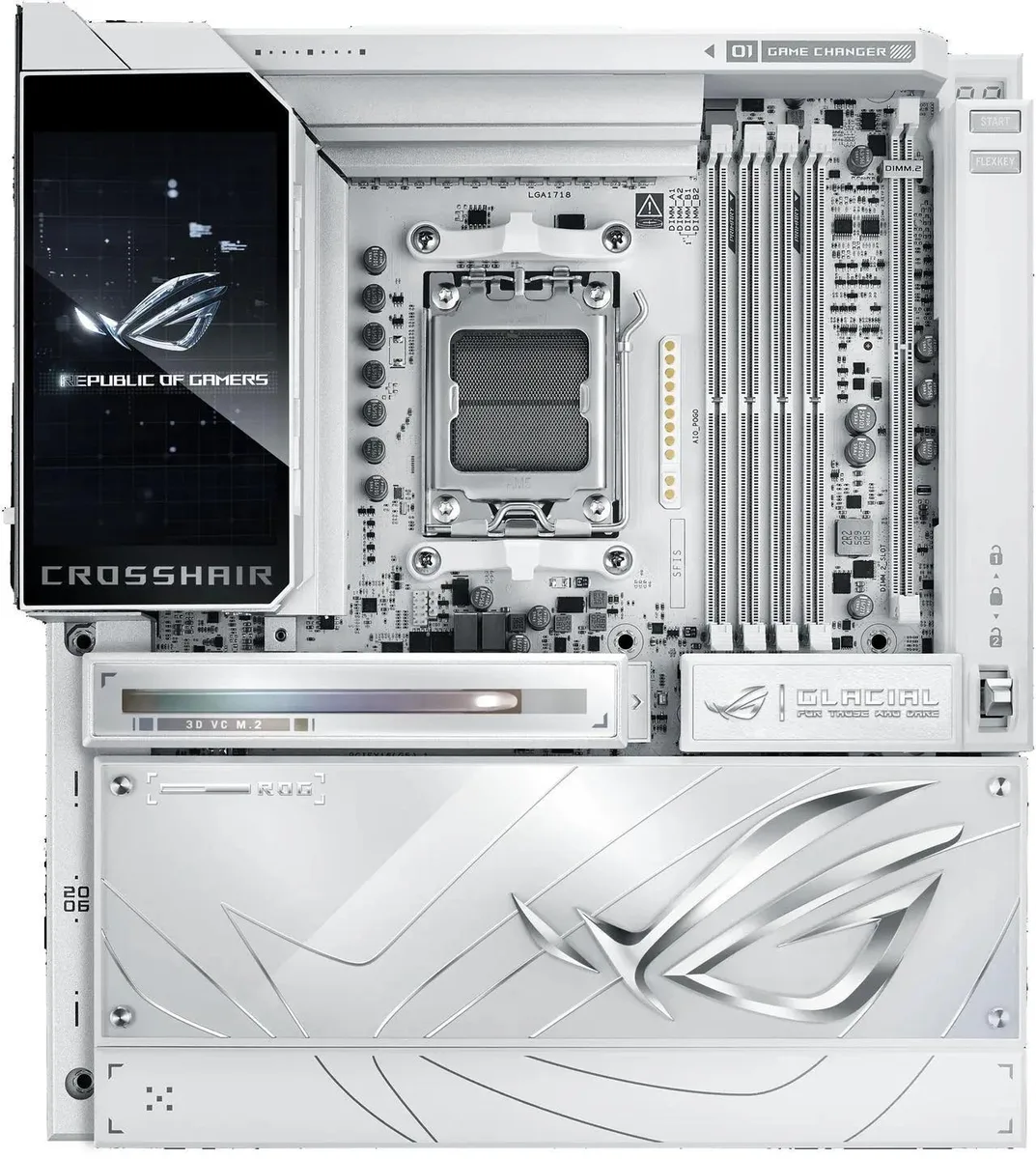

This bundle pairs an ROG Crosshair X870E Glacial motherboard with a Ryzen 7 9700X processor on the AM5 socket. It targets enthusiasts building high-end desktops for AI workloads, gaming and content creation. The board delivers extended ATX layout with robust power delivery and extensive connectivity.

PCIe 5.0 lanes and memory ceiling

The X870E chipset provides two PCIe 5.0 x16 slots configurable to x16 or x8/x8 modes and two CPU-attached M.2 slots at PCIe 5.0 x4. DDR5 support reaches 8600 MT/s with Ryzen 9000 series and 9600 MT/s with Ryzen 8000 series, capped at 256 GB across four slots in dual channel.

24 plus 2 plus 2 power stages

The VRM uses 24 plus 2 plus 2 stages rated at 110 A each, fed by ProCool II connectors, MicroFine alloy chokes and metallic capacitors. This design sustains heavy overclocking headroom for the included 9700X and future Ryzen 9000, 8000 or 7000 series upgrades.

Highlights

  • Ready for demanding AI workloads with robust power and connectivity
  • 24 plus 2 plus 2 power stages rated at 110A each with ProCool II connectors
  • 3D vapor-chamber M.2 heatsink cools one PCIe 5.0 slot plus massive heatsinks linked by heatpipes
  • Dual USB4 Type-C ports at 40Gbps plus twelve USB 10Gbps ports and dual 10Gb Ethernet
  • Supports DDR5 up to 8600 MT/s overclocked with Ryzen 9000 series and 256GB maximum capacity

Specifications

BrandASUS
ModelROG CROSSHAIR X870E GLACIAL+(R7 9700X)
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Specifications vary by CPU types.
**
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
* SATA ports from ASM1162 cannot support RAID
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate
Max LAN Speed2 x 10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C)
1 x Wi-Fi Module
2 x Realtek 10Gb Ethernet ports
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x AIO Q-Connector
1 x Extra Flow Fan header
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 512 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- LCD Display
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manage
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
- HWiNFO
- Turbo Vcore
- ASUS GlideX
- USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the combo with the Ryzen 7 9700X or buy the Crosshair X870E Glacial board alone?

The listing is a fixed bundle containing both the ROG Crosshair X870E Glacial motherboard and the Ryzen 7 9700X processor. No separate board-only option is offered in this SKU.

What does the 8600 MT/s memory figure mean when I install the included Ryzen 7 9700X?

With a Ryzen 9000 series CPU such as the 9700X the board supports DDR5 up to 8600 MT/s when overclocked, or 8200 MT/s at its standard overclocked profile.

What does the USB4 40 Gbps interface cap in real use?

The two rear USB4 Type-C ports run at 40 Gbps and carry DisplayPort video, PCIe data and USB 3 traffic simultaneously, so a single fast SSD or dock can saturate the link.
