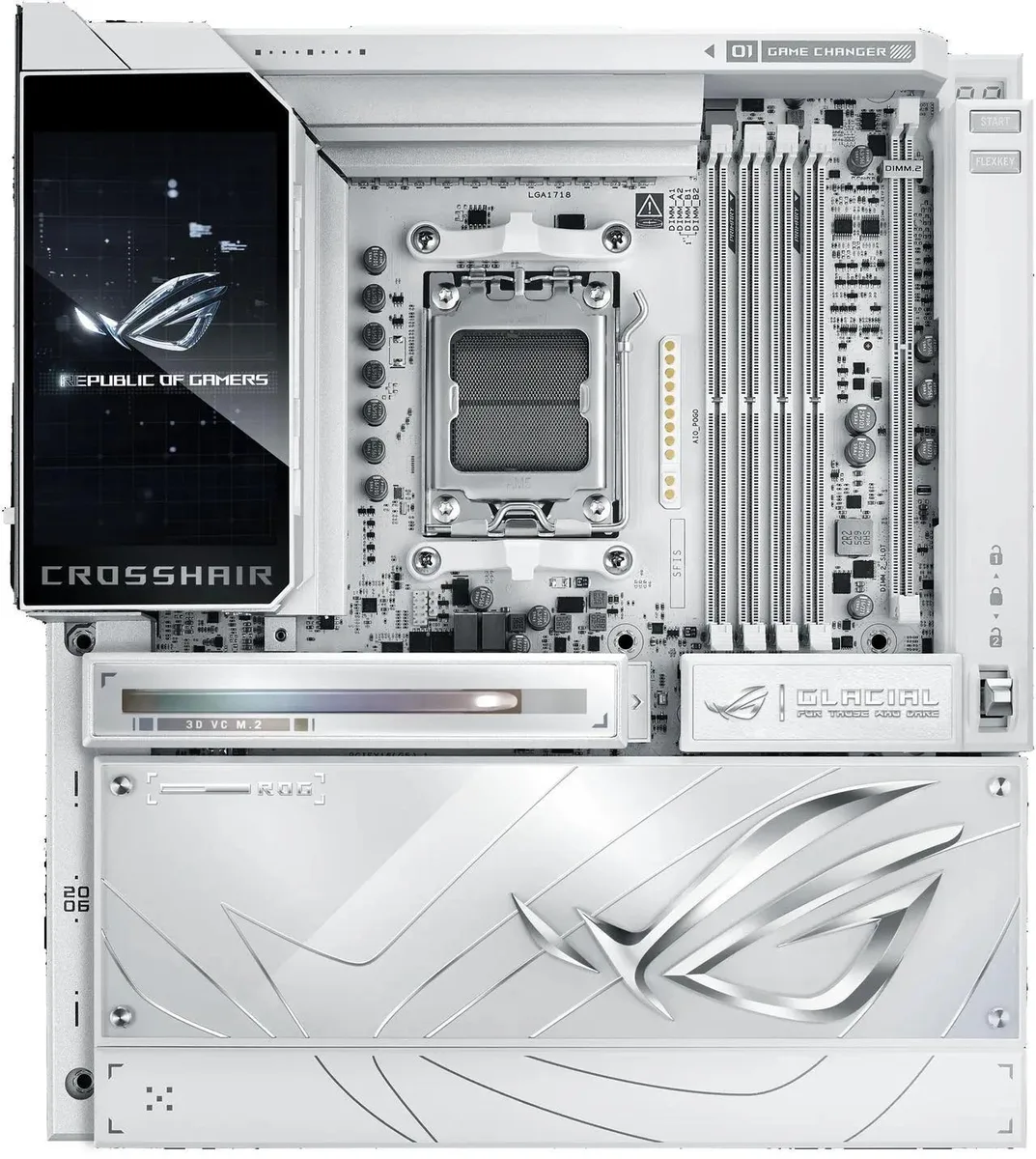

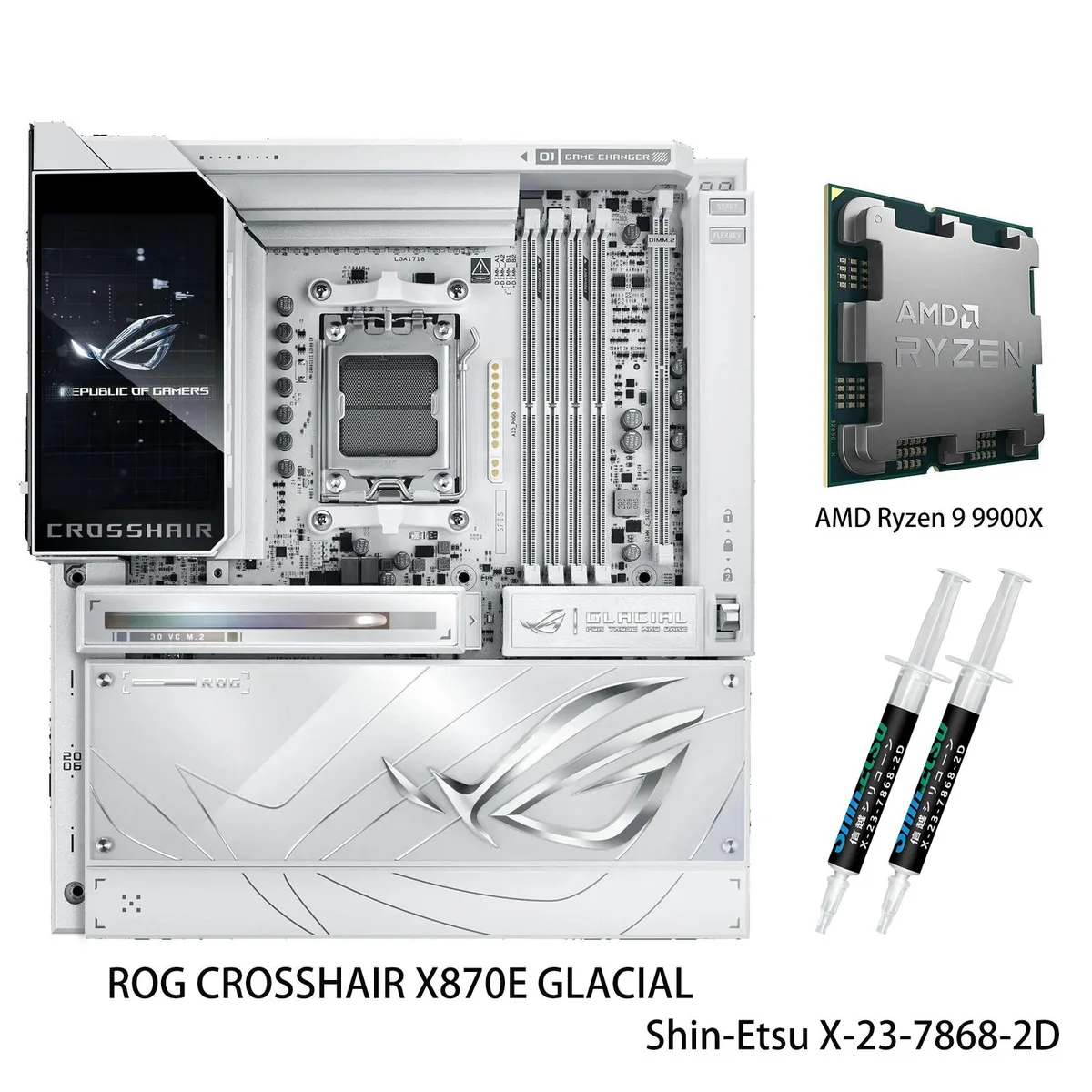

White extended ATX motherboard with silver heatsinks and CPU installed

ASUS

ASUS ROG Crosshair X870E Glacial AMD motherboard & Ryzen 9 9900X CPU Combo

SKU CH-BY20-G19YQ

AM5 motherboard bundled with a Ryzen 9 9900X CPU, supporting DDR5 up to 8600 MT/s, 256 GB capacity, dual 10 Gb Ethernet, Wi-Fi 802.11 be, Bluetooth 5.4 and dual USB4 ports

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 S
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E GLACIAL

+CPU +Ryzen 9 9900X

  • Ready for advanced AI workloads with power and connectivity built for demanding AI applications
  • Supports DDR5 memory up to 9600 MT/s overclocked for Ryzen 8000 series processors
  • 24 plus 2 plus 2 power stages rated at 110 A each deliver robust power for overclocking
  • Dual 10 Gbps LAN, Wi-Fi 802.11 be and Bluetooth 5.4 provide high-speed wired and wireless connectivity
  • 3D vapour-chamber M.2 heatsink cools one PCIe 5.0 slot while massive heatsinks and dual heatpipes cover VRM and I/O

Combo for AM5 builds

This bundle pairs the ROG Crosshair X870E Glacial motherboard with a Ryzen 9 9900X processor. The AM5 socket supports Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256GB of memory. It targets enthusiasts building high-performance AI-ready desktops.

Extended ATX board with robust power and cooling

The board uses 24 plus 2 plus 2 power stages rated at 110A each with ProCool II connectors, MicroFine alloy chokes and metallic capacitors. A 3D vapour-chamber heatsink covers one PCIe 5.0 M.2 slot. Massive heatsinks integrate with the I/O cover and connect via two L-shaped heatpipes. ROG Memory Q-Fan adds active airflow over the DIMMs.

DDR5 up to 9600 MT/s with Ryzen 8000 series

Memory frequency support varies by CPU generation: up to 8600 MT/s with Ryzen 9000, up to 9600 MT/s with Ryzen 8000 and up to 8000 MT/s with Ryzen 7000. Dual-channel operation and ECC are supported. This spec determines the memory kit you should buy for maximum throughput.

Highlights

  • Ready for advanced AI workloads with power and connectivity built for demanding AI applications
  • Supports DDR5 memory up to 9600 MT/s overclocked for Ryzen 8000 series processors
  • 24 plus 2 plus 2 power stages rated at 110 A each deliver robust power for overclocking
  • Dual 10 Gbps LAN, Wi-Fi 802.11 be and Bluetooth 5.4 provide high-speed wired and wireless connectivity
  • 3D vapour-chamber M.2 heatsink cools one PCIe 5.0 slot while massive heatsinks and dual heatpipes cover VRM and I/O

Specifications

BrandASUS
ModelROG CROSSHAIR X870E GLACIAL+(R9 9900X)
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to
8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors
9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes)**
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)
* Specifications vary by CPU types.
**
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode)
AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10*
* SATA ports from ASM1162 cannot support RAID
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Supports LHDC, high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate
Max LAN Speed2 x 10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C)
1 x Wi-Fi Module
2 x Realtek 10Gb Ethernet ports
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x AIO Q-Connector
1 x Extra Flow Fan header
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 512 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- LCD Display
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manage
- ASUS AI Advisor
- AIDA64 Extreme (1 year full version)
- HWiNFO
- Turbo Vcore
- ASUS GlideX
- USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
-

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCI Express generation and lane configuration does the board provide for graphics cards?

The board offers two PCIe 5.0 x16 slots that can run at x16 or split to x8/x8, x8/x4/x4 or x4/x4/x4/x4 depending on the installed CPU.

What case clearance and power connectors are required for the extended ATX board?

An extended ATX case is needed; the board uses ProCool II connectors fed by 24 plus 2 plus 2 power stages rated at 110A each.

How is the bundled Ryzen 9 9900X installed in the AM5 socket, and which step is often missed?

Lift the retention lever, align the triangle on the CPU with the socket marker, lower the lever fully, then attach the cooler — many builders forget to remove the protective plastic cover on the socket before seating the processor.
