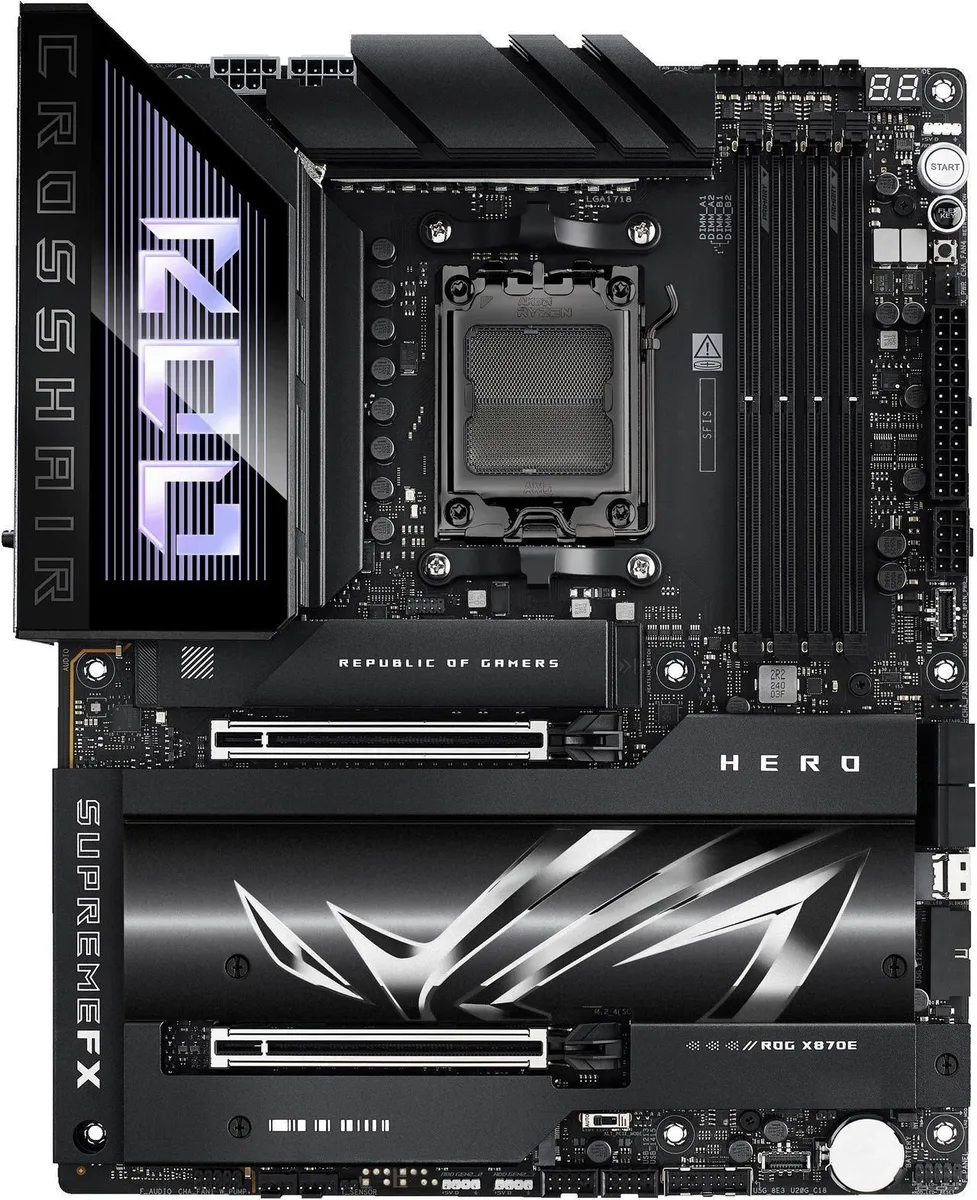

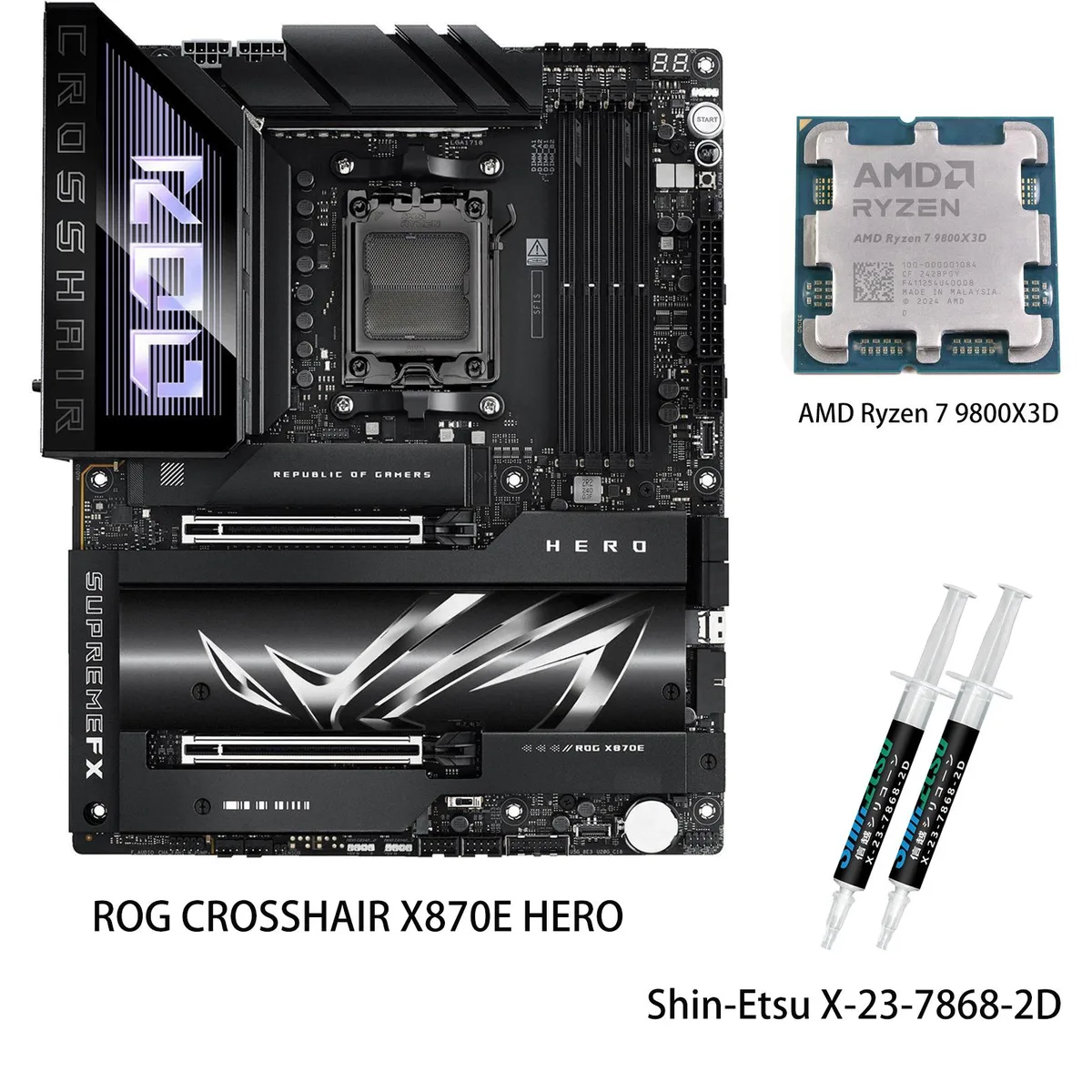

ATX motherboard in black with silver heatsinks and CPU in socket

ASUS

ASUS ROG CROSSHAIR X870E HERO AMD Motherboard & Ryzen 7 9800X3D CPU Combo

SKU CH-GW4Q-RGZZ5

Combines an AM5 ATX motherboard with a Ryzen 7 9800X3D CPU, delivering 18+2+2 power stages, DDR5 support to 8200 MT/s, three PCIe 5.0 M.2 slots, Wi-Fi 7, Bluetooth 5.4.

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model ROG CROSSHAIR X870E HERO

+CPU +Ryzen 7 9800X3D

  • Ready for advanced AI workloads with robust power delivery
  • High-speed DDR5 memory support up to 8600 MT/s overclocked
  • Five M.2 slots including three PCIe 5.0 for fast storage
  • Wi-Fi 7 and dual Ethernet up to 5 Gbps for low-latency networking
  • 18+2+2 power stages rated at 110 A ensure stable CPU overclocking

Ready for advanced AI PC

This ASUS ROG CROSSHAIR X870E HERO motherboard and AMD Ryzen 7 9800X3D CPU combo targets enthusiasts building high-performance systems. The AMD AM5 socket supports Ryzen 9000, 8000 and 7000 series processors. The X870E chipset provides PCIe 5.0 connectivity and dual-channel DDR5 memory support up to 256GB across four 288-pin slots.

18+2+2 power stages at 110A

The robust power solution uses 18+2+2 power stages rated at 110A each, paired with ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors. This design delivers stable current for the included Ryzen 7 9800X3D and headroom for overclocking via AI Overclocking, Dynamic OC Switcher, Core Flex and PBO Enhancement.

Wi-Fi 7 and USB4 expand connectivity

Onboard Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet provide high-speed networking. Two USB4 40Gbps Type-C ports, eight USB 10Gbps ports, five M.2 slots (three PCIe 5.0, two PCIe 4.0) and ROG SupremeFX 7.1 audio with ALC4082 codec complete the I/O.

Highlights

  • Ready for advanced AI workloads with robust power delivery
  • High-speed DDR5 memory support up to 8600 MT/s overclocked
  • Five M.2 slots including three PCIe 5.0 for fast storage
  • Wi-Fi 7 and dual Ethernet up to 5 Gbps for low-latency networking
  • 18+2+2 power stages rated at 110 A ensure stable CPU overclocking

Specifications

BrandASUS
ModelROG CROSSHAIR X870E HERO +(R7 9800X3D)
Part NumberROG CROSSHAIR X870E HERO +(R7 9800X3D)
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
NitroX Slot
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen 8700/8600 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen 8500/8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
- To ensure c
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (su
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial a
Audio Channels7.1 Channels
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature256Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
-
Package ContentsCables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 8200 MT/s DDR5 figure mean once the board and CPU are installed?

With the included Ryzen 7 9800X3D the four DDR5 slots can run memory up to 8200 MT/s when overclocked, delivering high bandwidth for gaming and AI workloads.

How does the PCIe 5.0 interface cap graphics and storage performance in practice?

The top x16 slot and the first three M.2 slots use PCIe 5.0, so a modern GPU and up to three PCIe 5.0 SSDs each get full x4 or x16 bandwidth without sharing lanes.

What does the ATX motherboard physically need to fit and mount in a case?

The board follows the standard ATX layout with 288-pin DDR5 slots, four SATA ports, five M.2 sockets (2242, 2260, 2280) and rear I/O including two USB4 Type-C ports, so any ATX-compatible case and PSU with 24-pin plus 8-pin CPU power will accommodate it.
