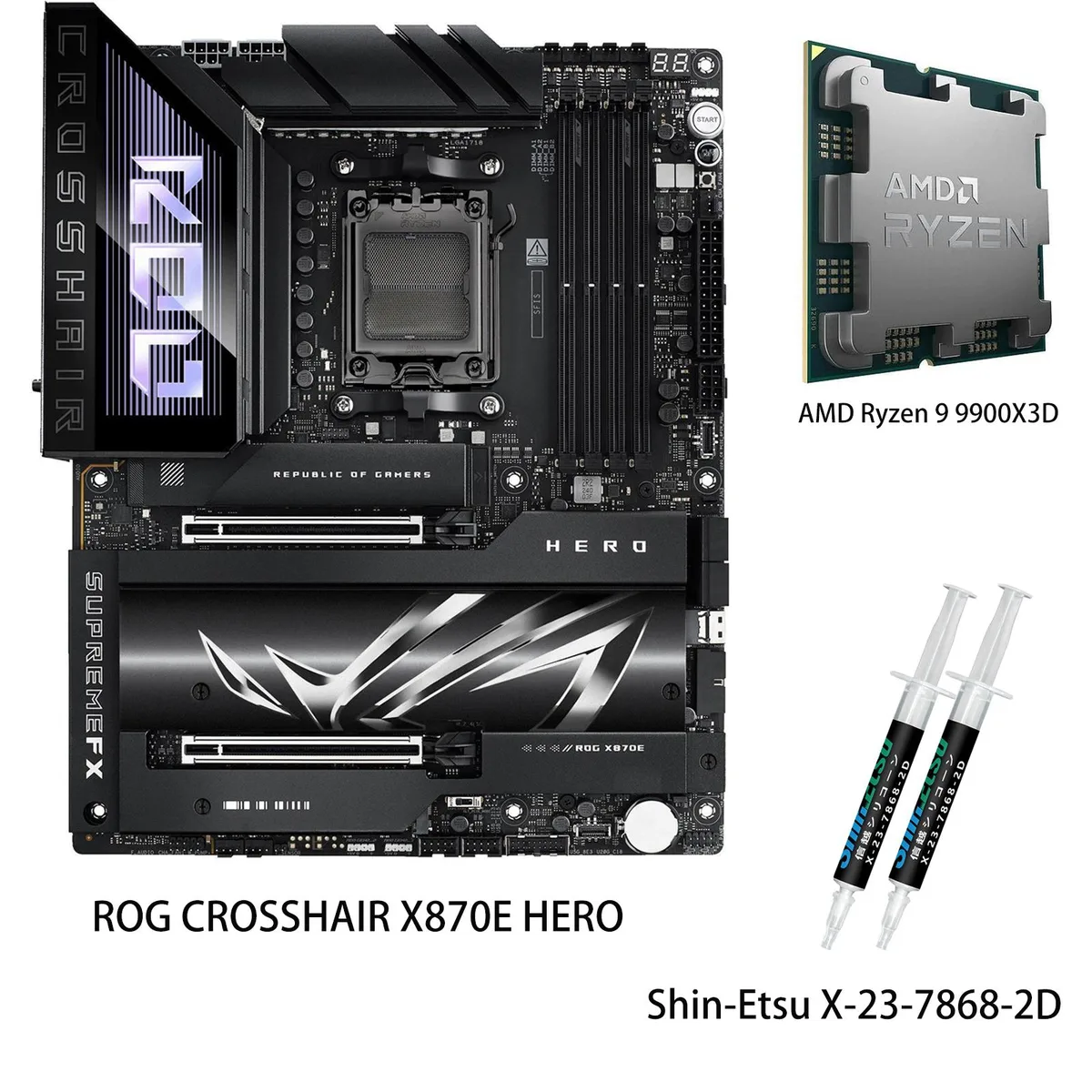

ATX motherboard in dark finish with large CPU cooler and prominent ROG branding

ASUS

ASUS ROG CROSSHAIR X870E HERO + Ryzen 9 9900X3D AMD motherboard

SKU CH-E6TM-J2V69

AM5 motherboard and Ryzen 9 9900X3D combo with 18+2+2 power stages, DDR5 to 8200 MT/s, three PCIe 5.0 M.2 slots, Wi-Fi 7, dual 2.5Gb and 5Gb Ethernet, USB4 and 7.1 audio

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model ROG CROSSHAIR X870E HERO

+CPU +Ryzen 9 9900X3D

  • Ready for advanced AI workloads with high-speed connectivity
  • 18+2+2 110 A power stages deliver stable CPU performance
  • DDR5 up to 8600 MT/s OC supported on Ryzen 8000 series
  • Five M.2 slots including three PCIe 5.0 x4 for fast storage
  • Wi-Fi 7 and Bluetooth 5.4 plus 5 Gbps and 2.5 Gbps Ethernet

ROG Crosshair X870E Hero AM5 combo

This bundle pairs the ROG Crosshair X870E Hero motherboard with the Ryzen 9 9900X3D processor on the AM5 socket. It targets enthusiasts building an advanced AI PC or high-end workstation who want a pre-validated CPU and board combination. The platform supports Ryzen 9000, 8000 and 7000 series processors for future upgrade flexibility.

256 GB DDR5 capacity with 8200 MT/s headroom

Four 288-pin slots accept up to 256 GB of dual-channel DDR5, running at 8200+ MT/s with Ryzen 9000, 8600+ MT/s with Ryzen 8000 and 8000+ MT/s with Ryzen 7000. ECC un-buffered modules are supported for data integrity. The 18+2+2 110 A power stages deliver clean current for sustained overclocking, while PCIe 5.0 x16 slots operate at x16 or x8/x8 when both are populated.

Three PCIe 5.0 M.2 slots plus Wi-Fi 7 and USB4

Three M.2 slots (2242, 2260, 2280) run at PCIe 5.0 x4 with substantial heatsinks, while two additional slots run at PCIe 4.0. Rear I/O provides two USB4 40 Gbps Type-C ports, eight USB 10 Gbps ports, HDMI, dual Ethernet at 5 Gbps and 2.5 Gbps, Wi-Fi 7 with Q-Antenna, Bluetooth 5.4 and SupremeFX 7.1 audio with ALC4082 codec.

Highlights

  • Ready for advanced AI workloads with high-speed connectivity
  • 18+2+2 110 A power stages deliver stable CPU performance
  • DDR5 up to 8600 MT/s OC supported on Ryzen 8000 series
  • Five M.2 slots including three PCIe 5.0 x4 for fast storage
  • Wi-Fi 7 and Bluetooth 5.4 plus 5 Gbps and 2.5 Gbps Ethernet

Specifications

BrandASUS
ModelROG CROSSHAIR X870E HERO +(R9 9900X3D)
Part NumberROG CROSSHAIR X870E HERO +(R9 9900X3D)
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
NitroX Slot
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen 8700/8600 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen 8500/8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
- To ensure c
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (su
Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial a
Audio Channels7.1 Channels
Max LAN Speed5Gbps + 2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature256Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
-
Package ContentsCables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 modules rated at 8000 MT/s reach that speed with the Ryzen 9 9900X3D on this board?

The board supports DDR5 up to 8000+ MT/s (OC) with Ryzen 7000 series processors, so 8000 MT/s modules should reach their rated XMP or EXPO profile.

How do I confirm the 18+2+2 power stages and Wi-Fi 7 are active after first boot?

Enter the UEFI and check the AI Overclocking and AI Networking sections; the dashboard shows power-stage status and the Wi-Fi 7 (802.11be) link rate when connected.

What cooling parts come in the box for the five M.2 slots and do I need extra heatsinks?

All five onboard M.2 slots — three PCIe 5.0 and two PCIe 4.0 — include substantial heatsinks pre-installed on the motherboard, so no additional M.2 cooling is required.
