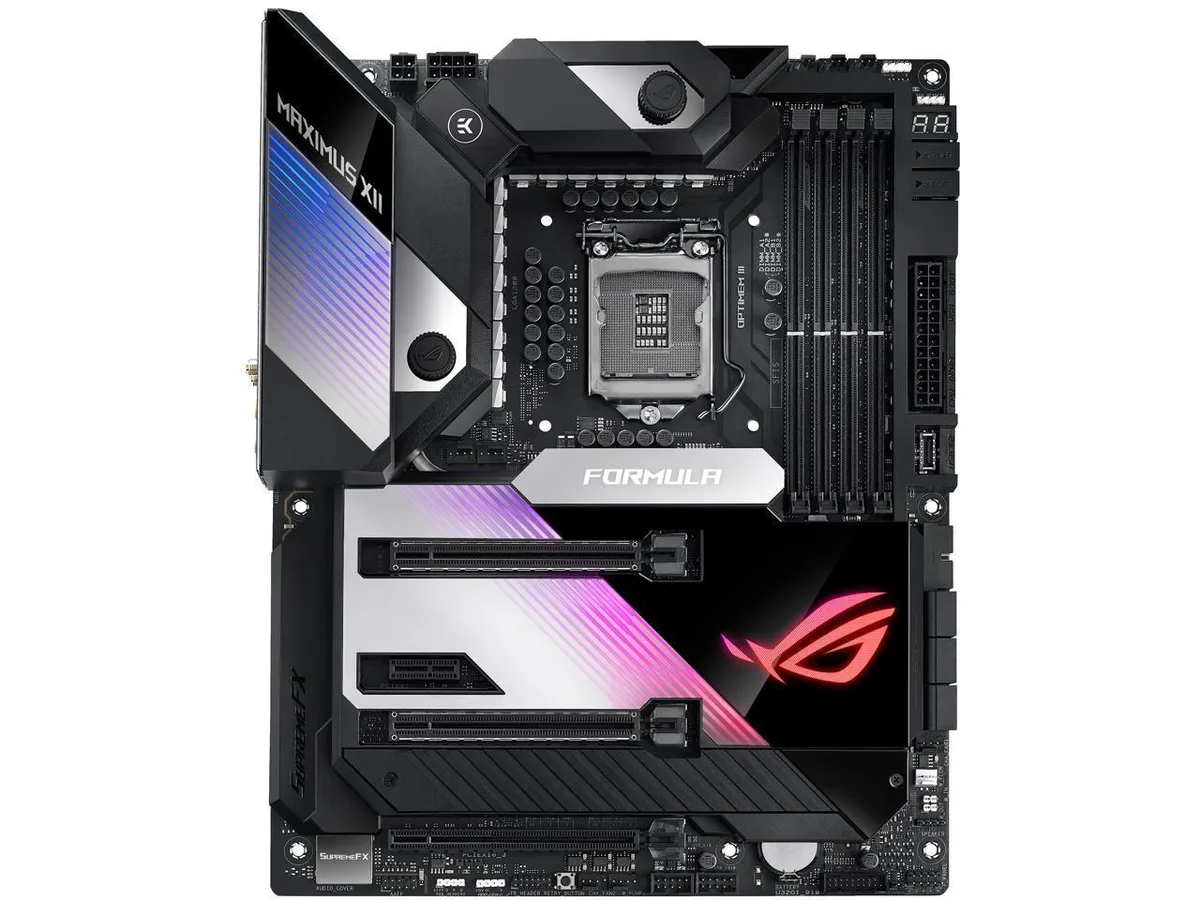

ATX board black finish large heatsinks water block OLED display RGB headers

ASUS

ASUS ROG Maximus XII Formula Intel Z490 Motherboard

SKU CH-DS57-T9JAE

An Intel LGA 1200 ATX motherboard with the Z490 chipset, 16 power stages rated at 70 amps, a hybrid VRM water block, 10 Gb and 2.5 Gb Ethernet, WiFi 6 AX201, triple M.2 slots.

  • CPU Socket TypeLGA 1200
  • CPU TypeIntel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z490
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4700+(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)
  • LGA 1200 socket built for 10th Gen Intel Core processors
  • 16 Infineon power stages rated at 70 amps deliver stable CPU power
  • CrossChill EK III VRM block with large heatsinks enables air or water cooling
  • Intel WiFi 6 AX201 plus 10 Gb and 2.5 Gb Ethernet for fast networking

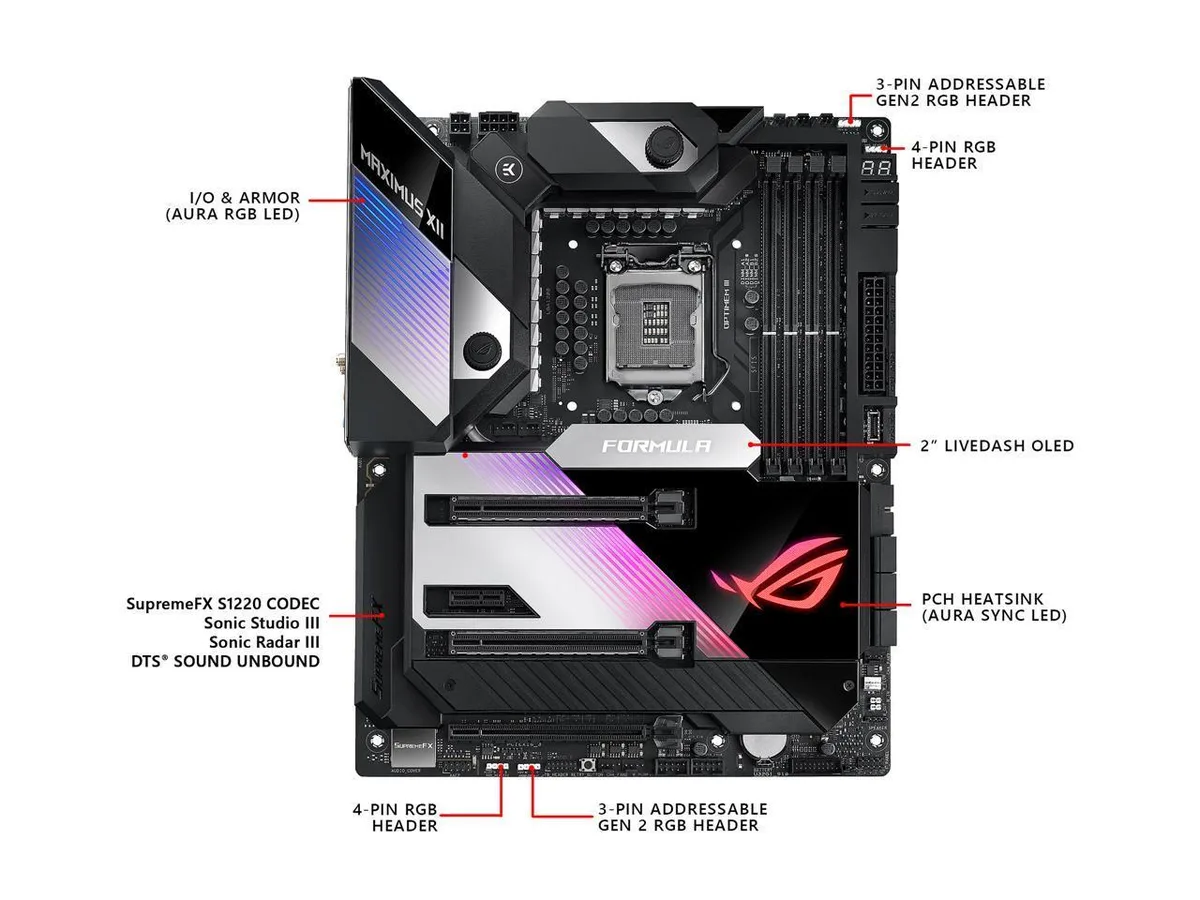

  • 2 inch LiveDash OLED and Aura Sync RGB with four headers for personalisation

Designed for 10th Gen Intel Core

The ASUS ROG Maximus XII Formula uses an LGA 1200 socket paired with the Intel Z490 chipset. It accepts 10th Generation Intel Core, Pentium Gold and Celeron processors. Four 288-pin DDR4 slots support up to 128GB in dual-channel mode with speeds ranging from 2400 to 4700+(O.C.) MHz.

Sustained load power and cooling

Sixteen Infineon power stages rated at 70 amps each deliver stable voltage during extended heavy workloads. The CrossChill EK III VRM block combines extra-large heatsinks with a solid steel backplate, allowing both air and water cooling for the VRM, chipset and M.2 areas.

Installation notes

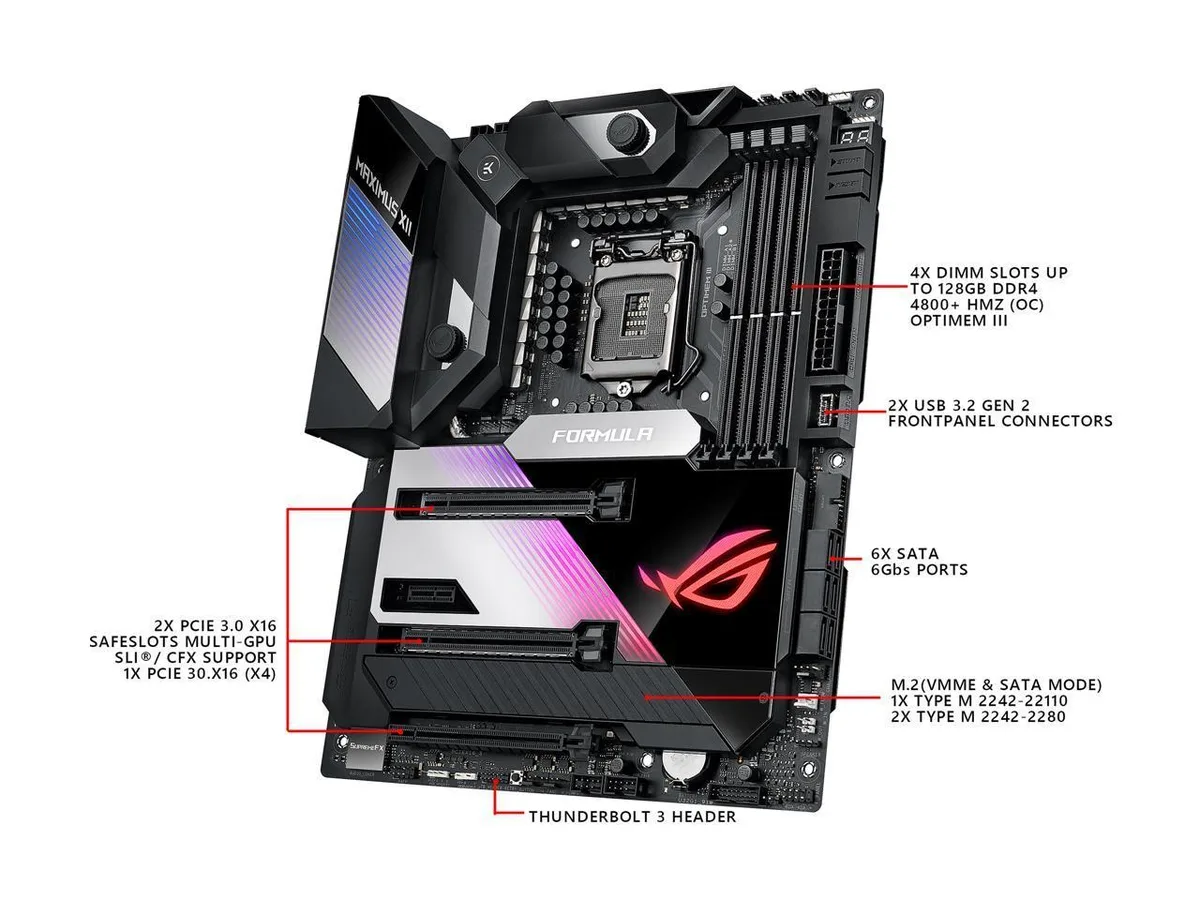

Standard ATX layout fits typical cases, but the integrated water block adds height near the CPU socket. The three M.2 slots share bandwidth with specific PCIe and SATA ports, so populating M.2_3 disables the third x16 slot and using M.2_2 in x4 mode disables SATA ports five and six. The two-inch LiveDash OLED and Aura Sync headers require internal USB and RGB connections.

Highlights

  • LGA 1200 socket built for 10th Gen Intel Core processors
  • 16 Infineon power stages rated at 70 amps deliver stable CPU power
  • CrossChill EK III VRM block with large heatsinks enables air or water cooling
  • Intel WiFi 6 AX201 plus 10 Gb and 2.5 Gb Ethernet for fast networking
  • 2 inch LiveDash OLED and Aura Sync RGB with four headers for personalisation

Specifications

BrandASUS
SeriesROG
ModelMAXIMUS XII FORMULA
CPU Socket TypeLGA 1200
CPU TypeIntel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
* Refer to www.asus.com for CPU support list
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z490
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4700+(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x16Intel 10th Gen Processors
2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes)
Intel Z490 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
* The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.
PCI Express x11 x PCIe 3.0 x1 slot**
** The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled.
Serial ATA (SATA)6 x SATA 6Gb/s
** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.
M.2Intel Z490 Chipset
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
* M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled).
** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.
*** M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetROG SupremeFX High Definition Audio CODEC S1220
Audio Channels8 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN ChipsetAQUANTIA AQC107
Second LAN ChipsetIntel I225-V
Max LAN Speed10Gbps + 2.5Gbps
Wireless LANIntel Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Support 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
BluetoothBluetooth v5.1*
* BT 5.1 function will be ready in Windows 10 build 19041 later.
Back I/O Ports1 x ASUS Wi-Fi Module
1 x BIOS FlashBack button
1 x Clear CMOS button
5 x Gold-plated audio jacks
1 x Intel I225-V 2.5Gb Ethernet
1 x Marvell AQtion AQC107 10Gb Ethernet
1 x Optical S/PDIF out port
1 x PS/2 keyboard/mouse combo port
6 x USB 3.2 Gen 1 port(s) (6 x Type-A)
4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C)
Onboard USB1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and cooling-related
1 x 4-Pin CPU fan header
1 x 4-Pin CPU OPT fan header
1 x 4-Pin AIO Pump header
3 x 4-Pin Chassis fan headers
1 x 4-Pin H_AMP fan header
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Miscellaneous
2 x AURA addressable Gen 2 headers
2 x AURA RGB headers
1 x FlexKey button
1 x Front panel audio header (AAFP)
1 x ReTry button
1 x Speaker header
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal sensor header
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesMulti-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Special Features:
ROG Extreme OC kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- 70A Power Stage
- MicroFine Alloy Choke
ASUS Q-Design
- ASUS Q-Code
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- CrossChill EK III
- Steel backplate
ASUS EZ DIY
- BIOS Flashback button
- Clear CMOS button
- Procool II
- Pre
Package ContentsAccessories:
Cables
1 x Addressable RGB extension cable
1 x RGB extension cable
2 x ROG weave SATA 6G cables
4 x SATA 6Gb/s cables
Miscellaneous
2 x M.2 Rubber package(s)
2 x M.2 SSD screw package(s)
1 x Q-connector
1 x ROG logo plate sticker
1 x ROG stickers
1 x ROG thank you card
1 x ASUS 2 x 2 dual band Wi-Fi moving antennas
Installation Media
1 x Support DVD
Documentation
1 x User manual

Questions about this item

How loud and hot does the CrossChill EK III VRM block get when the 16 Infineon power stages run at 70 amps all day?

The hybrid cooling system combines the CrossChill EK III VRM block with extra-large heatsinks for the VRM, chipset and M.2 slots, plus a solid steel backplate that supports both air and water cooling to manage heat from the 16 power stages rated at 70 amps each.

Which DDR4 memory kit and 10th Gen Intel Core processor must I already own for this LGA 1200 board to post?

You need a 10th Gen Intel Core, Pentium Gold or Celeron processor for the LGA 1200 socket and DDR4 modules up to 128 GB across four 288-pin slots running at speeds from 2400 up to 4700+(O.C.) MHz in dual-channel mode.

Will my existing SATA SSDs and PCIe 3.0 add-in cards work alongside the three M.2 slots without losing bandwidth?

Six SATA 6Gb/s ports are available, though M.2_2 shares bandwidth with SATA ports 5 and 6 and runs x2 by default; the PCIe 3.0 x1 slot is disabled when M.2_1 operates in x4 mode, while M.2_3 shares bandwidth with the third PCIe 3.0 x16 slot.
