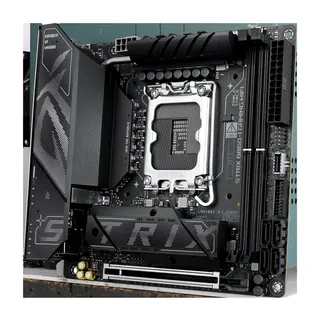

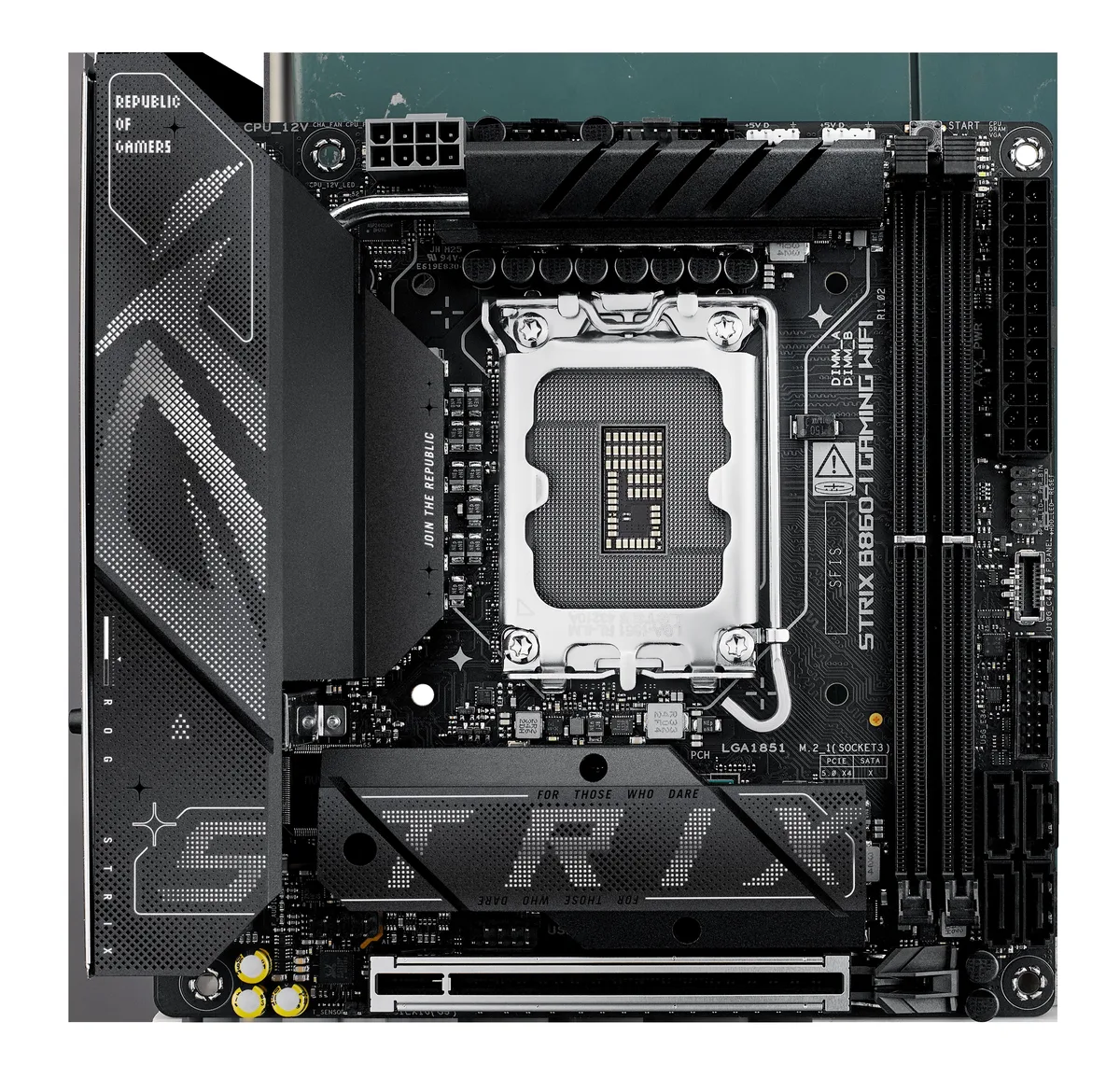

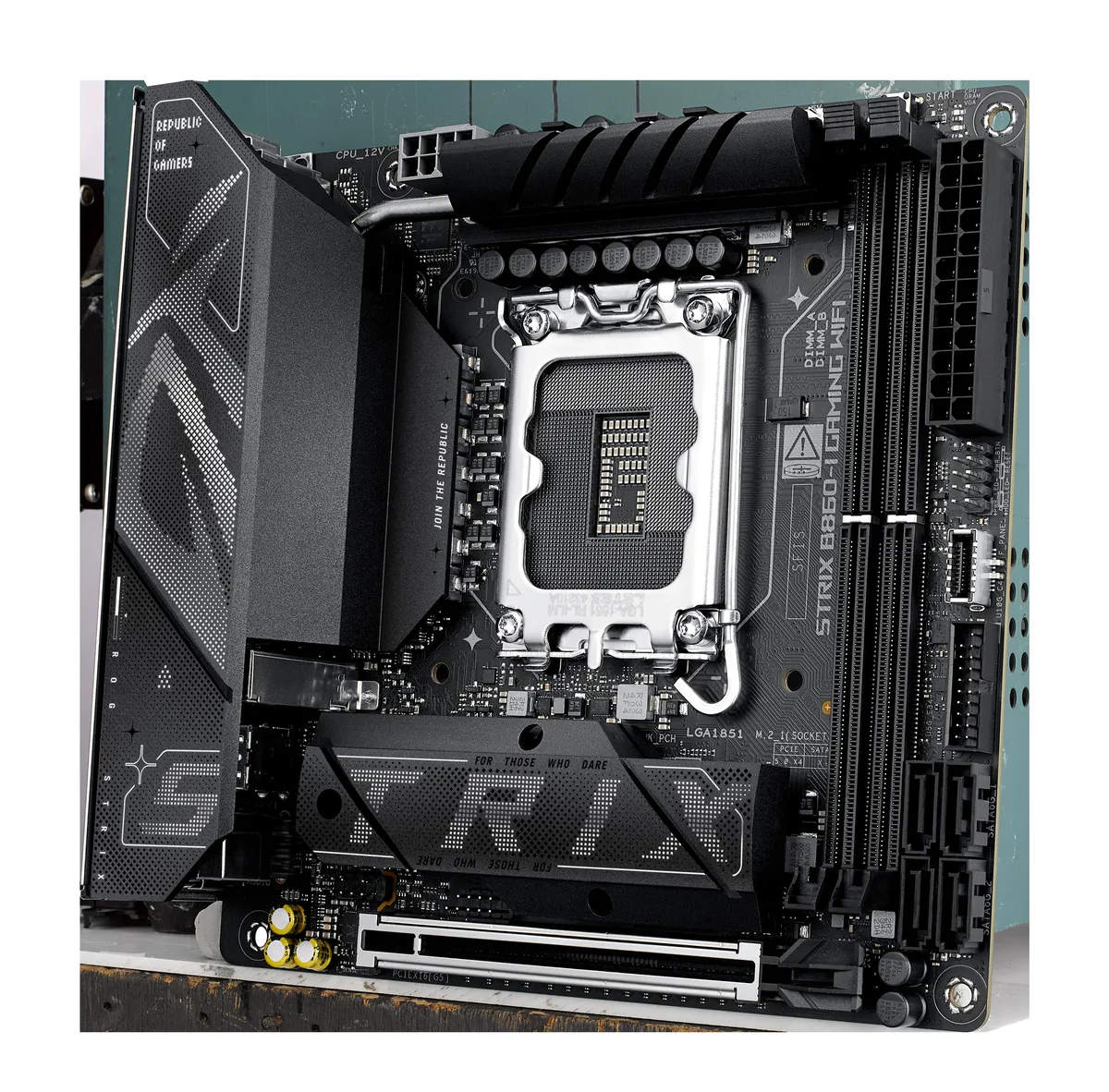

Mini-ITX motherboard with black heatsinks and integrated I/O cover

ASUS

ASUS ROG STRIX B860-I GAMING WIFI Intel motherboard

SKU CH-WKQ0-3FCF0 MPN ROG STRIX B860-I GAMING WIFI

Mini-ITX board for Intel Core Ultra Series 2 processors with DDR5 up to 9066 MT/s, WiFi7, Thunderbolt 4, 2.5G LAN, PCIe 5.0 x16, dual M.2 slots and 10+1+2+1 80A power stages

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardUp to 9066+MT/s (OC)
  • Maximum Memory Supported96GB

Option ROG STRIX B860-I GAMING WIFI

Struck-through versions exist but are not stocked here.

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • Robust 10+1+2+1 power stages rated at 80A each for stable delivery
  • DDR5 memory support up to 9066 MT/s with AEMP III and XMP 3.0 profiles
  • Two M.2 slots including PCIe 5.0 x4 and PCIe 4.0 x4 for fast storage
  • Thunderbolt 4 USB Type-C plus 2.5G LAN and WiFi7 for high-speed connectivity

Ready for Intel Core Ultra Series 2

This Mini-ITX board uses the Intel B860 chipset and an LGA 1851 socket to support Intel Core Ultra processors (Series 2). It provides two 288-pin DDR5 slots running in dual-channel mode up to 96 GB. The compact form factor targets builders who want a small system with modern connectivity.

Robust power delivery under sustained load

A 10+1+2+1 phase design uses 80 A power stages alongside ProCool connectors, MicroFine alloy chokes and premium metallic capacitors. Massive heatsinks with an integrated I/O cover, high-conductivity thermal pads and an L-shaped heatpipe move heat away from the VRM during extended workloads. One M.2 slot sits under a large heatsink to keep PCIe 5.0 storage cool.

Straightforward Mini-ITX installation

The board fits standard Mini-ITX mounting points and uses a 24-pin ATX plus an 8-pin CPU power connector. The pre-mounted I/O shield simplifies rear-panel alignment. Only two DIMM slots are present, so memory population is limited to a pair of modules. The single PCIe 5.0 x16 SafeSlot leaves no room for a second expansion card.

Highlights

  • Ready for Intel Core Ultra Series 2 processors with LGA 1851 socket
  • Robust 10+1+2+1 power stages rated at 80A each for stable delivery
  • DDR5 memory support up to 9066 MT/s with AEMP III and XMP 3.0 profiles
  • Two M.2 slots including PCIe 5.0 x4 and PCIe 4.0 x4 for fast storage
  • Thunderbolt 4 USB Type-C plus 2.5G LAN and WiFi7 for high-speed connectivity

Specifications

BrandASUS
ModelROG STRIX B860-I GAMING WIFI
Part Number90MB1JB0-M0AAY0
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots2x288pin (DDR5)
Memory StandardUp to 9066+MT/s (OC)
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitati
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

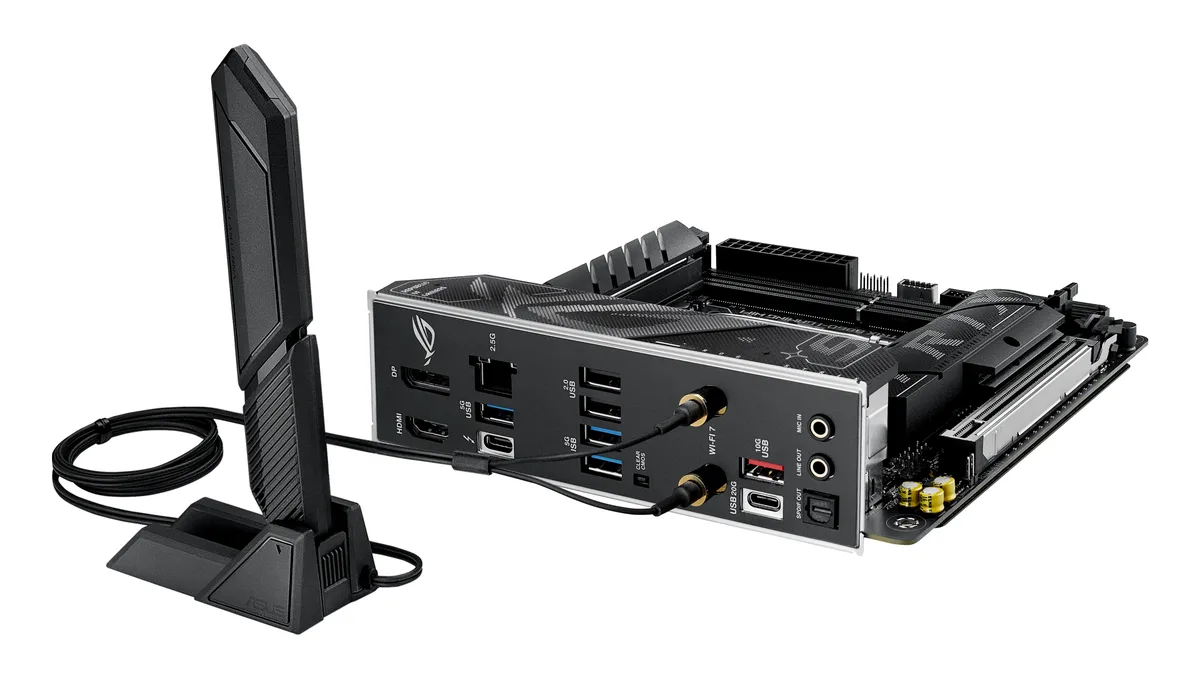

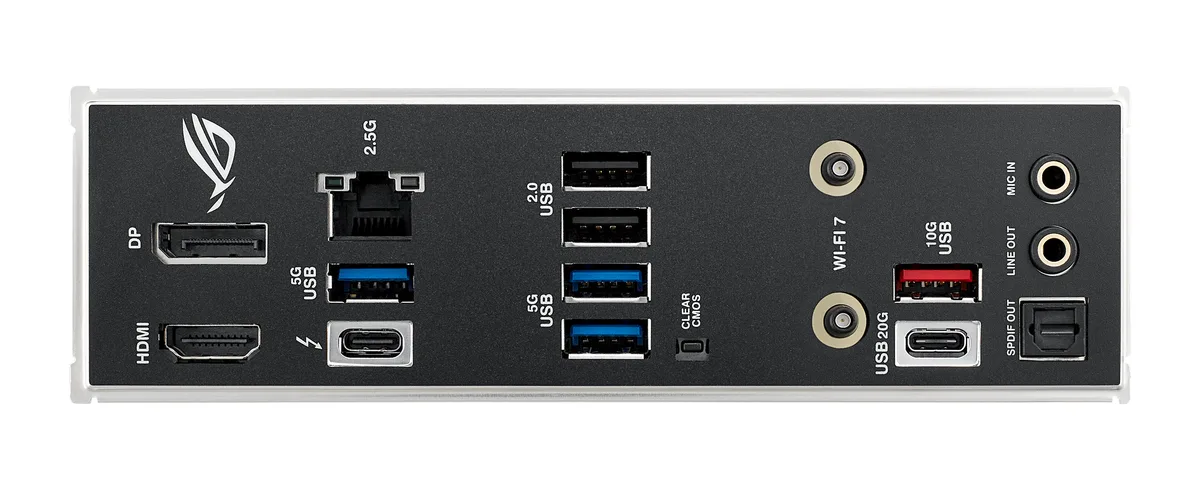

Back I/O Ports1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11 (22H2 & later)
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- M.2 Q-Latch
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
2 x Screw packages for M.2 SSD
1 x Fan Bracket
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide
Shipping weight1.32 kg
Package size229 × 191 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat do the 80A power stages and L-shaped heatpipe handle during all-day loads?

The 10+1+2+1 phase design uses 80A stages with MicroFine alloy chokes and metallic capacitors, while massive heatsinks, high-conductivity pads and an L-shaped heatpipe spread heat across the I/O cover.

Which DDR5 kit and CPU cooler clearance do I need for this Mini-ITX board?

Two 288-pin DDR5 slots support up to 96GB at 9066 MT/s via XMP 3.0 or AEMP III; the compact layout fits standard low-profile coolers that clear the VRM heatsink.

Will my PCIe 4.0 SSD and SATA drives work in the two M.2 slots and four SATA ports?

The top M.2_1 slot runs PCIe 5.0 x4 for 2260/2280 drives, the second M.2_2 slot runs PCIe 4.0 x4 for 2242/2260/2280 drives, and four SATA 6Gb/s ports support RAID 0/1/5/10.
