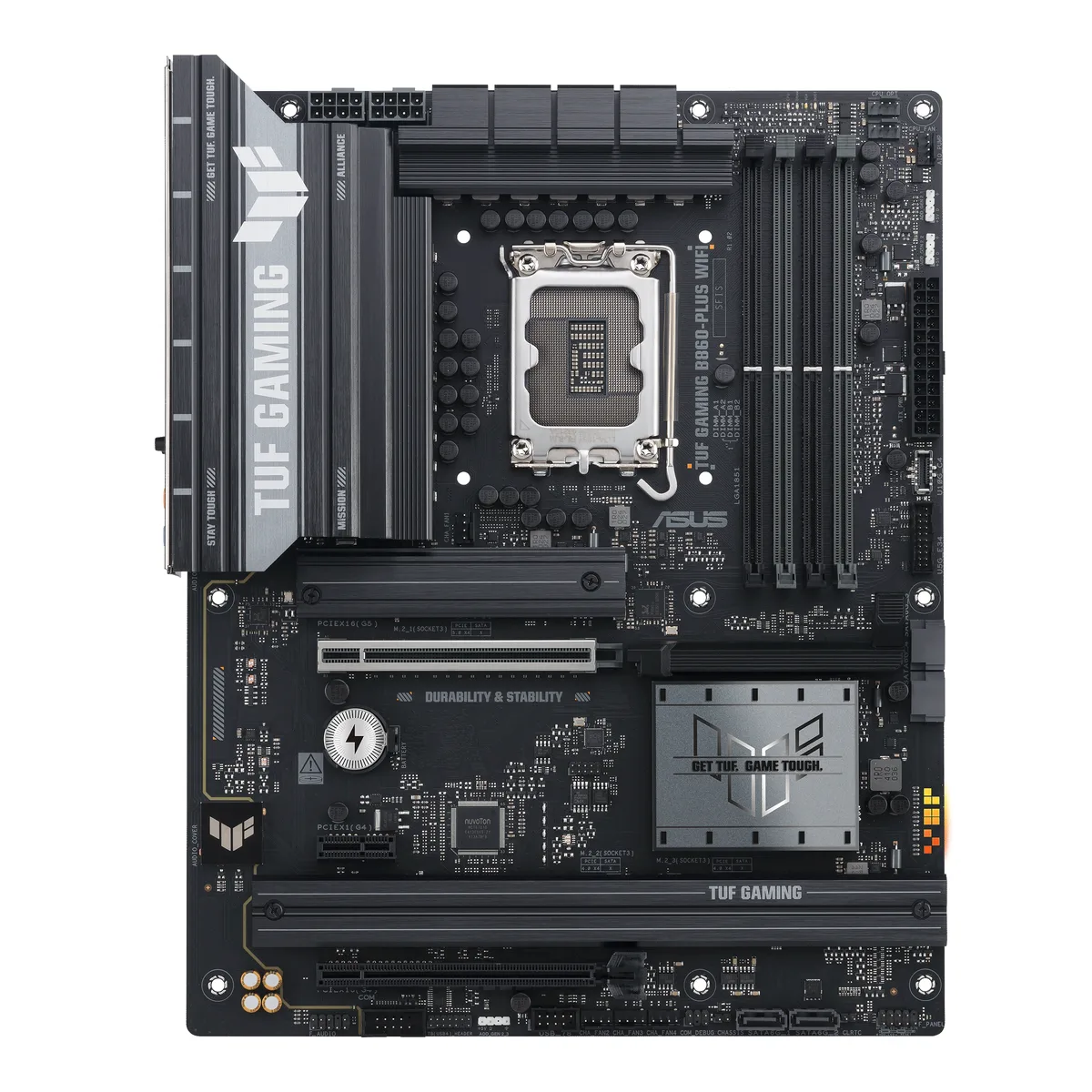

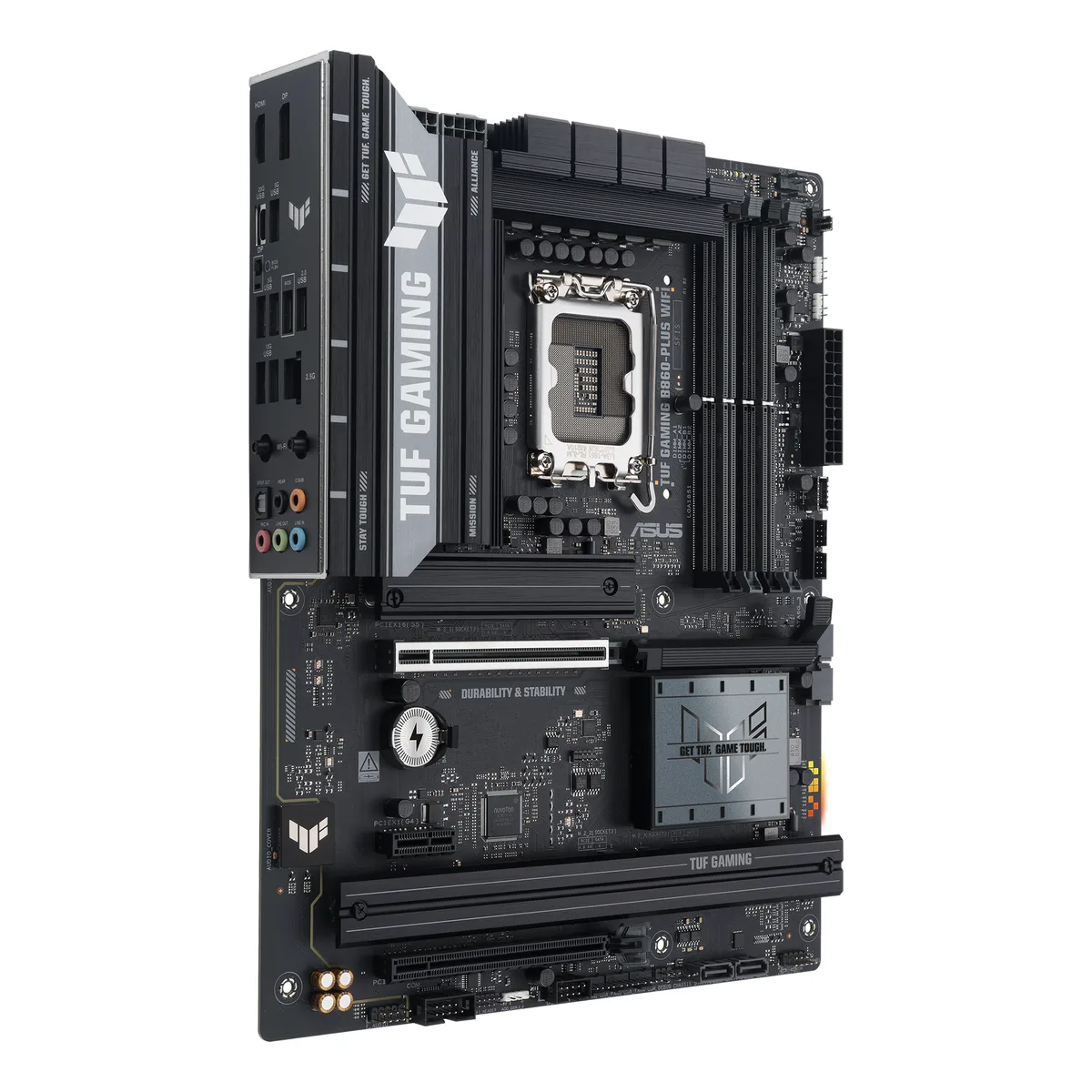

Rectangular ATX motherboard with dark grey heatsinks, yellow TUF accents, four DDR5 slots, three M.2 covers, rear I/O shield

ASUS

ASUS TUF GAMING B860-PLUS WIFI Intel motherboard

SKU CH-GTA4-59GAV MPN TUF GAMING B860-PLUS WIFI

ATX board for Intel Core Ultra Series 2 with 12+2+1 80A power stages, DDR5 up to 8666 MT/s, PCIe 5.0 x16, three M.2 slots, Wi-Fi 7 and 2.5Gb LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8666+MT/s (OC)
  • Maximum Memory Supported192GB

Option TUF GAMING B860-PLUS WIFI

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages with 8+8 pin ProCool connectors
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots all heatsinked
  • On-board Wi-Fi 7 (802.11be) and 2.5 Gb Ethernet
  • Rear USB 20Gbps Type-C with DP Alt mode and front USB 10Gbps Type-C

LGA 1851 ATX board for Core Ultra Series 2

This ATX motherboard uses the Intel B860 chipset and an LGA 1851 socket to support Intel Core Ultra Processors (Series 2). It is aimed at builders who want a DIY-friendly platform with integrated Wi-Fi 7 and 2.5 Gb Ethernet for modern gaming or AI workloads.

PCIe 5.0 slot and three M.2 drives with shared

The primary PCIe 5.0 x16 slot connects directly to the CPU for graphics. One M.2 slot runs at PCIe 5.0 x4, while two additional M.2 slots run at PCIe 4.0 x4 from the chipset. The chipset-linked PCIe 4.0 x16 slot shares bandwidth with the PCIe 4.0 x1 slot, so populating the x1 slot reduces the x16 slot to x2 mode.

Q-Release and Q-Latch simplify installation

A pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch and Q-Antenna reduce the tools needed during assembly. BIOS FlashBack allows firmware updates without a CPU installed. Builders should verify DDR5 module heights against the large VRM heatsinks and confirm that the 8+8 pin ProCool connectors match their power supply cables.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+2+1 80A DrMOS power stages with 8+8 pin ProCool connectors
  • One PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots all heatsinked
  • On-board Wi-Fi 7 (802.11be) and 2.5 Gb Ethernet
  • Rear USB 20Gbps Type-C with DP Alt mode and front USB 10Gbps Type-C

Specifications

BrandASUS
ModelTUF GAMING B860-PLUS WIFI
Part Number90MB1JL0-M0AAY0
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8666+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)*
PCI Express x11 x PCIe 4.0 x1 slot*
* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA RAID* Intel Rapid Storage Technology supports, SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4

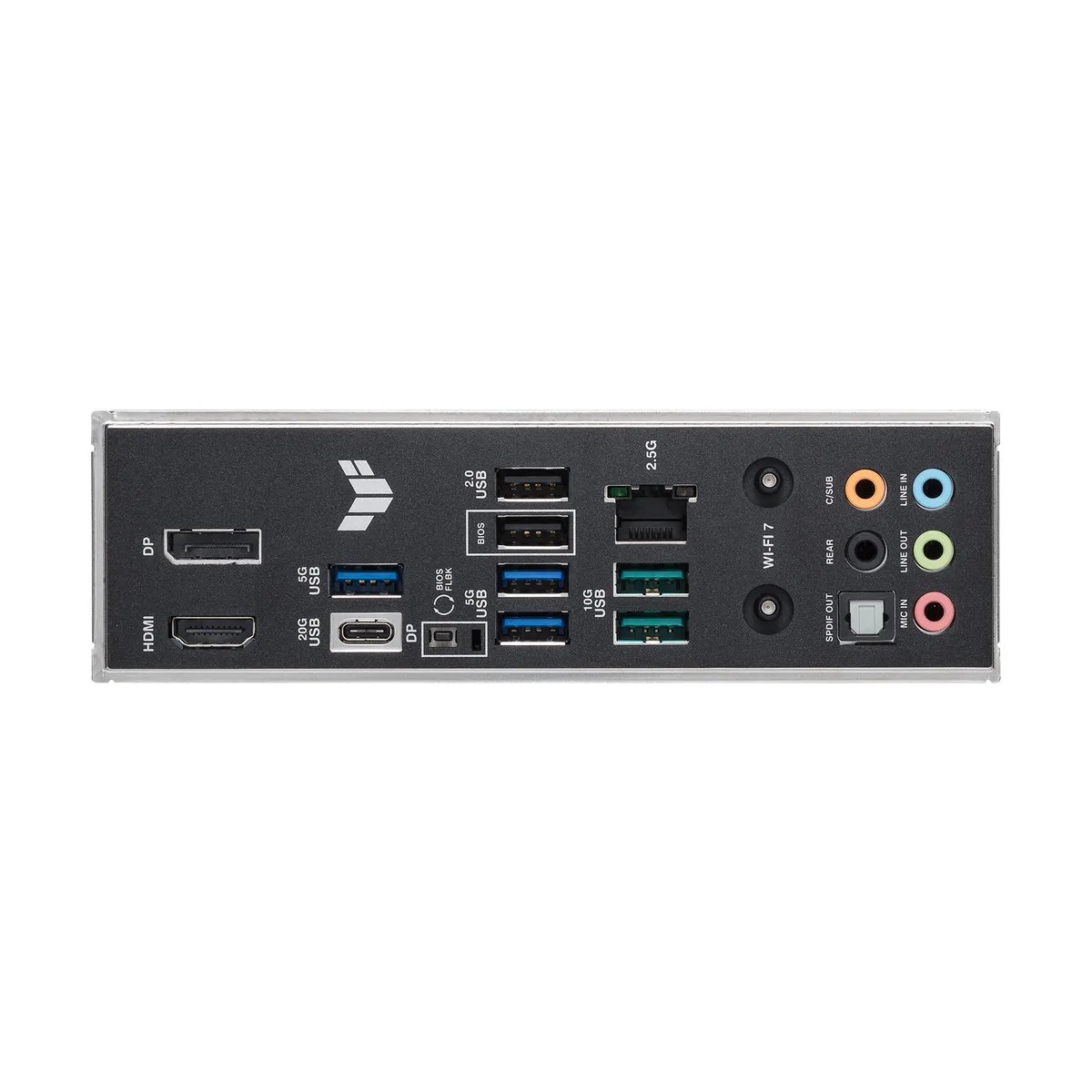

Back I/O Ports1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide
Shipping weight1.91 kg
Package size356 × 279 × 76 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this motherboard fit in a standard ATX case and what power connectors are required?

The board follows the ATX form factor and needs both an 8-pin and an additional 8-pin ProCool connector for the 12+2+1 80A DrMOS power stages.

Which DDR5 memory kits are supported and how much total capacity can I install?

Four 288-pin slots accept non-ECC unbuffered DDR5 up to 8666 MT/s overclocked, with a maximum of 192 GB in dual-channel mode.

How many M.2 drives can I add and do they all have heatsinks?

Three M.2 slots are provided — one PCIe 5.0 x4 and two PCIe 4.0 x4 — each equipped with a dedicated M.2 heatsink.
