Compact Mini-ITX motherboard in dark finish with silver heatsinks and bundled CPU

ASUS

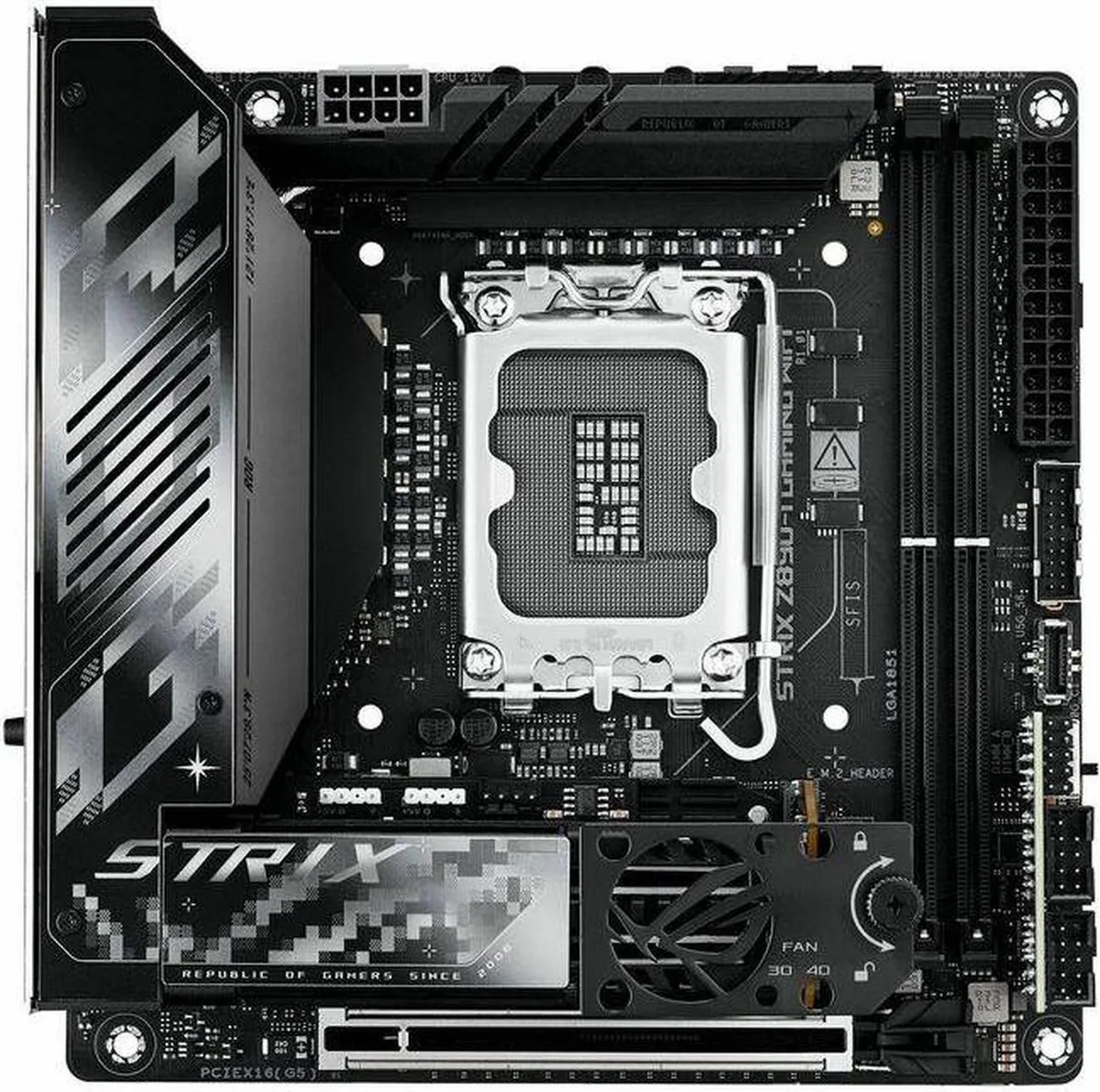

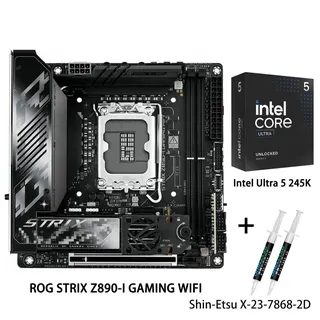

ASUS ROG STRIX Z890-I GAMING WIFI + Intel Ultra 5 245K Intel motherboard

SKU CH-6QJ5-5H43P

A Mini ITX Z890 board bundled with an Intel Core Ultra 5 245K, supporting DDR5 up to 9200 MT/s, dual M.2 slots, Thunderbolt 4 and 2.5 Gb Ethernet

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots2x288pin (DDR5)
  • Maximum Memory Supported128GB
  • Channel SupportedDual Channel

model ROG STRIX Z890-I GAMING WIFI

+CPU +Ultra 5 245K

  • Compact Mini-ITX board fits small builds with LGA 1851 socket
  • Intel Ultra 5 245K delivers 125W performance with 24MB L3 cache
  • DDR5 memory scales to 9200MT/s overclocking on dual-channel layout
  • Dual PCIe 5.0 M.2 slots enable fast storage expansion
  • Thunderbolt 4 and 2.5Gb Ethernet provide high-speed connectivity

Z890 Mini-ITX Platform for Core Ultra 5 245K

This bundle pairs the ROG STRIX Z890-I GAMING WIFI motherboard with the Intel Core Ultra 5 245K processor. The board uses the LGA 1851 socket and Intel Z890 chipset in a Mini-ITX layout. It targets builders who want a compact system for gaming or content creation with modern connectivity.

Bundled Software and Audio Hardware

The package includes Armoury Crate, Fan Xpert 4 with AI Cooling II, GameFirst, Aura Sync, Dolby Atmos and a 60-day AIDA64 Extreme trial. Onboard audio uses the ESS SABRE9260Q DAC with ROG Hyper-Grounding, silver-plated jacks and a dedicated audio PCB layer routed through the ROG Strix Hive II.

128GB DDR5 Capacity and Dual M.2 5.0 Slots

Two 288-pin DDR5 slots support up to 128GB in dual-channel mode with speeds up to 9200+ MT/s when overclocked. Two M.2 slots accept 2230, 2242, 2260 and 2280 drives running at PCIe 5.0 x4, though the second slot shares bandwidth. The 125W CPU and single PCIe 5.0 x16 slot provide headroom for high-end graphics and storage.

Highlights

  • Compact Mini-ITX board fits small builds with LGA 1851 socket
  • Intel Ultra 5 245K delivers 125W performance with 24MB L3 cache
  • DDR5 memory scales to 9200MT/s overclocking on dual-channel layout
  • Dual PCIe 5.0 M.2 slots enable fast storage expansion
  • Thunderbolt 4 and 2.5Gb Ethernet provide high-speed connectivity

Specifications

BrandASUS
ModelROG STRIX Z890-I GAMING WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots2x288pin (DDR5)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9200+MT/s (OC), Non-ECC,
Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
ASUS Enhanced Memory Profile III (AEMP III)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 mode)
Serial ATA (SATA)2 x SATA 6Gb/s
M.2Intel Core Ultra Processors (Series 2)**
M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run x8 only.
SATA RAID0/1
Audio ChannelsROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- ESS SABRE9260Q DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers
* All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II.
Back I/O Ports2 x Thunderbolt 4 (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
1 x Extra Flow Fan header
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional
USB 2.0 ports
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
HWiNFO
AIDA64 Extreme (60 days free trial)
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
Windows 11Windows 11 (22H2 later)
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Release Duo
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Fan bracket
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeDIMM
- Backplate
Aura Sync
- Addressable Gen 2 headers
ROG STRIX HIVE II
1 x USB Type-C connects to motherboard
2 x USB 10Gbps ports (1 x USB Type-C+ 1 x Type-A)
1 x Headphone jack wit
Package ContentsCables
1x Intel Core Ultra 5 245K CPU
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x Panel Cable
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x ROG key chain
1 x ROG Strix stickers
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the bundled Intel Core Ultra 5 245K processor fit this motherboard without any extra parts?

Yes. The board uses an LGA 1851 socket and the CPU is a Core Ultra Series 2 chip, so they match directly. No separate bracket or adapter is required.

What DDR5 memory speeds can I run on the two DIMM slots and what is the maximum capacity?

The board supports dual-channel DDR5 up to 128 GB. JEDEC speeds from 4400 to 9200 MT/s are listed, and XMP profiles above that are supported when overclocking.

Which M.2 drive lengths will physically fit the two onboard slots?

Both M.2_1 and M.2_2 accept Key M modules in 2230, 2242, 2260 and 2280 lengths. Each slot runs at PCIe 5.0 x4, though M.2_2 shares bandwidth with other controllers.
