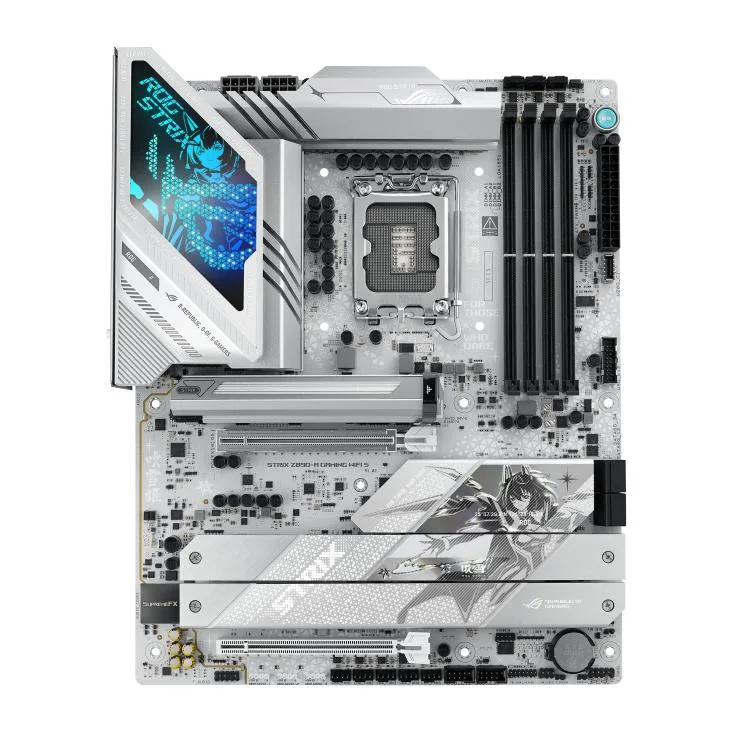

ASUS ROG STRIX Z890-A motherboard with Intel Core Ultra 5 245K CPU, ATX form factor, silver and black finish

ASUS

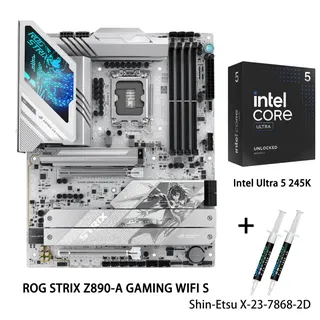

ASUS ROG STRIX Z890-A GAMING WIFI S Intel motherboard & Core Ultra 5 245K CPU Combo

SKU CH-Y89Q-6H4CJ

Z890 ATX motherboard paired with a 245K Arrow Lake CPU, 16+2+1+2 power stages, DDR5 up to 9066 MT/s, WiFi 7, 2.5GbE, Thunderbolt 4 and five M.2 slots

  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked
  • PCI Express 5.0 x16Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot

model ROG STRIX Z890-A GAMING WIFI S

+CPU +Ultra 5 245K

  • Ready for advanced AI PCs with Intel Core Ultra Series 2 support
  • Robust 16+2+1+2 power stages up to 90A for stable CPU delivery
  • DDR5 memory up to 9066 MT/s and 192GB capacity across four slots
  • WiFi 7 and 2.5Gbps LAN plus Bluetooth 5.4 for fast connectivity
  • Thunderbolt 4, 20Gbps USB and five M.2 slots for high-speed expansion

Ready for Advanced AI PCs

This combo pairs an ASUS ROG STRIX Z890-A GAMING WIFI S motherboard with an Intel Core Ultra 5 245K processor. The board uses the Intel Z890 chipset and an LGA 1851 socket built for Intel Core Ultra Series 2 chips. It targets builders who want AI-ready performance and high-speed connectivity in a single package.

16+2+1+2 power stages

The voltage regulator module delivers 16 Vcore stages at 90 A, two VCCGT stages at 90 A, one VCCSA stage at 90 A and two VNN stages at 80 A. ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors back the design. This specification decides whether the board can sustain heavy all-core loads without throttling.

192 GB DDR5 across four slots

Four 288-pin slots support dual-channel DDR5 up to 192 GB with XMP profiles and speeds up to 9066 MT/s when overclocked. DIMM Fit, DIMM Flex and AEMP III simplify tuning. Five M.2 slots — one PCIe 5.0 x4 and four PCIe 4.0 x4 — plus four SATA 6 Gb/s ports give ample storage headroom. Thunderbolt 4, WiFi 7, Bluetooth 5.4 and 2.5 Gbps LAN complete the I/O.

Highlights

  • Ready for advanced AI PCs with Intel Core Ultra Series 2 support
  • Robust 16+2+1+2 power stages up to 90A for stable CPU delivery
  • DDR5 memory up to 9066 MT/s and 192GB capacity across four slots
  • WiFi 7 and 2.5Gbps LAN plus Bluetooth 5.4 for fast connectivity
  • Thunderbolt 4, 20Gbps USB and five M.2 slots for high-speed expansion

Specifications

BrandASUS
ModelROG STRIX Z890-A GAMING WIFI S+Ultra 5 245K
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 ports (2 x USB Type-C)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
MemTest86
Windows 11Windows 11 (22H2 later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
1x Intel Core Ultra 5 245K CPU
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 125 W base power of the Core Ultra 5 245K mean for my cooling choice?

The processor has a 125 W base power rating and no cooler is included, so you will need a capable air or liquid cooler rated for at least that thermal design power to keep temperatures in check under sustained loads.

How fast can the Thunderbolt 4 ports on the back I/O actually move data?

Each Thunderbolt 4 port delivers up to 40 Gbps of bandwidth, shared with DisplayPort video and up to 30 W of power delivery on the USB Type-C connector that supports fast charging.

Will the massive heatsinks and L-shaped heatpipe on this Z890 board fit inside a standard ATX case?

The board follows the ATX form factor, so it mounts in any ATX-compatible chassis, but the large VRM heatsinks and integrated I/O cover may sit close to the side panel — verify your case’s CPU-cooler clearance and motherboard-to-side-panel depth before buying.
