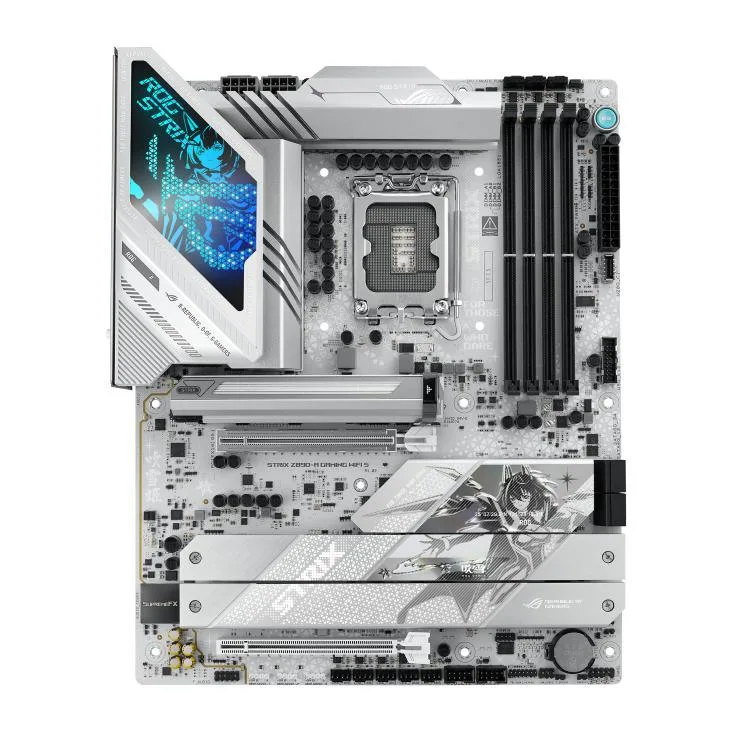

ATX motherboard with silver heatsinks and integrated I/O cover, LGA 1851 socket, four DDR5 slots, multiple M.2 heatsinks

ASUS

ASUS ROG STRIX Z890-A GAMING WIFI S + Core Ultra 9 285K Intel motherboard

SKU CH-56ZP-WRKZ8

A Z890 motherboard paired with a Core Ultra 9 285K CPU, delivering 16+2+1+2 power stages, DDR5 up to 9066 MT/s, five M.2 slots, WiFi 7, 2.5Gbps LAN.

  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked
  • PCI Express 5.0 x16Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot

model ROG STRIX Z890-A GAMING WIFI S

+CPU +Ultra 9 285K

  • AI-ready platform with Intel Core Ultra 9 285K and Z890 chipset
  • Robust 16+2+1+2 power stages rated up to 90A for stable delivery
  • DDR5 memory support up to 9066 MT/s and 192GB capacity
  • WiFi 7, Bluetooth 5.4 and 2.5Gbps LAN for fast connectivity
  • Five M.2 slots including PCIe 5.0 x4 and four PCIe 4.0 x4

Ready for Advanced AI PCs

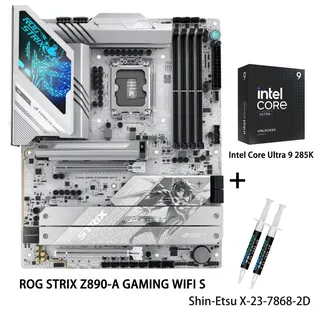

This bundle pairs the ROG STRIX Z890-A GAMING WIFI S motherboard with the Intel Core Ultra 9 285K processor. The board uses the Intel Z890 chipset and an LGA 1851 socket ready for Intel Core Ultra Series 2 CPUs. It targets enthusiasts building high-performance AI workstations or gaming rigs that need strong compute and fast connectivity.

Check LGA 1851 socket and DDR5 memory compatibility

Your existing cooler must mount on the LGA 1851 socket pattern. The board provides four 288-pin DDR5 slots supporting up to 192 GB in dual-channel mode with speeds up to 9066 MT/s when overclocked. Verify that your power supply includes the required ProCool II connectors for the 16+2+1+2 power-stage design. Ensure your chassis fits an ATX motherboard and has clearance for the large heatsinks and L-shaped heatpipe.

Thermals noise and power draw in normal use

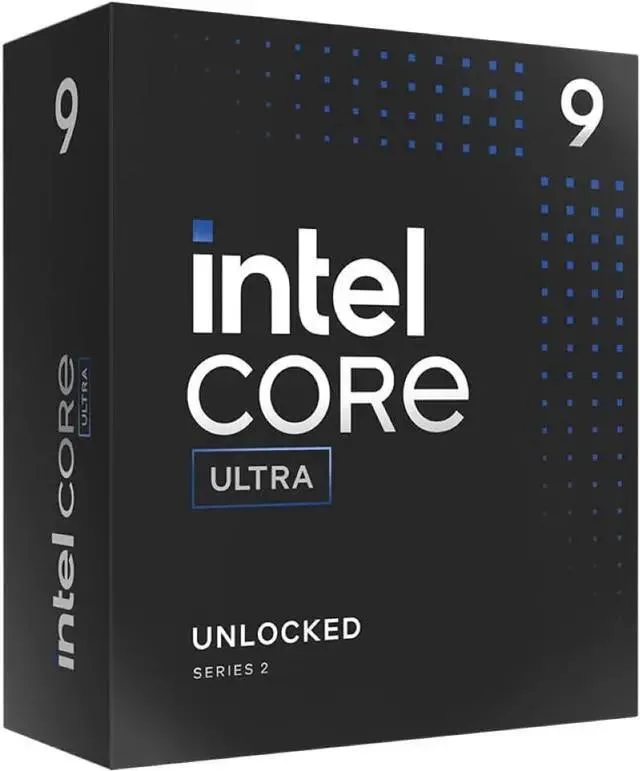

The Core Ultra 9 285K carries a 125 W base power rating and uses a 3 nm process with 36 MB L3 and 40 MB L2 cache. The motherboard uses massive heatsinks, high-conductivity thermal pads and an L-shaped heatpipe to dissipate heat from the 90 A and 80 A power stages. AI Cooling II manages the five 4-pin chassis fan headers, the CPU fan header, the CPU OPT header and the AIO pump header to balance airflow and acoustics under load.

Highlights

  • AI-ready platform with Intel Core Ultra 9 285K and Z890 chipset
  • Robust 16+2+1+2 power stages rated up to 90A for stable delivery
  • DDR5 memory support up to 9066 MT/s and 192GB capacity
  • WiFi 7, Bluetooth 5.4 and 2.5Gbps LAN for fast connectivity
  • Five M.2 slots including PCIe 5.0 x4 and four PCIe 4.0 x4

Specifications

BrandASUS
ModelROG STRIX Z890-A GAMING WIFI S+Ultra9 285K
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChannelsROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 4 ports (2 x USB Type-C)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
BIOS Feature256 Mb UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
MyAsus
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
MemTest86
Windows 11Windows 11 (22H2 later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Package ContentsCables
1x Intel Core Ultra 9 285K CPU
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the bundle include a CPU cooler or must I buy one separately?

The Core Ultra 9 285K is supplied as a processor only with no cooling device in the box, so a compatible LGA 1851 cooler must be purchased separately.

Which DDR5 speed should I target for the 192 GB, four-slot limit?

The board supports up to 9066 MT/s when overclocked, but the rated XMP ceiling depends on the memory kit you choose; any DDR5 CUDIMM kit within the 192 GB total will run at its rated profile.

What does the 125 W base power figure mean for daily thermals?

The 125 W rating is the processor base power; sustained loads can draw more, so pair the CPU with a cooler rated for at least that TDP and use the board's 16+2+1+2 90 A power stages for stable delivery.
