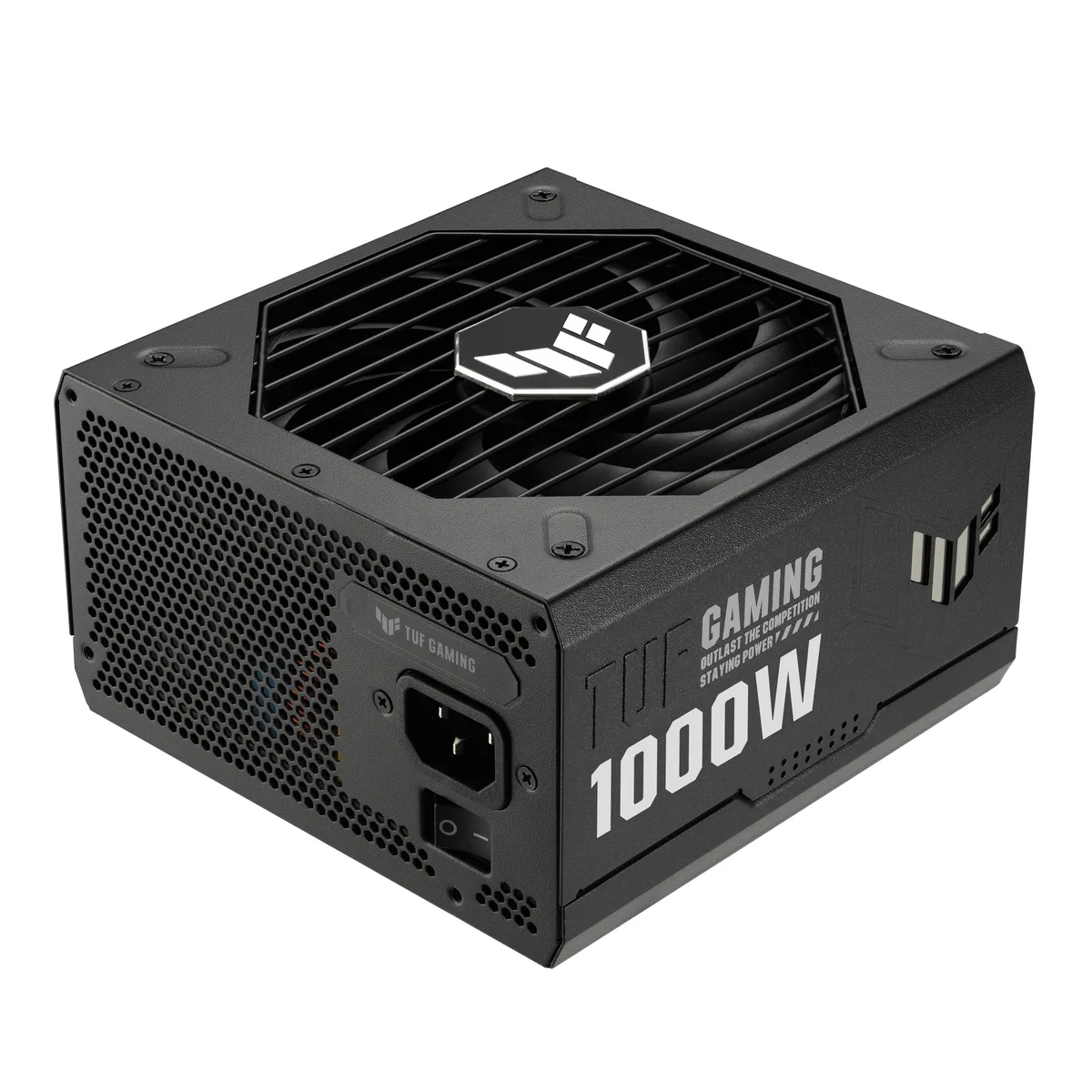

Rectangular black ATX power supply, fully modular, 150 mm long, axial-tech fan visible

ASUS

ASUS TUF-GAMING-1000G 1000 W ATX 3.0 power supply

SKU CH-E30K-AFB7D MPN TUF-GAMING-1000G

A fully modular 1000 W ATX 3.0 power supply with 80 Plus Gold efficiency, military-grade components, a 16-pin PCIe Gen 5 cable for up to 600 W GPU power, and a 150 mm compact chassis

  • TypeATX 3.0 Compatible / ATX12V
  • Maximum Power1000 W
  • Main Connector20+4Pin
  • PCI-Express Connector4 x 8-Pin
  • SATA Power Connector5
  • Max PSU Length150 mm

Options ATX 80+ Gold (1000W)

  • Military-grade components pass strict tests for up to twice the lifespan of standard units
  • Dual ball bearing fan lasts up to twice as long as sleeve bearing designs
  • Protective PCB coating resists moisture, dust and extreme temperatures from -40 to 85 Celsius
  • 80 Plus Gold certified efficiency from Japanese capacitors and premium components
  • ATX 3.0 compatible with 16-pin PCIe cable delivering up to 600W to Gen 5 graphics cards

1000 W ATX 3.0 power supply

The ASUS TUF-GAMING-1000G delivers 1000 W of fully modular power for high-end desktop builds. It meets the ATX 3.0 specification and carries 80 PLUS Gold efficiency certification. Military-grade capacitors and chokes are validated through extended MTBF, drop, vibration, temperature and salt-fog testing. A protective PCB coating guards against moisture, dust and extreme temperatures.

ATX 3.0 connector limits

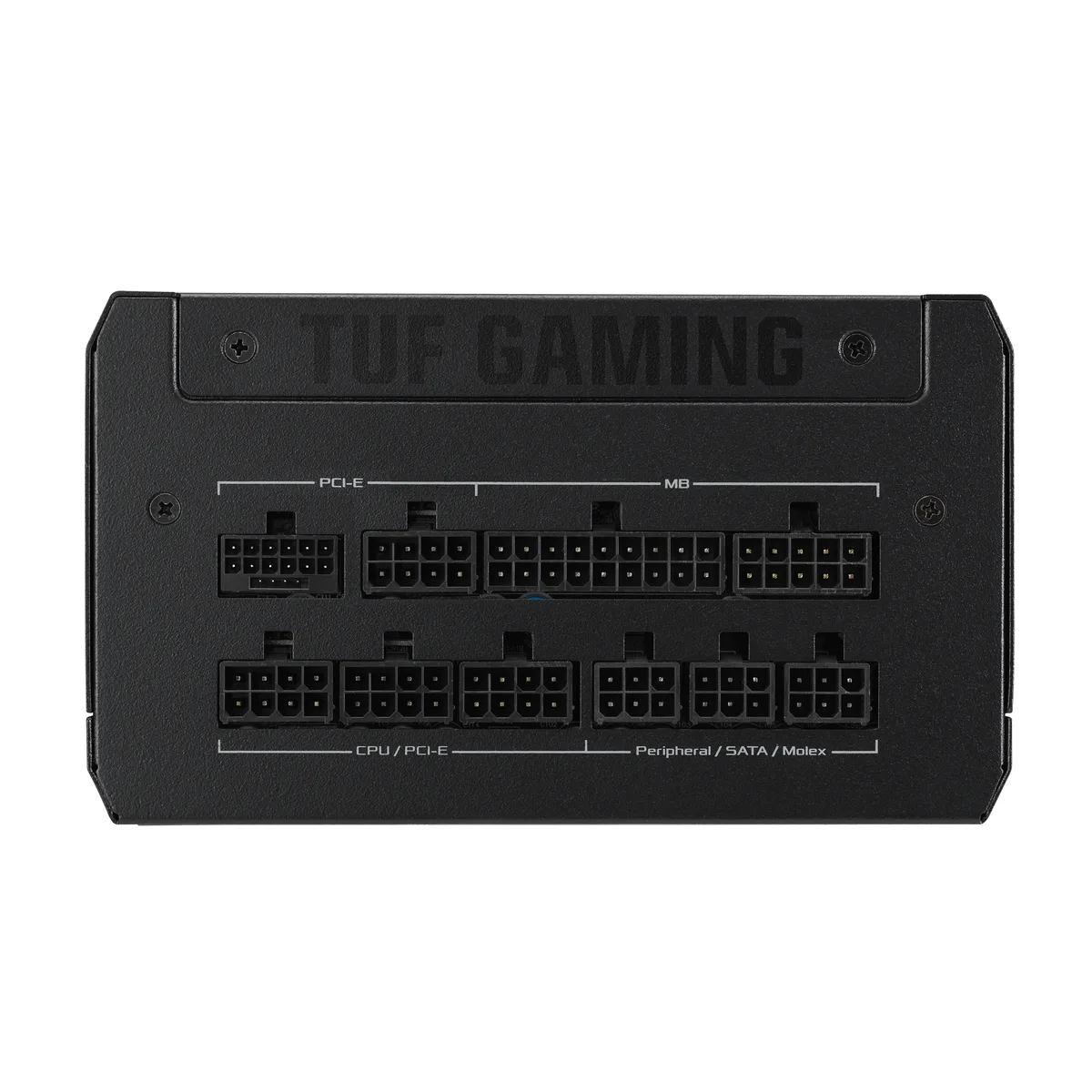

The unit includes one 16-pin PCIe Gen 5 cable rated for up to 600 W delivery to compatible graphics cards. Four additional 8-pin PCIe connectors are provided via two 1-to-1 cables and one 1-to-2 cable. Two CPU 4+4-pin cables, five SATA connectors and four peripheral connectors complete the output set. All cables are fully modular with etched sleeves for cleaner routing.

Clearance and voltage check

The power supply measures 150 mm in length, 150 mm in width and 86 mm in height, weighing 2.48 kg. Verify that your case can accommodate these dimensions before ordering. Confirm that your mains supply falls within the 100–240 V input range. Ensure your motherboard uses a standard 20+4-pin main connector and that your CPU requires no more than the two provided 4+4-pin headers.

Highlights

  • Military-grade components pass strict tests for up to twice the lifespan of standard units
  • Dual ball bearing fan lasts up to twice as long as sleeve bearing designs
  • Protective PCB coating resists moisture, dust and extreme temperatures from -40 to 85 Celsius
  • 80 Plus Gold certified efficiency from Japanese capacitors and premium components
  • ATX 3.0 compatible with 16-pin PCIe cable delivering up to 600W to Gen 5 graphics cards

Specifications

BrandASUS
ModelTUF-GAMING-1000G
TypeATX 3.0 Compatible / ATX12V
Maximum Power1000 W
Main Connector20+4Pin
PCI-Express Connector4 x 8-Pin
SATA Power Connector5
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage100 - 240 V
Output+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Dimensions150 x 150 x 86 mm
Weight2.48 kg
Package ContentPower Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Shipping weight3.13 kg
Package size312 × 202 × 110 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which version of this power supply should I choose for a build with a PCIe Gen 5 graphics card?

The unit includes a 16-pin PCIe Gen 5 cable rated for up to 600 W, so it is ready for the latest graphics cards without needing an adapter.

What does the 1000 W rating mean once the PSU is installed in a system?

It can deliver up to 1000 W of continuous power to all components combined, with the +12 V rail providing the bulk of that power for modern CPUs and GPUs.

How does the ATX 3.0 compatibility affect what I can connect?

ATX 3.0 compliance means the PSU meets the latest transient-response guidelines and ships with a 16-pin connector that can supply up to 600 W to a PCIe Gen 5 graphics card.
