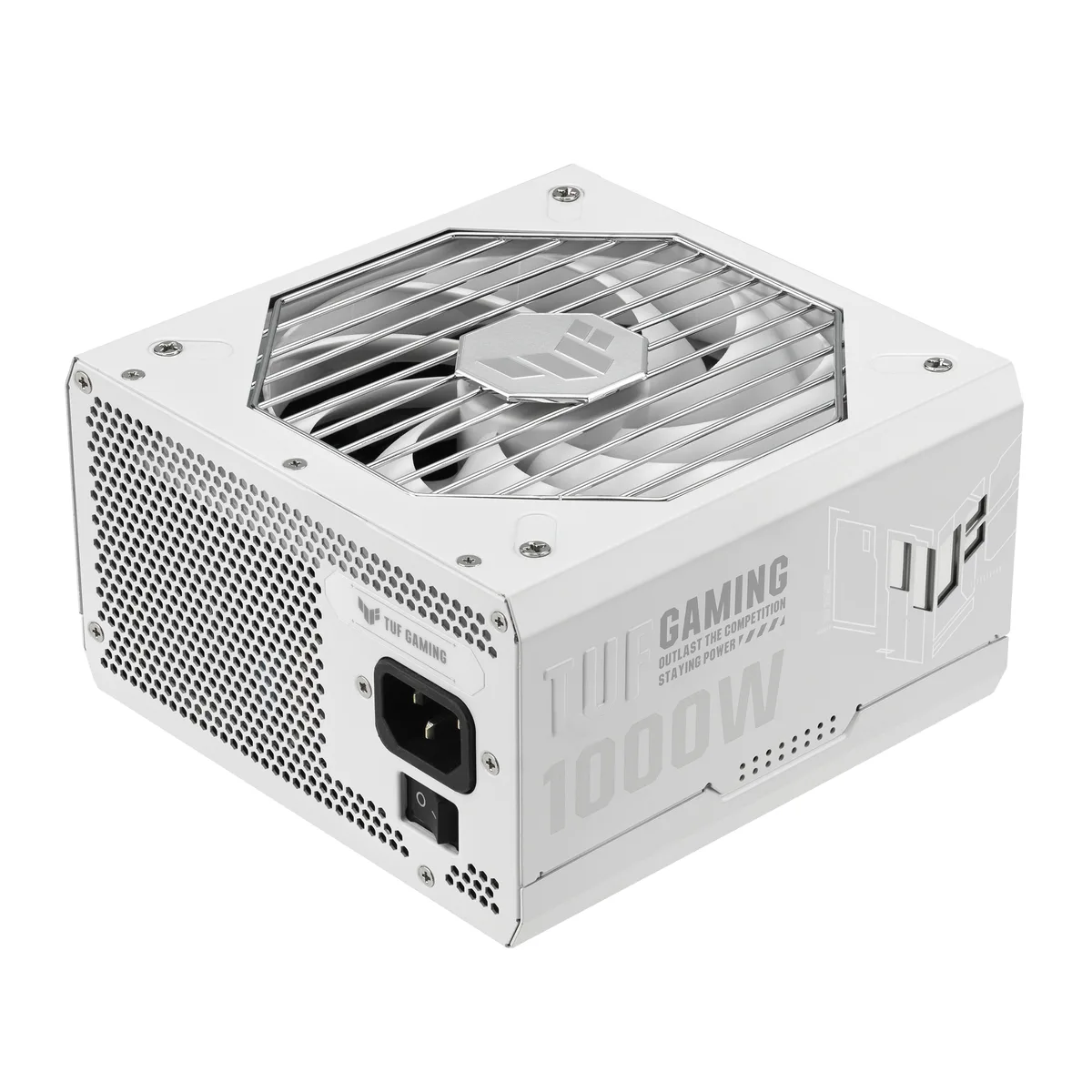

White ATX power supply with fully modular connectors and a single axial-tech fan

ASUS

ASUS TUF-GAMING-1000G-WHITE 1000W 80 Plus Gold power supply

SKU CH-DSB5-MD4NH MPN TUF-GAMING-1000G-WHITE

A fully modular 1000 W ATX 3.0 power supply with 80 Plus Gold efficiency, a 16-pin PCIe Gen 5 cable for 600 W graphics cards.

  • ColorWhite
  • TypeATX 3.0 Compatible
  • Maximum Power1000 W
  • PFCActive
  • Max PSU Length150 mm
  • ModularFull Modular

Options ATX 80+ Gold (1000W) White

  • Ready for PCIe Gen 5 graphics with a 16-pin cable delivering up to 600 W
  • 80 Plus Gold efficiency from Japanese capacitors cuts waste heat and lowers running costs
  • Military-grade capacitors and chokes pass strict durability tests for long-term reliability
  • Dual ball-bearing fan lasts up to twice as long as sleeve-bearing designs
  • Protective PCB coating shields against moisture, dust and extreme temperatures

White 1000W ATX 3.0 PSU

This ASUS TUF Gaming unit delivers 1000 W of fully modular power in a white 150 mm chassis. It meets 80 Plus Gold efficiency and includes a 16-pin PCIe Gen 5 cable rated for 600 W. Military-grade capacitors and a dual ball-bearing axial-tech fan target long-term reliability.

Suited for high-output white-themed builds

The 1000 W ceiling and ATX 3.0 compliance fit systems that demand headroom for modern GPUs. Builders who need less than 1000 W or a shorter depth should look at smaller models.

16-pin PCIe Gen 5 connector with 600 W support

This single cable decides whether the PSU can power a PCIe Gen 5 graphics card directly without adapters. If your GPU requires that connector, the unit is ready; if not, the feature goes unused.

Highlights

  • Ready for PCIe Gen 5 graphics with a 16-pin cable delivering up to 600 W
  • 80 Plus Gold efficiency from Japanese capacitors cuts waste heat and lowers running costs
  • Military-grade capacitors and chokes pass strict durability tests for long-term reliability
  • Dual ball-bearing fan lasts up to twice as long as sleeve-bearing designs
  • Protective PCB coating shields against moisture, dust and extreme temperatures

Specifications

BrandASUS
ModelTUF-GAMING-1000G-WHITE
Part Number90YE00S5-BTAA00
ColorWhite
TypeATX 3.0 Compatible
Maximum Power1000 W
PFCActive
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100-240Vac
Output+3.3V +5V +12V -12V +5Vsb
MTBF>120,000 hrs @ 40°C
Connectors1 x 16 pin PCIe / 1 x 24 pin (20+4) ATX / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe / 5 x SATA
FeaturesProtection Features:
OPP/OVP/UVP/SCP/OCP/OTP
Dimensions150 x 150 x 86 mm
Weight2.48kg

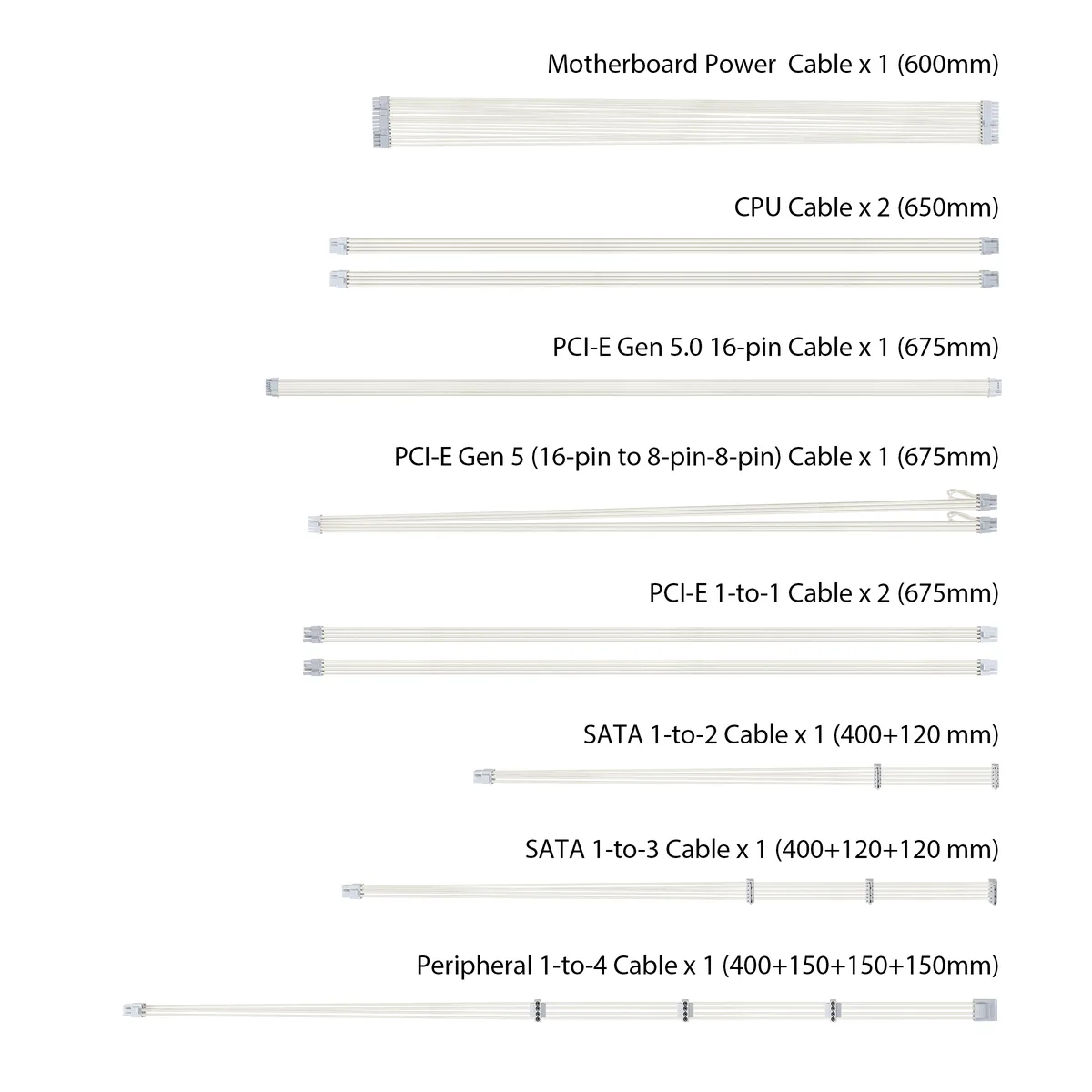

Package ContentPower Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Shipping weight3.15 kg
Package size307 × 180 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard connector does the 24-pin ATX cable plug into?

The 24-pin ATX cable connects to the standard 24-pin motherboard power socket.

Can I use the 8-pin PCIe cables with an older graphics card that needs a 6-pin connector?

Each 8-pin PCIe cable splits into 6+2 so it fits both 6-pin and 8-pin sockets on legacy cards.

How do I verify the PSU is delivering power after I switch it on?

The system will POST and the axial-tech fan will spin, confirming the unit is live.
