ATX motherboard dark finish large heatsinks I/O shield visible

ASUS

ASUS TUF GAMING X670E-PLUS WIFI AMD motherboard AM5 Ryzen 7000 14+2 power stages WiFi 6E 2.5 Gb Ethernet

SKU CH-Q3A7-Y4907

AM5 motherboard with 14+2 power stages, WiFi 6E and 2.5 Gb Ethernet for Ryzen 7000 processors

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD X670E

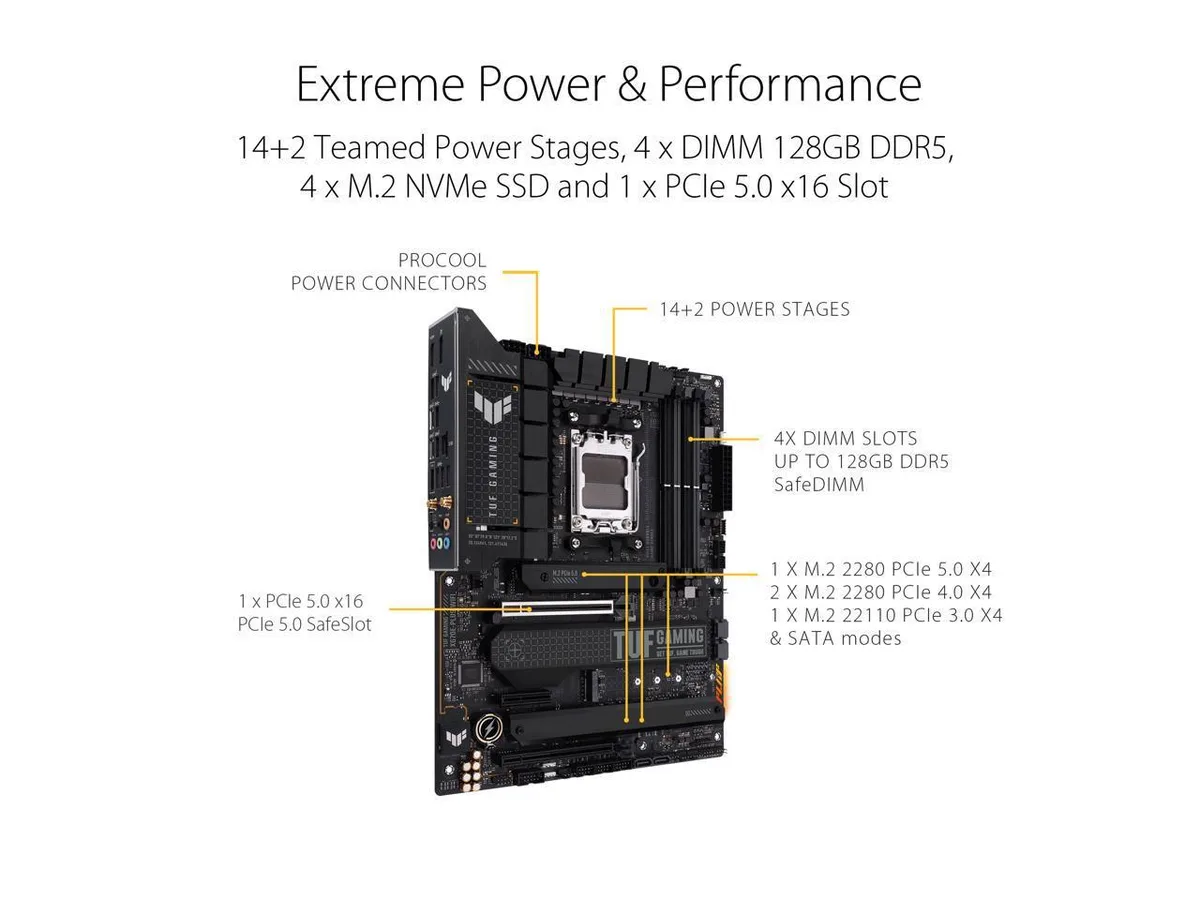

  • Stable power for Ryzen 7000 CPUs with 14+2 teamed power stages and ProCool sockets

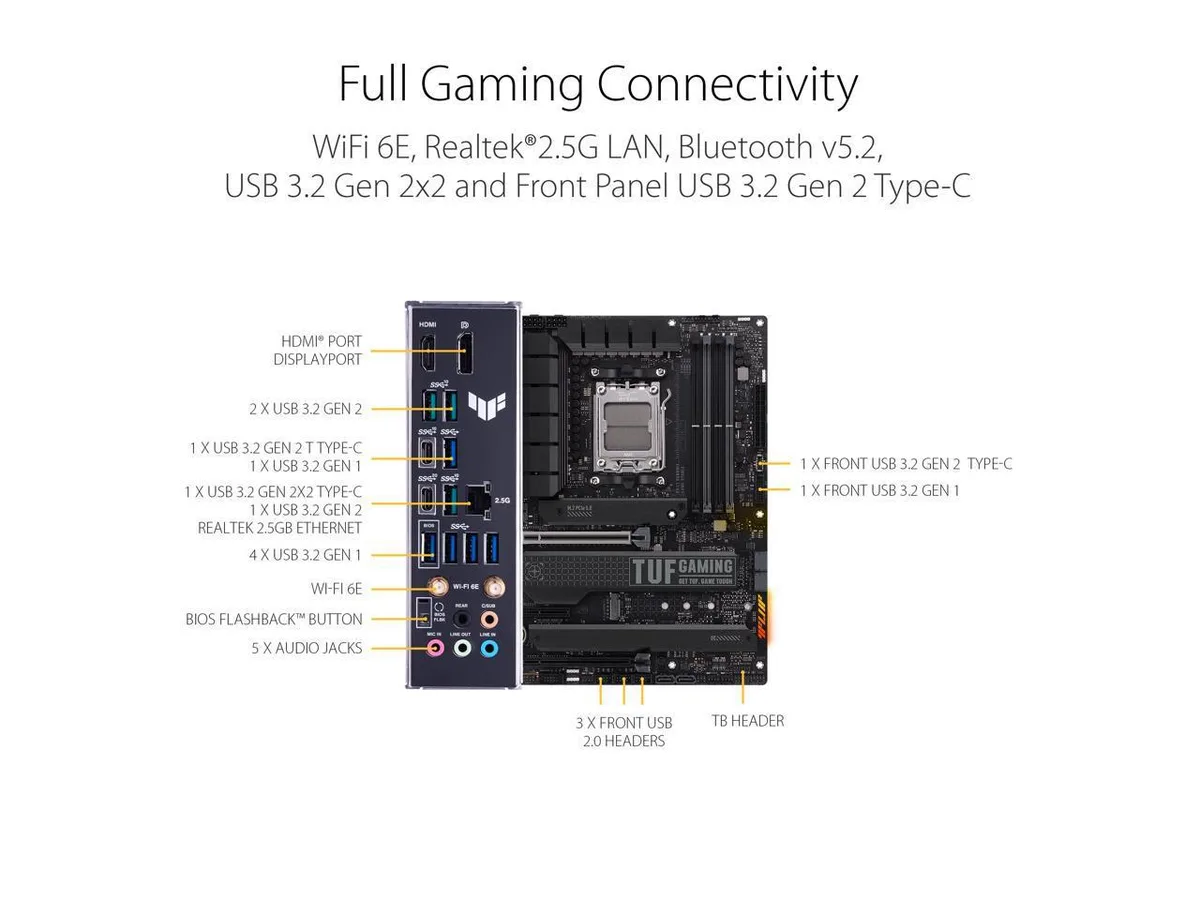

  • Fast wired gaming via Realtek 2.5 Gb Ethernet and TUF LAN Guard protection
  • Clear comms with two-way AI noise cancellation on mic and audio output
  • High-speed I/O through PCIe 5.0 and USB 3.2 Gen2x2 Type-C
  • Extended cooling with enlarged VRM, PCH and M.2 heatsinks plus Fan Xpert 4

AM5 Socket for Ryzen 7000 Series

This ATX motherboard uses the AMD X670E chipset and AM5 socket to support Ryzen 7000 Series desktop processors. A 14+2 teamed power stage design with ProCool sockets and an eight-layer PCB delivers stable power for demanding workloads. Integrated WiFi 6E and Realtek 2.5 Gb Ethernet provide fast networking for online gaming.

Installation Notes and Common Issues

The board fits standard ATX cases and uses familiar mounting points for straightforward installation. Remember to install the included I/O shield before seating the motherboard. Builders sometimes forget to connect both 8-pin ProCool power cables, which are required for the 14+2 power stage design to function correctly.

Compatibility Checks Before Ordering

Verify that your case accepts ATX form factor motherboards and offers enough clearance for the enlarged VRM and chipset heatsinks. Ensure your power supply provides two 8-pin CPU power connectors for the ProCool sockets. Check that your chosen CPU cooler mounting hardware supports the AM5 socket retention mechanism.

Highlights

  • Stable power for Ryzen 7000 CPUs with 14+2 teamed power stages and ProCool sockets
  • Fast wired gaming via Realtek 2.5 Gb Ethernet and TUF LAN Guard protection
  • Clear comms with two-way AI noise cancellation on mic and audio output
  • High-speed I/O through PCIe 5.0 and USB 3.2 Gen2x2 Type-C
  • Extended cooling with enlarged VRM, PCH and M.2 heatsinks plus Fan Xpert 4

Specifications

CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD X670E

Questions about this item

How can I confirm the 14+2 power stages are delivering stable voltage to my Ryzen 7000 CPU after build?

Enter the BIOS hardware monitor or use Armoury Crate to observe real-time Vcore readings under load; steady values without large droop indicate the DrMOS stages are functioning correctly.

Which accessories are included and which must be sourced separately for this X670E board?

The package supplies the motherboard, I/O shield and original box only; cables, Wi-Fi antennas, M.2 screws and any RGB strips are not guaranteed and should be purchased if needed.

Should I choose the X670E chipset version over a non-E model for PCIe 5.0 graphics and storage support?

Yes, the X670E chipset provides PCIe 5.0 lanes for both the primary graphics slot and an M.2 socket, while non-E variants typically limit those to PCIe 4.0.
