ATX motherboard with LGA 1700 socket and Intel Ultra 7 265K CPU in retail box

ASUS

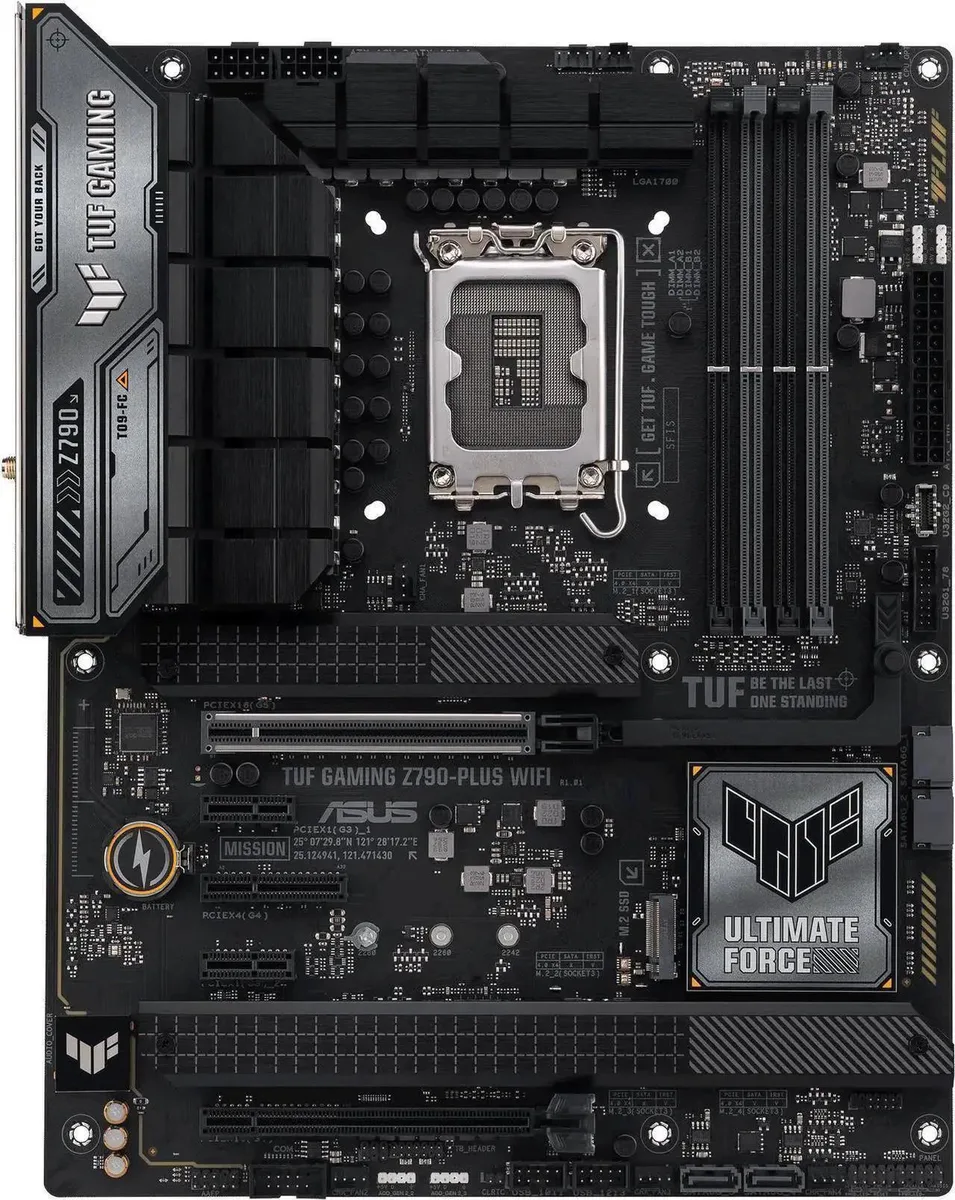

ASUS TUF GAMING Z790-PLUS WIFI D5 Intel motherboard & Ultra 7 265K CPU combo

SKU CH-5MBH-3DV17

LGA 1700 ATX board with Z790 chipset, DDR5 slots, four M.2 sockets, 2.5 Gb LAN and Wi‑Fi 6E paired with an Intel Ultra 7 265K CPU and thermal grease

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12t
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • Maximum Memory Supported192GB

model TUF GAMING Z790-PLUS WIFI D5

+CPU +Ultra 7 265K

  • Ready for 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components for stable delivery
  • DDR5 memory support up to 7200 MT/s OC across four slots with 192 GB maximum capacity
  • Wi-Fi 6E and Intel 2.5Gb Ethernet with TUF LANGuard for low-latency networking
  • Four M.2 slots including one PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage expansion

Combo contents

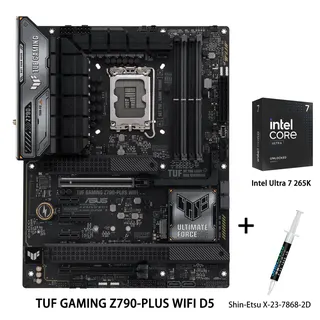

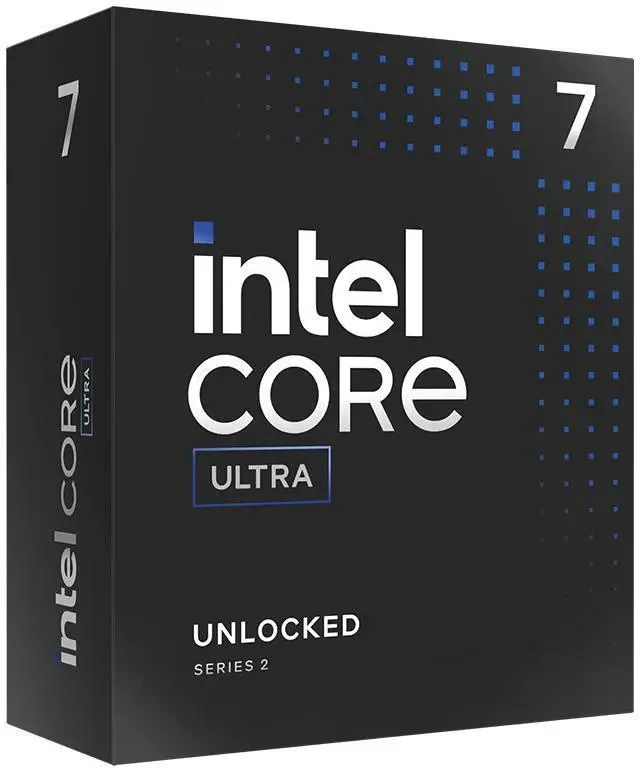

This bundle pairs the TUF GAMING Z790-PLUS WIFI D5 motherboard with the Intel Core Ultra 7 265K processor and a tube of Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel Z790 chipset and an LGA 1700 socket that supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors. A BIOS update may be required for some 14th generation CPUs.

Who should buy

Builders who want a ready-to-go platform with DDR5 memory support up to 7200 MT/s overclocked, four M.2 slots, 2.5 Gb Ethernet and Wi-Fi 6E will find the core parts in one box. The 16+1 DrMOS power design and military-grade TUF components suit sustained heavy workloads. Anyone needing a cooler in the package or a different socket should look elsewhere.

Deciding specification

The motherboard provides four M.2 slots: one PCIe 5.0 x4 from the CPU and three PCIe 4.0 x4 from the chipset, all supporting 2242, 2260, 2280 and 22110 form factors. This density of high-speed storage lanes is the key factor when choosing this board.

Highlights

  • Ready for 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components for stable delivery
  • DDR5 memory support up to 7200 MT/s OC across four slots with 192 GB maximum capacity
  • Wi-Fi 6E and Intel 2.5Gb Ethernet with TUF LANGuard for low-latency networking
  • Four M.2 slots including one PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage expansion

Specifications

BrandASUS
SeriesTUF
ModelTUF GAMING Z790-PLUS WIFI D5+Ultra 7 265K
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChannelsRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
Max LAN Speed1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board run 12th, 13th and 14th Gen Intel Core CPUs without a BIOS update?

12th and 13th Gen work out of the box; 14th Gen may need a BIOS update, check the ASUS support site before building

What memory speeds and capacity does the platform support?

Four DDR5 slots, dual-channel, up to 192 GB total, XMP profiles from 4800 to 7200 MT/s depending on CPU and module combination

How many M.2 NVMe drives can I install and what speeds do they run?

Four M.2 slots: the top slot runs PCIe 4.0 x4 from the CPU, the other three run PCIe 4.0 x4 from the Z790 chipset, all support 2242, 2260, 2280 and the top slot also takes 22110
