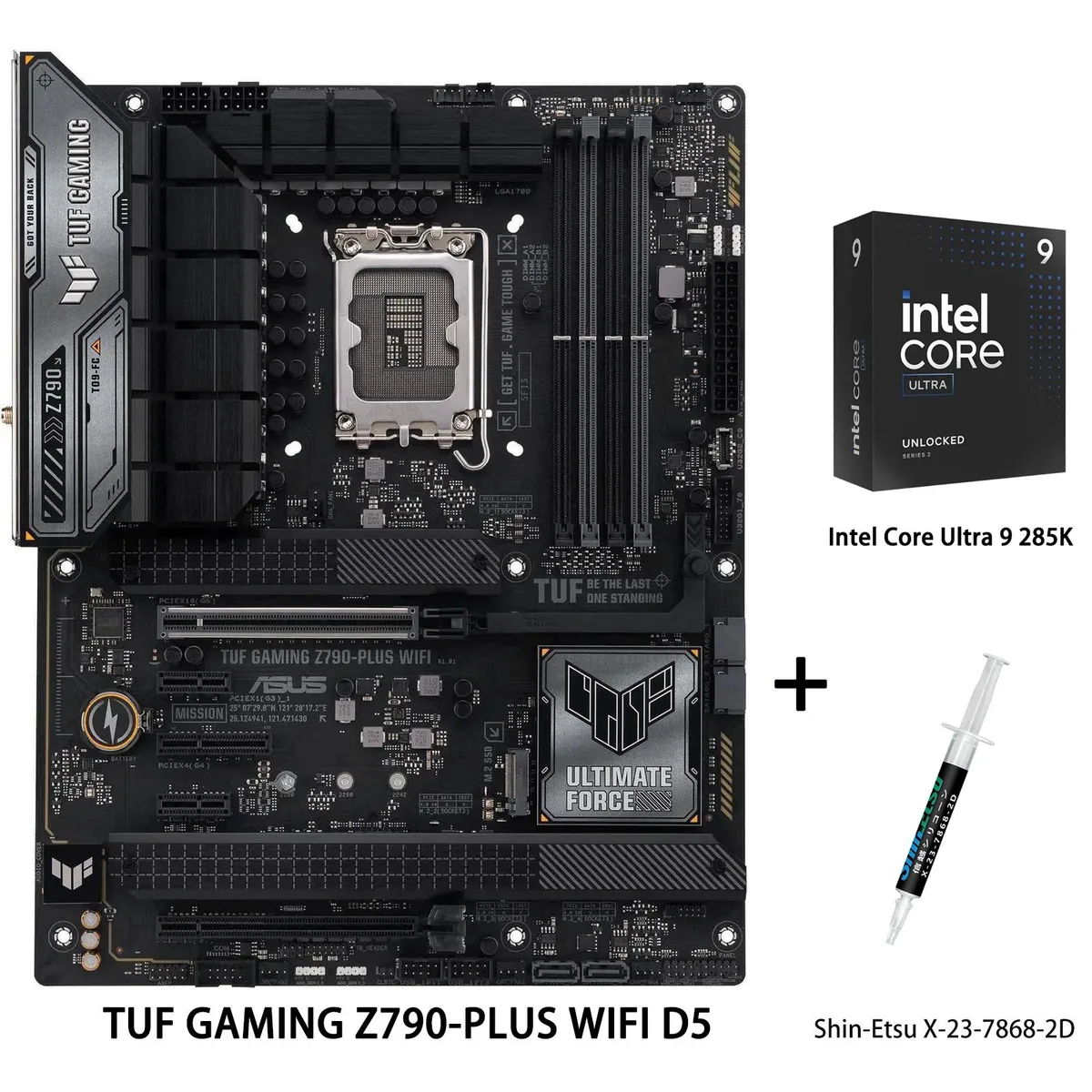

ASUS TUF Z790 ATX motherboard with Intel Ultra 9 285K CPU and thermal grease

ASUS

ASUS TUF GAMING Z790-PLUS WIFI D5 + Ultra 9 285K Combo

SKU CH-9VEJ-K1Q4S

A motherboard and CPU combo with LGA 1700 socket, Z790 chipset, DDR5 memory up to 7200 MT/s, PCIe 5.0 graphics slot, four M.2 slots, Wi-Fi 6E, 2.5 Gb LAN, and 7.1 audio

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12t
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • Maximum Memory Supported192GB

model TUF GAMING Z790-PLUS WIFI D5

+CPU +Ultra 9 285K

  • Ready for 12th, 13th and 14th Gen Intel Core on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • Four M.2 slots including PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage
  • Wi-Fi 6E 2x2 and Intel 2.5Gb Ethernet with TUF LANGuard for low-latency networking
  • 192 GB DDR5 maximum across four slots with XMP and OptiMem II support

Combo package

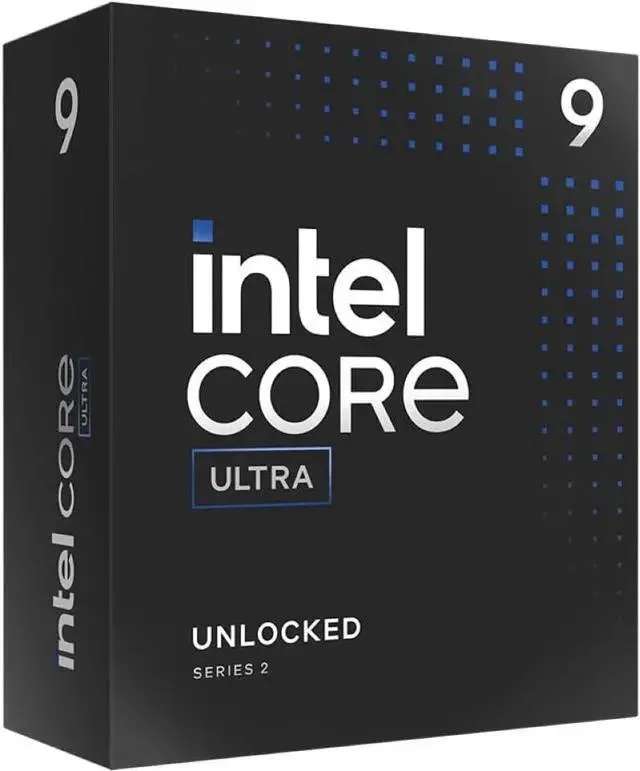

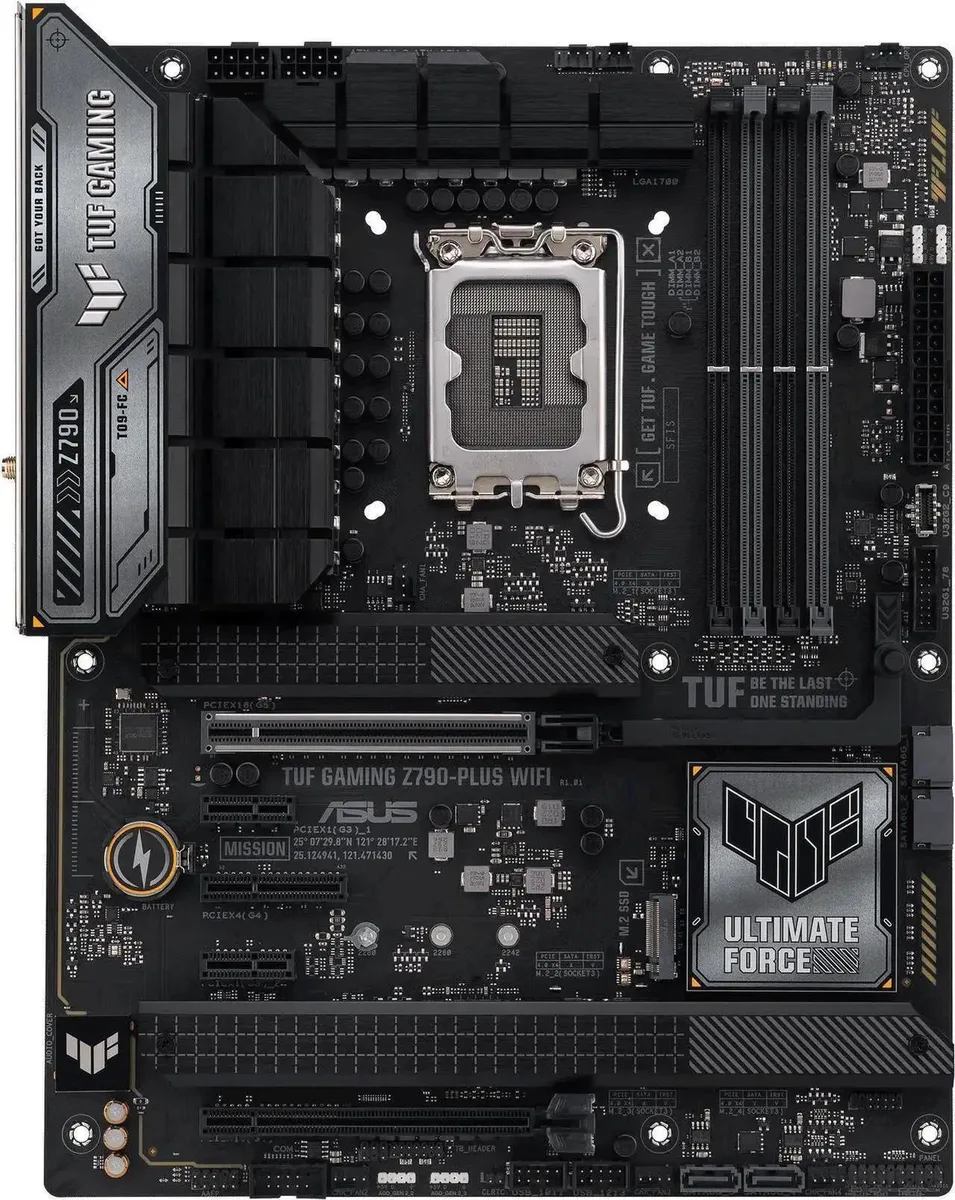

This bundle pairs an ASUS TUF GAMING Z790-PLUS WIFI D5 motherboard with an Intel Core Ultra 9 285K processor and a tube of Shin-Etsu X-23-7868-2D thermal grease. The board uses the Intel Z790 chipset and an LGA 1700 socket that accepts 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron CPUs. It delivers a 16+1 DrMOS power design with ProCool connectors and military-grade TUF components.

Target builder

The combination suits enthusiasts who want a ready-matched CPU and motherboard for high-refresh gaming or heavy multitasking without researching compatibility. Builders needing a smaller form factor, a different chipset feature set or a processor with a lower thermal design power should evaluate other options.

Deciding specification

The motherboard supports DDR5 memory up to 7200 MT/s overclocked across four slots with a maximum capacity of 192 GB in dual-channel mode. If your workload demands that memory bandwidth and capacity ceiling, this kit meets it; if your budget or use case fits lower speeds or smaller kits, a different board may be more appropriate.

Highlights

  • Ready for 12th, 13th and 14th Gen Intel Core on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • Four M.2 slots including PCIe 5.0 x4 and three PCIe 4.0 x4 for fast storage
  • Wi-Fi 6E 2x2 and Intel 2.5Gb Ethernet with TUF LANGuard for low-latency networking
  • 192 GB DDR5 maximum across four slots with XMP and OptiMem II support

Specifications

BrandASUS
SeriesTUF
ModelTUF GAMING Z790-PLUS WIFI D5+Ultra 9 285K
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChannelsRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
Max LAN Speed1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board run DDR5-6000 memory without any manual overclocking?

Yes, DDR5-6000 is listed as a native JEDEC speed on this motherboard, so compatible kits will operate at that frequency automatically.

Does the Intel Ultra 9 285K processor include a cooling solution in this combo?

No, the processor does not come with a cooler; the bundle only adds a tube of Shin-Etsu X-23-7868-2D thermal grease, so you must supply your own CPU cooler.

How many M.2 NVMe drives can be installed at once?

The board provides four M.2 slots, all supporting Key M modules in lengths 2242, 2260, 2280 and 22110, allowing up to four NVMe SSDs simultaneously.
