White ATX motherboard with large silver heatsinks and black PCB

ASUS

ASUS X870 AYW GAMING WIFI W AMD motherboard

SKU CH-ZGN2-SNG35 MPN X870 AYW GAMING WIFI W

ATX board for AMD AM5 Ryzen 7000, 8000 and 9000 CPUs with 12+2+1 80A DrMOS power stages, DDR5 up to 8000+ MT/s, PCIe 5.0 x16 and M.2, Wi-Fi 6, 2.5Gb LAN, USB4 and 20Gbps Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+1 80A DrMOS power stages with 8-layer PCB for stable delivery
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest graphics and storage
  • Wi-Fi 6, 2.5Gb LAN and USB4 40Gbps Type-C for high-speed connectivity
  • Four DDR5 slots up to 8000+ MT/s with AMD EXPO and ECC support

AM5 Platform Board

The ASUS X870 AYW GAMING WIFI W is an ATX motherboard built on the AMD X870 chipset for Ryzen 7000, 8000 and 9000 series processors. It targets enthusiasts who want a white-themed build with high-speed connectivity and robust power delivery.

DIY-Friendly Installation

A pre-mounted I/O shield, PCIe Slot Q-Release and M.2 Q-Latch simplify the build process. BIOS FlashBack allows firmware updates without a CPU installed. The PCIe 3.0 x16 slot shares bandwidth with two SATA ports, so using that slot disables those SATA connections unless the BIOS is adjusted.

High-End Gaming and AI Workloads

The 12+2+1 80A DrMOS power stages, DDR5 support up to 8000+ MT/s and PCIe 5.0 x16 plus M.2 slots suit demanding gaming and AI tasks. Builders needing more than four SATA ports or legacy PCIe 3.0 expansion should consider alternative boards.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • 12+2+1 80A DrMOS power stages with 8-layer PCB for stable delivery
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest graphics and storage
  • Wi-Fi 6, 2.5Gb LAN and USB4 40Gbps Type-C for high-speed connectivity
  • Four DDR5 slots up to 8000+ MT/s with AMD EXPO and ECC support

Specifications

BrandASUS
ModelX870 AYW GAMING WIFI W
Part Number90MB1LA0-MVAAY0
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
PCI Express 3.0 x161 x PCIe 3.0 x16 slot (support x1 mode)***
*** PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
** Specifications vary by CPU types.
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.2
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers

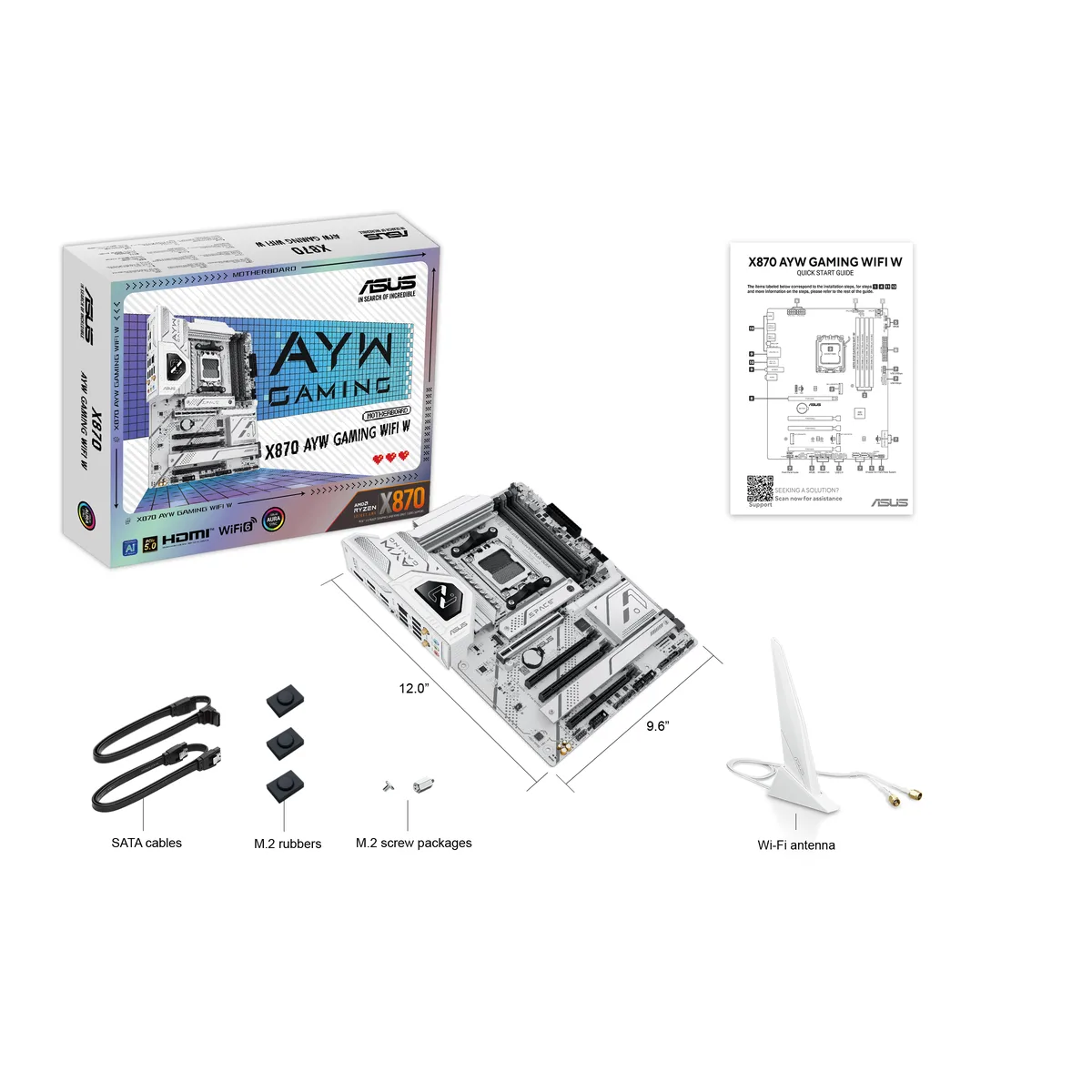

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 rubber packages
1 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight1.95 kg
Package size356 × 267 × 76 mm

Questions about this item

How do I confirm the 12+2+1 80A DrMOS power delivery is operating correctly after assembly?

Enter the BIOS and open the hardware-monitor page; it reports real-time CPU Vcore, VRM temperature and phase current for each of the 12+2+1 power stages, so you can verify stable readings under load.

What accessories are included and which items must be purchased separately for a complete build?

The box contains the ATX motherboard with pre-mounted I/O shield, SATA cables, M.2 Q-Latch screws, Wi-Fi 6 antenna, driver disc and manual; you still need an AM5 Ryzen 7000/8000/9000 processor, DDR5 memory, graphics card, storage drives and an ATX power supply.

Which M.2 slot should I choose for a PCIe 5.0 x4 drive versus a PCIe 4.0 x4 drive?

Use the M.2_1 slot (Key M, 2280) for a PCIe 5.0 x4 drive when paired with a Ryzen 9000 or 7000 CPU; use the M.2_2 slot (Key M, 2242/2260/2280) for a PCIe 4.0 x4 drive.
