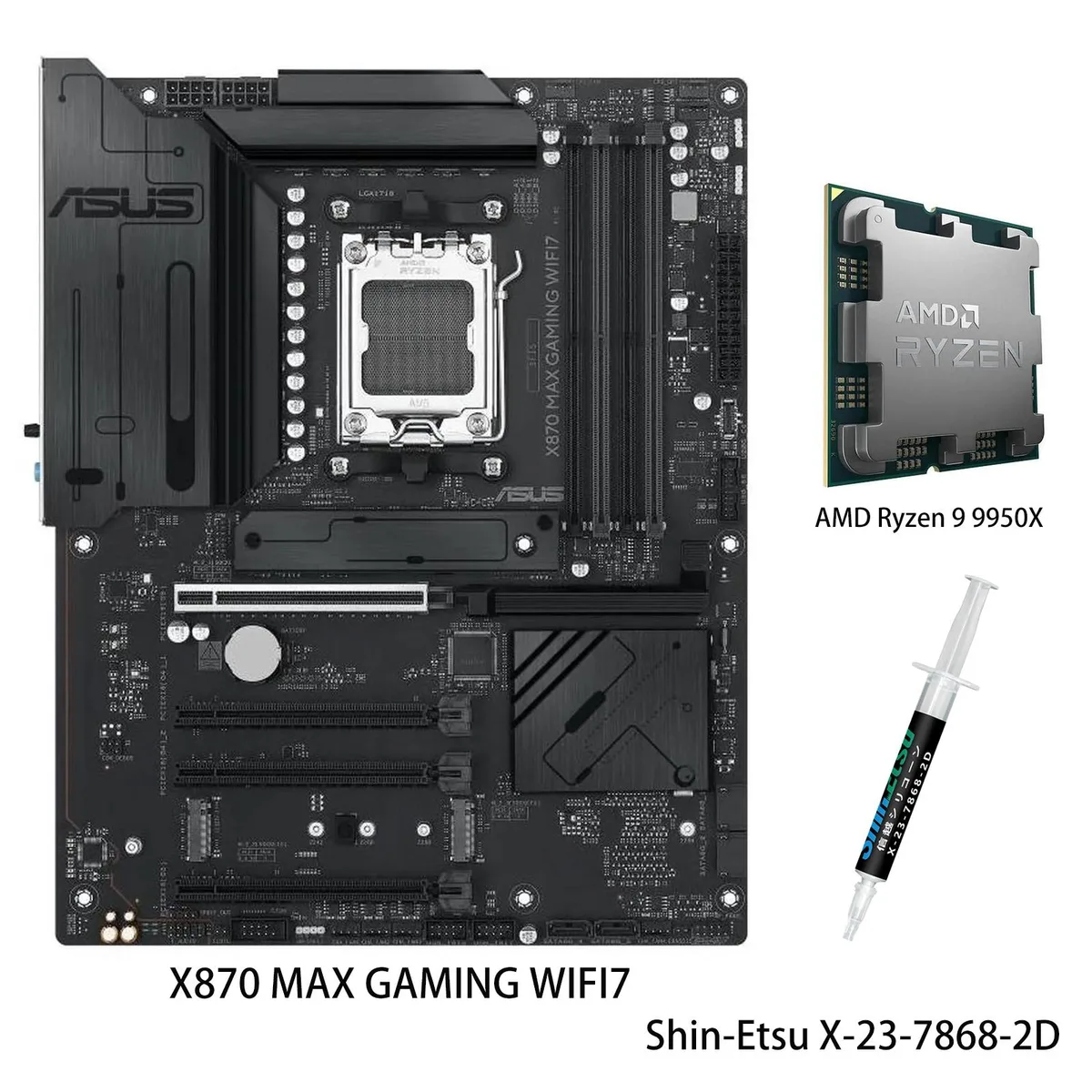

Black ATX motherboard with large silver VRM heatsinks and pre-mounted I/O shield, paired with a silver Ryzen CPU in AM5 socket

ASUS

ASUS X870 MAX GAMING WIFI7 & Ryzen 9 9950X AMD motherboard combo

SKU CH-2Y0J-K160F

Combines an X870 ATX board with Wi-Fi 7, three M.2 slots and 40 Gbps USB4 alongside a 16-core Ryzen 9 9950X reaching 5.7 GHz boost

  • CPU Socket TypeAM5

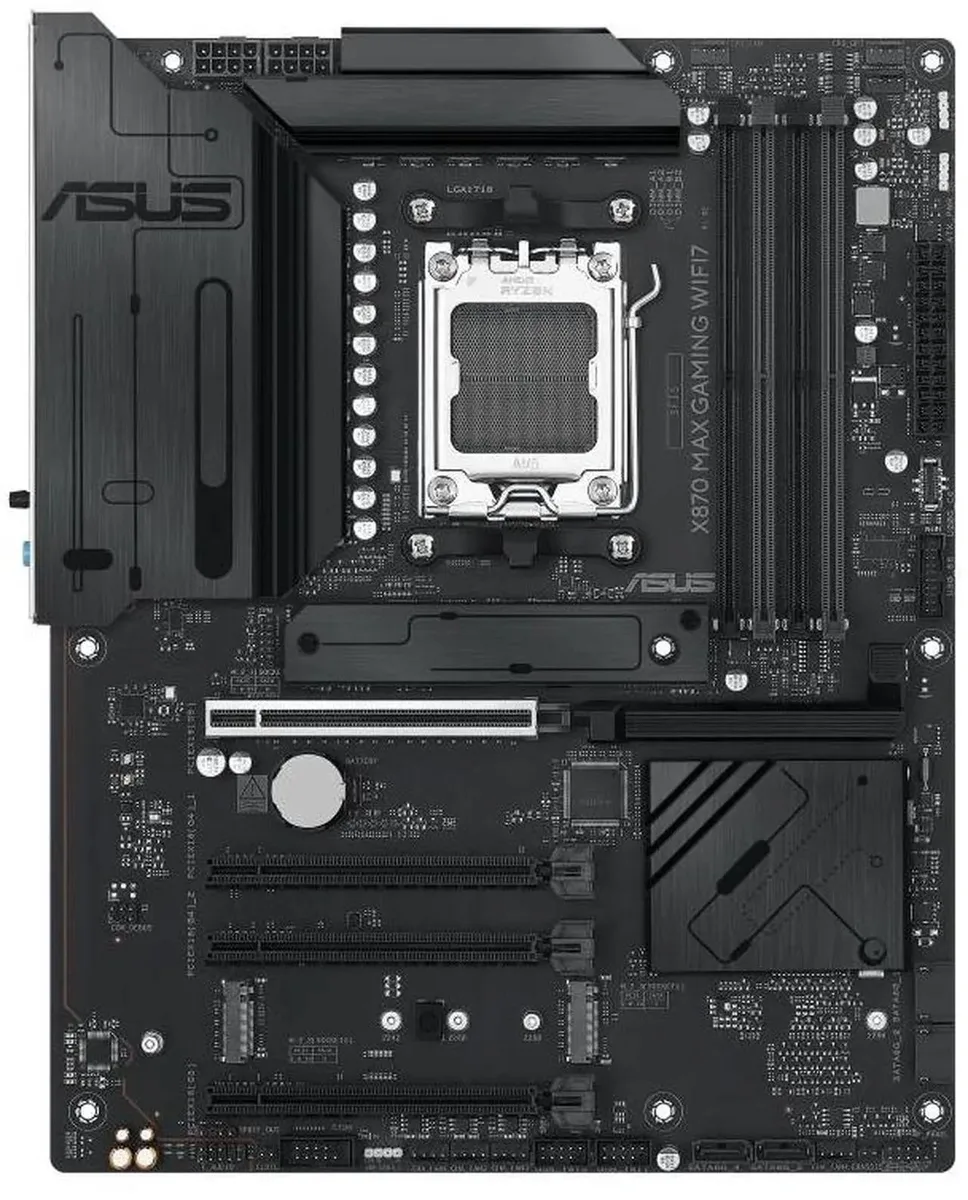

Motherboard X870 MAX GAMING WIFI7

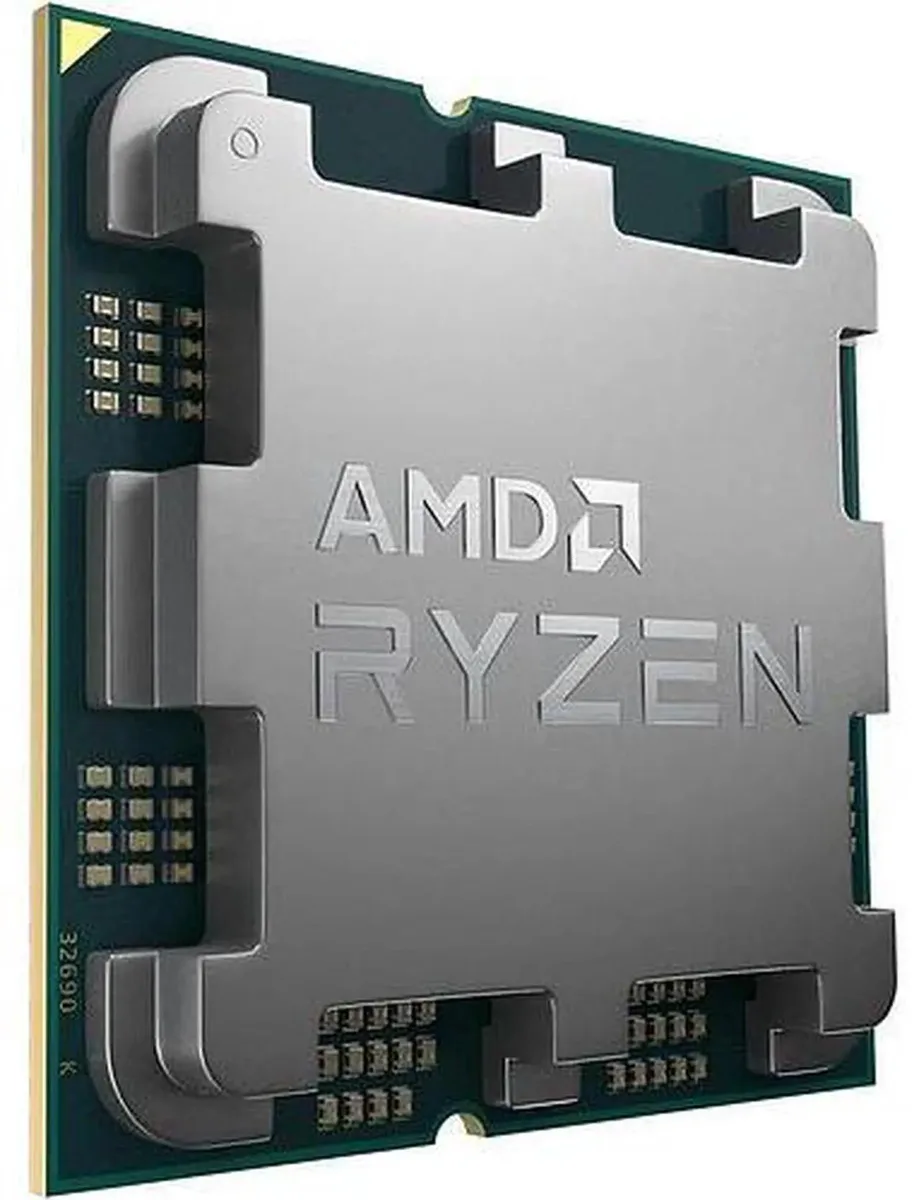

CPU + R9 9950X

  • 16 cores and 32 threads handle heavy workloads
  • 7 GHz max boost speeds up demanding tasks
  • 12+2+1 80A DrMOS stages deliver stable power
  • Wi-Fi 7 and 2.5Gb Ethernet give fast networking
  • Pre-mounted I/O shield and Q-Release simplify building

Combo purpose

This bundle pairs an ASUS X870 MAX GAMING WIFI7 motherboard with an AMD Ryzen 9 9950X processor for AM5 systems. It targets builders who want a matched platform for AI workloads, heavy multitasking and high-refresh gaming without selecting parts separately. The board delivers Wi-Fi 7, USB4 40Gbps Type-C and a front USB 20Gbps Type-C connector alongside three M.2 slots and Realtek 2.5Gb Ethernet.

Upgrade context

The combination replaces an older AM4 or early AM5 build when core count, memory bandwidth and PCIe 5.0 connectivity become bottlenecks. The CPU brings 16 cores and 32 threads with a 5.7 GHz max boost, 64MB L3 cache and DDR5-5600 support, while the board adds a 12+2+1 80A DrMOS design on an 8-layer PCB. The jump is worth it when rendering, compilation or local AI inference scale beyond what 8- or 12-core chips can sustain.

Build experience

Installation is streamlined by a pre-mounted I/O shield, PCIe Slot Q-Release, Q-Antenna and a flexible M.2 heatsink that reduce screw counts. BIOSFlashBack lets you update firmware without a CPU installed, and Q-LED Core plus Q-Dashboard give immediate post-code feedback. The main pitfalls are forgetting to seat the 12VHPWR or 8-pin EPS cables fully, and neglecting to enable EXPO in BIOS so DDR5 runs at rated speed.

Highlights

  • 16 cores and 32 threads handle heavy workloads
  • 7 GHz max boost speeds up demanding tasks
  • 12+2+1 80A DrMOS stages deliver stable power
  • Wi-Fi 7 and 2.5Gb Ethernet give fast networking
  • Pre-mounted I/O shield and Q-Release simplify building

Specifications

BrandASUS
ModelX870 MAX GAMING WIFI7+R9 9950X
CPU Socket TypeAM5

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance and mounting pattern does the ATX X870 MAX GAMING WIFI7 require?

The board uses standard ATX dimensions with nine screw holes and a pre-mounted I/O shield; verify your chassis supports ATX and has standoffs in the standard locations before installation.

Which BIOSFlashBack step is most often missed when updating without a CPU installed?

Rename the BIOS file on the FAT32 USB drive to the exact name the manual specifies, plug it into the dedicated BIOSFlashBack port, then hold the rear button until the LED starts blinking — skipping the rename stops the update.

When should the CMOS battery be replaced and what settings are lost?

Replace the coin cell when the system loses date, time or BIOS configuration after power-off; this restores BIOSFlashBack profiles, Q-LED Core status, and Fan Xpert 4 curves.
