ATX motherboard in dark finish with large CPU cooler and four RAM slots visible

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard & Ryzen 9 9950X CPU combo

SKU CH-2AHT-KTQ31

Pairs a 16-core Ryzen 9 9950X with an X870 board offering 4 DDR5 slots, 4 M.2 sockets, PCIe 5.0 graphics, 5Gb Ethernet and WIFI7

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

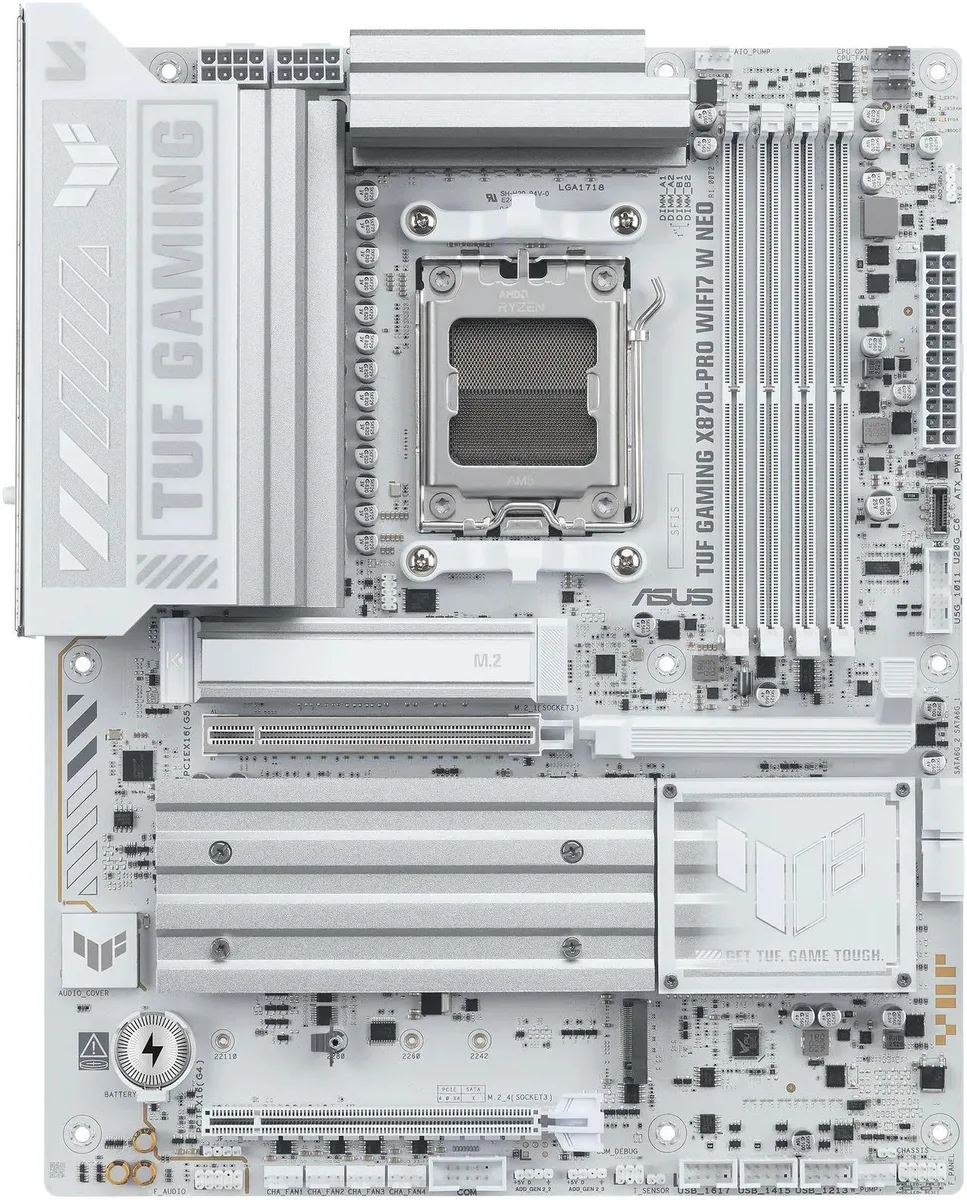

Motherboard TUF GAMING X870-PRO WIFI7 W NEO

CPU + R9 9950X

  • 16-core 32-thread Ryzen 9 9950X reaches 5.7 GHz max boost
  • 16+2+1 80 A power stages on 8-layer PCB for stable overclocking
  • Four M.2 slots with PCIe 5.0 and 4.0 support for fast storage
  • WiFi7 and 5 Gb Ethernet plus USB4 40 Gbps for high-speed connectivity
  • 256 GB DDR5 capacity with AEMP and EXPO profiles for easy memory tuning

AMD AM5 combo for AI workloads

This motherboard and CPU bundle pairs the ASUS TUF GAMING X870-PRO WIFI7 W NEO with an AMD Ryzen 9 9950X processor. The sixteen-core chip reaches 5.7 GHz maximum boost and provides thirty-two threads for heavy multitasking. It targets builders who need strong single-thread speed and high core counts for local AI inference, rendering or compilation. The board uses the AMD X870 chipset and AM5 socket to support Ryzen 7000, 8000 and 9000 series CPUs.

Sustained power delivery and thermals

The board implements a 16+2+1 phase design with 80A SPS power stages on an eight-layer PCB. Dual eight-pin ProCool connectors feed the VRM during long AVX or AI loads without throttling. AI Cooling II and AI Overclocking adjust fan curves and voltages in real time to keep temperatures stable. Four M.2 slots — two PCIe 5.0 and two PCIe 4.0 — maintain throughput for large model weights and scratch disks during extended sessions.

DDR5 limits and storage interface

Memory tops out at 256 GB across four 288-pin slots running dual-channel DDR5 with AMD EXPO, Intel XMP and ASUS AEMP profiles. The CPU officially supports DDR5-5600; higher speeds depend on silicon quality and board tuning. Storage uses four M.2 sockets and two SATA 6 Gb/s ports; the board does not expose additional PCIe lanes beyond the listed slots. USB4 at 40 Gbps and 20 Gbps USB-C with 30 W Power Delivery handle external arrays, while 5 Gb Ethernet and WiFi7 manage network traffic.

Highlights

  • 16-core 32-thread Ryzen 9 9950X reaches 5.7 GHz max boost
  • 16+2+1 80 A power stages on 8-layer PCB for stable overclocking
  • Four M.2 slots with PCIe 5.0 and 4.0 support for fast storage
  • WiFi7 and 5 Gb Ethernet plus USB4 40 Gbps for high-speed connectivity
  • 256 GB DDR5 capacity with AEMP and EXPO profiles for easy memory tuning

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R9 9950X
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the bundle include a CPU cooler for the Ryzen 9 9950X?

The Ryzen 9 9950X is supplied without a cooler, so a compatible AM5 cooler must be purchased separately.

What memory speed does the motherboard support out of the box with this CPU?

The Ryzen 9 9950X officially supports DDR5-5600; the board also runs AMD EXPO, Intel XMP and ASUS AEMP profiles for higher speeds.

How many M.2 drives can be installed and which PCIe generations are available?

Four M.2 slots are provided, two wired for PCIe 5.0 x4 and two for PCIe 4.0 x4.
