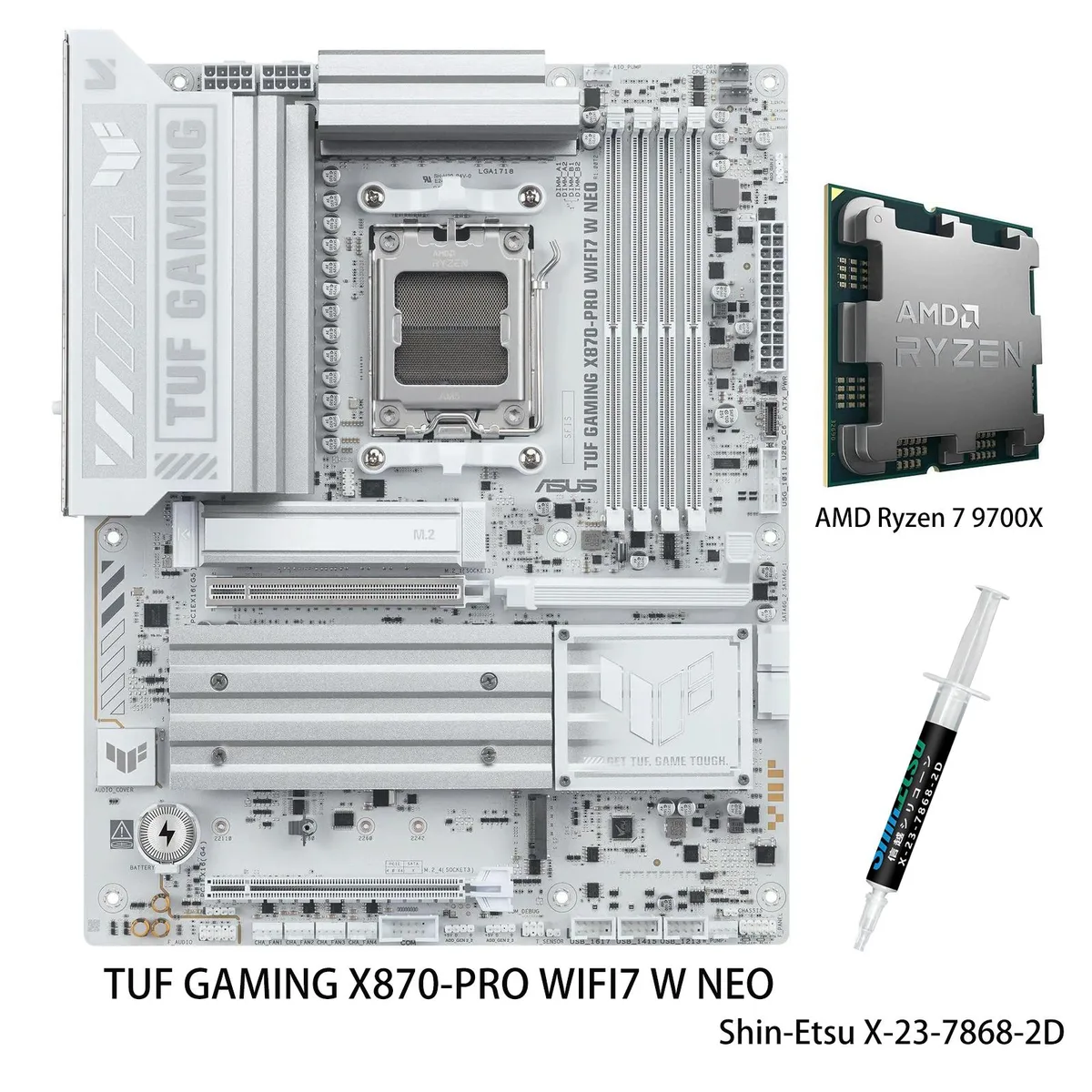

ASUS TUF Gaming X870 motherboard with Ryzen 7 9700X CPU installed

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard & Ryzen 7 9700X CPU combo

SKU CH-PQRX-VVXAB

ATX motherboard and 8-core Ryzen 7 9700X CPU combo with 16+2+1 power stages, four M.2 slots, WiFi7 and 5Gb Ethernet

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

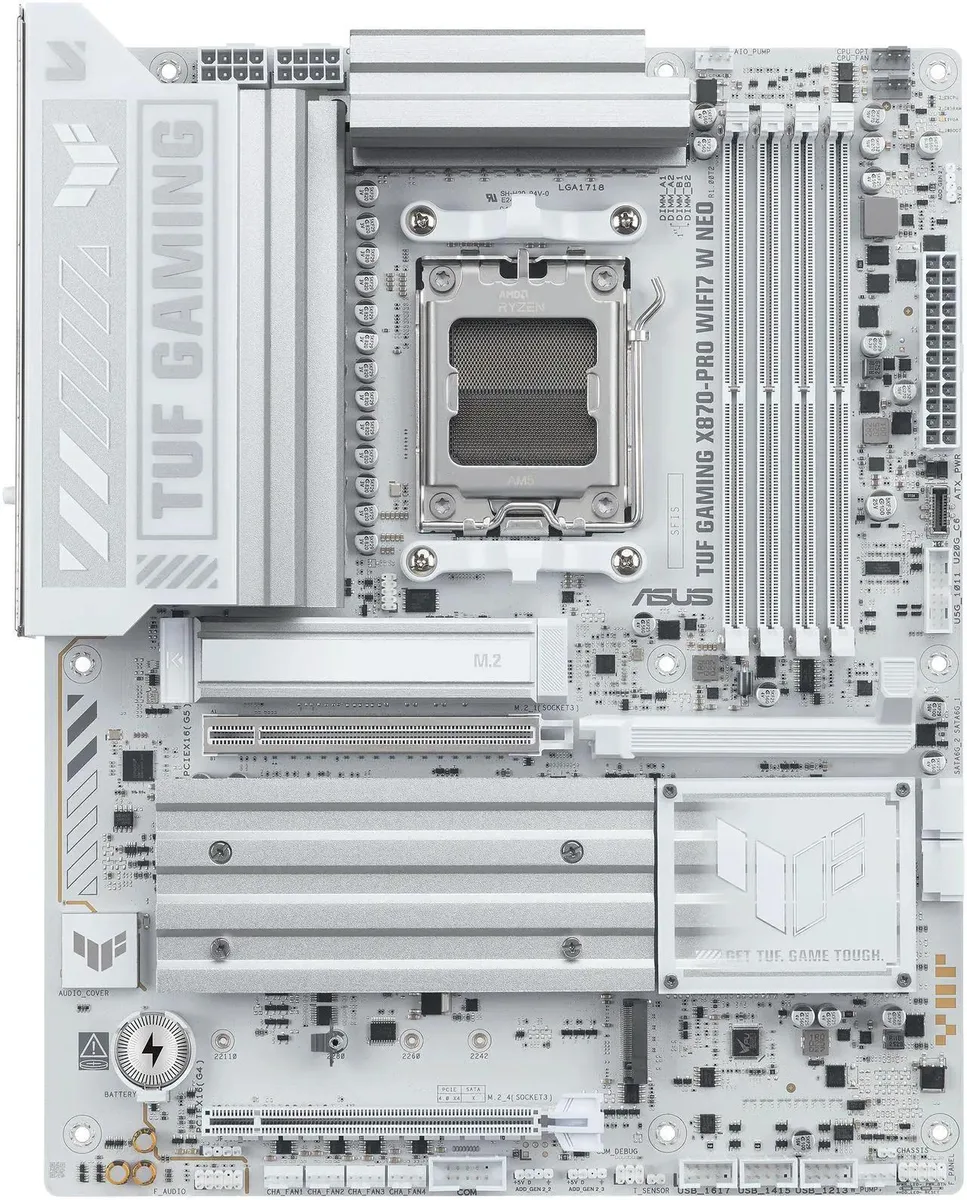

Motherboard TUF GAMING X870-PRO WIFI7 W NEO

CPU + R7 9700X

  • Ready for AI workloads with AMD X870 chipset and AM5 socket
  • 16+2+1 80 A power stages deliver stable overclocking headroom
  • Four M.2 slots support PCIe 5.0 x4 and 4.0 x4 storage
  • WiFi7 and 5 Gb Ethernet provide fast wired and wireless connectivity
  • Ryzen 7 9700X 8-core 16-thread CPU boosts to 5.5 GHz for high frame rates

Combo ready for AI workloads

This motherboard and CPU combo pairs the ASUS TUF GAMING X870-PRO WIFI7 W NEO with the AMD Ryzen 7 9700X. The board uses the AMD X870 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. The included 8-core 16-thread CPU runs at up to 5.5 GHz boost and is unlocked for overclocking. It targets enthusiasts building high-performance gaming or AI-ready desktops.

Check socket power and memory before ordering

Verify your power supply has both 8-pin EPS connectors for the 16+2+1 80A power stage design. The board accepts four 288-pin DDR5 modules up to 256 GB total in dual-channel mode with EXPO, XMP or AEMP profiles. Ensure your case fits an ATX board and clears the 8-layer PCB layout. A BIOS update may be required for some Ryzen 7000 series chips.

Sustained load on robust VRM and cooling AI

The 16+2+1 power stage VRM with ProCool connectors is built for continuous high-current delivery during long rendering or AI sessions. AI Cooling II and AI Overclocking adjust fan curves and frequencies in real time to maintain stability. Asynchronous clock generation helps memory and fabric stay stable under prolonged stress. The 64 MB BIOS and 8-layer PCB aid signal integrity during extended heavy workloads.

Highlights

  • Ready for AI workloads with AMD X870 chipset and AM5 socket
  • 16+2+1 80 A power stages deliver stable overclocking headroom
  • Four M.2 slots support PCIe 5.0 x4 and 4.0 x4 storage
  • WiFi7 and 5 Gb Ethernet provide fast wired and wireless connectivity
  • Ryzen 7 9700X 8-core 16-thread CPU boosts to 5.5 GHz for high frame rates

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R7 9700X
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 7 9700X processor fit the motherboard socket without a BIOS update?

Yes, the motherboard uses the AMD AM5 socket which supports Ryzen 9000 series processors including the 9700X out of the box.

What memory speed can I expect with standard DDR5 modules using the board's automatic tuning?

The ASUS AEMP feature automatically configures compatible DDR5 modules for higher performance without manual BIOS changes.

How many high-speed M.2 drives can I install and do they all support PCIe 5.0?

Four M.2 slots are available; two operate at PCIe 5.0 x4 and two at PCIe 4.0 x4 speeds.
