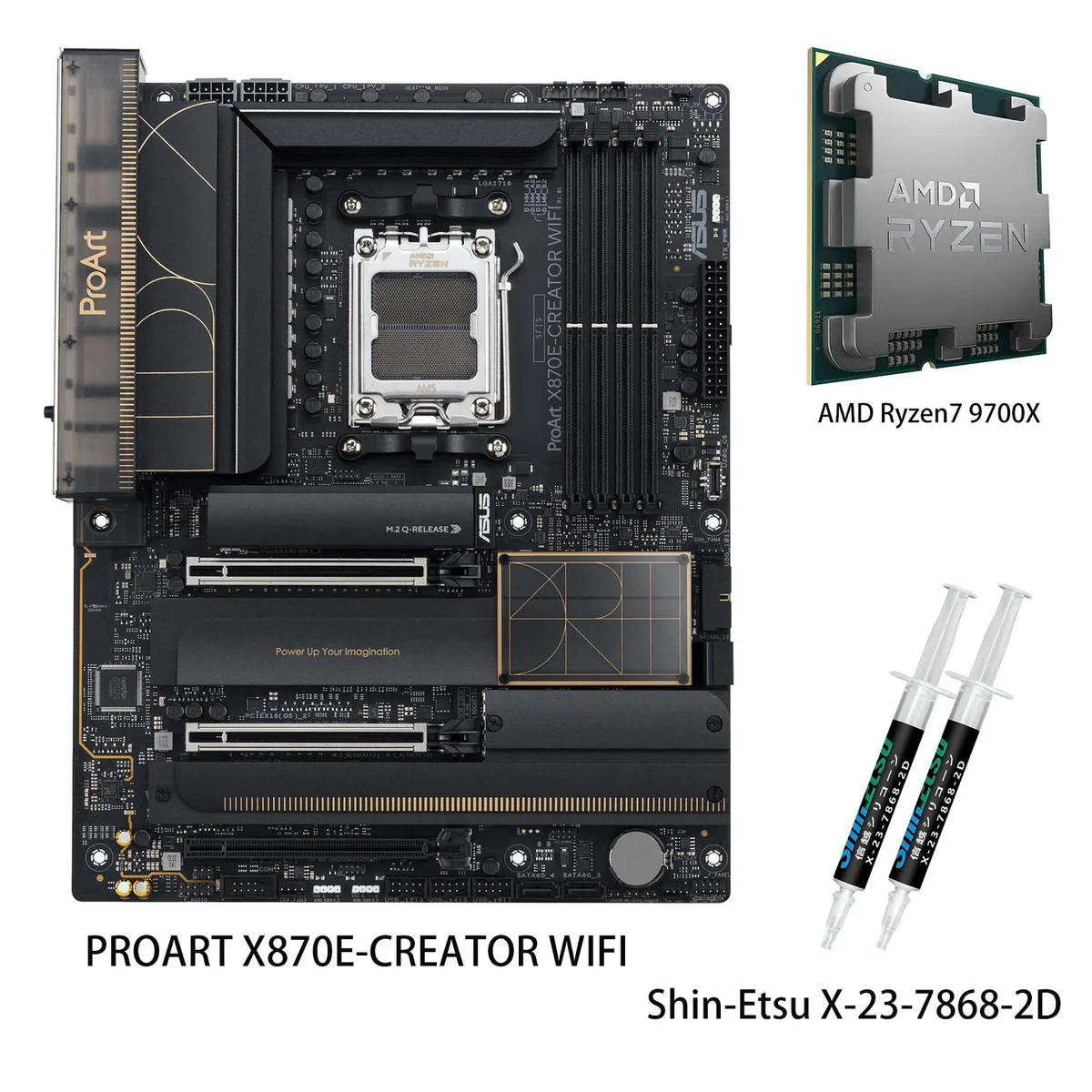

ASUS ProArt X870E-CREATOR WIFI ATX motherboard and Ryzen 7 9700X CPU in AM5 socket

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard & Ryzen 7 9700X CPU Combo

SKU CH-1CTM-FN3QV

An ATX motherboard and 8-core Ryzen 7 9700X CPU bundle with DDR5 support up to 256 GB, dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7, and two PCIe 5.0 M.2 slots

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

Motherboard ProArt X870E-CREATOR WIFI

CPU + R7 9700X

  • Ready for advanced AI workloads with robust power delivery
  • 16+2+2 teamed power stages ensure stable performance
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet for fast connectivity
  • WiFi 7 and Bluetooth 5.4 provide modern wireless capabilities
  • Ryzen 7 9700X delivers 8 cores and 16 threads at up to 5.5 GHz boost clock

ProArt X870E-CREATOR WIFI Combo

The ASUS ProArt X870E-CREATOR WIFI motherboard pairs with an AMD Ryzen 7 9700X processor in a single AM5 package. It targets creators and developers who need strong multi-threaded performance plus high-speed I/O for AI workloads, rendering and large data sets. The board delivers 16+2+2 teamed power stages and dual USB4 ports for demanding peripherals.

Ideal users and alternatives

This combo suits professionals who want 8 cores, 16 threads and a 5.5 GHz max boost clock alongside 10 Gb and 2.5 Gb Ethernet, WiFi 7 and Bluetooth 5.4. Builders needing more than 256 GB of DDR5 or extra PCIe 5.0 x16 lanes for multiple GPUs should consider a workstation-class platform instead.

Installation notes

The motherboard includes PCIe Slot Q-Release Slim, M.2 Q-Release, Q-Slide and Q-Latch mechanisms plus a Q-Connector for front-panel headers and BIOS FlashBack for firmware updates without a CPU. First-time builders often forget to enable EXPO in BIOS to reach DDR5 4400 speeds or leave the second PCIe 5.0 x16 slot unpopulated while using M.2_2, which shares its bandwidth.

Highlights

  • Ready for advanced AI workloads with robust power delivery
  • 16+2+2 teamed power stages ensure stable performance
  • Dual USB4 ports plus 10 Gb and 2.5 Gb Ethernet for fast connectivity
  • WiFi 7 and Bluetooth 5.4 provide modern wireless capabilities
  • Ryzen 7 9700X delivers 8 cores and 16 threads at up to 5.5 GHz boost clock

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI +(R7 9700X)
Part NumberPROART X870E-CREATOR WIFI +(R7 9700X)
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 7 9700X CPU
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to buy DDR5 memory modules to use the four 288-pin slots on this board?

Yes, the board only accepts DDR5 modules up to 256 GB total across the four slots.

Will my existing PCIe 4.0 graphics card run at full speed in the PCIe 5.0 x16 slots?

Yes, a PCIe 4.0 card will operate at its native x16 speed in either of the two PCIe 5.0 x16 slots.

How can I confirm the WiFi 7 and Bluetooth 5.4 radios are active after building the system?

Check Device Manager for the WiFi 7 adapter and Bluetooth 5.4 controller, then connect to a 6 GHz network and pair a Bluetooth device to verify both links.
