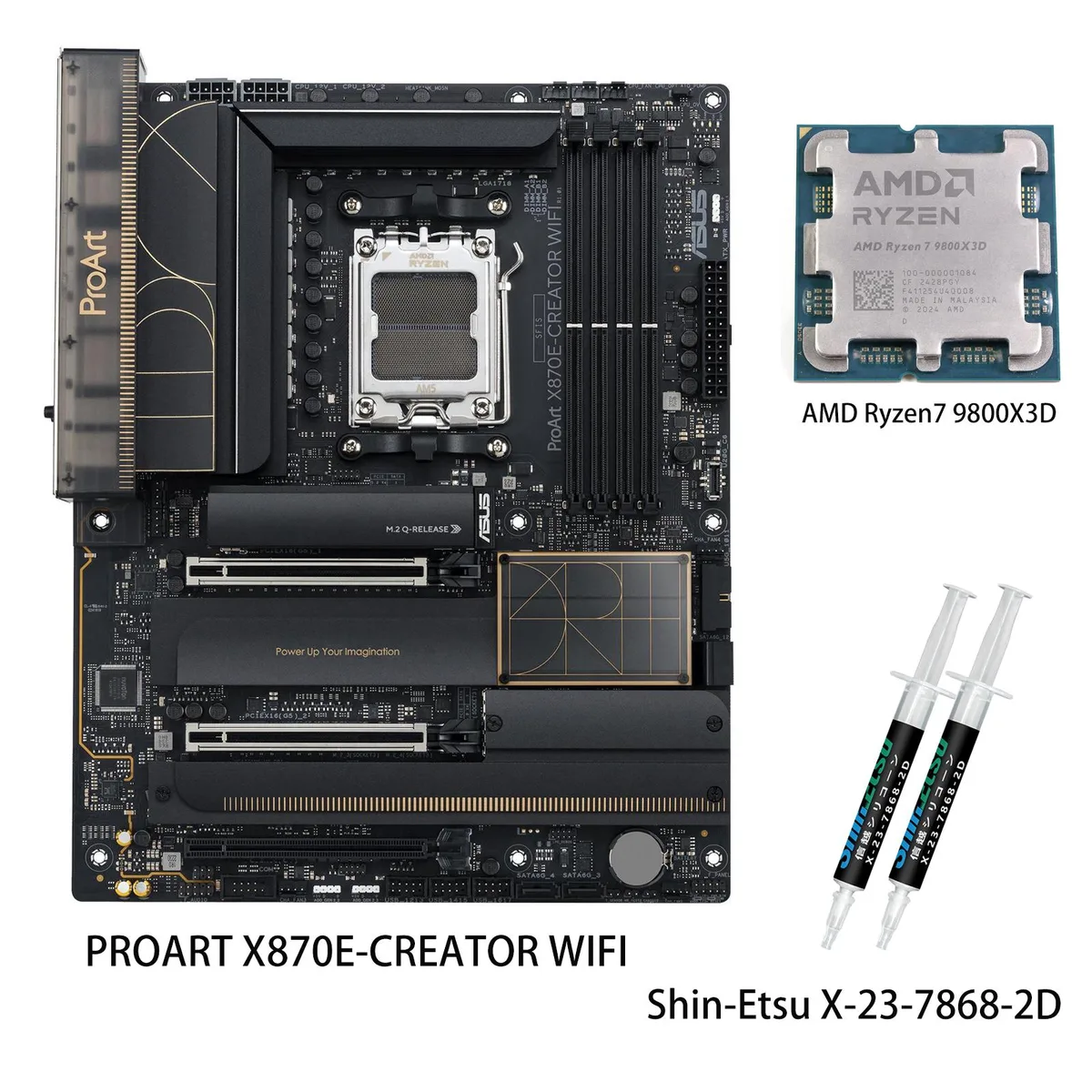

ATX motherboard in dark finish with silver heatsinks and included Ryzen CPU

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard & Ryzen 7 9800X3D CPU combo

SKU CH-87V0-ZPVSP

An AM5 ATX motherboard paired with a Ryzen 7 9800X3D CPU, delivering 16+2+2 power stages, dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7, Bluetooth 5.4.

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

Motherboard ProArt X870E-CREATOR WIFI

CPU + R7 9800X3D

  • Supports up to 256GB DDR5 memory for large creative workloads
  • Dual USB4 ports deliver 20Gbps throughput for fast peripherals
  • 10Gb and 2.5Gb Ethernet plus WiFi 7 enable high-speed networking
  • 16+2+2 teamed power stages provide stable CPU delivery
  • PCIe 5.0 x16 slots ready for next-gen GPUs

Ready for advanced AI PCs

This ASUS ProArt X870E-CREATOR WIFI motherboard paired with the AMD Ryzen 7 9800X3D CPU targets creators and professionals building high-performance workstations. The AM5 platform supports Ryzen 7000, 8000 and 9000 series processors. A 16+2+2 teamed power stage design with ProCool II connectors delivers stable current for demanding AI and content-creation workloads.

Dual USB4 and WiFi 7 connectivity

Dual USB4 ports provide 20Gbps throughput with 30W power delivery for fast external storage and peripherals. Integrated 10Gb and 2.5Gb Ethernet plus WiFi 7 and Bluetooth 5.4 ensure low-latency networking. Four M.2 slots — two PCIe 5.0 and two PCIe 4.0 — plus four SATA 6Gb/s ports allow large NVMe and SATA arrays. Realtek S1220A 7.1 audio with a built-in headphone amplifier covers monitoring needs.

Check AM5 cooler clearance and DDR5 EXPO kits

Verify that your CPU cooler fits the AM5 socket mounting pattern and does not block the first PCIe 5.0 x16 slot or M.2 heatsinks. The board accepts up to 256GB of unbuffered DDR5 across four 288-pin slots; enable EXPO profiles for rated speeds. Ensure the chassis has room for the ATX form factor and that the power supply provides enough 12V current for the 16+2+2 phase VRM.

Highlights

  • Supports up to 256GB DDR5 memory for large creative workloads
  • Dual USB4 ports deliver 20Gbps throughput for fast peripherals
  • 10Gb and 2.5Gb Ethernet plus WiFi 7 enable high-speed networking
  • 16+2+2 teamed power stages provide stable CPU delivery
  • PCIe 5.0 x16 slots ready for next-gen GPUs

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI +(R7 9800X3D)
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 7 9800X3D CPU
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 16+2+2 teamed power stages or ProCool II connectors need routine servicing?

The 16+2+2 teamed power stages and ProCool II connectors are solid-state components with no moving parts; they do not require scheduled maintenance.

Which limit appears first when the Ryzen 7 9800X3D runs all-day workloads on this board?

The CPU's own thermal ceiling is reached before the 16+2+2 teamed power stages or ProCool II connectors hit their throttle point.

How loud and hot does the VRM area get during continuous operation?

AI Cooling adjusts fan curves in real time, so the 16+2+2 teamed power stages stay within thermal limits without forcing high fan speeds.
