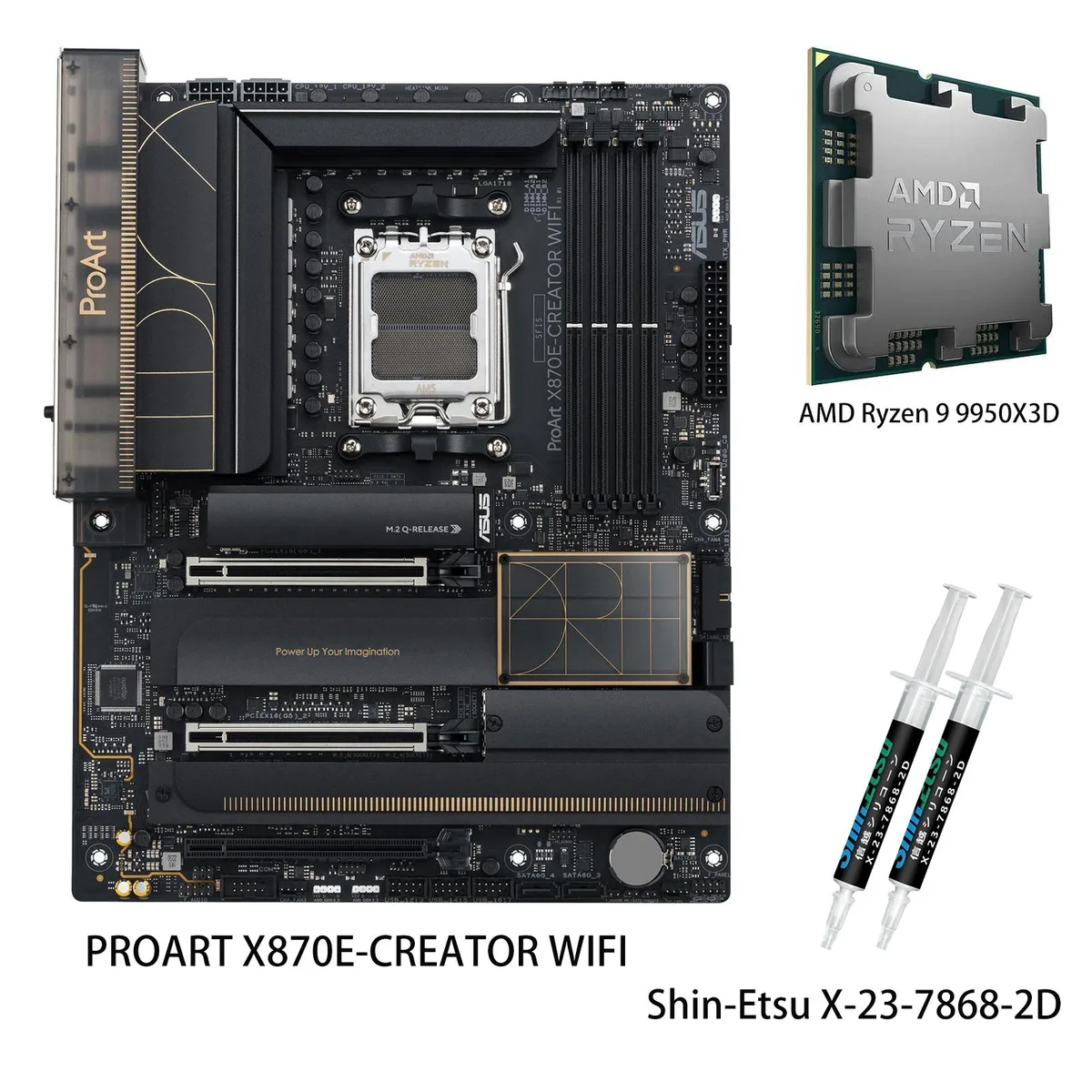

ATX motherboard with matte black finish and silver heatsinks, CPU installed in socket

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard with Ryzen 9 9950X3D CPU

SKU CH-SJNV-H5YXA

An ATX AM5 board paired with a 170 W 16-core Zen 5 CPU, offering 256 GB DDR5 4400 support, dual USB4, 10 Gb and 2.5 Gb Ethernet, WiFi 7, two PCIe 5.0 x16 slots and four M.2 slots

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

Motherboard ProArt X870E-CREATOR WIFI

CPU + R9 9950X3D

  • Built for demanding AI workloads with 16-core Ryzen 9 9950X3D processor
  • 128 MB L3 cache accelerates large-model inference and rendering
  • Dual USB4 ports and 10 Gb Ethernet move massive datasets fast
  • WiFi 7 and Bluetooth 5.4 keep wireless links responsive
  • Four DDR5 slots support 256 GB ECC memory for stable compute

ProArt X870E-CREATOR WIFI combo for creators

The ASUS ProArt X870E-CREATOR WIFI motherboard paired with the AMD Ryzen 9 9950X3D CPU targets professional content creators and AI workloads. The AM5 platform supports Ryzen 7000, 8000 and 9000 series processors with up to 256GB of DDR5 4400 memory across four slots. Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, WiFi 7 and Bluetooth 5.4 provide high-speed connectivity for demanding creative pipelines.

16+2+2 teamed power stages under sustained load

Sixteen plus two plus two teamed power stages with ProCool II connectors, alloy chokes and durable capacitors deliver stable current to the 170W Ryzen 9 9950X3D during extended rendering or AI training sessions. AI Cooling and AI Networking II dynamically adjust fan curves and traffic prioritisation to maintain thermal headroom without manual tuning. The 128MB L3 cache on the CPU reduces memory latency when large datasets remain resident for hours.

DIY-friendly installation with Q-Release mechanisms

PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, Q-Slide and Q-Latch allow tool-free installation of graphics cards and up to four M.2 drives in 2242, 2260 or 2280 form factors. Q-Antenna simplifies WiFi 7 antenna attachment and BIOS FlashBack updates firmware without a CPU installed. Builders should verify that the second PCIe 5.0 x16 slot shares bandwidth with M.2_2, so populating both at full speed is not possible.

Highlights

  • Built for demanding AI workloads with 16-core Ryzen 9 9950X3D processor
  • 128 MB L3 cache accelerates large-model inference and rendering
  • Dual USB4 ports and 10 Gb Ethernet move massive datasets fast
  • WiFi 7 and Bluetooth 5.4 keep wireless links responsive
  • Four DDR5 slots support 256 GB ECC memory for stable compute

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI +(R9 9950X3D)
Part NumberPROART X870E-CREATOR WIFI +(R9 9950X3D)
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes

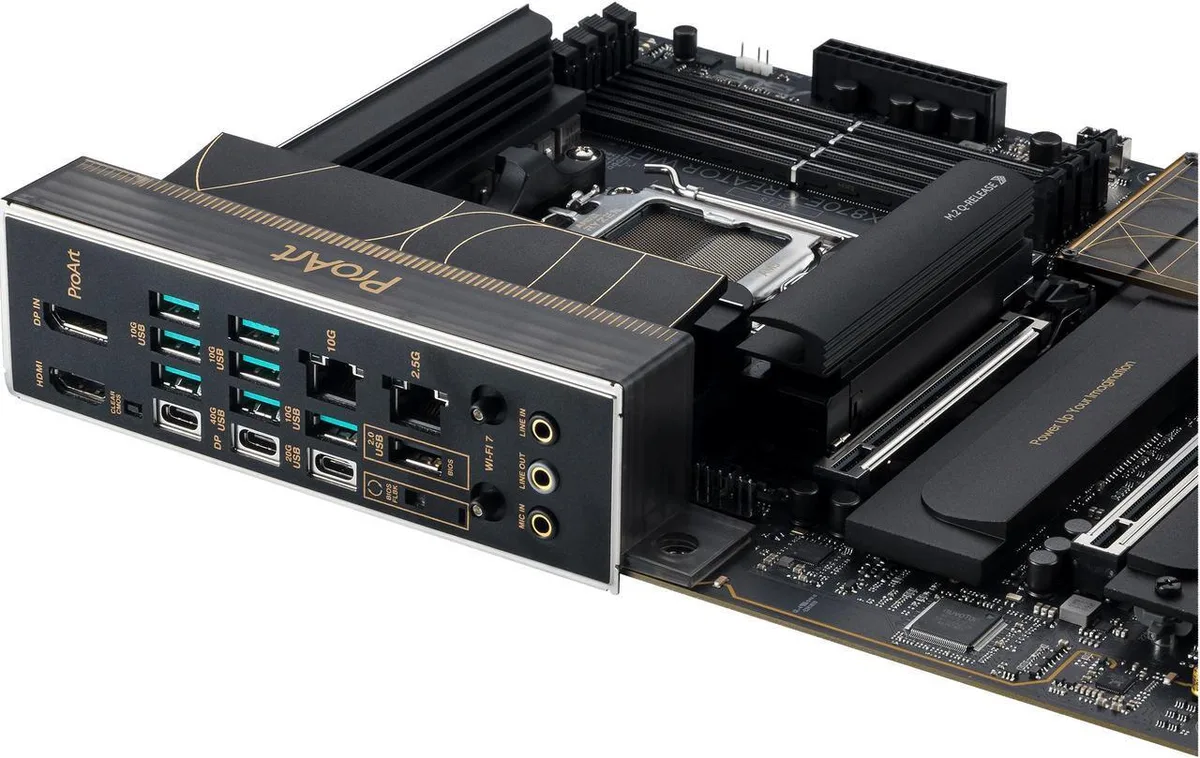

Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 9 9950X3D CPU
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the 170W Ryzen 9 9950X3D get when the system runs all day?

The CPU has a 170W base power rating, so sustained workloads will demand strong cooling; the board includes AI Cooling and a 16+2+2 teamed power-stage design to manage thermals.

Which memory kits must I already own to populate the four slots on this board?

You need DDR5 modules — 288-pin, un-buffered, non-ECC or ECC — up to 256GB total; the board supports EXPO profiles and OptiMem II for stability.

Will my existing PCIe 4.0 graphics card and NVMe drives work at full speed in the available slots?

Yes — one PCIe 4.0 x16 slot runs at x4 electrical, and two chipset M.2 slots provide PCIe 4.0 x4 bandwidth for older drives.
