ATX motherboard with CPU installed, matte black finish and grey heatsinks

ASUS

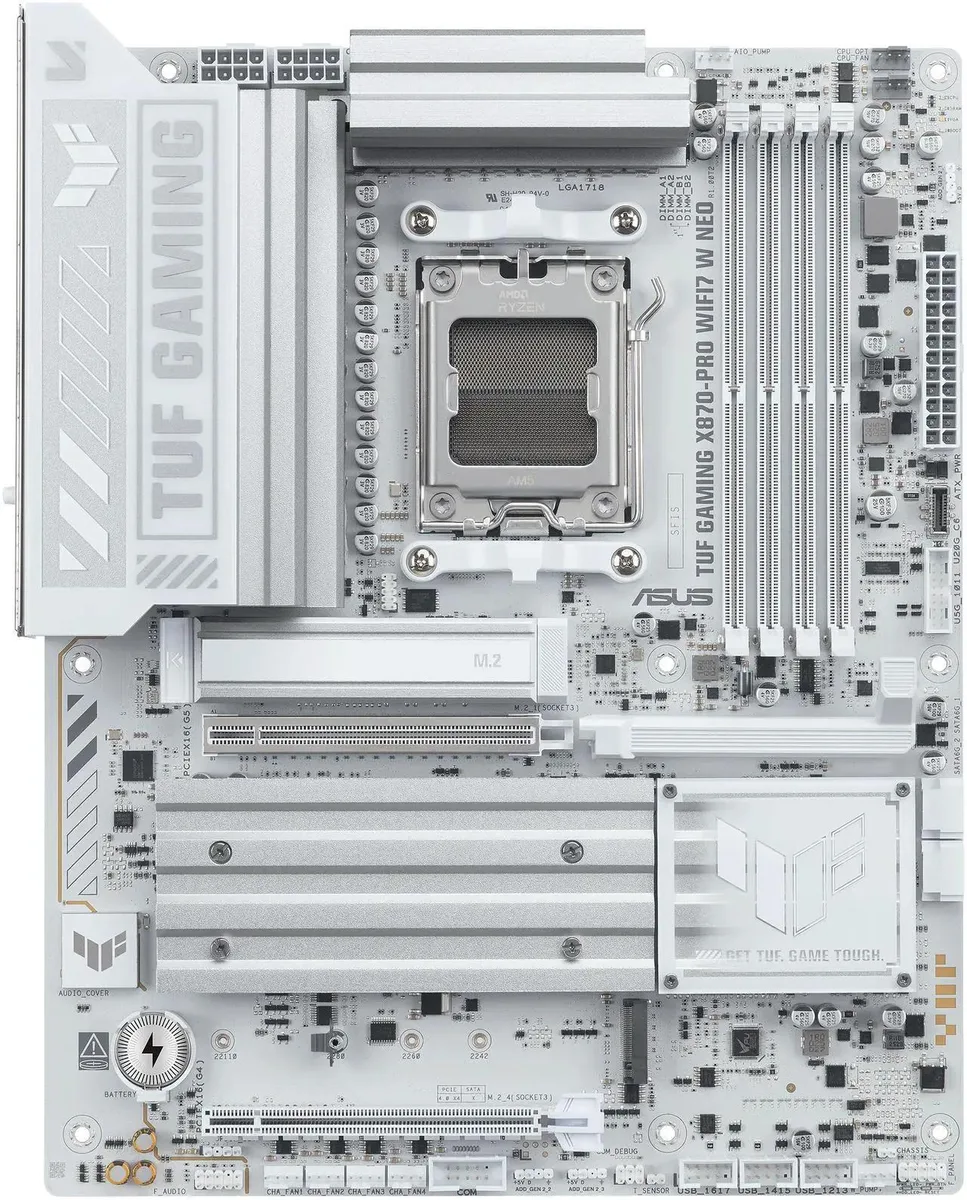

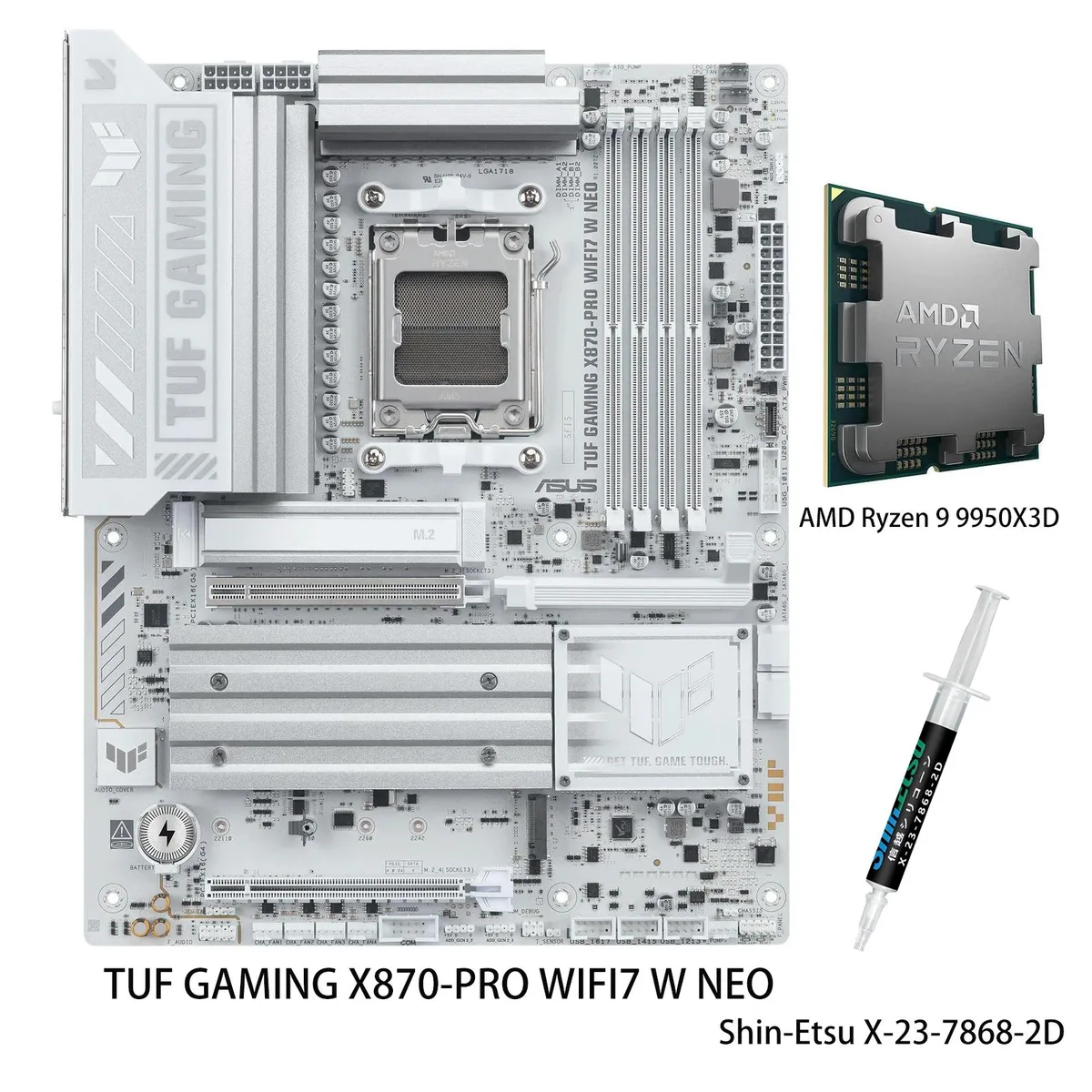

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard & Ryzen 9 9950X3D CPU combo

SKU CH-8B9B-1FEXE

A motherboard and CPU combo with a 16+2+1 80A power design, four M.2 slots supporting PCIe 5.0 and 4.0, DDR5 memory up to 256GB, WiFi7, 5Gb Ethernet, USB4 at 40Gbps.

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

Motherboard TUF GAMING X870-PRO WIFI7 W NEO

CPU + R9 9950X3D

  • Robust 16+2+1 80A power stages deliver stable overclocking headroom
  • 128MB L3 cache on the Ryzen 9 9950X3D accelerates gaming workloads
  • DDR5 support up to 256GB across four slots enables high-capacity builds
  • PCIe 5.0 x16 and two PCIe 5.0 M.2 slots ready for next-gen GPUs and storage
  • WiFi7 and 5Gb Ethernet provide low-latency wired and wireless connectivity

Combo platform for AI workloads

The ASUS TUF GAMING X870-PRO WIFI7 W NEO motherboard pairs with the AMD Ryzen 9 9950X3D processor in a single kit. The board uses the AMD X870 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256GB of un-buffered memory with ECC. The CPU delivers 128MB L3 cache, 16MB L2 cache and integrated Radeon graphics at 170W TDP.

Interface limits for expansion and storage

One PCI Express 5.0 x16 slot and two PCI Express 4.0 x16 slots handle graphics and add-in cards. Four M.2 sockets support both PCIe 5.0 x4 and PCIe 4.0 x4 drives. Two SATA 6Gb/s ports provide legacy storage with RAID 0, 1, 5 and 10. Networking uses 5Gb Ethernet and WIFI7. USB4 at 40Gbps and 20Gbps USB-C with 30W power delivery cover external devices.

Power delivery decides sustained boost

The 16+2+1 phase design uses 80A power stages on an 8-layer PCB with dual 8-pin ProCool connectors. This VRM supplies the 170W processor and maintains stability during AI Cache Boost, AI Overclocking and heavy multi-threaded loads. Asynchronous clock generation adds headroom for memory tuning via EXPO, XMP or AEMP profiles.

Highlights

  • Robust 16+2+1 80A power stages deliver stable overclocking headroom
  • 128MB L3 cache on the Ryzen 9 9950X3D accelerates gaming workloads
  • DDR5 support up to 256GB across four slots enables high-capacity builds
  • PCIe 5.0 x16 and two PCIe 5.0 M.2 slots ready for next-gen GPUs and storage
  • WiFi7 and 5Gb Ethernet provide low-latency wired and wireless connectivity

Specifications

BrandASUS
ModelTUF GAMING X870PRO WIFI7 WNEO+R9 9950X3D
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the included Ryzen 9 9950X3D fit the AM5 socket on this board?

Yes, the AM5 socket supports Ryzen 9000 series processors including the 9950X3D.

Can I run four DDR5 modules at the rated 256 GB maximum?

The board has four 288-pin slots and supports up to 256 GB in dual-channel mode.

Does the CPU provide video output without a discrete graphics card?

The 9950X3D includes AMD Radeon graphics for basic display output.
