ATX motherboard in dark grey with yellow accents, CPU cooler not included

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard Ryzen 9 9900X combo

SKU CH-X5R1-F3D49

A 12-core 24-thread Ryzen 9 9900X paired with an X870 board offering 16+2+1 80A power stages, four DDR5 slots up to 256GB, four M.2 sockets, 5Gb Ethernet and WIFI7

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

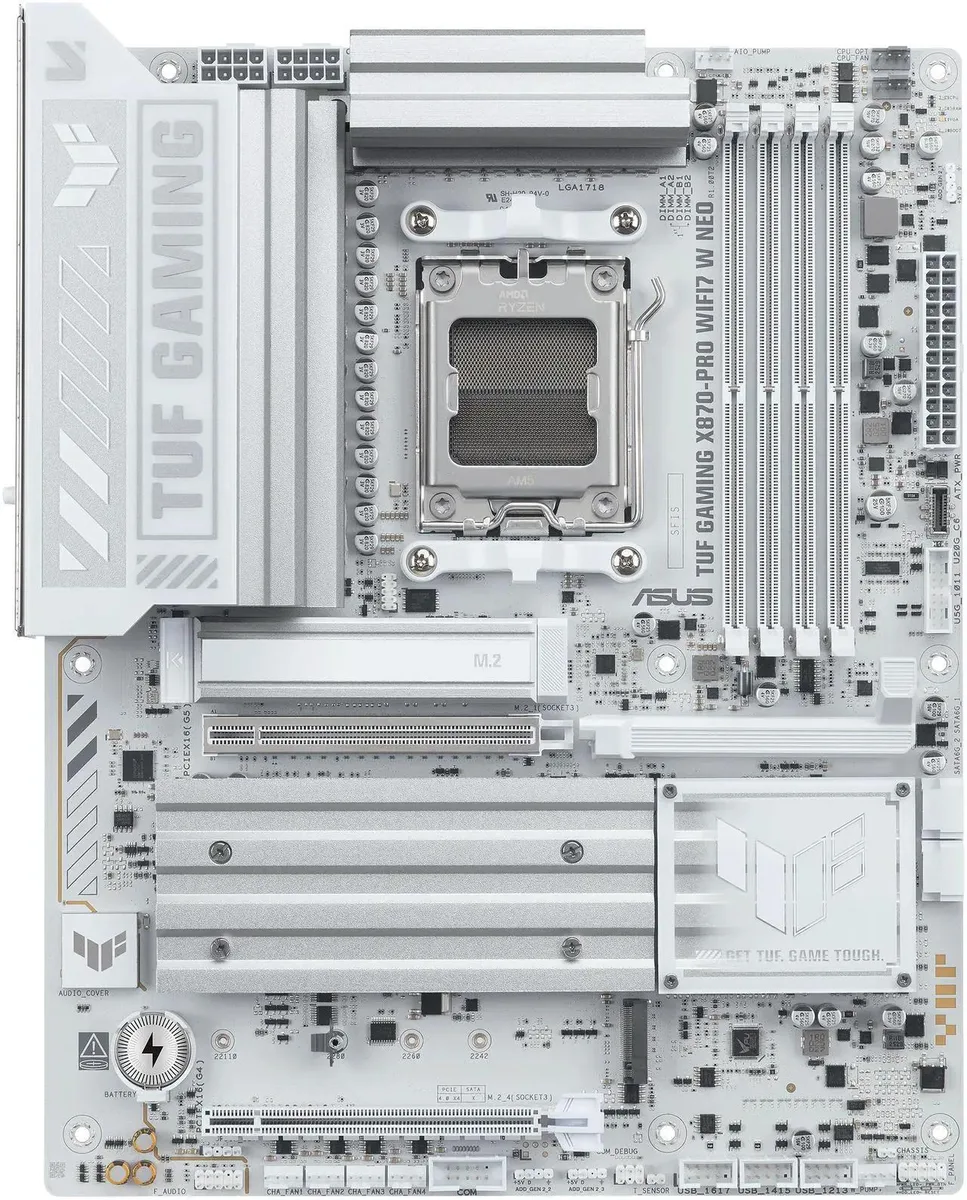

Motherboard TUF GAMING X870-PRO WIFI7 W NEO

CPU + R9 9900X

  • Ready for advanced AI workloads with AMD X870 chipset and AM5 socket
  • 12-core Ryzen 9 9900X reaches 5.6 GHz max boost for heavy multitasking
  • 16+2+1 80 A power stages on 8-layer PCB deliver stable overclocking headroom
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi7 and 5 Gb Ethernet plus USB4 40 Gbps keep data moving بسرعة

Combo for AI-Ready Builds

This package pairs the ASUS TUF GAMING X870-PRO WIFI7 W NEO motherboard with the AMD Ryzen 9 9900X processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts building high-performance desktops for AI workloads, gaming and content creation.

256 GB DDR5 Capacity and Storage Headroom

Four DDR5 slots accept up to 256 GB of unbuffered memory with ECC support, running dual-channel with AMD EXPO, Intel XMP and ASUS AEMP profiles. Four M.2 slots provide two PCIe 5.0 x4 and two PCIe 4.0 x4 interfaces for fast SSDs, while two SATA 6 Gb/s ports handle additional drives. The 16+2+1 80 A power stage design with 8+8 pin ProCool connectors delivers stable current for the 12-core 24-thread CPU at 5.6 GHz max boost.

PCIe 5.0 Graphics and USB4 Connectivity Limits

The primary PCIe 5.0 x16 slot supports next-generation GPUs at full bandwidth, with two additional PCIe 4.0 x16 slots and one PCIe x4 slot for expansion. USB4 at 40 Gbps and a 20 Gbps USB-C port with 30 W Power Delivery set the practical ceiling for external peripherals. Networking tops out at WiFi 7 and 5 Gb Ethernet. The 64 MB BIOS chip stores firmware for the platform.

Highlights

  • Ready for advanced AI workloads with AMD X870 chipset and AM5 socket
  • 12-core Ryzen 9 9900X reaches 5.6 GHz max boost for heavy multitasking
  • 16+2+1 80 A power stages on 8-layer PCB deliver stable overclocking headroom
  • Four M.2 slots with PCIe 5.0 and 4.0 support fast storage expansion
  • WiFi7 and 5 Gb Ethernet plus USB4 40 Gbps keep data moving بسرعة

Specifications

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R9 9900X
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 memory work with the 4x288pin slots on this X870 board?

The board has four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode with AMD EXPO, Intel XMP and ASUS AEMP profiles.

How can I verify the 16+2+1 80A power stages and AI cooling are functioning after assembly?

Enter the UEFI BIOS and use the AI Advisor dashboard to confirm power-stage readings, fan curves and AI Cooling II status in real time.

Does the combo include a CPU cooler or must I buy one separately for the Ryzen 9 9900X?

The Ryzen 9 9900X is supplied without a cooler; you will need to purchase a compatible AM5 cooler separately.
