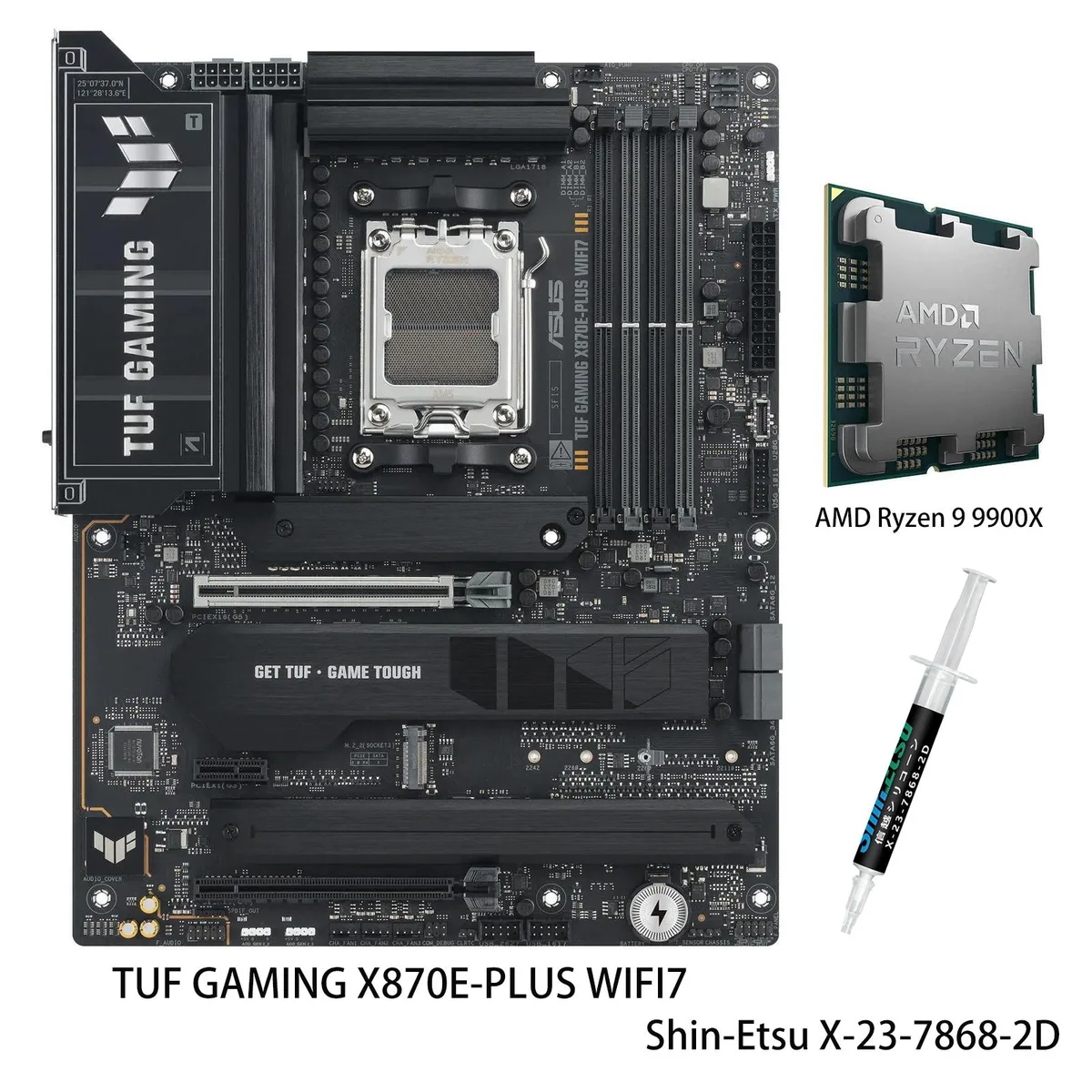

ATX motherboard with black heatsinks and grey PCB plus Ryzen 9 9900X CPU in plastic tray

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 AMD motherboard & Ryzen 9 9900X CPU combo

SKU CH-9NPC-3JDZT

Pairs a 12-core Ryzen 9 9900X with an X870E board offering 16+2+1 80A power stages, four M.2 slots, WiFi 7 and dual USB4 ports

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

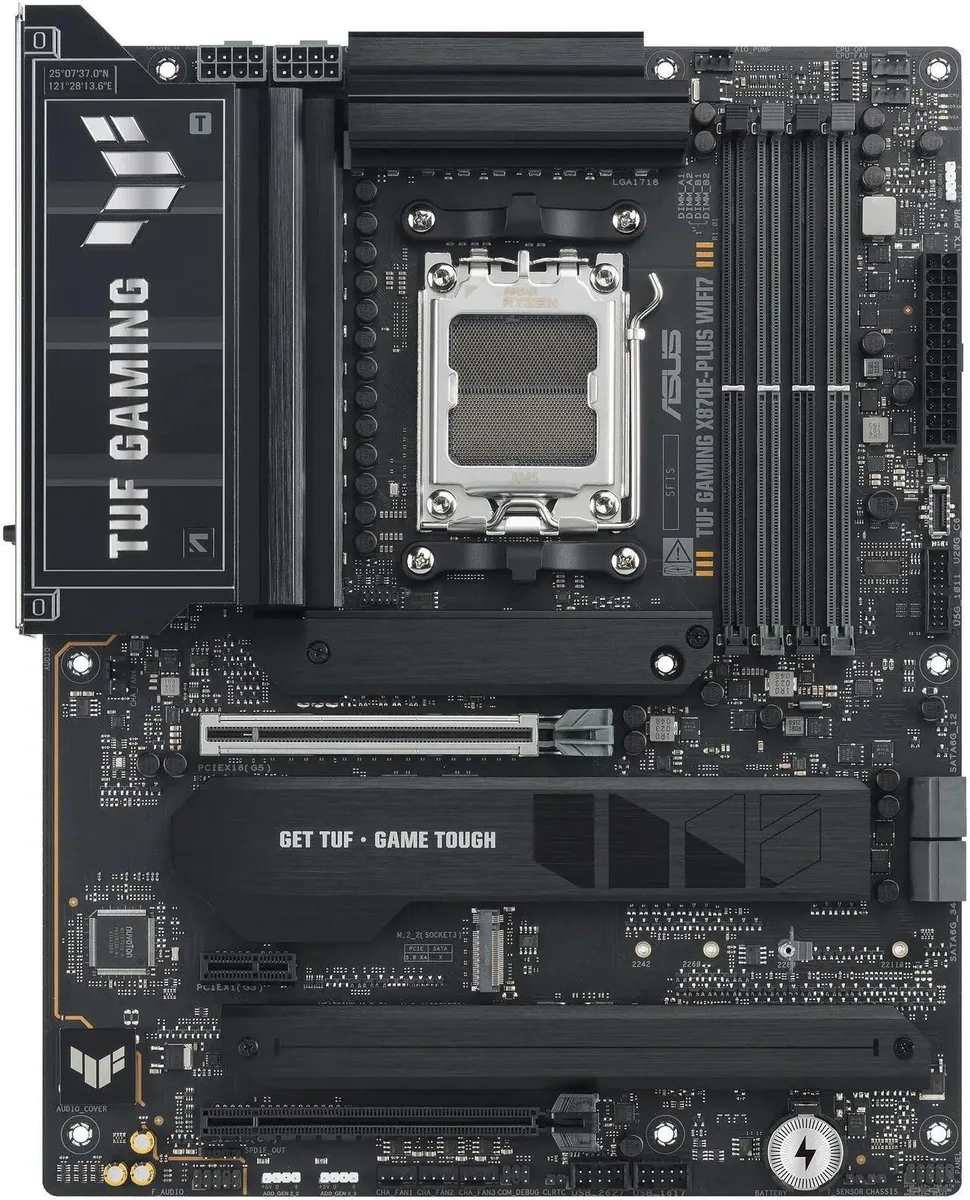

Motherboard TUF GAMING X870E-PLUS WIFI7

CPU + R9 9900X

  • 12 cores and 24 threads for heavy multitasking with Zen 5 architecture
  • 16+2+1 80A power stages deliver stable CPU voltage under load
  • DDR5 memory up to 8000+ MT/s overclocked for faster data throughput
  • Two PCIe 5.0 M.2 slots enable high-speed storage expansion
  • Wi-Fi 7 plus 2.5Gb Ethernet and USB4 40Gbps for low-latency networking

Combo for AM5 builds

This bundle pairs the ASUS TUF GAMING X870E-PLUS WIFI7 motherboard with the AMD Ryzen 9 9900X processor. The CPU delivers 12 cores and 24 threads on the Zen 5 architecture with a 5.6 GHz maximum boost frequency. The board uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series processors. It targets enthusiasts who want a high-core-count platform with modern connectivity.

Sustained power delivery

The motherboard employs 16+2+1 80A power stages on an 8-layer PCB with 8+8 pin ProCool connectors, alloy chokes and durable capacitors. This design aims to maintain stable voltage for the 9900X during prolonged multi-threaded workloads. Enlarged VRM, M.2 and PCH heatsinks work with hybrid fan headers and Fan Xpert 4 plus AI Cooling II to manage thermals over extended sessions.

Interface practical limits

The platform provides one PCIe 5.0 x16 slot for graphics with Ryzen 9000 and 7000 CPUs, while Ryzen 8000 CPUs operate the slot at PCIe 4.0 x16. Two M.2 slots support PCIe 5.0 x4 and two support PCIe 4.0 x4, with Key M 2280, 2242, 2260 and 22110 form factors. Rear I/O includes two USB4 40Gbps Type-C ports, a front USB 20Gbps Type-C header with 30W power delivery, Realtek 2.5Gbps Ethernet and Wi-Fi 7 (802.11 be).

Highlights

  • 12 cores and 24 threads for heavy multitasking with Zen 5 architecture
  • 16+2+1 80A power stages deliver stable CPU voltage under load
  • DDR5 memory up to 8000+ MT/s overclocked for faster data throughput
  • Two PCIe 5.0 M.2 slots enable high-speed storage expansion
  • Wi-Fi 7 plus 2.5Gb Ethernet and USB4 40Gbps for low-latency networking

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R9 9900X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 9 9900X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the 16+2+1 80A power-stage VRM get when the Ryzen 9 9900X runs all day?

The enlarged VRM heatsink, alloy chokes and 8-layer PCB are designed to keep the 16+2+1 80A power stages cool and quiet under sustained load, while AI Cooling II adjusts fan curves automatically.

Which DDR5 memory kit do I need to have on hand before this combo will post?

You need a DDR5 un-buffered DIMM kit up to 256 GB across the four 288-pin slots; the board supports speeds up to 8000+ MT/s via EXPO or AEMP profiles.

Will my existing PCIe 4.0 graphics card and SATA SSDs work at full speed in the PCIe 5.0 x16 slot and the four SATA 6Gb/s ports?

Yes — the PCIe 5.0 x16 slot is backward compatible with PCIe 4.0 GPUs at x16 speed, and all four SATA ports deliver 6 Gb/s regardless of the CPU generation installed.
