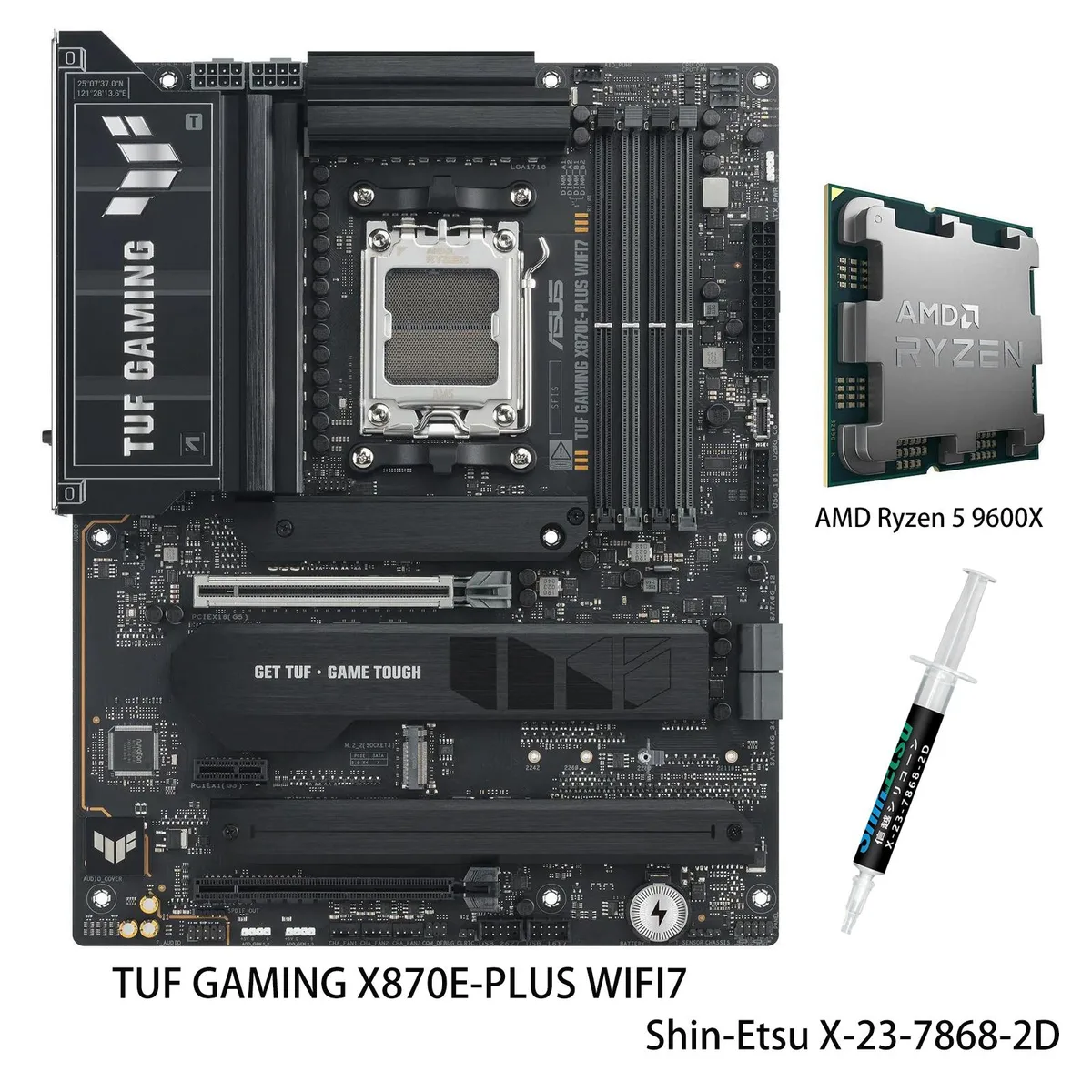

ATX motherboard in matte black with grey heatsinks and a boxed Ryzen 5 9600X CPU

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 AMD motherboard & Ryzen 5 9600X combo

SKU CH-F43B-107E8

An AM5 motherboard and 6-core Ryzen 5 9600X bundle with 16+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 M.2 slots, Wi-Fi 7 and 2.5Gb Ethernet

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

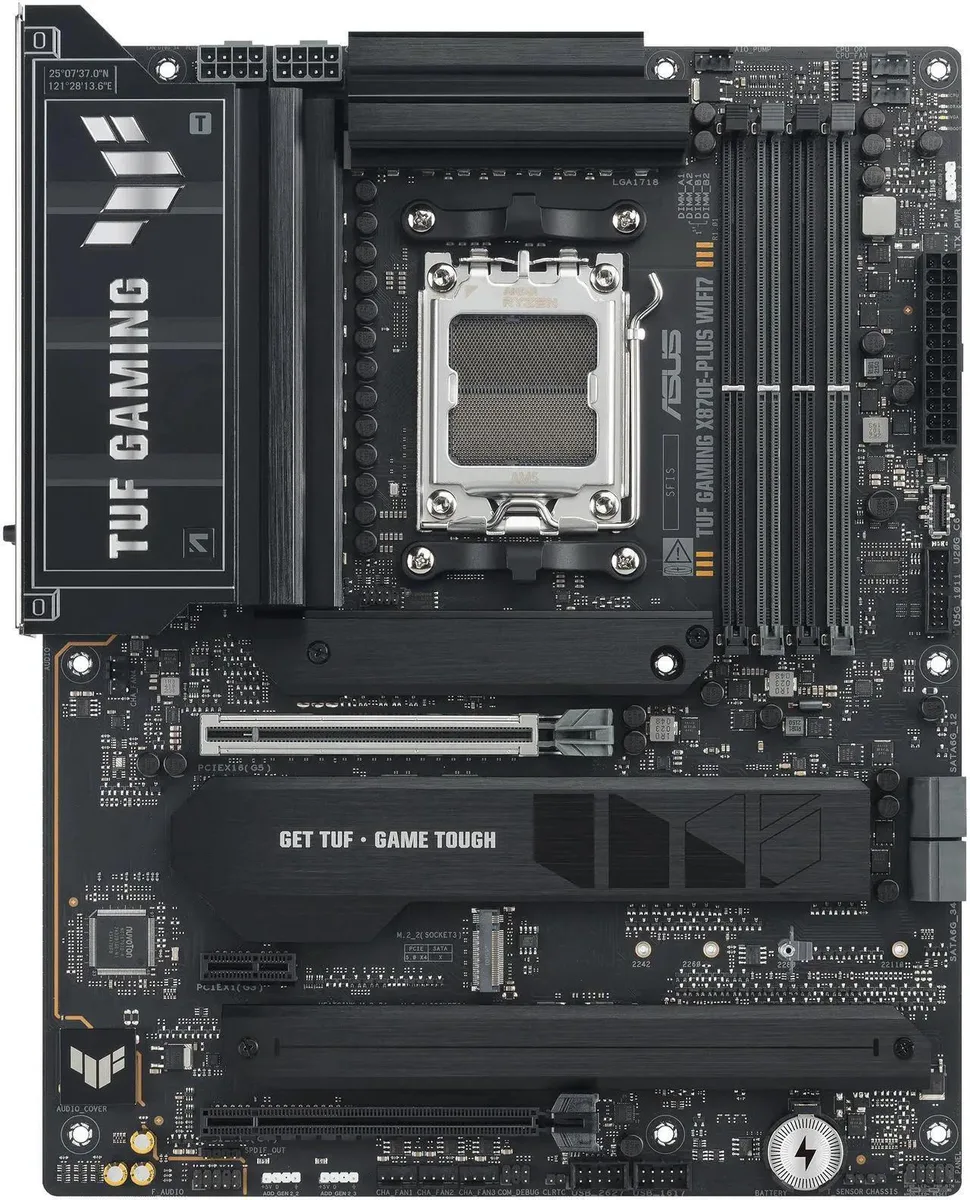

Motherboard TUF GAMING X870E-PLUS WIFI7

CPU + R5 9600X

  • Ready for AI workloads with X870E chipset and Ryzen 9000 support
  • Stable power delivery via 16+2+1 80A power stages and 8-layer PCB
  • DDR5 memory up to 8000 MT/s overclocked with AEMP profiles
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7, 2.5Gbps Ethernet, dual USB4 40Gbps and front USB 20Gbps 30W charging

Combo for AM5 builders

This bundle pairs the TUF GAMING X870E-PLUS WIFI7 motherboard with a Ryzen 5 9600X processor. The board uses the AMD X870E chipset and an AM5 socket that accepts Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots support up to 256 GB in dual-channel mode. The combination targets enthusiasts who want a ready-to-run platform for gaming and AI workloads.

16+2+1 80A power stages with ProCool connectors

An 8-layer PCB carries 16+2+1 power stages rated at 80 A each, fed by dual 8-pin ProCool connectors. Alloy chokes and durable capacitors complete the delivery network. Two PCIe 5.0 x4 M.2 slots accept 2280 drives, while two additional slots support PCIe 4.0 x4 on 2242, 2260, 2280 and 22110 lengths. Rear I/O includes two USB4 40 Gbps Type-C ports, a front-panel USB 20 Gbps Type-C header with 30 W power delivery, 2.5 Gbps Ethernet and Wi-Fi 7.

Enlarged VRM and M.2 heatsinks with AI Cooling II

Comprehensive cooling uses an enlarged VRM heatsink, dedicated M.2 heatsinks and a PCH heatsink. Hybrid fan headers connect to Fan Xpert 4, which works with AI Cooling II to balance airflow and noise. The 6-core Ryzen 5 9600X operates within a modest thermal envelope, so the motherboard’s heatsink array and intelligent fan control keep temperatures low during sustained gaming or AI tasks without excessive fan speed.

Highlights

  • Ready for AI workloads with X870E chipset and Ryzen 9000 support
  • Stable power delivery via 16+2+1 80A power stages and 8-layer PCB
  • DDR5 memory up to 8000 MT/s overclocked with AEMP profiles
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7, 2.5Gbps Ethernet, dual USB4 40Gbps and front USB 20Gbps 30W charging

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R5 9600X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the bundle include a CPU cooler or do I need to buy one separately?

The bundle contains only the motherboard and the Ryzen 5 9600X processor; a compatible AM5 cooler must be purchased separately.

What memory speeds can I reach with the included Ryzen 5 9600X and four DDR5 slots?

The board supports DDR5 up to 8000+ MT/s when overclocked with Ryzen 9000 series CPUs, running in dual-channel mode across the four 288-pin slots.

Which M.2 drives fit the two PCIe 5.0 slots and do they share bandwidth with the graphics slot?

The two top M.2 slots accept 2242, 2260, 2280 and 22110 form factors at PCIe 5.0 x4; they operate from the CPU lanes and do not reduce the PCIe 5.0 x16 graphics slot to x8.
