ASUS PRIME X870-P WIFI ATX motherboard in dark finish with large VRM heatsinks and a Ryzen 5 9600X processor in the AM5 socket

ASUS

ASUS PRIME X870-P WIFI + Ryzen 5 9600X Combo AMD motherboard

SKU CH-CG7B-7AKC6

Socket AM5 motherboard paired with a 6-core Ryzen 5 9600X, 14+2+1 80A DrMOS power, DDR5 to 192 GB, PCIe 5.0 x16 and M.2, Wi-Fi 7, 2.5 Gb LAN, USB4 40 Gbps

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

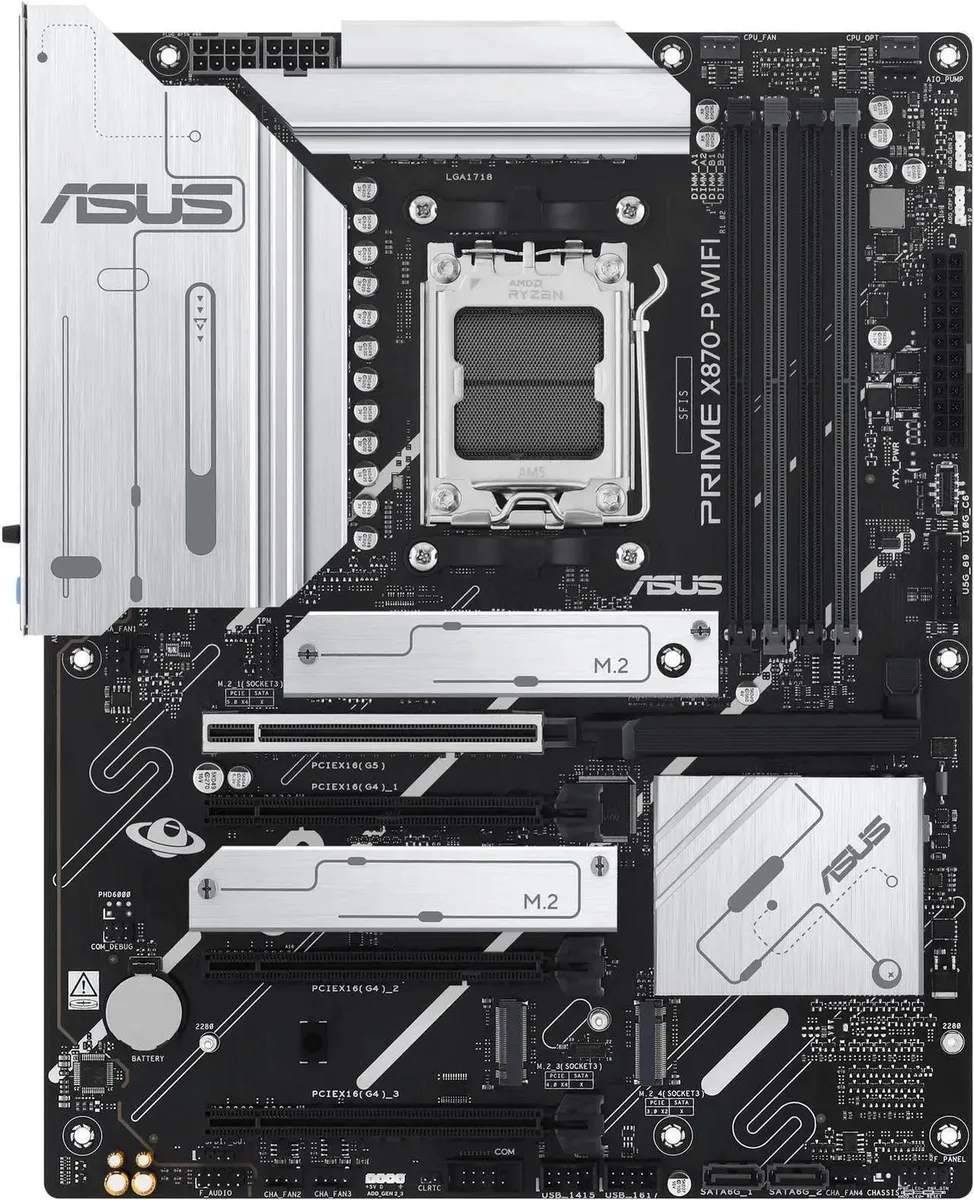

Motherboard PRIME X870-P WIFI

CPU + R5 9600X

  • Ready for advanced AI workloads with AM5 socket support for Ryzen 9000, 8000, 7000 series
  • Stable power delivery from 14+2+1 80A DrMOS stages on 8-layer PCB
  • Ultrafast connectivity via Wi-Fi 7, PCIe 5.0 x16, PCIe 5.0 M.2, 2.5Gb Ethernet
  • Comprehensive cooling with large VRM heatsink, dual M.2 heatsinks, PCH heatsink, AI Cooling II
  • DIY-friendly build with pre-mounted I/O shield, Q-Release PCIe slot, M.2 Q-Latch, BIOS FlashBack

Combo platform and audience

This bundle pairs an ASUS PRIME X870-P WIFI motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. The included 9600X delivers 6 cores and 12 threads based on the Zen 5 architecture. It targets builders who want a ready-to-go foundation for gaming or AI workloads.

Compatibility checks before ordering

Verify that your power supply has the required 8-pin and 24-pin connectors for the 14+2+1 80A DrMOS power stages and ProCool sockets. Confirm your case fits an ATX motherboard and provides clearance for the large VRM heatsink and dual M.2 heatsinks. Ensure any DDR5 memory kit you plan to use is on the board's QVL list for speeds up to 8000 MT/s. Check that your CPU cooler mounting hardware supports the AM5 socket pattern.

Bundle extras and their effect

The motherboard adds Wi-Fi 7 and Bluetooth 5.4 via the Q-Antenna, plus Realtek 2.5Gbps LAN for wired links. PCIe 5.0 x16 and a PCIe 5.0 M.2 slot enable high-bandwidth GPUs and storage. USB4 40Gbps Type-C, front USB 10Gbps Type-C and rear USB 10Gbps Type-A expand peripheral options. DIY aids include pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack, Q-Dashboard and Q-LED Core for easier assembly and troubleshooting.

Highlights

  • Ready for advanced AI workloads with AM5 socket support for Ryzen 9000, 8000, 7000 series
  • Stable power delivery from 14+2+1 80A DrMOS stages on 8-layer PCB
  • Ultrafast connectivity via Wi-Fi 7, PCIe 5.0 x16, PCIe 5.0 M.2, 2.5Gb Ethernet
  • Comprehensive cooling with large VRM heatsink, dual M.2 heatsinks, PCH heatsink, AI Cooling II
  • DIY-friendly build with pre-mounted I/O shield, Q-Release PCIe slot, M.2 Q-Latch, BIOS FlashBack

Specifications

BrandASUS
ModelPRIME X870-P WIFI+R5 9600X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
3 x PCIe 4.0 x16 slots (support x1 mode)***
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Serial ATA (SATA)2 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the ASUS PRIME X870-P WIFI + Ryzen 5 9600X combo box and what must be purchased separately?

The combo includes the PRIME X870-P WIFI motherboard with pre-mounted I/O shield, Q-Antenna, and M.2 Q-Latch, plus the Ryzen 5 9600X processor. You must buy DDR5 memory, storage drives, a graphics card, power supply, and CPU cooler separately.

Which memory version or capacity should I choose for the four DDR5 slots supporting up to 192GB?

Populate all four 288-pin slots with matched DDR5 kits rated at 4400 MT/s or higher; the board supports EXPO profiles up to 8000+ MT/s with Ryzen 9000, 8000, and 7000 series CPUs, and the maximum supported capacity is 192GB in dual-channel mode.

What does the 14+2+1 80A DrMOS power-stage figure mean once the Ryzen 5 9600X is installed in a real machine?

The 14+2+1 80A DrMOS design delivers 14 core phases plus auxiliary phases for the 6-core 12-thread Zen 5 CPU, providing stable current headroom for sustained boost clocks and overclocking through the 8-layer PCB and ProCool connectors.
