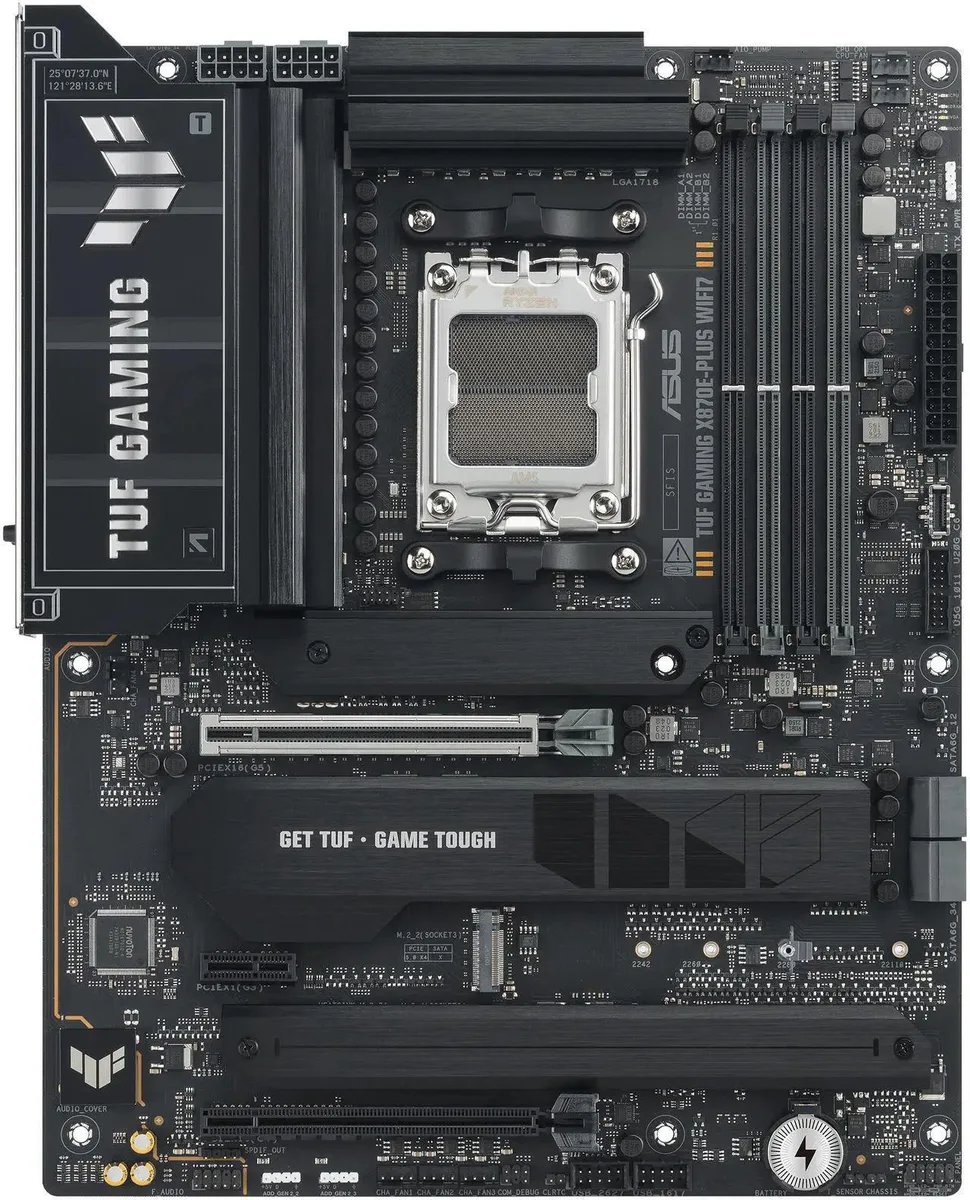

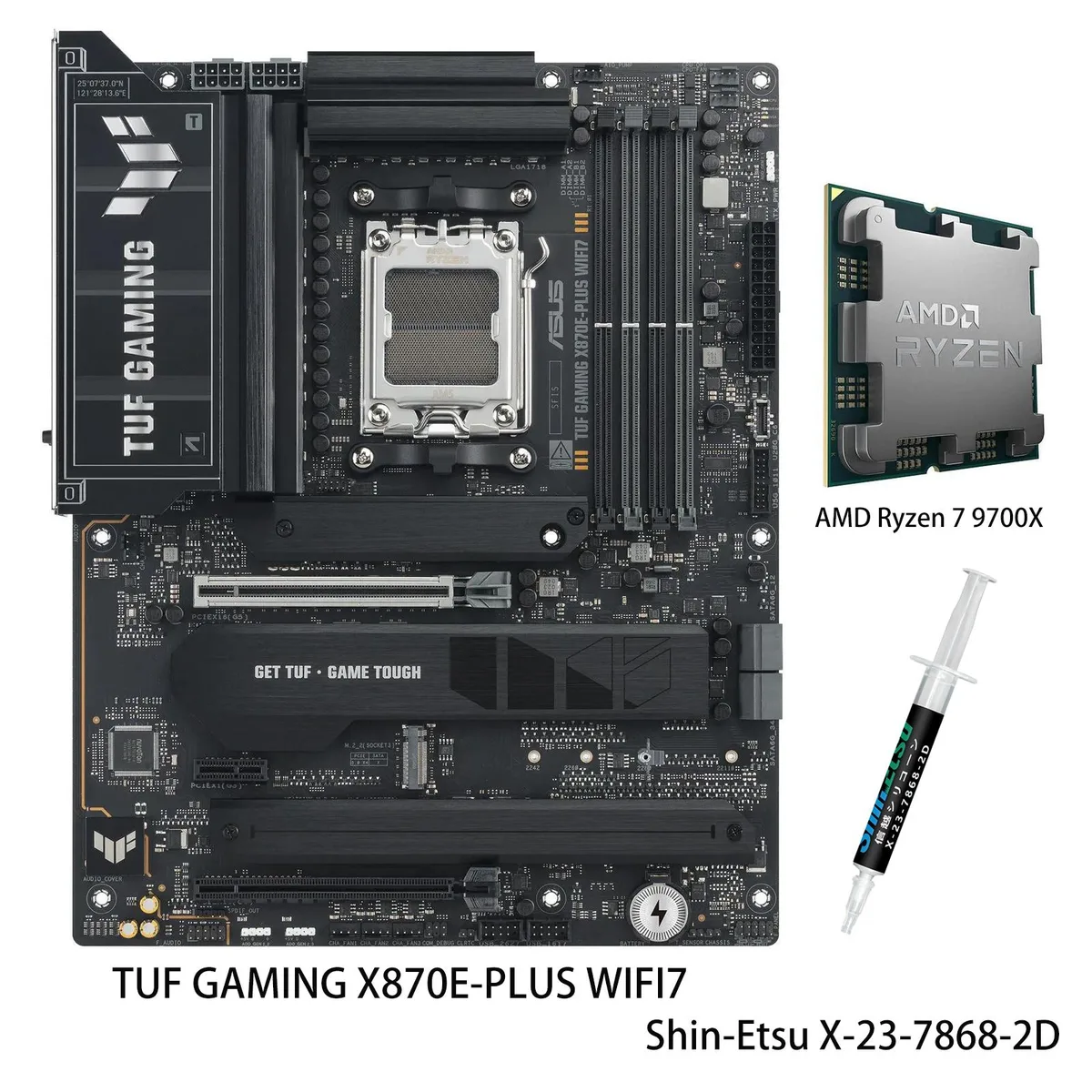

ATX motherboard with silver heatsinks and black PCB, AM5 CPU socket, four DDR5 slots, two PCIe 5.0 M.2 heatsinks

ASUS

ASUS TUF GAMING X870E-PLUS WIFI7 Motherboard & AMD Ryzen 7 9700X CPU Combo

SKU CH-4AZB-MZP3T

Combines an X870E board with 16+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 and two PCIe 4.0 M.2 slots, Wi-Fi 7, 2.5Gb Ethernet, dual USB4 40Gbps ports.

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

Motherboard TUF GAMING X870E-PLUS WIFI7

CPU + R7 9700X

  • Stable power for heavy workloads with 16+2+1 80A power stages
  • DDR5 memory speeds up to 8000+MT/s via EXPO and AEMP profiles
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gbps Ethernet for low-latency networking
  • 8-core 16-thread Ryzen 7 9700X CPU delivers 100+ FPS gaming performance

Combo for AM5 builders

This bundle pairs an ASUS TUF GAMING X870E-PLUS WIFI7 motherboard with an AMD Ryzen 7 9700X processor. The board uses the AMD X870E chipset and an AM5 socket ready for Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts who want a single purchase covering both CPU and platform foundation.

Sustained load behaviour

The motherboard delivers power through 16+2+1 80A stages on an 8-layer PCB with 8+8 pin ProCool connectors. AI Overclocking and AEMP profiles tune frequencies and memory timings automatically under prolonged workloads. Dual-channel DDR5 supports up to 8000+ MT/s OC and 256 GB capacity with ECC un-buffered DIMMs.

Thermals noise and power

Enlarged VRM, M.2 and PCH heatsinks combine with hybrid fan headers managed by Fan Xpert 4 and AI Cooling II. Connectivity includes Wi-Fi 7, 2.5 Gb Ethernet, two rear USB4 40 Gbps Type-C ports and a front USB 20 Gbps Type-C header with 30 W power delivery. Four M.2 slots provide two PCIe 5.0 and two PCIe 4.0 interfaces.

Highlights

  • Stable power for heavy workloads with 16+2+1 80A power stages
  • DDR5 memory speeds up to 8000+MT/s via EXPO and AEMP profiles
  • Two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 7 and 2.5Gbps Ethernet for low-latency networking
  • 8-core 16-thread Ryzen 7 9700X CPU delivers 100+ FPS gaming performance

Specifications

BrandASUS
ModelTUF GAMING X870E-PLUS WIFI7+R7 9700X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 3.0 x1 Slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot is not supported
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/19
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Sup
Package Contents1 x AMD Ryzen 7 9700X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the bundle include a CPU cooler for the Ryzen 7 9700X?

No, the package contains only the motherboard and processor. A compatible AM5 cooler must be purchased separately.

Can I install four DDR5 modules and run them at 8000 MT/s?

The board supports up to 256 GB across four slots. Reaching 8000+ MT/s with all slots populated depends on the memory kit and CPU sample; start with two modules for the best chance.

Will a PCIe 5.0 graphics card run at full speed in the primary slot?

Yes, the top PCIe 5.0 x16 slot is wired directly to the Ryzen 9000 series CPU and delivers full bandwidth for a PCIe 5.0 GPU.
