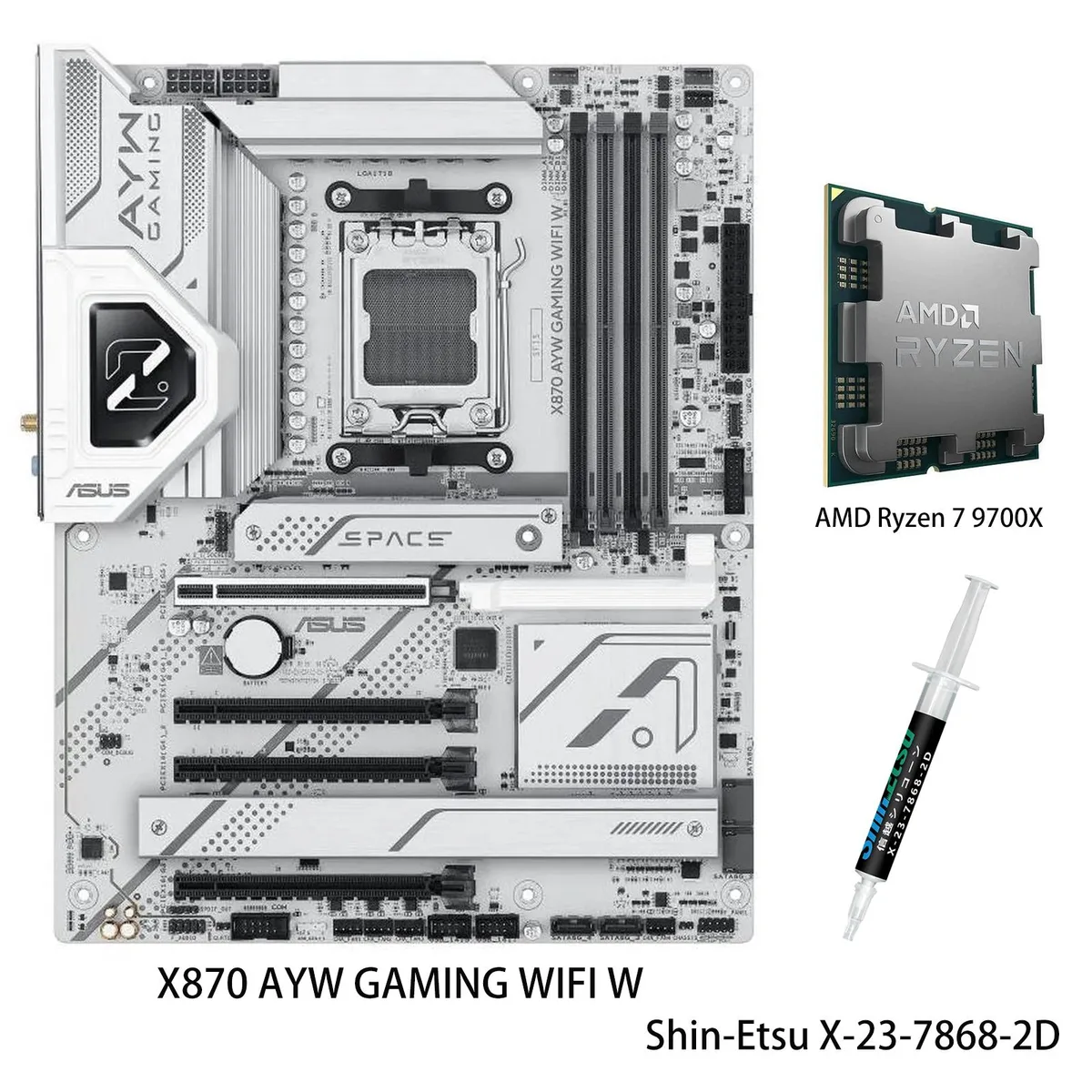

White ATX motherboard with large VRM heatsinks and boxed Ryzen 7 9700X CPU

ASUS

ASUS X870 AYW GAMING WIFI W AMD motherboard & Ryzen 7 9700X CPU combo

SKU CH-EKCF-6KXC4

An AM5 motherboard and Ryzen 7 9700X bundle with 8 cores, 16 threads, 5.5 GHz boost, DDR5-5600 support, three M.2 slots, Wi-Fi 6 and 2.5 Gb Ethernet

  • CPU Socket TypeAM5

Motherboard X870 AYW GAMING WIFI W

CPU + R7 9700X

  • AI Intelligent Cooling 2.0 balances thermals automatically
  • 12+2+1 phase 80A VRM delivers stable power to the CPU
  • Three M.2 slots provide up to 128Gbps storage bandwidth
  • Wi-Fi 6 and 2.5Gb Ethernet ensure fast wired and wireless connectivity
  • Ryzen 7 9700X 8-core 16-thread processor reaches 5.5 GHz max boost clock

Combo foundation

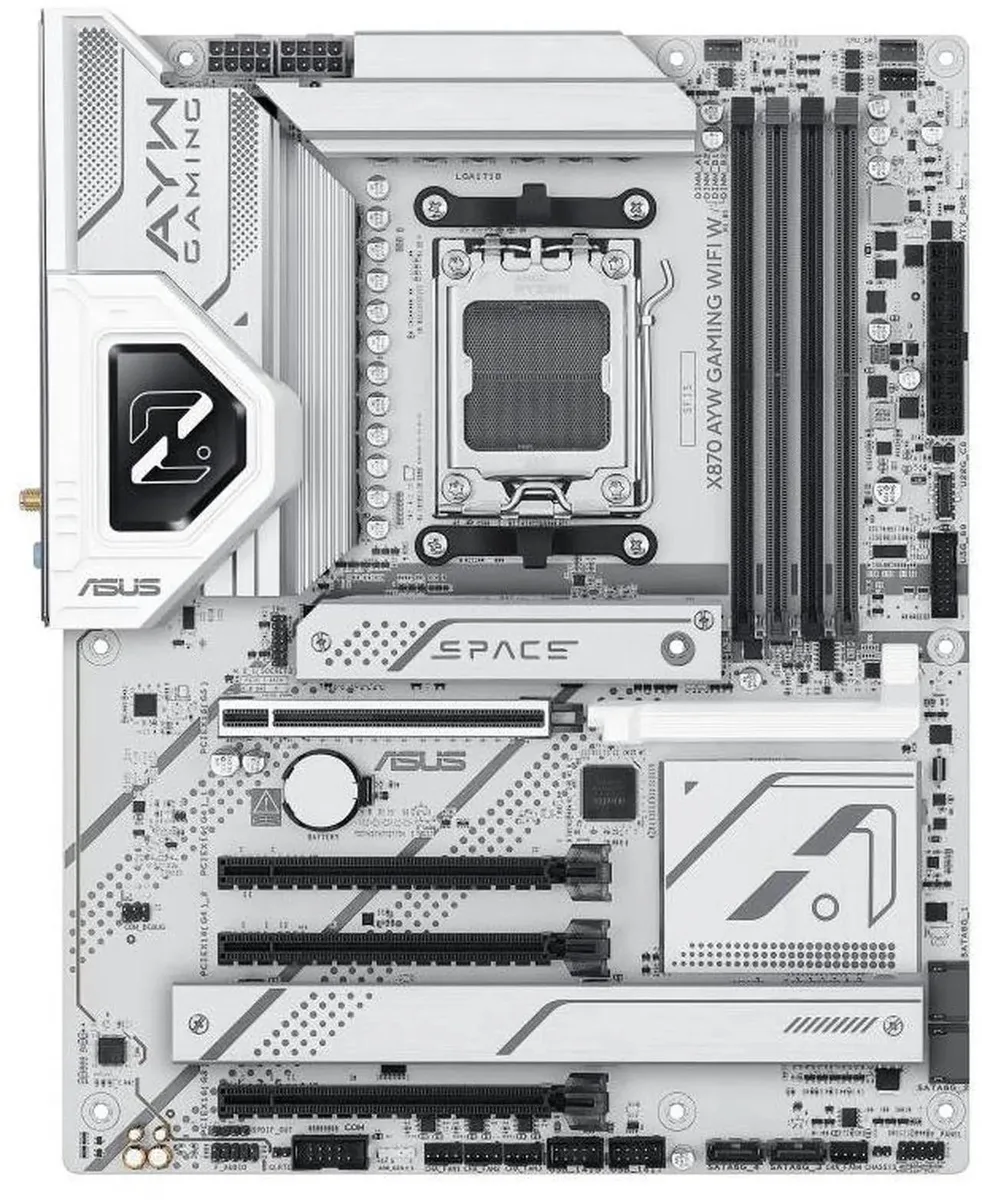

This ASUS X870 AYW GAMING WIFI W motherboard paired with a Ryzen 7 9700X delivers a ready-to-run AM5 platform. The board provides an AM5 socket, DDR5 support and three M.2 slots rated up to 128Gbps. The processor brings 8 cores and 16 threads with a max boost clock of 5.5 GHz and 40 MB cache.

Build integration

The motherboard supplies 12+2+1 power stages rated at 80A each for stable delivery to the CPU. AI Intelligent Cooling 2.0 and Fan Xpert 4 manage temperatures across multiple heatsinks and hybrid fan headers. Connectivity includes Wi-Fi 6, 2.5Gb Ethernet, USB 40Gbps and a front-panel USB 20 Gbps Type-C connector.

Upgrade perspective

The combo moves a system to the AM5 platform with DDR5-5600 memory support and an unlocked Zen 5 processor. Builders gain PCIe 5.0 pathways and the 128Gbps M.2 ceiling for faster storage. The jump makes sense when replacing an older AM4 or Intel platform that limits core count, memory speed or expansion bandwidth.

Highlights

  • AI Intelligent Cooling 2.0 balances thermals automatically
  • 12+2+1 phase 80A VRM delivers stable power to the CPU
  • Three M.2 slots provide up to 128Gbps storage bandwidth
  • Wi-Fi 6 and 2.5Gb Ethernet ensure fast wired and wireless connectivity
  • Ryzen 7 9700X 8-core 16-thread processor reaches 5.5 GHz max boost clock

Specifications

BrandASUS
ModelX870 AYW GAMING WIFI W+R7 9700X
CPU Socket TypeAM5

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

When will the VRM hit its current ceiling with the 8‑core Ryzen 7 9700X under an all‑core load?

The board uses 12 plus 2 plus 1 power stages, each rated at 80 A, so the VRM can deliver very high current before thermal limits appear.

How loud and hot does the combo get when the CPU runs at 5.5 GHz boost all day?

AI Intelligent Cooling 2.0 and Fan Xpert 4 automatically adjust fan speeds across the hybrid headers and large heatsinks to keep temperatures and noise in check.

What memory kit do I need to have on hand so the system posts on first boot?

The Ryzen 7 9700X supports DDR5‑5600, so a DDR5 kit at that speed or higher is required for the AM5 platform.
