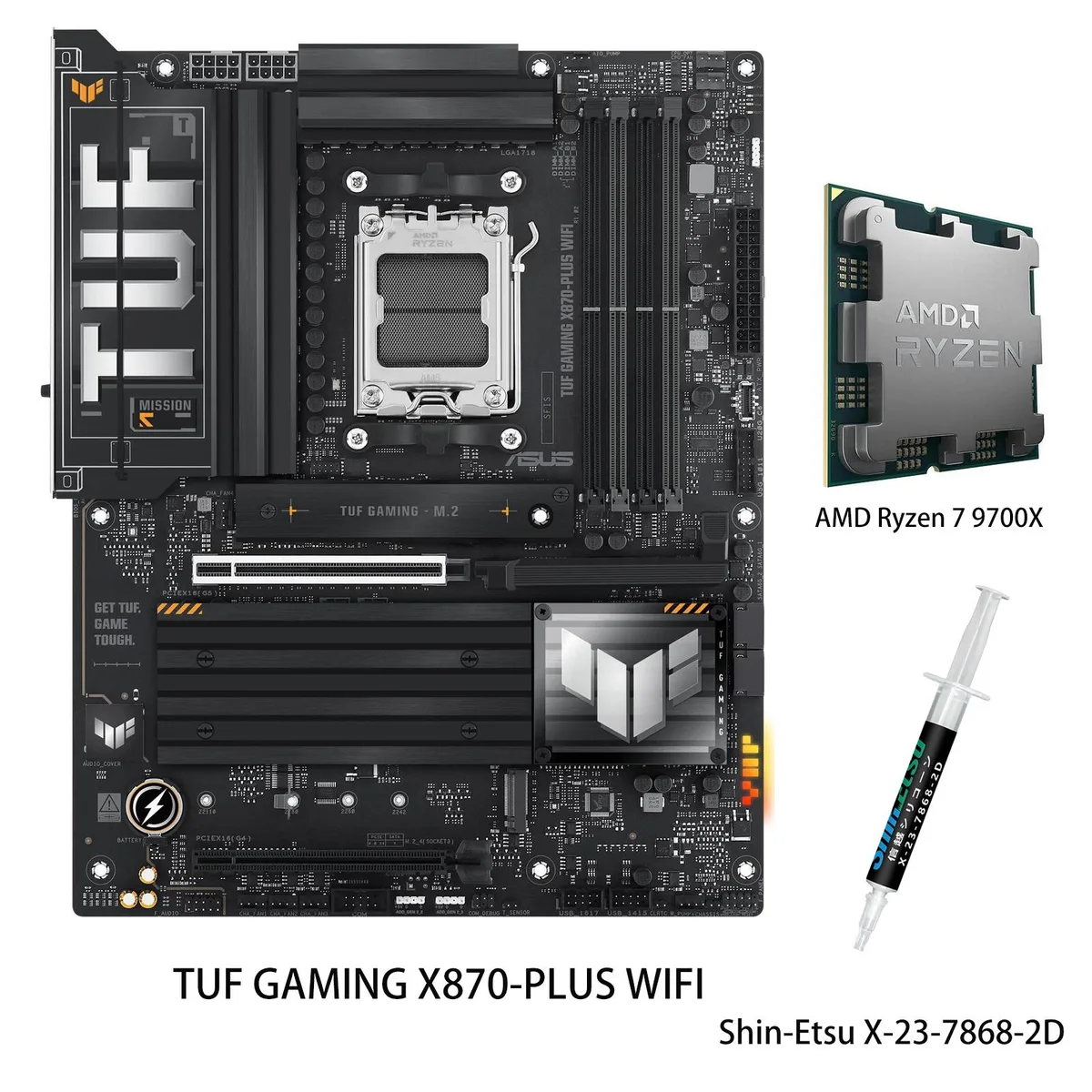

ASUS TUF X870 motherboard with Ryzen 7 9700X CPU installed, ATX board with grey heatsinks and black PCB

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX AMD motherboard & Ryzen 7 9700X CPU Combo

SKU CH-WHT1-WFXZR

An AM5 motherboard and Ryzen 7 9700X CPU combo with 16+2+1 80A power stages, DDR5 4400 support up to 256GB, PCIe 5.0 x16, dual PCIe 5.0 M.2 slots, WiFi 7, 2.5Gb LAN and dual USB4 40Gbps Type-C ports

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

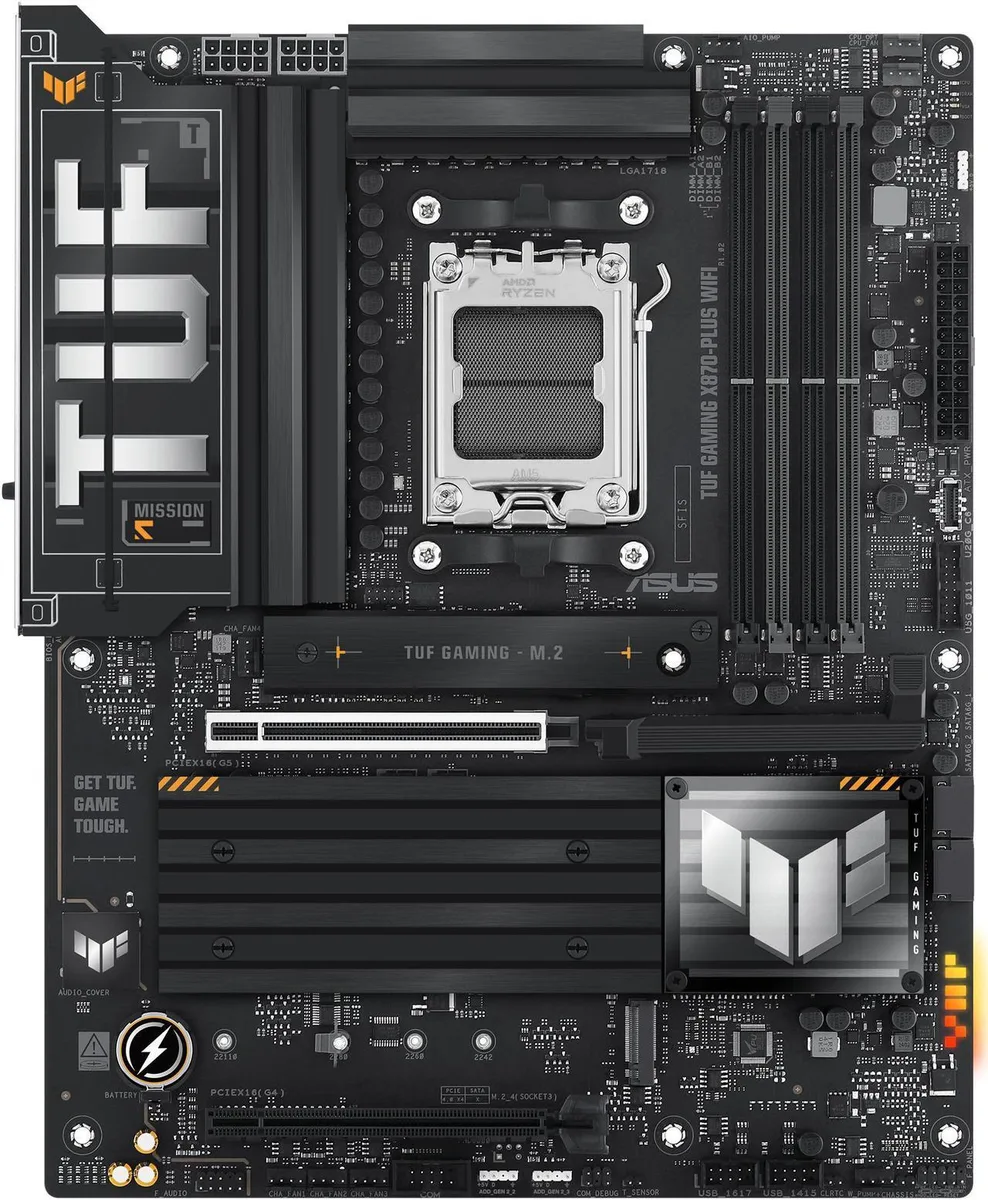

Motherboard TUF GAMING X870-PLUS WIFI

CPU + R7 9700X

  • Stable power for heavy workloads with 16+2+1 80A SPS power stages
  • AI-driven overclocking and cooling simplify tuning for higher performance
  • Four M.2 slots including two PCIe 5.0 x4 for fast storage expansion
  • WiFi 7 and 2.5Gb Ethernet plus dual USB4 40Gbps ports for ultrafast connectivity
  • Ryzen 7 9700X delivers 8 cores and 16 threads at up to 5.5 GHz boost

Combo Platform & Target Build

The ASUS TUF GAMING X870-PLUS WIFI motherboard paired with the AMD Ryzen 7 9700X forms a complete AM5 platform. The board delivers 16+2+1 80A SPS power stages on an 8-layer PCB for stable delivery. The CPU provides 8 cores and 16 threads based on Zen 5 architecture with a max boost clock of 5.5 GHz. This combination suits enthusiasts building a high-performance desktop for gaming and AI workloads.

Thermals Noise & Power Draw

The motherboard uses alloy chokes, durable capacitors and ProCool connectors to support efficient power delivery. Massive M.2 heatsinks cover the two PCIe 5.0 slots and two PCIe 4.0 slots to manage storage temperatures. AI Cooling II adjusts fan curves across the 4-pin CPU, CPU OPT, AIO pump and chassis headers. The Realtek ALC1220P codec with an internal amplifier handles audio without adding active cooling noise.

Sustained Load Behaviour

AI Overclocking, Dynamic OC Switcher, Core Flex and PBO Enhancement adapt voltage and frequency during extended workloads. The 80A power stages and 8-layer PCB maintain consistent current for the unlocked 9700X. Four DDR5 slots support up to 256 GB at 4400 with EXPO and AEMP profiles for memory stability. Dual USB4 40Gbps ports, Wi-Fi 7 and 2.5Gb Ethernet sustain high-throughput connectivity without throttling.

Highlights

  • Stable power for heavy workloads with 16+2+1 80A SPS power stages
  • AI-driven overclocking and cooling simplify tuning for higher performance
  • Four M.2 slots including two PCIe 5.0 x4 for fast storage expansion
  • WiFi 7 and 2.5Gb Ethernet plus dual USB4 40Gbps ports for ultrafast connectivity
  • Ryzen 7 9700X delivers 8 cores and 16 threads at up to 5.5 GHz boost

Specifications

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R7 9700X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 7 9700X CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the CPU and what step do builders often miss?

Align the gold triangle on the Ryzen 7 9700X with the socket marker, lower it gently without force, and lock the retention arm; the step many miss is removing the protective cover from the motherboard socket before seating the processor.

What maintenance or replacement will this board need over time?

The CMOS battery on the board will eventually need replacement to keep BIOS settings and system time; fan headers and the W_PUMP+ header should be checked for dust buildup, and the M.2 heatsinks may need reapplication of thermal pads if drives are swapped.

What limit appears first under sustained heavy loads?

The VRM heatsink thermal capacity is the first bottleneck during prolonged all-core workloads, as the 16+2+1 80A power stages can deliver more current than the heatsinks dissipate without additional case airflow.
