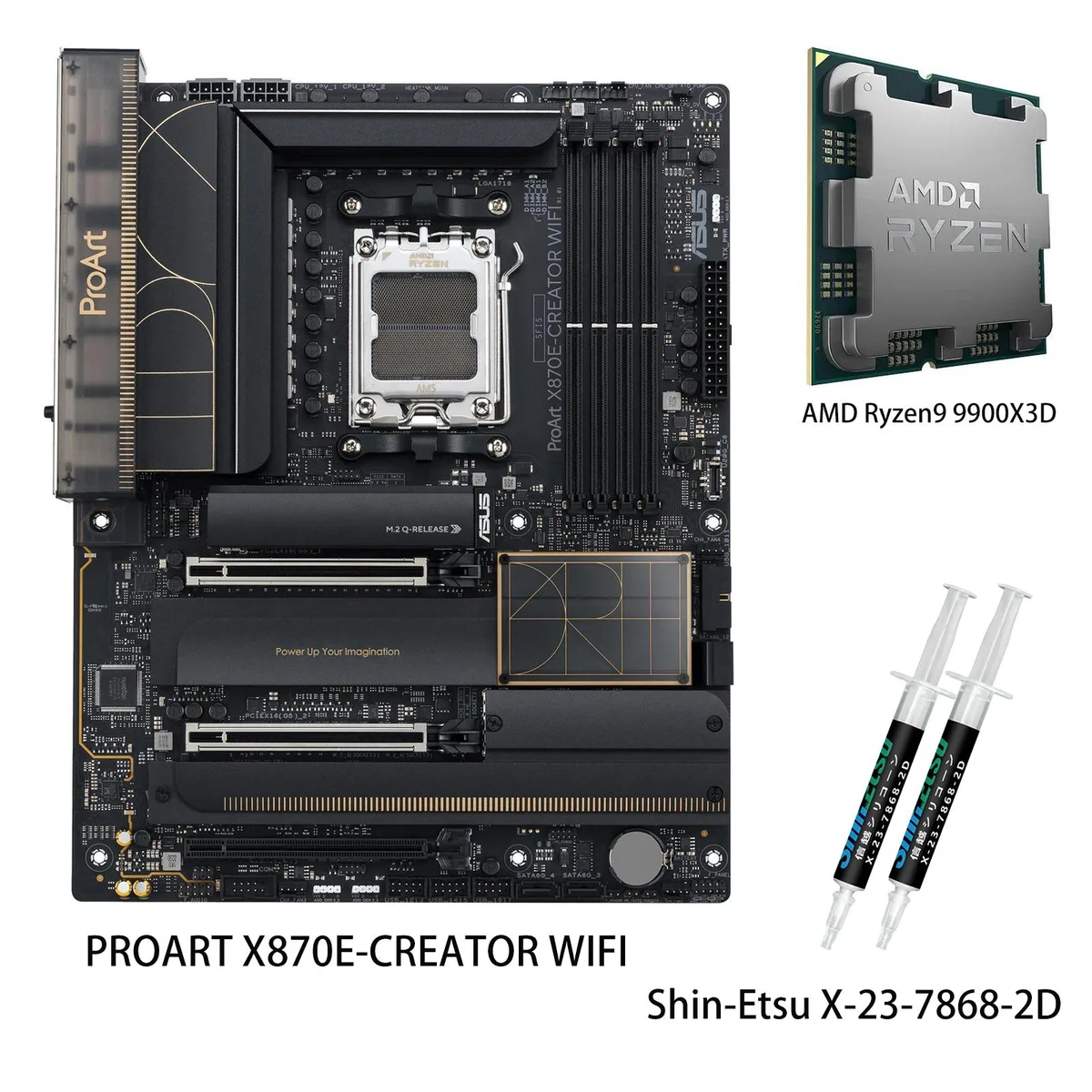

ATX motherboard in dark finish with large CPU cooler and prominent heatsinks

ASUS

ASUS ProArt X870E-CREATOR WIFI AMD motherboard with Ryzen 9 9900X3D CPU

SKU CH-T8RE-PGDYA

AM5 motherboard and 12-core Ryzen 9 9900X3D CPU combo with DDR5 support, dual USB4, 10 Gb and 2.5 Gb LAN, WiFi 7, four M.2 slots and 128 MB L3 cache

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • ECC SupportedYes

Motherboard ProArt X870E-CREATOR WIFI

CPU + R9 9900X3D

  • Ready for demanding AI workloads with Ryzen 9000 series support
  • Stable power delivery from 16+2+2 teamed stages and ProCool II connectors
  • Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet plus WiFi 7 for fast connectivity
  • DIY-friendly with PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack
  • High-capacity DDR5 memory up to 256 GB at 4400 MHz with ECC support

AM5 creator platform

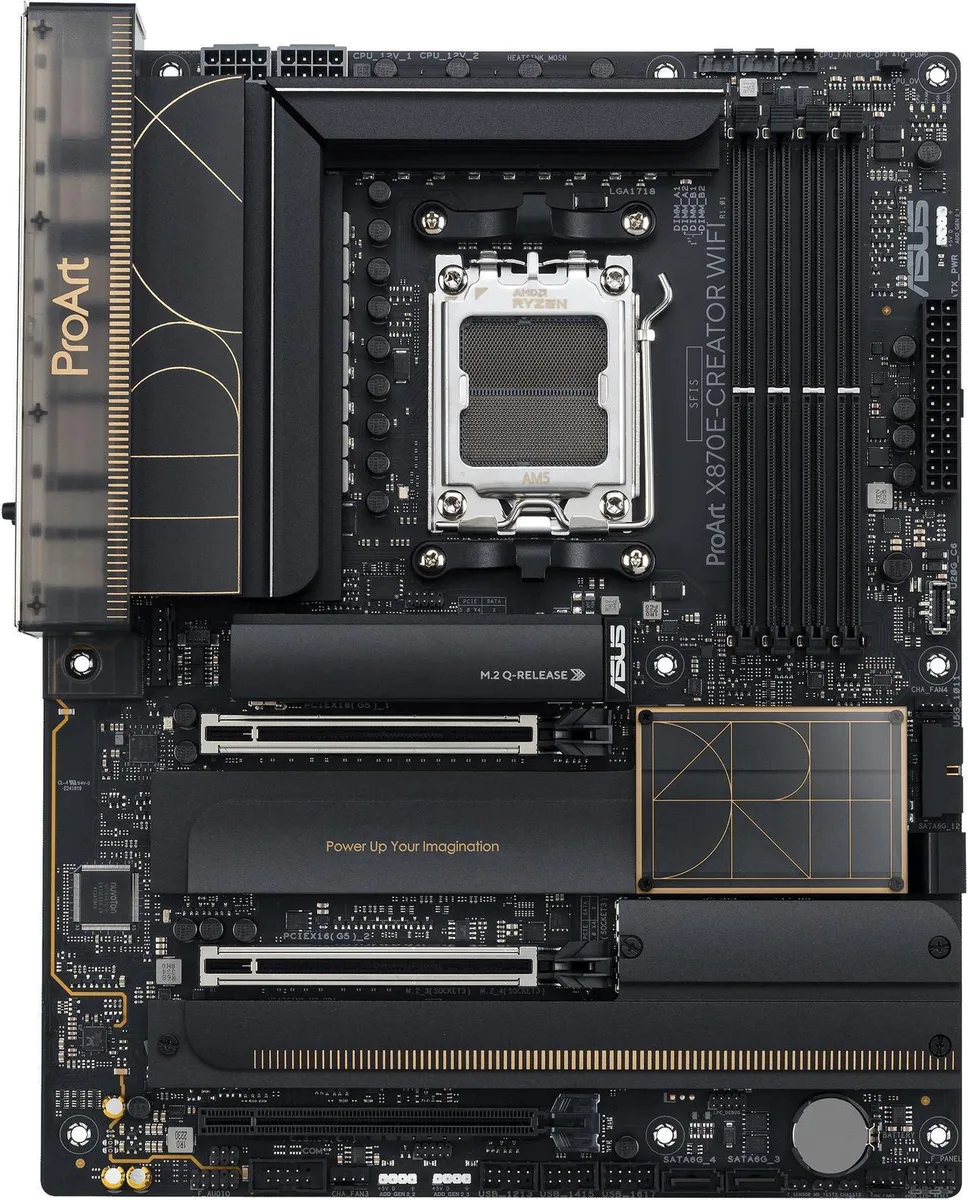

The ASUS ProArt X870E-CREATOR WIFI motherboard paired with the AMD Ryzen 9 9900X3D CPU targets content creators and AI developers who need high core counts and large cache. The 12-core processor runs at a 120W TDP and delivers 128MB of L3 cache plus integrated Radeon graphics. The board uses the AMD X870 chipset on an ATX form factor.

16+2+2 power stages and dual USB4

Sixteen plus two plus two teamed power stages with ProCool II connectors supply stable current to the socket. Four DDR5 slots support up to 256GB at 4400 MT/s with ECC and EXPO profiles. Two PCIe 5.0 x16 slots handle modern GPUs while the second slot shares bandwidth with an M.2 socket. Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet, and WiFi 7 provide flexible high-speed I/O.

Q-Release hardware and AI tuning

PCIe Slot Q-Release Slim, M.2 Q-Release, Q-Slide and Q-Latch simplify component swaps without tools. Q-Antenna eases WiFi antenna attachment and BIOS FlashBack updates firmware without a CPU installed. AI Overclocking, AI Cooling and AI Networking II automate frequency, fan and traffic optimisation, while Dynamic OC Switcher and Core Flex adapt power delivery to workload demands.

Highlights

  • Ready for demanding AI workloads with Ryzen 9000 series support
  • Stable power delivery from 16+2+2 teamed stages and ProCool II connectors
  • Dual USB4 ports, 10 Gb and 2.5 Gb Ethernet plus WiFi 7 for fast connectivity
  • DIY-friendly with PCIe Slot Q-Release Slim, M.2 Q-Release and BIOS FlashBack
  • High-capacity DDR5 memory up to 256 GB at 4400 MHz with ECC support

Specifications

BrandASUS
ModelPROART X870E-CREATOR WIFI +(R9 9900X3D)
Part NumberPROART X870E-CREATOR WIFI +(R9 9900X3D)
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
PCI Express 4.0 x16AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
SATA RAID*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Audio ChipsetRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not sup
Audio Channels7.1 Channels
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LANBluetooth 5.4
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
-
Package Contents1 x AMD Ryzen 9 9900X3D CPU
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x M.2 Q-Latch package(s)
1 x M.2 Q-Latch Q-Slide package for M.2 backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 x ACC Express Activation Key Card
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe standard do the two x16 slots run at, and what bandwidth modes do they support?

Both top slots are PCIe 5.0 x16; they operate at x16 or split to x8/x8 when the second slot is populated.

What case and power connectors are required to fit and power this ATX board?

An ATX case, a 24-pin ATX main connector and two 8-pin ProCool II CPU power connectors.

How is the CPU installed on the AM5 socket, and what step do builders often miss?

Lift the retention lever, align the triangle on the Ryzen 9 9900X3D with the socket marker, lower the chip without force, close the lever, then apply thermal paste before mounting the cooler.
