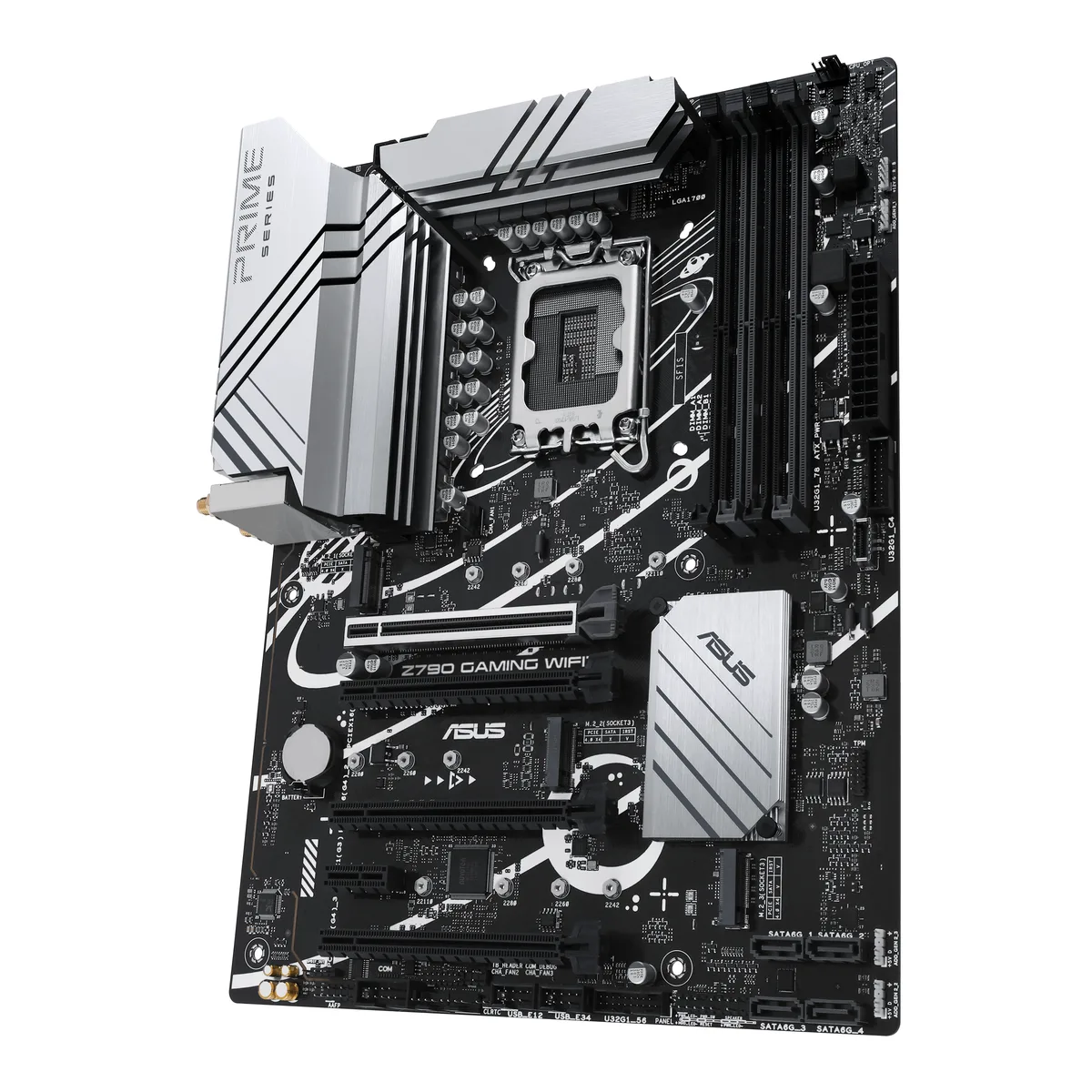

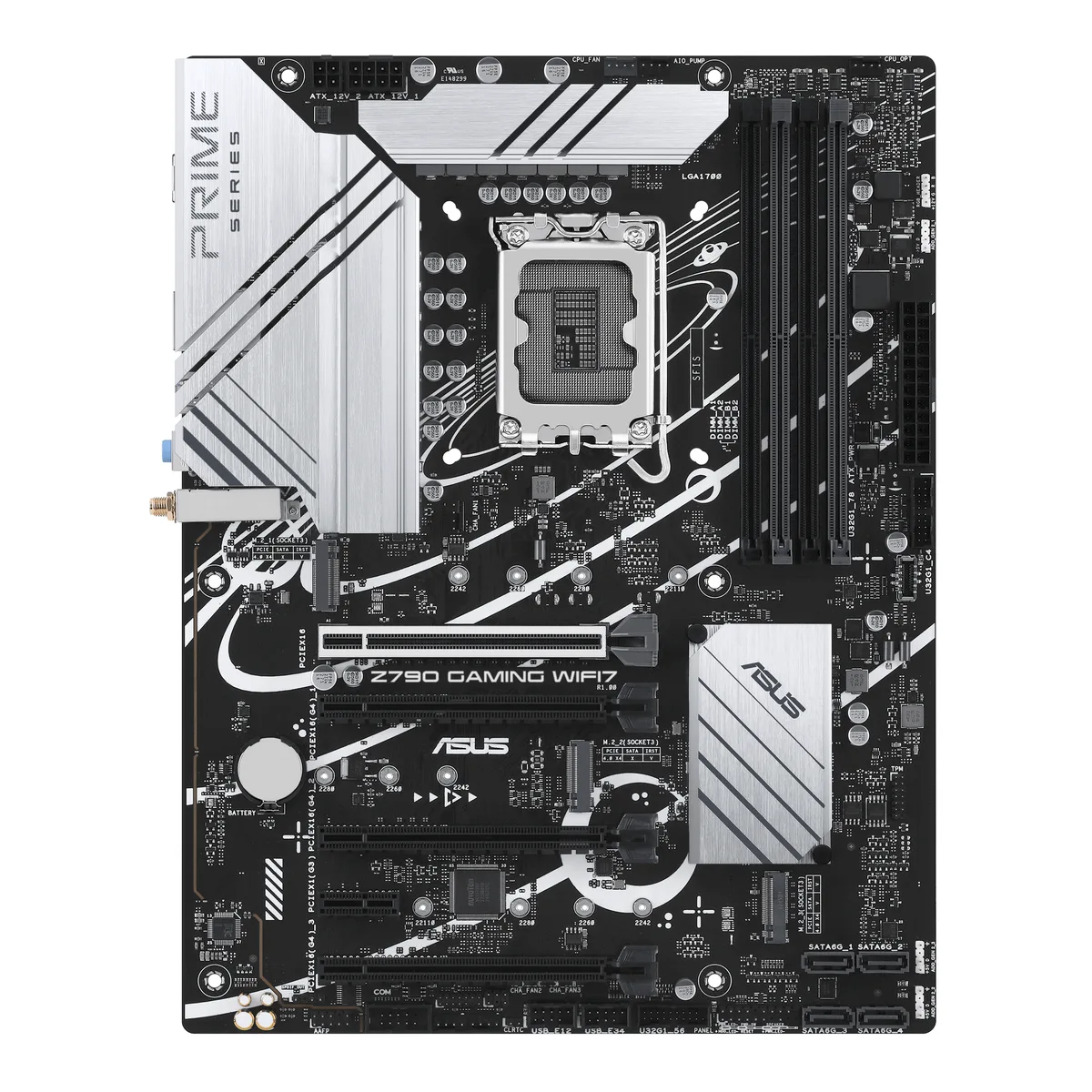

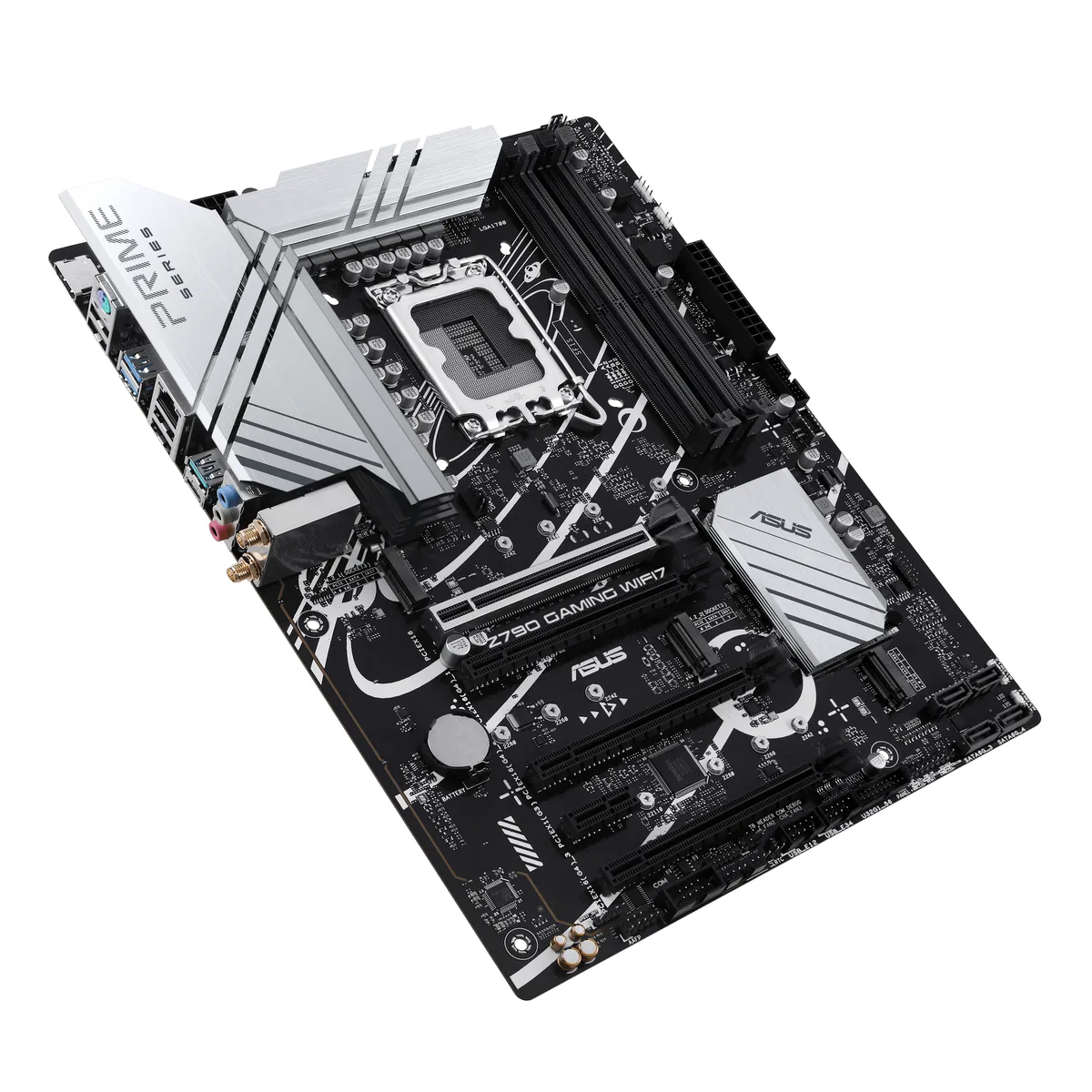

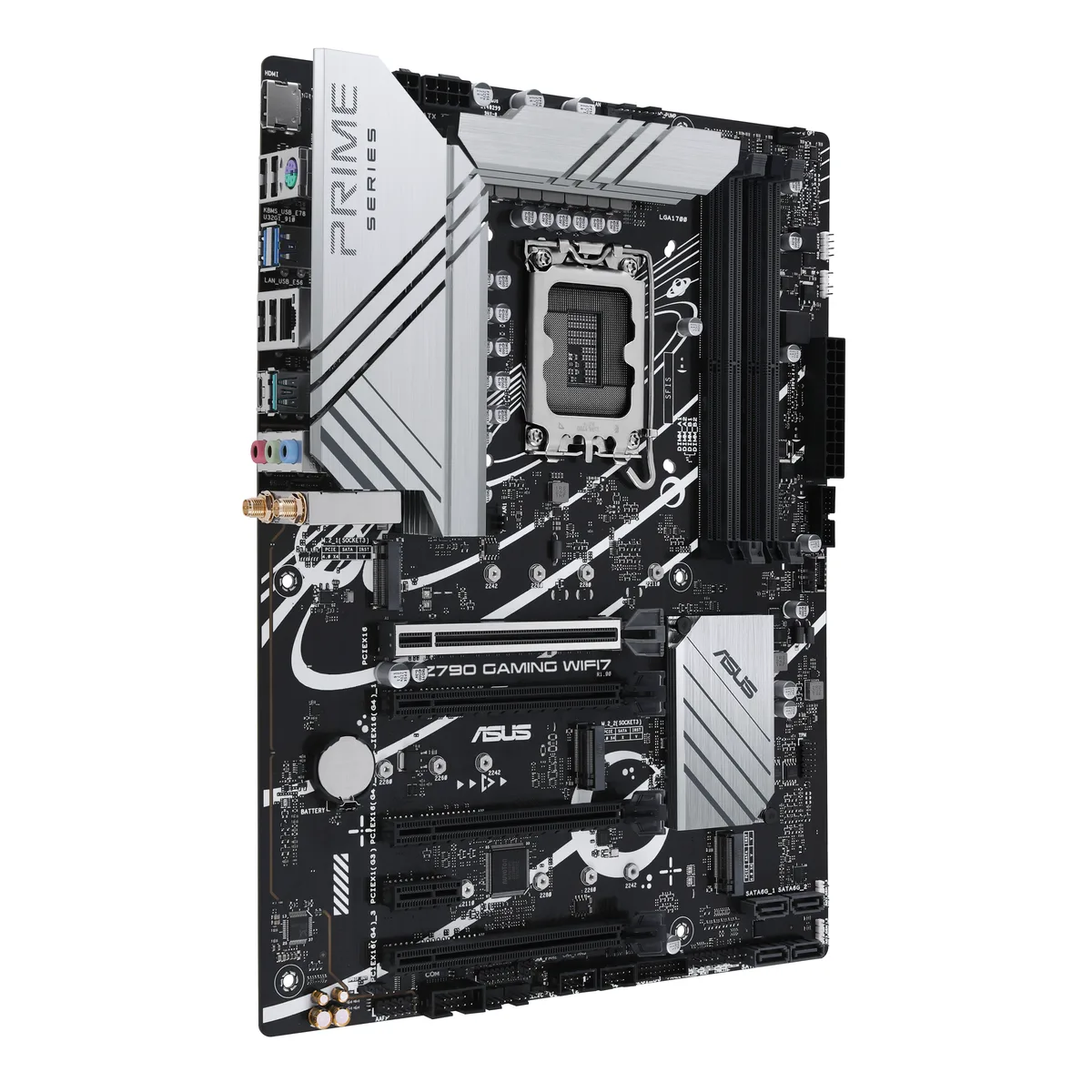

Black ATX motherboard with silver heatsinks, four DDR5 slots, three M.2 covers, rear I/O panel with HDMI and USB-C

ASUS

ASUS Z790 GAMING WIFI7 Intel motherboard

SKU CH-M66K-T4HJR MPN Z790 GAMING WIFI7

ATX motherboard for Intel LGA 1700 CPUs with DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, and 14+1 DrMOS power stages

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Proce
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)
  • Maximum Memory Supported192GB

Option Z790 GAMING WIFI7

  • Ready for Intel Core 14th, 13th and 12th Gen processors via LGA 1700 socket
  • 14+1 DrMOS power stages with 50A and 60A ratings for stable delivery
  • DDR5 memory up to 7200 MT/s overclocked across four slots with 192GB maximum
  • Wi-Fi 7 with 2x2 antenna on 2.4, 5 and 6GHz bands
  • Three M.2 slots with PCIe 4.0 x4 and four SATA 6Gb/s ports for storage

Z790 chipset with LGA 1700 socket

The ASUS Z790 GAMING WIFI7 motherboard supports Intel Core 12th, 13th and 14th generation processors on an LGA 1700 socket. It uses the Intel Z790 chipset and delivers a 14+1 DrMOS power design with 6-layer PCB for stable operation. Four DDR5 slots accept up to 192 GB of memory running at speeds up to 7200 MT/s when overclocked.

Connectivity suite built around Wi-Fi 7 and PCIe 5.0

The board includes one PCIe 5.0 x16 slot for graphics cards and three PCIe 4.0 x16 slots operating at x4 mode. Three M.2 slots support drives up to 22110 length on PCIe 4.0 x4. Networking uses Realtek 1Gb Ethernet alongside Wi-Fi 7 with 2x2 antenna configuration on 2.4, 5 and 6 GHz bands. USB 3.2 Gen 2x2 Type-C and front-panel USB 3.2 Gen 1 Type-C headers provide high-speed peripheral connections.

Memory capacity scales to 192 GB

Dual-channel DDR5 architecture handles 4800 MT/s JEDEC speeds out of the box and scales through XMP 3.0 profiles up to 7200 MT/s. The 14+1 power stage design with 50 A and 60 A DrMOS stages supports heavy memory overclocking and multi-core CPU loads. Four SATA 6Gb/s ports remain available alongside the three M.2 slots for mixed storage configurations.

Highlights

  • Ready for Intel Core 14th, 13th and 12th Gen processors via LGA 1700 socket
  • 14+1 DrMOS power stages with 50A and 60A ratings for stable delivery
  • DDR5 memory up to 7200 MT/s overclocked across four slots with 192GB maximum
  • Wi-Fi 7 with 2x2 antenna on 2.4, 5 and 6GHz bands
  • Three M.2 slots with PCIe 4.0 x4 and four SATA 6Gb/s ports for storage

Specifications

BrandASUS
ModelZ790 GAMING WIFI7
Part Number90MB1HY0-MVAAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported192GB
Channel SupportedDual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x161 x PCIe 5.0 x16 slot
PCI Express 4.0 x163 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x161 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
M.23 x M.2
SATA RAIDIntel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1 x Realtek 1Gb Ethernet
Wireless LANWi-Fi 7*
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Bluetooth® v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
BluetoothThe Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

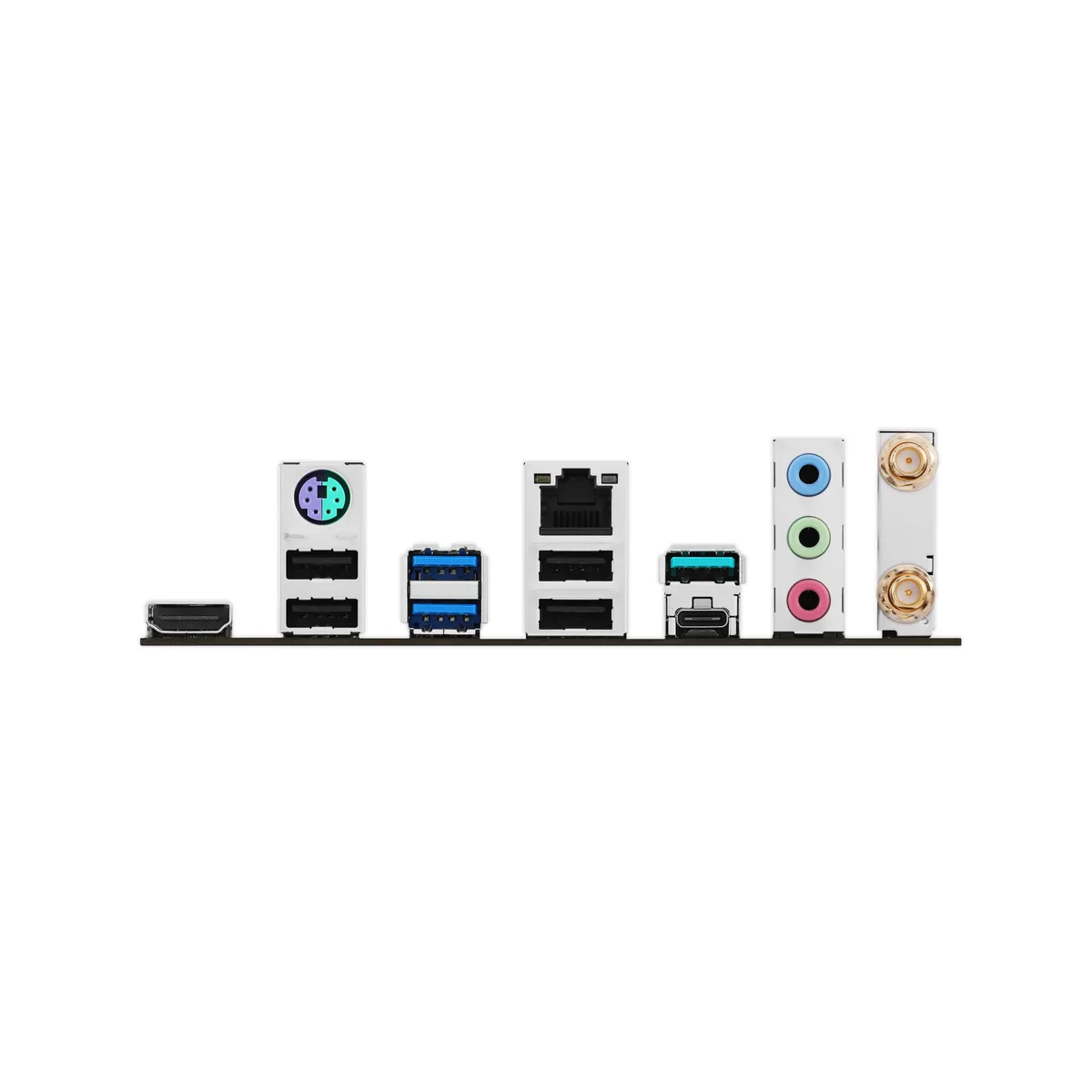

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Fr
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
FeaturesSpecial Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
-Two-Way AI Noise Cancelation
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinR
Shipping weight1.68 kg
Package size338 × 279 × 76 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need DDR5 memory modules to use the Z790 GAMING WIFI7?

Yes, the board has four 288-pin DDR5 slots supporting speeds from 4800 up to 7200 MT/s when overclocked, with a maximum capacity of 192 GB.

Will my existing PCIe 4.0 graphics card work in the PCIe 5.0 x16 slot?

The primary x16 slot is wired for PCIe 5.0 and is backward compatible, so a PCIe 4.0 card will operate at its rated speed.

How can I confirm Wi-Fi 7 is active after building the system?

In Windows 11, open Device Manager, locate the wireless adapter, and verify the connection shows 802.11be with 2.4, 5 and 6 GHz bands available.
