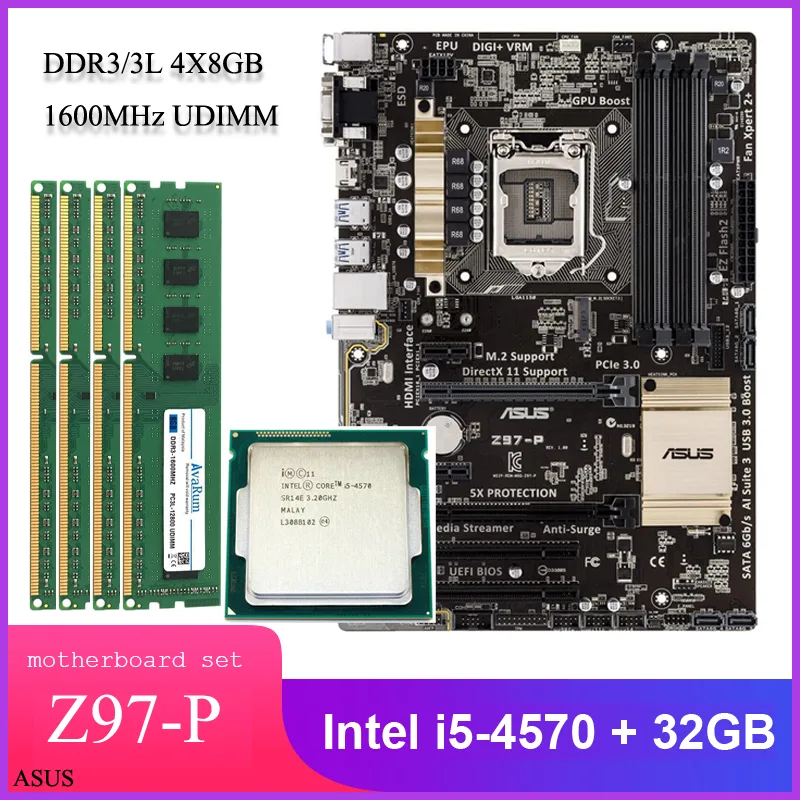

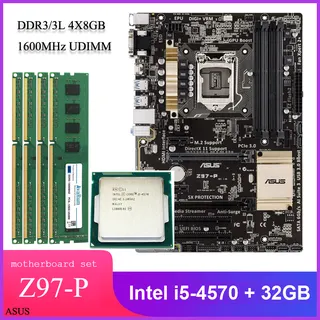

ASUS Z97-P ATX motherboard with i5-4570 CPU and four DDR3 memory modules

Avarum

Avarum ASUS Z97-P i5-4570 32GB DDR3 1600MHz Embedded Solution

SKU CH-M5B9-5DY7P

An ASUS Z97-P motherboard paired with an Intel Core i5-4570 processor and 32 GB of Avarum DDR3 1600 MHz memory in a ready-to-install combo

  • Combo TypeMotherboard / CPU / Memory Combo
  • MotherboardASUS Z97-P
  • CPUIntel Core i5-4570
  • With CoolerNo
  • MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
  • CPU Socket TypeLGA 1150
  • Ready-to-run combo with motherboard CPU and memory
  • 32GB DDR3 1600MHz kit fills all four slots
  • Intel Core i5-4570 supports Turbo Boost 2.0
  • ASUS Z97-P board offers dual-channel DDR3 up to 32GB
  • LGA 1150 platform with PCIe 3.0 x16 and SATA 6Gb/s

Ready-to-run LGA 1150 platform

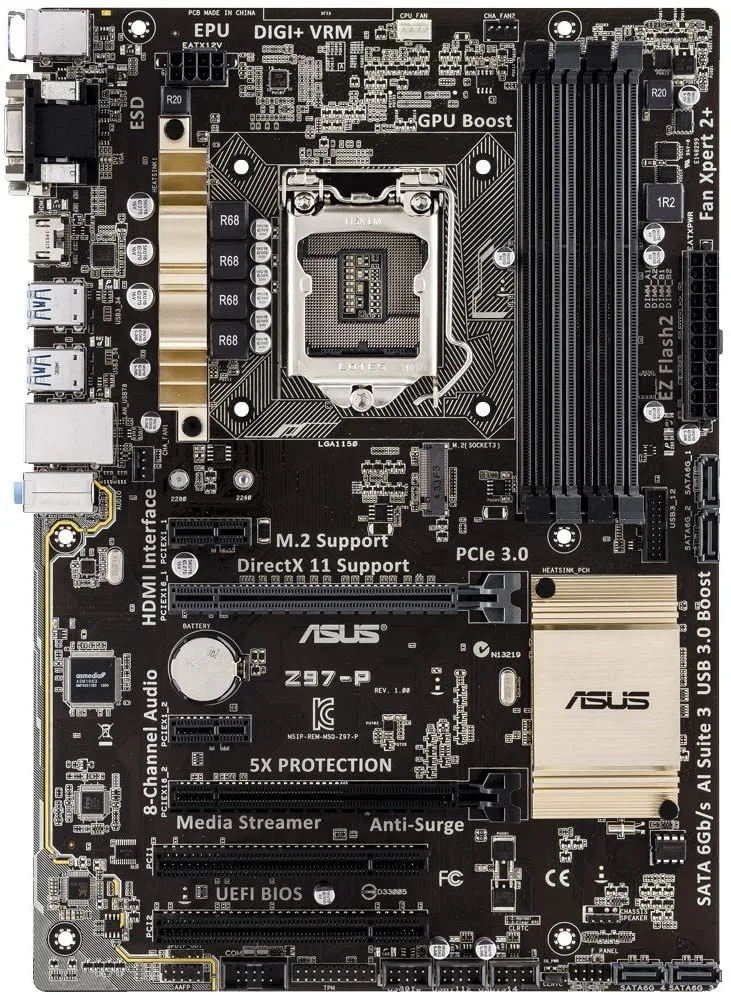

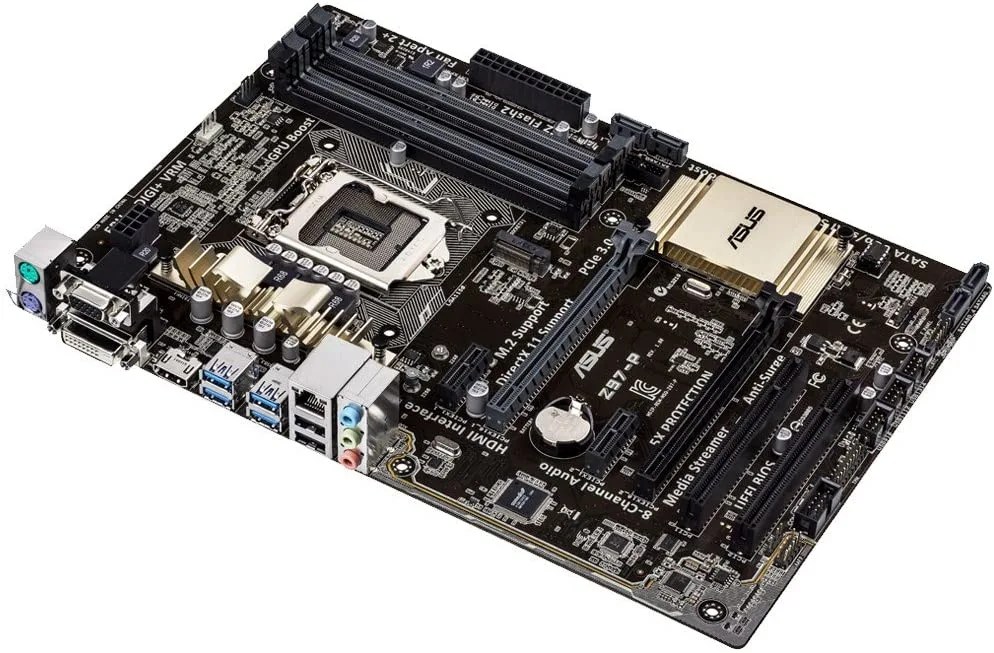

This combo bundles an ASUS Z97-P motherboard, an Intel Core i5-4570 processor and four Avarum 8 GB DDR3-1600 UDIMMs for a total of 32 GB. The parts arrive tested and assembled so builders can install the board, attach a cooler and power on without sourcing separate components. It suits repair jobs, legacy upgrades or budget workstations that still rely on the LGA 1150 socket.

DDR3 memory ceiling and PCIe lane limits

The Z97 chipset supports DDR3 up to 3200 MT/s when overclocked, yet the supplied modules run at 1600 MT/s and the board tops out at 32 GB across four slots. Only one PCIe 3.0 x16 slot operates at full width; the second x16 slot is wired for x2 speed, so multi-GPU setups lose bandwidth. Two PCIe x1 slots and two legacy PCI slots remain for add-in cards.

Cooler clearance and power delivery check

Neither the motherboard nor the processor includes a cooler, so a compatible LGA 1150 heatsink must be sourced separately. The board draws auxiliary power through a 4-pin CPU connector and a 24-pin ATX connector; verify that the power supply provides both. Rear I/O includes HDMI for the integrated graphics, four SATA 6 Gb/s ports and Gigabit LAN via the Realtek 8111GR controller.

Highlights

  • Ready-to-run combo with motherboard CPU and memory
  • 32GB DDR3 1600MHz kit fills all four slots
  • Intel Core i5-4570 supports Turbo Boost 2.0
  • ASUS Z97-P board offers dual-channel DDR3 up to 32GB
  • LGA 1150 platform with PCIe 3.0 x16 and SATA 6Gb/s

Specifications

BrandASUS
ModelZ97-P
Combo TypeMotherboard / CPU / Memory Combo
MotherboardASUS Z97-P
CPUIntel Core i5-4570
With CoolerNo
MemoryAvarum DDR3 8GB 1600MHz UDIMM * 4pcs
CPU Socket TypeLGA 1150
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU TechnologiesTurbo Boost Technology 2.0
Number of Memory Slots4×240pin
Memory StandardDDR3 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2400(O.C.)/ 2250(O.C.)/ 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express x161 x PCIe 3.0/2.0 x16 (x16 mode, gray),1 x PCIe 2.0 x16 (x2 mode, black)
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
SATA4 x SATA 6Gb/s port(s), gray
SATA RAID0/1/5/10
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Audio ChipsetRealtek High Definition Audio CODEC *2
Audio Channels8 Channels
LAN ChipsetRealtek 8111GR
LAN Speed10/100/1000Mbps
PS/21 x PS/2 keyboard (purple) , 1 x PS/2 mouse (green)
Video Ports1 x DVI-D, 1 x VGA
HDMI1 x HDMI
RJ451 x RJ45
USB 1.1/2.02 x USB 2.0
USB 3.04 x USB 3.0 (blue)
Audio Ports3 Ports
Form FactorATX
Dimensions (W x L)12.0" x 8.4"

Questions about this item

Which memory kit matches the board's top native speed?

The included 4 × 8 GB DDR3 1600 MHz modules run at the highest non-overclocked rate the Z97-P supports without BIOS changes.

What does the 32 GB DDR3 1600 MHz total mean for daily workloads?

Four populated slots give 32 GB in dual-channel mode, the maximum capacity the board allows, so multitasking and virtual machines run without paging.

How do the two PCIe x16 slots differ in bandwidth?

The grey slot is PCIe 3.0 x16 for a graphics card; the black slot is PCIe 2.0 x2, suited for capture cards or extra storage controllers.
