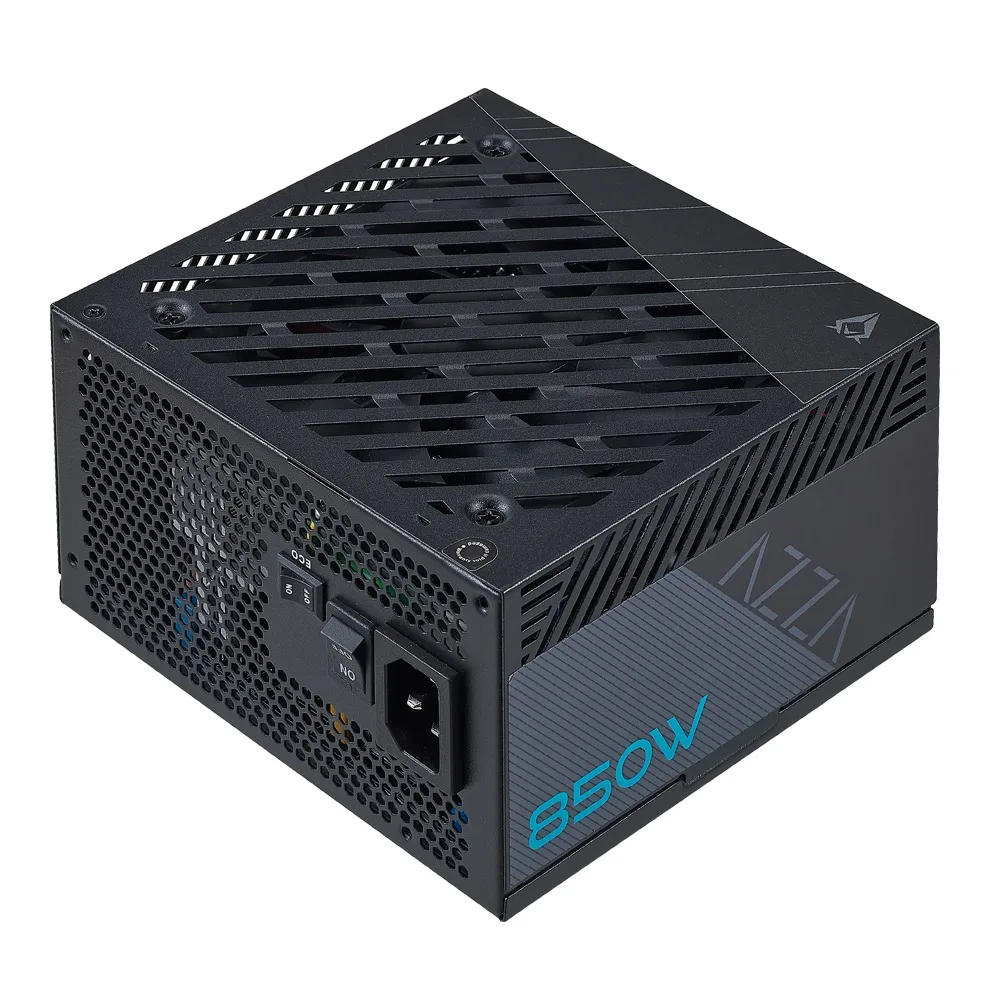

Rectangular black metal PSU with 120 mm fan grille and modular cable sockets

AZZA

AZZA PSAZ-850G ATX 3.0 850 W power supply

SKU CH-NJH3-9Y5HE MPN PSAZ-850G

An ATX 3.0 compatible, fully modular 850 W power supply with 80 PLUS Gold efficiency, a 120 mm fan, 12VHPWR connector and a 160 mm depth

  • TypeATX / ATX 3.0 Compatible
  • Maximum Power850 W
  • Fans120 mm
  • PFCActive
  • Main Connector20+4Pin
  • PCI-Express Connector4 x 6+2-Pin

Options ATX 3.0 80+ Gold (850W) Black

  • Ready for modern GPUs with native 12VHPWR 5.0 connector
  • Clean builds enabled by full modular cabling
  • Lower running costs from 80 PLUS Gold 90% efficiency
  • Comprehensive protection suite guards components
  • Long service life rated at 100,000 hours MTBF

850 W ATX 3.0 power supply

This AZZA unit delivers 850 W of continuous power and meets the ATX 3.0 specification. It carries 80 PLUS Gold certification for 90 percent efficiency at typical load. The fully modular design lets builders connect only the cables their system needs.

Sustained-load behaviour

Active PFC and a full suite of protections — UVP, OVP, OPP, OCP, SCP and OTP — keep output stable during long sessions. Hold-up time exceeds 16 ms and the power-good signal settles within 100 to 500 ms. A 120 mm fan manages thermals while the unit is rated for more than 100,000 hours MTBF.

Installation and common issues

The 160 mm depth fits most standard ATX cases, but builders should verify clearance before ordering. Four 6+2-pin PCIe cables plus a native 12VHPWR 12+4 connector support modern graphics cards. Nine SATA and four peripheral connectors cover storage and accessories. Missing the EPS cable or mixing modular leads from other units are the typical mistakes.

Highlights

  • Ready for modern GPUs with native 12VHPWR 5.0 connector
  • Clean builds enabled by full modular cabling
  • Lower running costs from 80 PLUS Gold 90% efficiency
  • Comprehensive protection suite guards components
  • Long service life rated at 100,000 hours MTBF

Specifications

BrandAZZA
ModelPSAZ-850G ATX 3.0
TypeATX / ATX 3.0 Compatible
Maximum Power850 W
Fans120 mm
PFCActive
Main Connector20+4Pin
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector9
Max PSU Length160 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16ms
Efficiency90% at Typical load
Energy-Efficient80 PLUS GOLD Certified
ProtectionUVP / OVP / OPP / OCP / SCP / OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A
MTBF>100,000 Hours
Connectors1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe / 9 x SATA
Cable Spec1 x ATX/MB cable (x1 20+4 PIN)
2 x CPU/EPS cable (4+4 PIN)
3 x PCI-e cable (4x 6+2 PIN)
3 x SATA cable (9x SATA)
1 x Molex cable (4x Molex)
1 x PCI-e 5.0 (1x12+4 Pin)
Dimensions3.39" x 5.91" x 6.30"

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the 120 mm fan get when the 850 W unit runs at typical load all day?

The 80 PLUS GOLD rating means 90 % efficiency at typical load, so less waste heat and lower fan speeds during extended use.

Which cables must I already have to connect the 20+4 pin main and 12VHPWR 12+4 pin GPU connectors?

All required cables — 24-pin ATX, two 4+4-pin EPS, four 6+2-pin PCIe, one 12VHPWR, nine SATA and four Molex — are included in the full-modular set.

Will the 160 mm depth and ATX 3.0 spec fit my older case and motherboard that only have 20+4 pin and 6+2 pin sockets?

Yes, the 160 mm length matches standard ATX bays, and the 20+4 pin main plus 6+2 pin PCIe cables are backward compatible with legacy boards and GPUs.
