AZZA

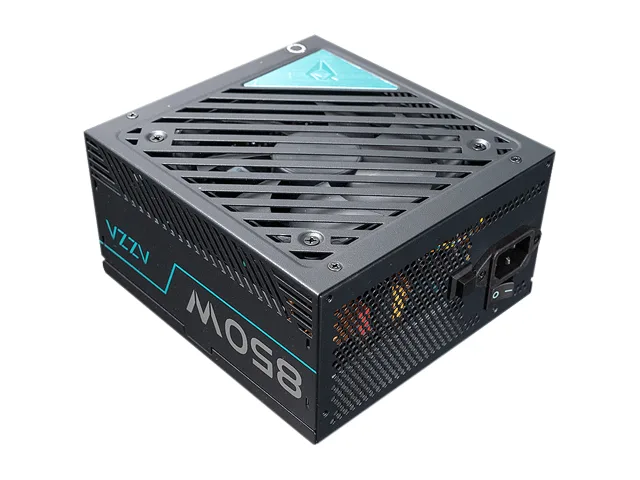

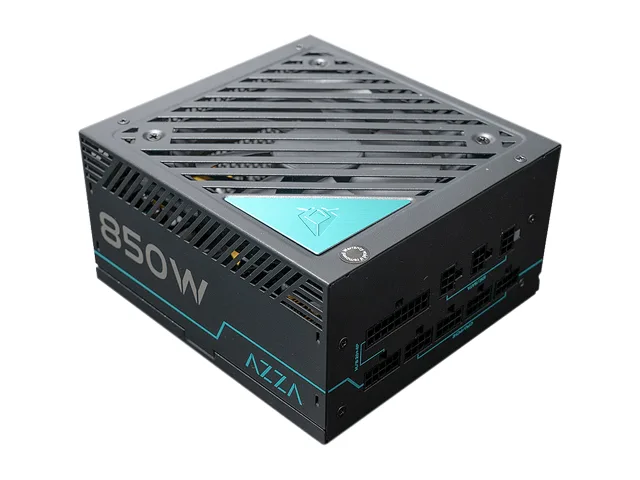

AZZA PSAZ-850G14 850W ATX 80 PLUS GOLD Full Modular power supply
An 850 W ATX unit with 80 PLUS Gold efficiency, full modular cabling and a 120 mm fan
- TypeATX
- Maximum Power850 W
- Fans120 mm
- Main Connector20+4Pin
- PCI-Express Connector4 x 6+2-Pin
- SATA Power Connector6
Options ATX 80+ Gold (850W)
- ATX 80+ Gold (850W)
- ATX 3.0 80+ Gold (850W) Black
- 850 W output powers demanding builds
- 80 PLUS GOLD certification reduces energy waste
- Full modular cabling keeps the case tidy
- 120 mm fan cools quietly under load
- Compact 160 mm depth fits smaller chassis
850W ATX Gold power supply
The AZZA PSAZ-850G14 delivers 850 W of continuous power through a fully modular ATX design. It carries 80 PLUS Gold certification and operates on 100 - 240 V input. A single 120 mm fan provides cooling within a 160 mm deep chassis. The unit includes protections for under-voltage, over-voltage, over-power, over-current and short-circuit events.
Replaces older modular units
Builders moving from a lower-wattage or semi-modular supply gain the headroom for multi-GPU configurations and the cable flexibility of a full-modular layout. The four 6+2-pin PCIe connectors support up to two high-end graphics cards. The jump is worthwhile when the existing unit cannot sustain peak loads or forces unused cables into the case.
Straightforward ATX installation
Standard ATX mounting points and a 160 mm length fit most mid-tower cases without clearance issues. Full modularity means only the required cables are connected — one 20+4-pin ATX, two 4+4-pin EPS, two PCIe cables carrying four 6+2-pin plugs, two SATA cables for six drives and one Molex cable with three connectors. The main mistake is forgetting to seat the EPS cables firmly for CPU power.
Highlights
- 850 W output powers demanding builds
- 80 PLUS GOLD certification reduces energy waste
- Full modular cabling keeps the case tidy
- 120 mm fan cools quietly under load
- Compact 160 mm depth fits smaller chassis
Specifications
| Brand | AZZA |
|---|---|
| Model | PSAZ-850G14 |
| Type | ATX |
| Maximum Power | 850 W |
| Fans | 120 mm |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | UVP / OVP / OPP / OCP / SCP |
| Input Voltage | 100 - 240 V |
| Connectors | 1x ATX cable (20+4 PIN) 2x EPS cable (4+4 PIN) 2x PCI-e cable (4x 6+2 PIN) 2x SATA cable (6x SATA) 1x Molex cable (3x Molex) |
| Dimensions | 3.39" x 5.91" x 6.30" |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Will the 160 mm length fit my ATX case?
The unit measures 160 mm deep, so confirm your case allows at least that much clearance from the rear panel to any drive cage or motherboard tray.
Which cables must I plug in first during a full-modular build?
Connect the 20+4 pin ATX cable and both 4+4 pin EPS cables to the motherboard before routing the four 6+2 pin PCIe cables and six SATA connectors.
When should I clean the 120 mm fan to keep airflow steady?
Remove dust from the fan blades and intake grill every six to twelve months using compressed air while the system is powered off.
