be quiet!
be quiet! BG074 PURE BASE 501 Airflow Black PC case
ATX full-tower chassis with high-airflow front and top panels, two pre-installed 140 mm PWM fans, room for 368 mm graphics cards and 360 mm radiators, plus front USB 3.2 Gen 2 Type-C connectivity
- TypeATX Full Tower
- ColorBlack
- Case MaterialABS / Steel
- Motherboard CompatibilityATX/ Micro ATX / Mini ATX
- Side Panelwithout Side Window
- LEDNo
Edition Pure Base 501 - Airflow Window
- Pure Base 500
- Pure Base 501 - Airflow
- Pure Base 501 - Airflow Window
- Pure base 501 - Airflow Window
- Pure Base 501 DX
- Pure Base 501 LX
- Pure Base 600
Struck-through versions exist but are not stocked here.
Color Black
- Black
- White
- High airflow front and top panels boost cooling performance
- Two pre-installed 140 mm Pure Wings 3 fans deliver strong air pressure
- Fits graphics cards up to 368 mm and CPU coolers up to 178 mm
- Supports radiators up to 360 mm at the front for liquid cooling

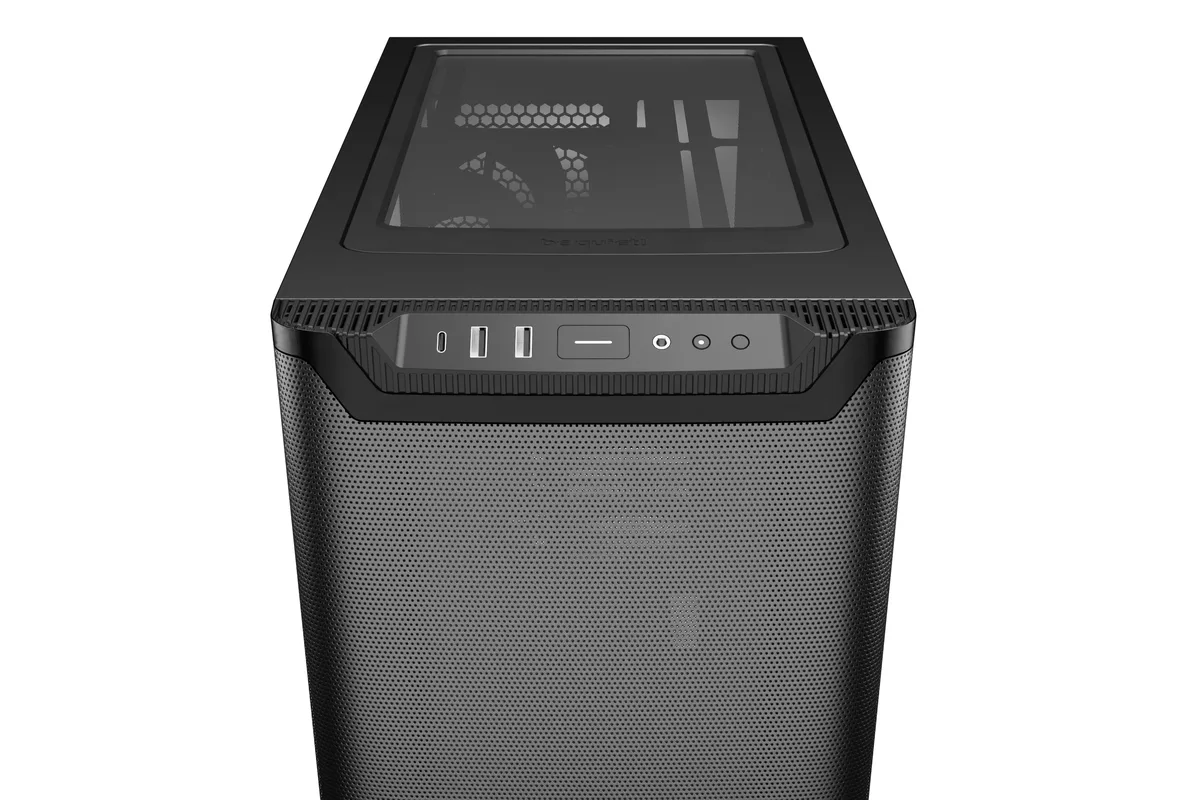

- Front USB 3.2 Gen 2 Type-C plus two Type-A ports enable fast connectivity
Pure Base 501 Airflow — ATX Full Tower

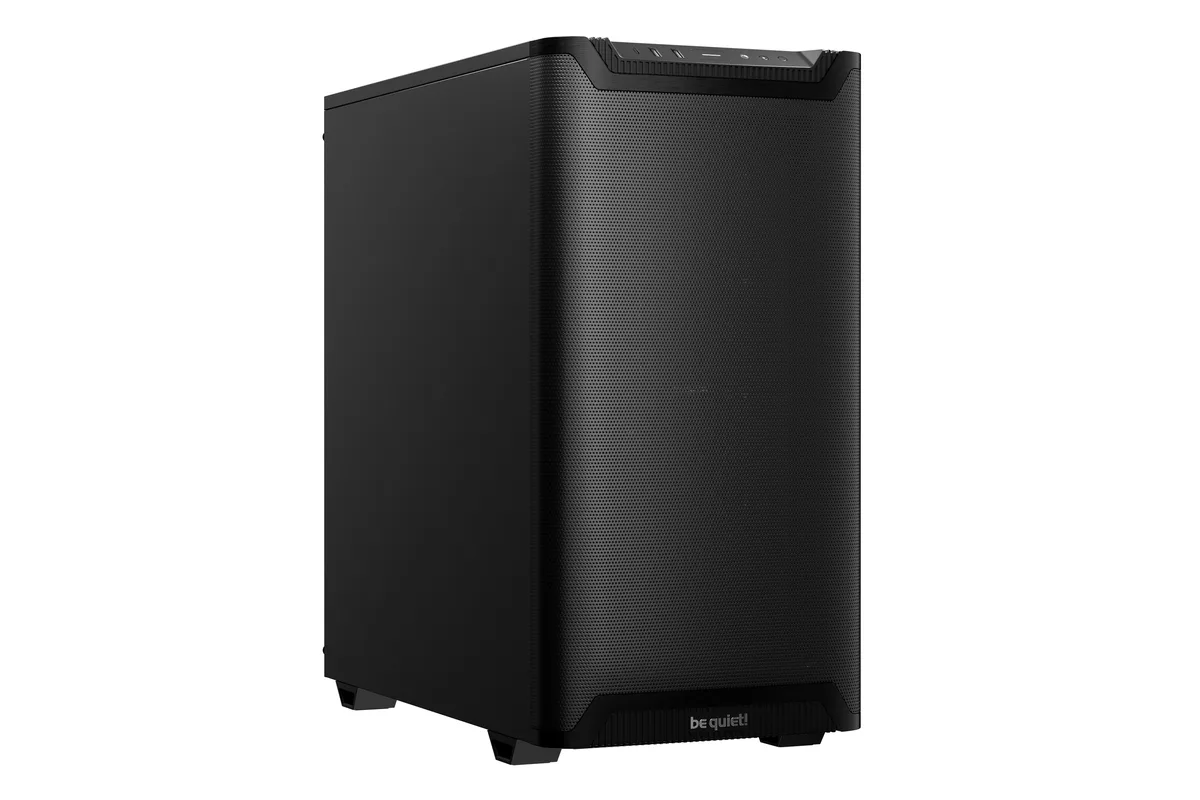

The Pure Base 501 Airflow Black is a compact ATX full-tower chassis built for users who want high airflow without a windowed side panel. It supports ATX, Micro-ATX and Mini-ATX motherboards and ships in a black ABS and steel finish.
Installation and common issues

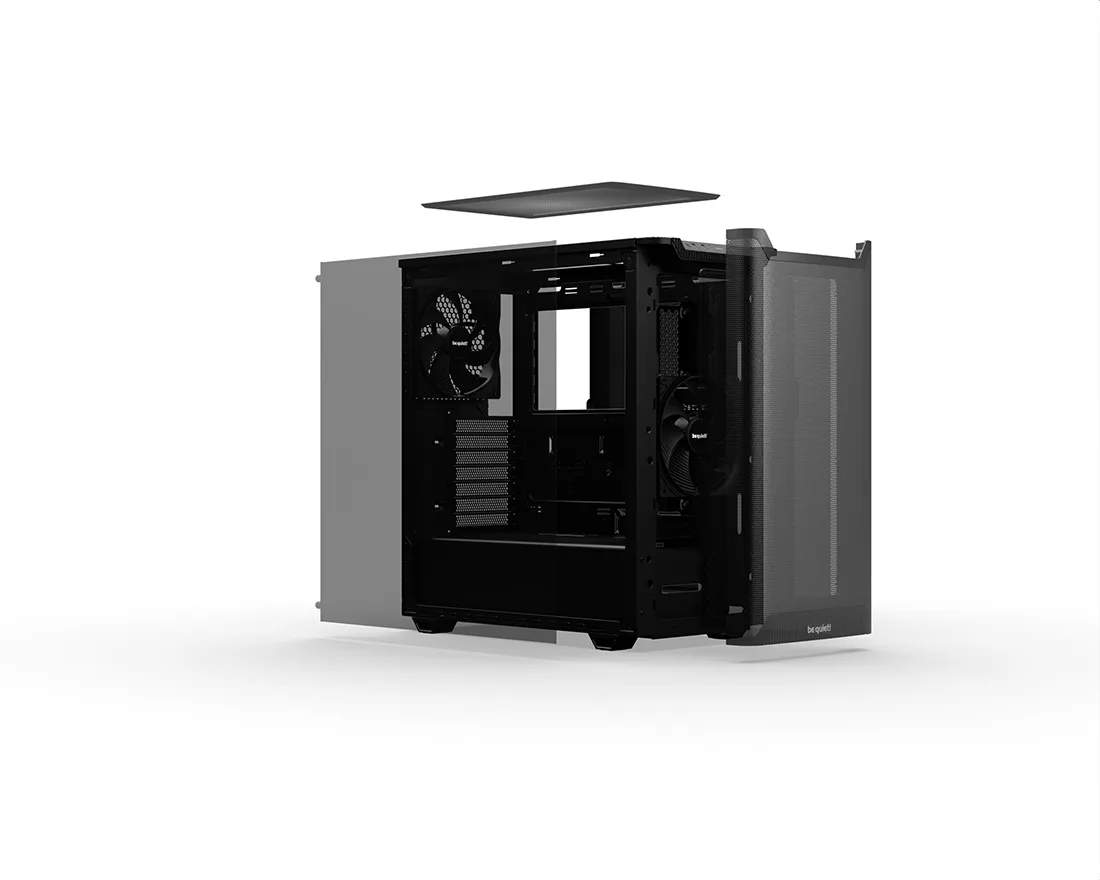

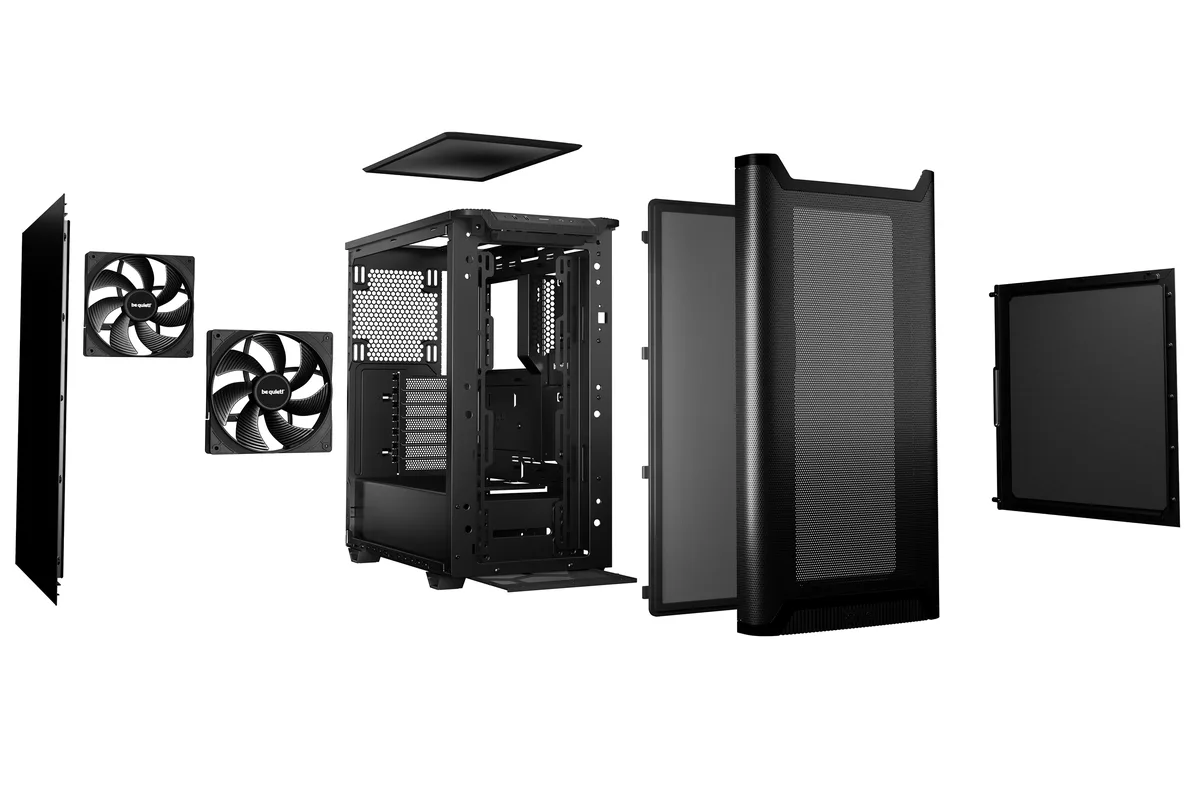

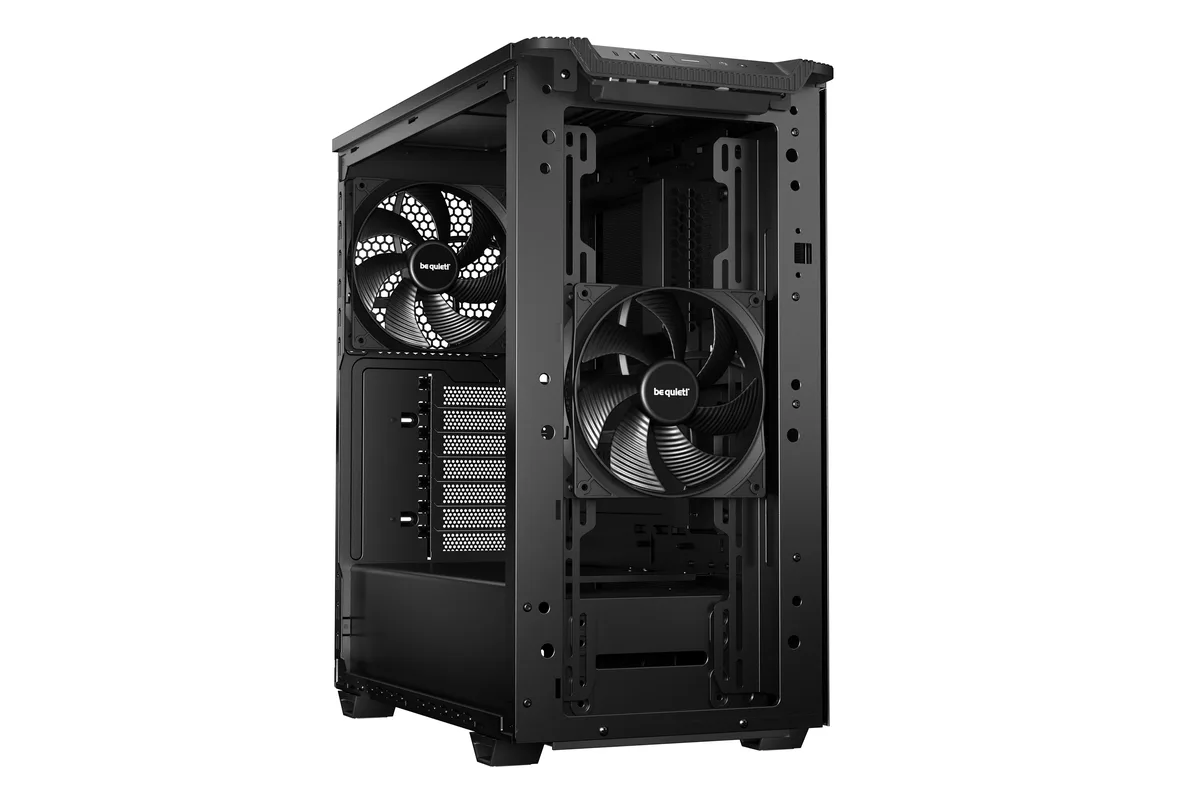

Two Pure Wings 3 140 mm PWM fans come pre-installed at the front and rear, so the case is ready for power as soon as the board is mounted. Dust filters on the bottom, front and top lift out for cleaning, and the cable-routing channels keep wiring tidy; the only limitation is the 180 mm maximum power-supply length, which rules out some longer units.
Capacity and headroom

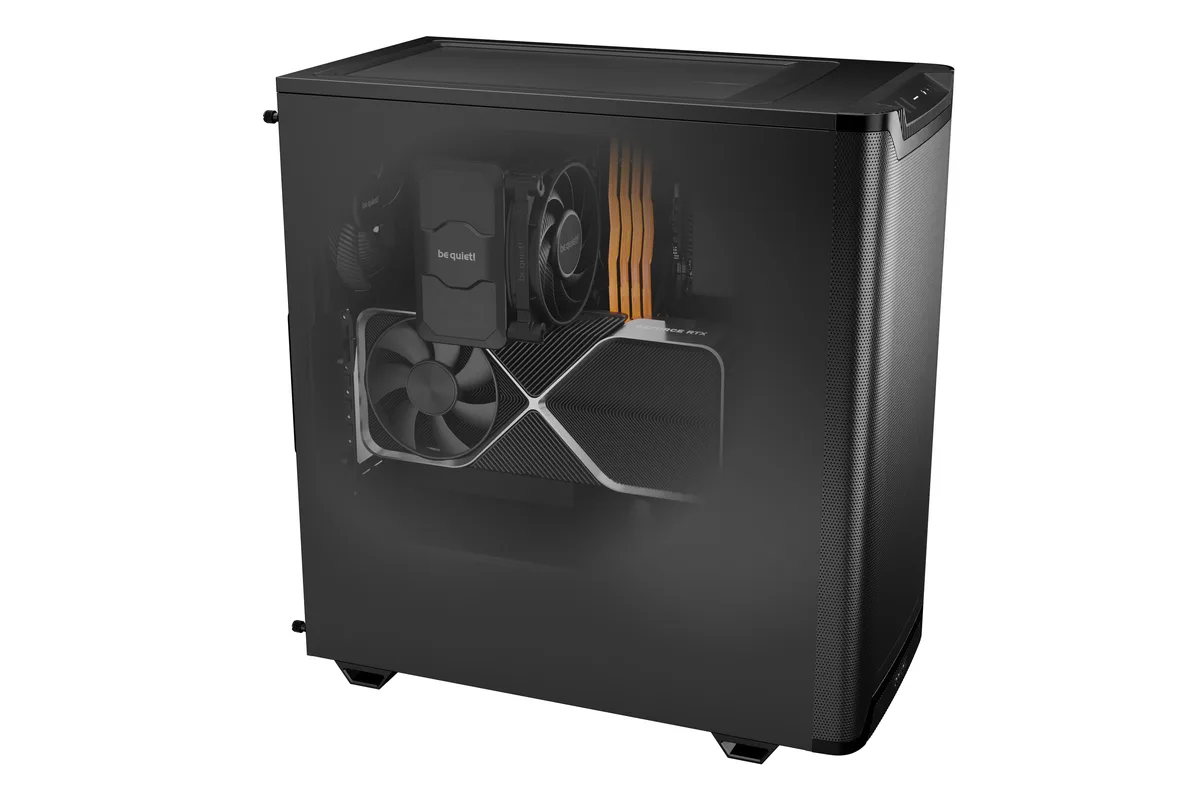

Graphics cards up to 368 mm fit comfortably, and CPU coolers up to 178 mm clear the side panel. The front accepts radiators up to 360 mm, the top up to 240 mm and the rear up to 140 mm. Storage includes two internal 3.5-inch bays and five 2.5-inch mounts, while seven expansion slots handle full-length add-in cards.
Highlights
- High airflow front and top panels boost cooling performance
- Two pre-installed 140 mm Pure Wings 3 fans deliver strong air pressure
- Fits graphics cards up to 368 mm and CPU coolers up to 178 mm
- Supports radiators up to 360 mm at the front for liquid cooling
- Front USB 3.2 Gen 2 Type-C plus two Type-A ports enable fast connectivity
Specifications
| Brand | be quiet! |
|---|---|
| Model | PURE BASE 501 Airflow |
| Part Number | BG074 |
| Type | ATX Full Tower |
| Color | Black |
| Case Material | ABS / Steel |
| Motherboard Compatibility | ATX/ Micro ATX / Mini ATX |
| Side Panel | without Side Window |
| LED | No |
| Dust Filters | Bottom / Front / Top |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 5 |
| Expansion Slots | 7 |
| Front Ports | 1x USB 3.2 Gen. 2 Type C, 2x USB 3.2 Type A, HD Audio, (combined) |
| Fan Options | Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Top - 2 x 120mm / Top - 2 x 140mm |
| Pre-installed Fans | Front - 1 x 140mm / Rear - 1 x 140mm |
| Radiator Options | Front - Up to 360mm / Rear - Up to 140mm / Top - Up to 240mm |
| Max GPU Length | 368 mm |
| Max CPU Cooler Height | 178 mm |
| Max PSU Length | 180 mm |
| Dimensions | 518 x 292 x 503 |
| Weight | 8.0 kg |
| Shipping weight | 3.76 kg |
| Package size | 565 × 502 × 286 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
be quiet!

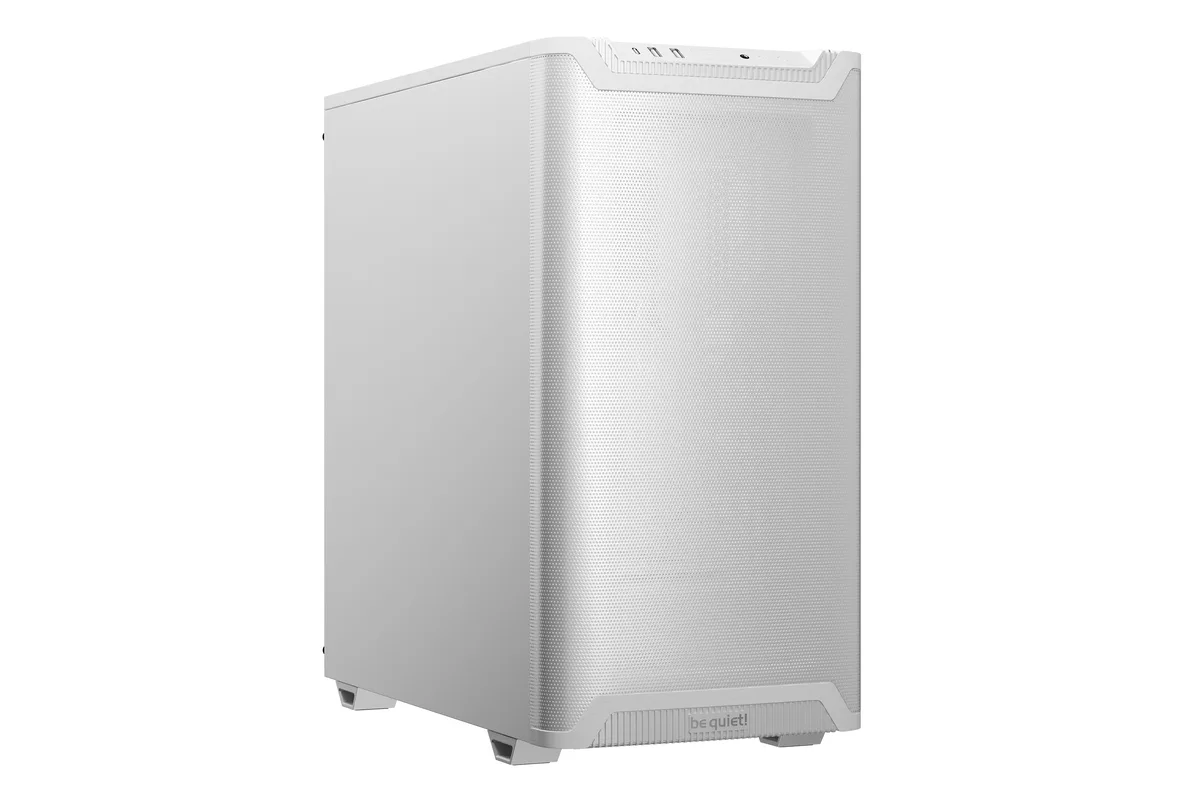

be quiet! BG075 Pure Base 501 Airflow White PC case
- ATX Full Tower
- White
$114.90$124.90−8%
0.00148473BTC
In stock
be quiet!

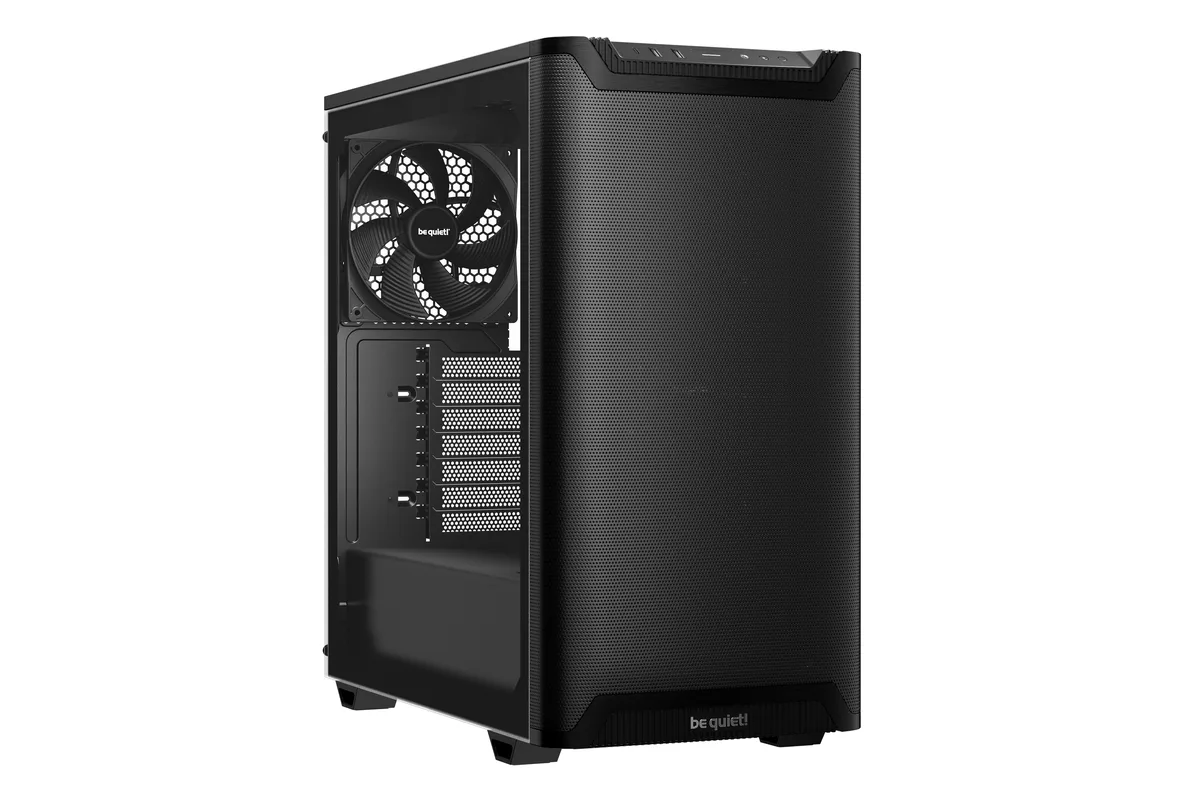

be quiet! BGW74 Pure Base 501 Airflow PC case
- ATX Full Tower
- Black
$119.90
0.00154934BTC
In stock
be quiet!

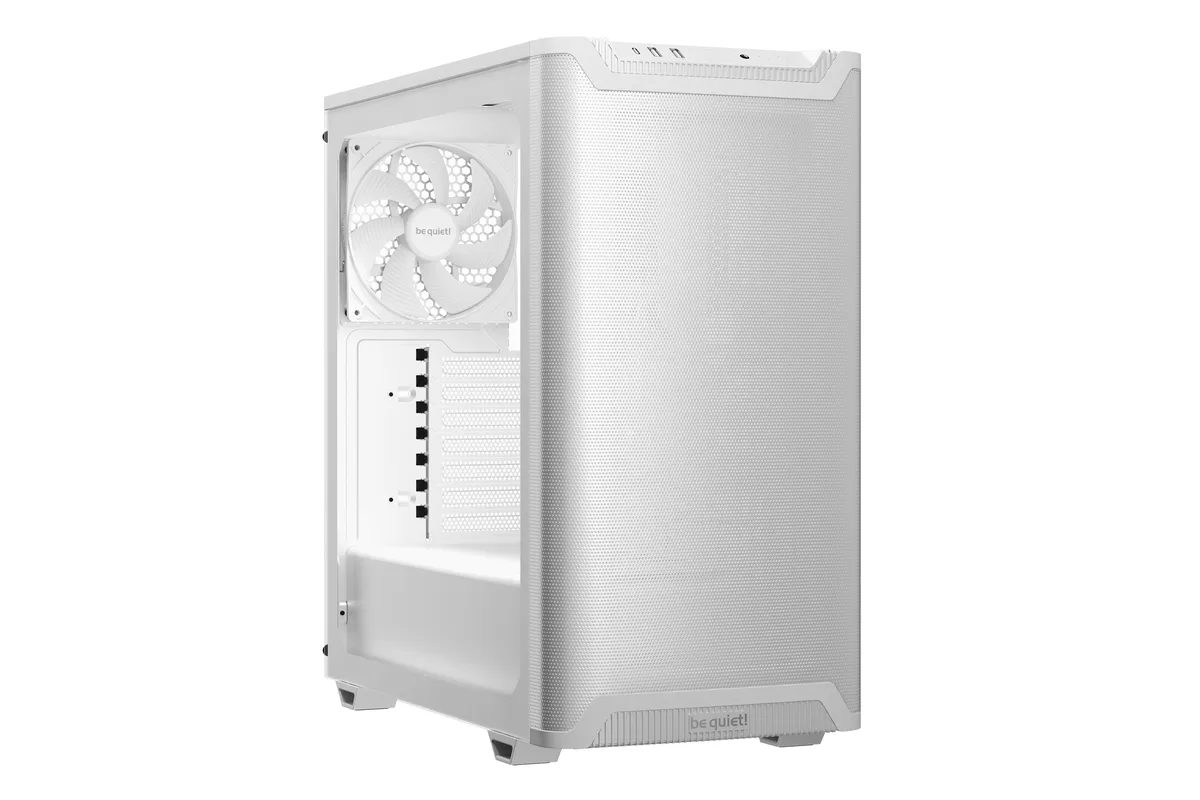

be quiet! BGW75 PURE BASE 501 Airflow White PC case
- ATX Full Tower
- White
$124.90$135.81−8%
0.00161395BTC
In stock
be quiet!

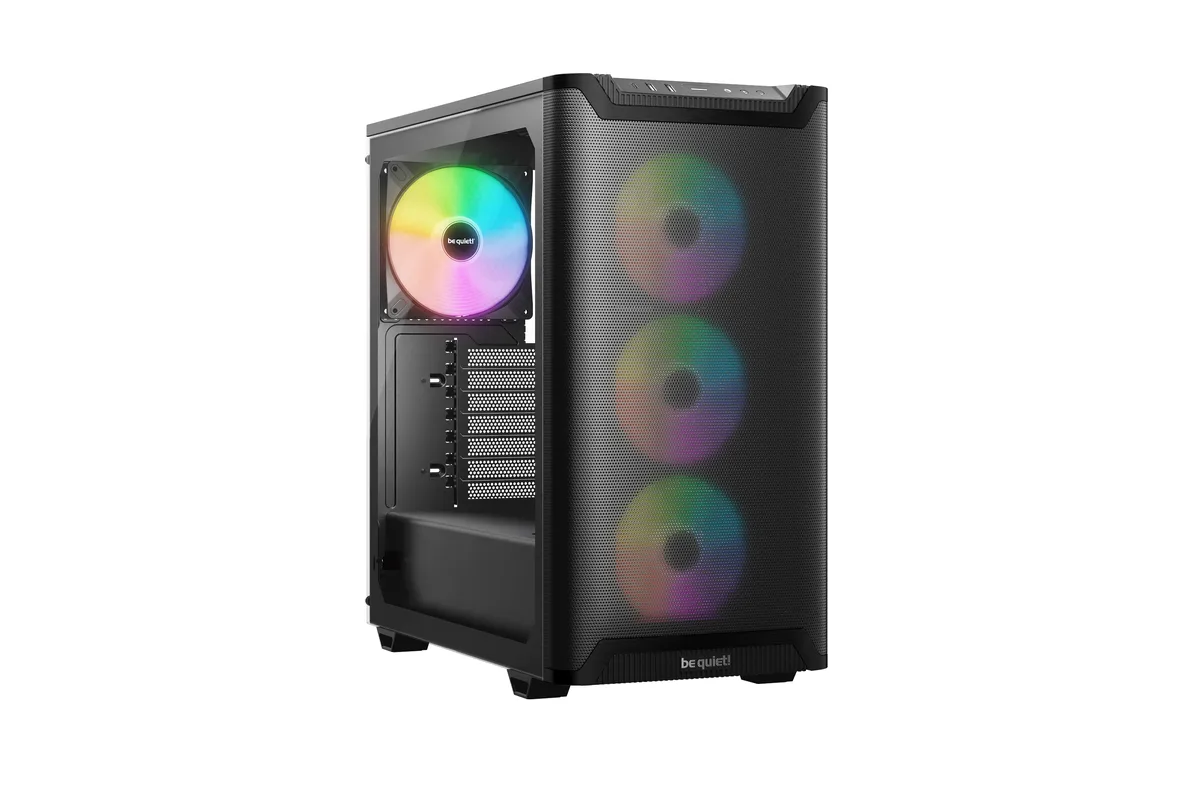

be quiet! BGW78 Pure Base 501 LX PC case Black
- Black
- ABS / Steel / Tempe…
$159.90
0.00206621BTC
In stockQuestions about this item
Will a 368 mm graphics card fit without hitting the front radiator?
The case allows up to 368 mm GPU length, but a front-mounted 360 mm radiator will reduce usable space; plan the layout before buying.
Can I install a 360 mm radiator in the top if I keep the front fans?
Top radiator support is limited to 240 mm, so a 360 mm unit only fits at the front; the front includes two pre-installed 140 mm fans.
What motherboard sizes are supported and how many 2.5" drives can I add?
ATX, Micro-ATX and Mini-ATX boards are supported; five internal 2.5" drive bays are available alongside two 3.5" bays.
