be quiet!
be quiet! BGW78 Pure Base 501 LX PC case Black
An ATX, Micro ATX and Mini ITX chassis with a tempered glass side panel, four pre-installed 120 mm fans and room for 360 mm front radiators
- ColorBlack
- Case MaterialABS / Steel / Tempered Glass
- Motherboard CompatibilityATX / Micro ATX / Mini ITX
- Side PanelTempered Glass Panel
- Internal 3.5" Drive Bays2
- Internal 2.5" Drive Bays5
Edition Pure Base 501 LX
- Pure Base 500
- Pure Base 501 - Airflow
- Pure Base 501 - Airflow Window
- Pure base 501 - Airflow Window
- Pure Base 501 DX
- Pure Base 501 LX
- Pure Base 600
Struck-through versions exist but are not stocked here.
Color Black
- Black
- White
- Spacious interior fits long graphics cards up to 368 mm
- Four pre-installed 120 mm fans deliver airflow from the start
- Front radiator support up to 360 mm enables high-capacity liquid cooling
- Seven expansion slots give room for multiple add-in cards

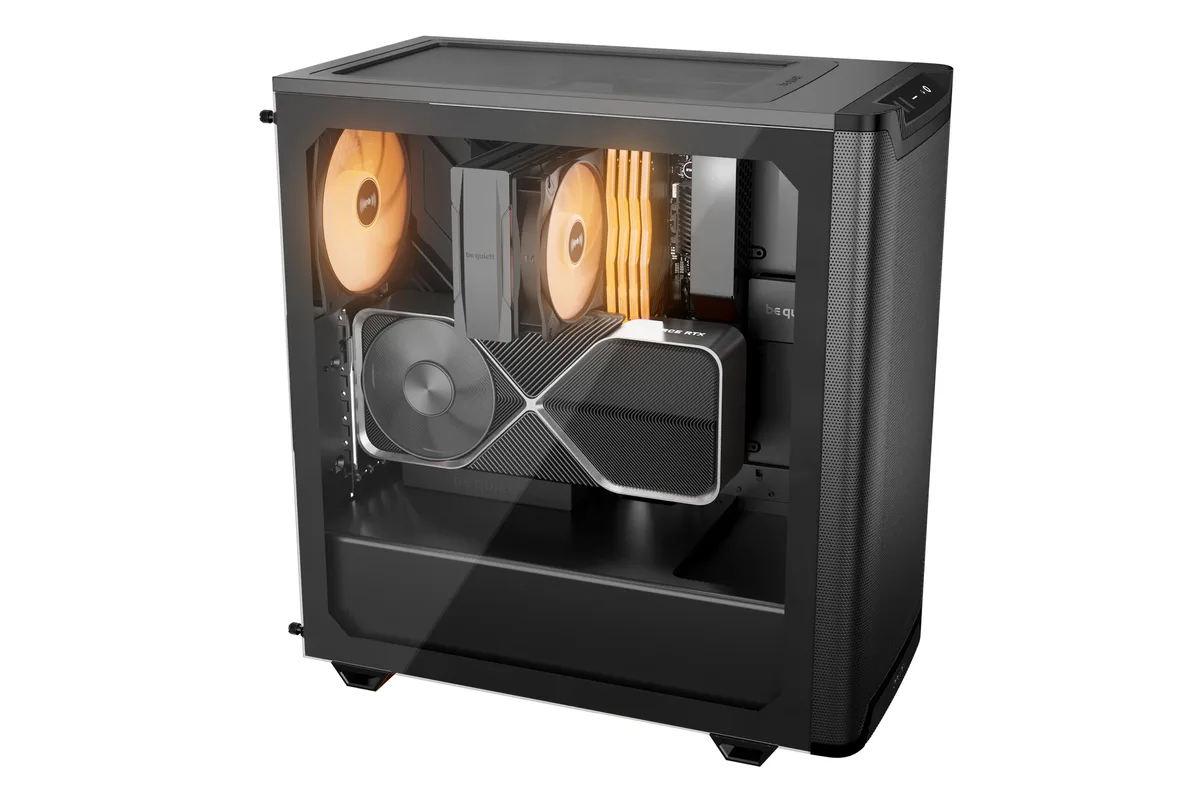

- Tempered glass side panel shows the build while steel structure adds rigidity
Mid-tower case for ATX builds
The be quiet! Pure Base 501 LX is a mid-tower chassis that accepts ATX, Micro ATX and Mini ITX motherboards. Seven expansion slots and a tempered glass side panel suit gaming or workstation builds. Two 3.5 inch and five 2.5 inch internal bays provide room for mixed storage.
Thermals noise and power

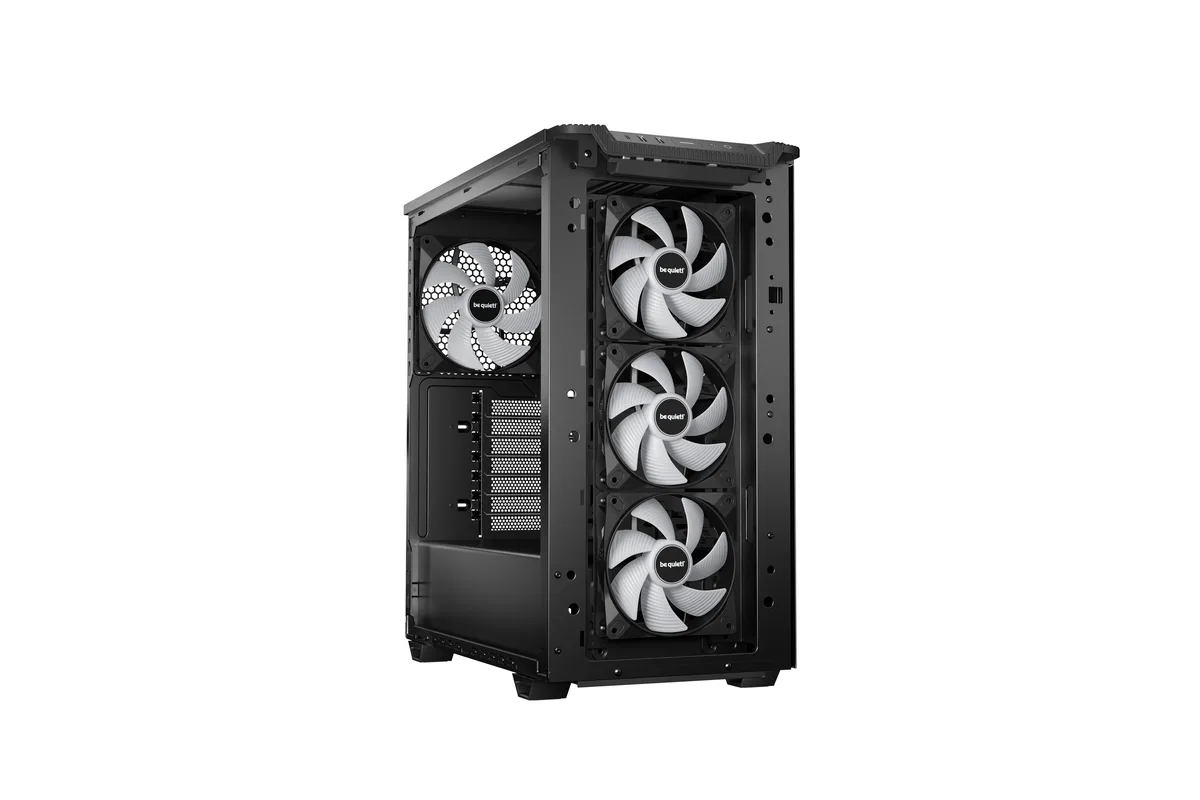

Four pre-installed 120 mm fans give immediate airflow through front and rear positions. Additional mounts allow two 140 mm fans at the front, one 140 mm at the rear and two 140 mm at the top. Radiator support reaches 360 mm at the front, 240 mm at the top and 140 mm at the rear for liquid cooling.
Build quality and connectivity
ABS and steel construction with a tempered glass window creates a rigid, quiet enclosure. The 368 mm GPU clearance and 178 mm CPU cooler height accommodate most modern components. A 200 mm power supply limit means longer units will not fit.
Highlights
- Spacious interior fits long graphics cards up to 368 mm
- Four pre-installed 120 mm fans deliver airflow from the start
- Front radiator support up to 360 mm enables high-capacity liquid cooling
- Seven expansion slots give room for multiple add-in cards
- Tempered glass side panel shows the build while steel structure adds rigidity
Specifications
| Brand | be quiet! |
|---|---|
| Series | Pure base 501 LX |
| Model | BGW78 |
| Color | Black |
| Case Material | ABS / Steel / Tempered Glass |
| Motherboard Compatibility | ATX / Micro ATX / Mini ITX |
| Side Panel | Tempered Glass Panel |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 5 |
| Expansion Slots | 7 |
| Fan Options | Front - 2 x 140mm / Rear - 1 x 140mm / Top - 2 x 140mm |
| Pre-installed Fans | Front - 3 x 120mm / Rear - 1 x 120mm |
| Radiator Options | Front - Up to 360mm / Rear - Up to 140mm / Top - Up to 240mm |
| Max GPU Length | 368 mm |
| Max CPU Cooler Height | 178 mm |
| Max PSU Length | 200 mm |
| Shipping weight | 8.82 kg |
| Package size | 533 × 356 × 254 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
be quiet!
be quiet! BG074 PURE BASE 501 Airflow Black PC case
- ATX Full Tower
- Black
$112.99$116.99−3%
0.0014683BTC
In stock
be quiet!
be quiet! BG075 Pure Base 501 Airflow White PC case
- ATX Full Tower
- White
$114.90$124.90−8%
0.00149312BTC
In stock
be quiet!
be quiet! BGW74 Pure Base 501 Airflow PC case
- ATX Full Tower
- Black
$119.90
0.00155809BTC
In stock
be quiet!
be quiet! BGW75 PURE BASE 501 Airflow White PC case
- ATX Full Tower
- White
$124.90$135.81−8%
0.00162307BTC
In stockQuestions about this item
How do I install the pre-installed 120mm fans and which step do builders often miss?
The case ships with three 120mm fans at the front and one at the rear. The step often missed is checking each fan’s arrow for airflow direction so all four push air in the same path.
What maintenance will the drive bays and dust filters need over time?
Two 3.5-inch and five 2.5-inch bays use tool-less trays; remove trays periodically to vacuum dust. Front and top magnetic filters slide out for cleaning without tools.
What is the first cooling limit reached when running a 360mm front radiator under sustained load?
A 360mm front radiator fits, but the 178mm CPU cooler height limit and front panel clearance restrict pump-block thickness, so combined radiator-and-fan depth becomes the limiting factor.
