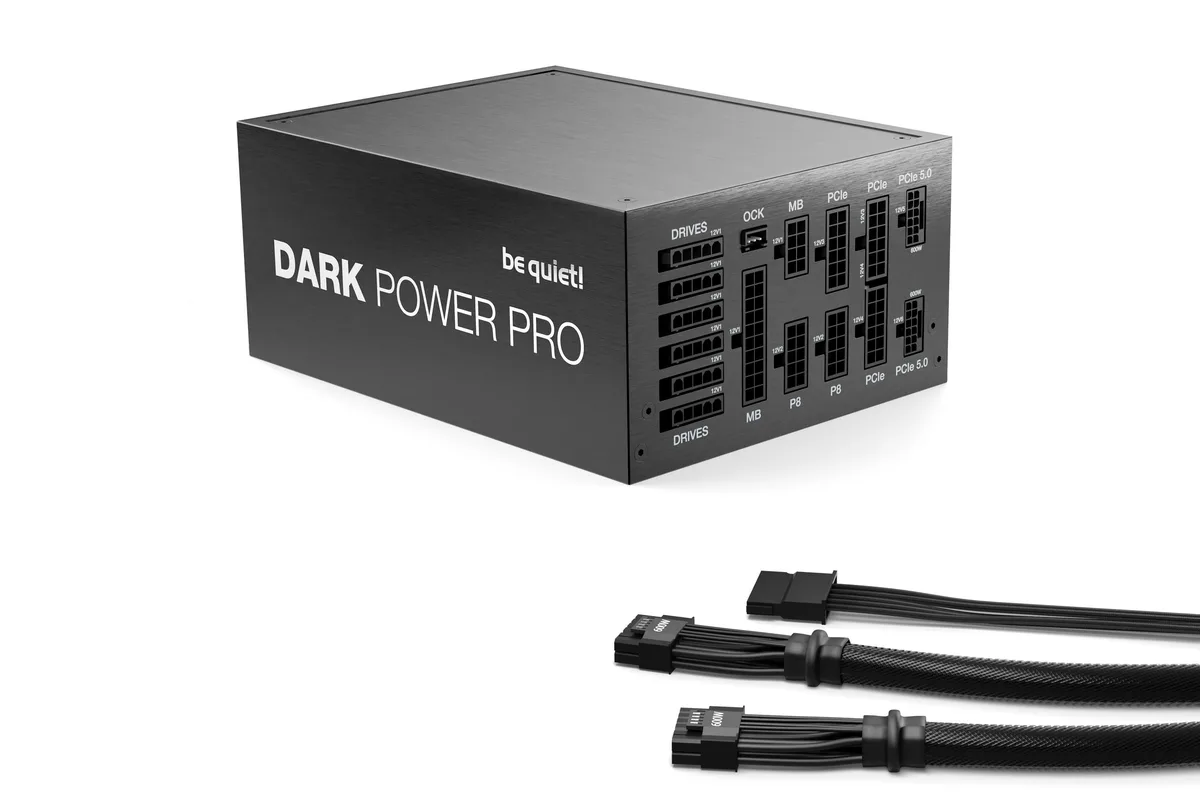

Black rectangular ATX power supply with 135 mm fan and modular cables

be quiet!

be quiet! Dark Power PRO 13 1600W ATX 3.0 power supply BN501

SKU CH-PJMF-2C84G MPN BN501

Delivers 1600W via ATX 3.0 with 80 PLUS Titanium efficiency up to 94.5%, PCIe 5.0 GPU support, a 135mm Silent Wings fan, fully modular sleeved cables, and a 10-year warranty

  • ColorBlack
  • TypeATX 3.0 Compatible
  • Maximum Power1600 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector20+4 Pin

Option Dark Power Pro 13

Capacity 1600W

Struck-through versions exist but are not stocked here.

  • 80 PLUS Titanium efficiency up to 94.5% reduces power draw and heat
  • ATX 3.0 compliance with PCIe 5.0 support ensures latest GPU compatibility
  • Digital control plus Active Rectifier and full bridge LLC delivers stable power

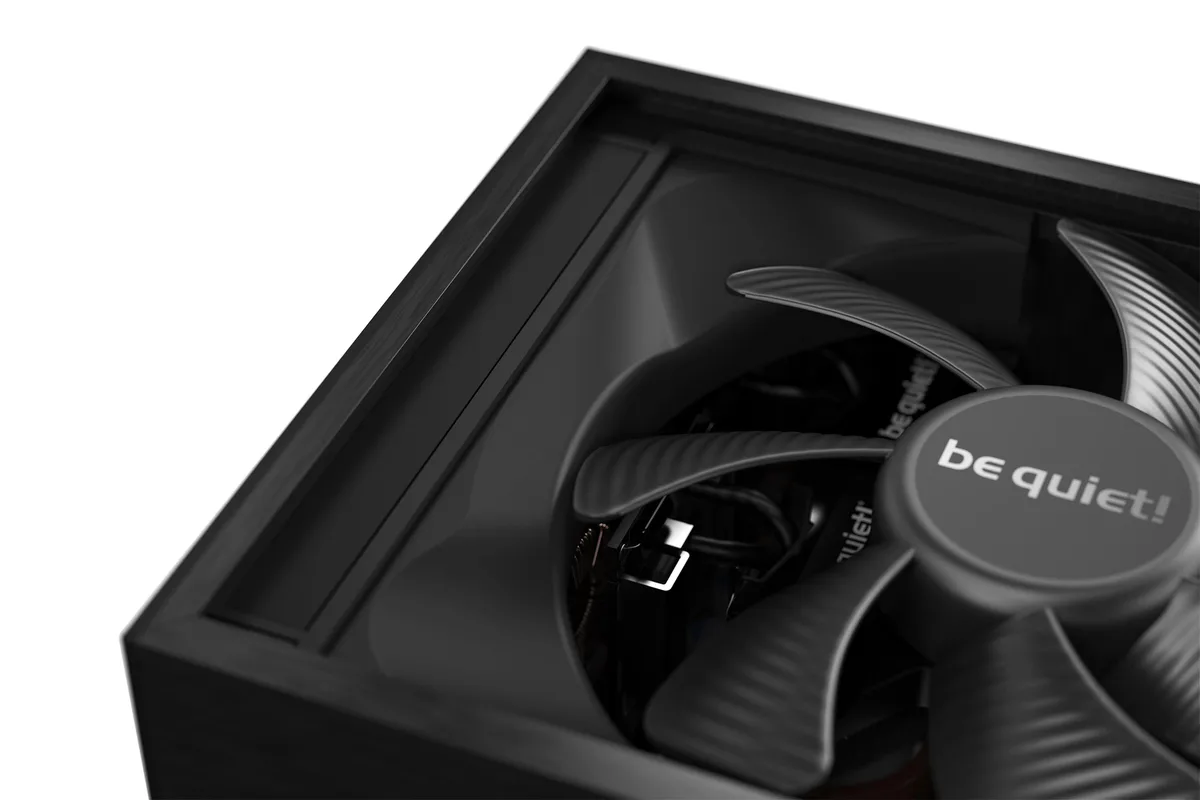

  • Frameless 135 mm Silent Wings fan runs virtually silent at ordinary loads
  • Overclocking key switches between six 12V rails and one massive 12V rail

1600W ATX 3.0 power supply

The be quiet! Dark Power PRO 13 BN501 delivers 1600 W of continuous power for extreme workstations and multi-GPU rigs. It meets the ATX 3.0 specification and carries 80 PLUS Titanium certification at up to 94.5 percent efficiency. Six 12 V rails can be merged into a single rail using the overclocking key. Modular individually sleeved cables keep the build tidy.

Sustained-load behaviour

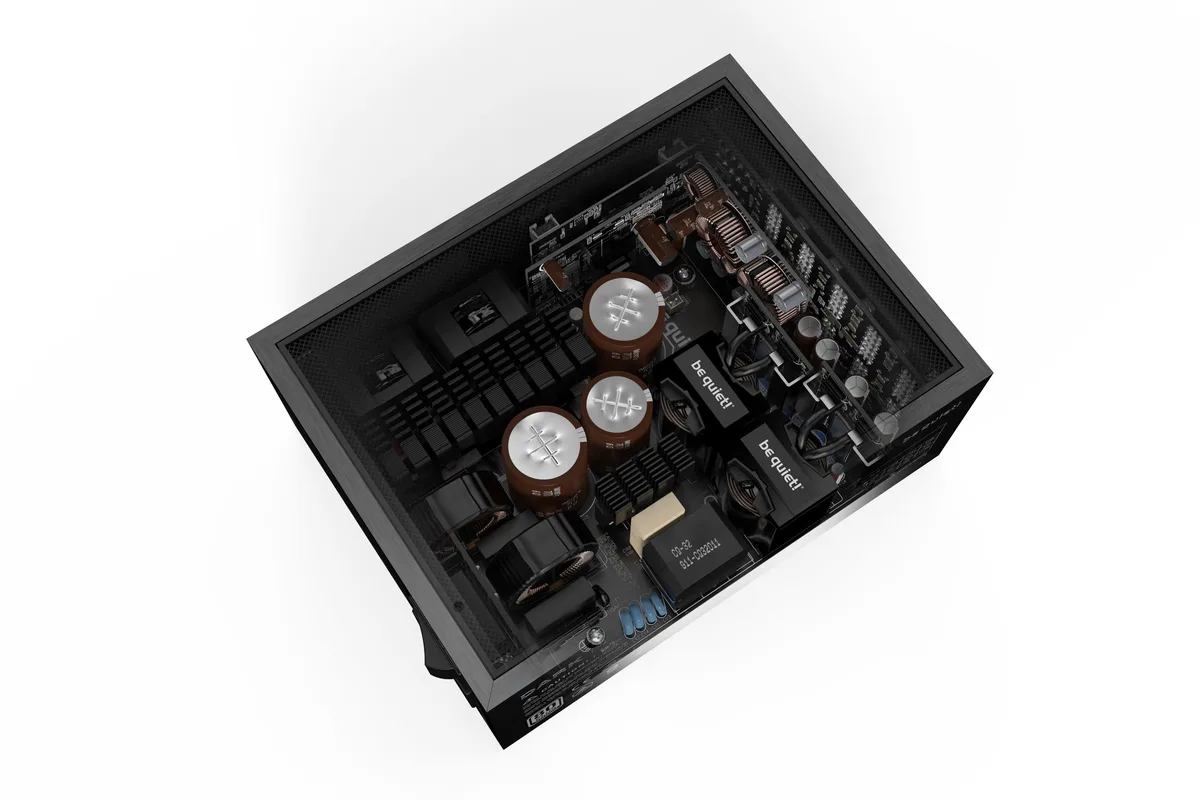

Fully digital control with Active Rectifier and full bridge LLC topology maintains tight voltage regulation during prolonged heavy draw. The 135 mm Silent Wings frameless fan stays virtually inaudible at ordinary loads while providing enough airflow for continuous 1600 W operation. Over-voltage and overload protection circuits guard components during extended stress sessions. Standby power draw remains below .1 W.

ATX 3.0 practical limits

The unit supplies six PCIe 6+2 pin connectors and sixteen SATA power connectors for dense drive arrays. Main power uses a 20+4 pin connector compatible with current motherboards. Input range covers 100 to 240 V at 50 or 60 Hz with active PFC. Physical depth is 200 mm, so case clearance must be verified before installation.

Highlights

  • 80 PLUS Titanium efficiency up to 94.5% reduces power draw and heat
  • ATX 3.0 compliance with PCIe 5.0 support ensures latest GPU compatibility
  • Digital control plus Active Rectifier and full bridge LLC delivers stable power
  • Frameless 135 mm Silent Wings fan runs virtually silent at ordinary loads
  • Overclocking key switches between six 12V rails and one massive 12V rail

Specifications

Brandbe quiet
ColorBlack
TypeATX 3.0 Compatible
Maximum Power1600 W
Fans1 x 135 mm
PFCActive
Main Connector20+4 Pin
+12V Rails6
PCI-Express Connector6 x 6+2 Pin
SATA Power Connector16
Max PSU Length200 mm
ModularYes
Energy-Efficient80 PLUS TITANIUM Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current16 / 8
Frequency Range50/60 Hz
+3.3V Max. Current25A
+5V Max. Current25A
+12V1 Max. Current40A
+12V2 Max. Current40A
+12V3 Max. Current45a
+12V4 Max. Current45a
-12V Max. Current0.5A
+5VSB Max. Current3.5A
12V Power Connector1 x 4+4 Pin ATX/EPS 12V, 1 x 8 Pin EPS 12V
Floppy Connector0
Peripheral Connector5
Fans Total Quantity1
Top Fans Size135mm
Over Load ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Over Temperature ProtectionYes
Shipping weight6.80 kg
Package size419 × 254 × 152 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the 135 mm Silent Wings fan get when the 1600 W unit runs all day?

The patented frameless fan is designed for virtually inaudible operation at ordinary loads, and 80 PLUS Titanium efficiency up to 94.5 % reduces waste heat, keeping temperatures lower during continuous use.

Which cables and motherboard connectors must I already have to install this fully modular ATX 3.0 power supply?

You need a motherboard with a 20+4 pin main socket, plus your own PCIe 5.0 or 6+2 pin GPU cables, SATA drives for the 16 SATA power plugs, and a case that fits a 200 mm deep unit.

Will the six 12 V rails or the single-rail overclocking mode work safely with my older graphics cards and drives?

The overclocking key lets you choose six 12 V rails for multi-GPU legacy setups or one massive 12 V rail for modern cards, while 16 SATA and six 6+2 pin PCIe connectors cover both old and new peripherals.
