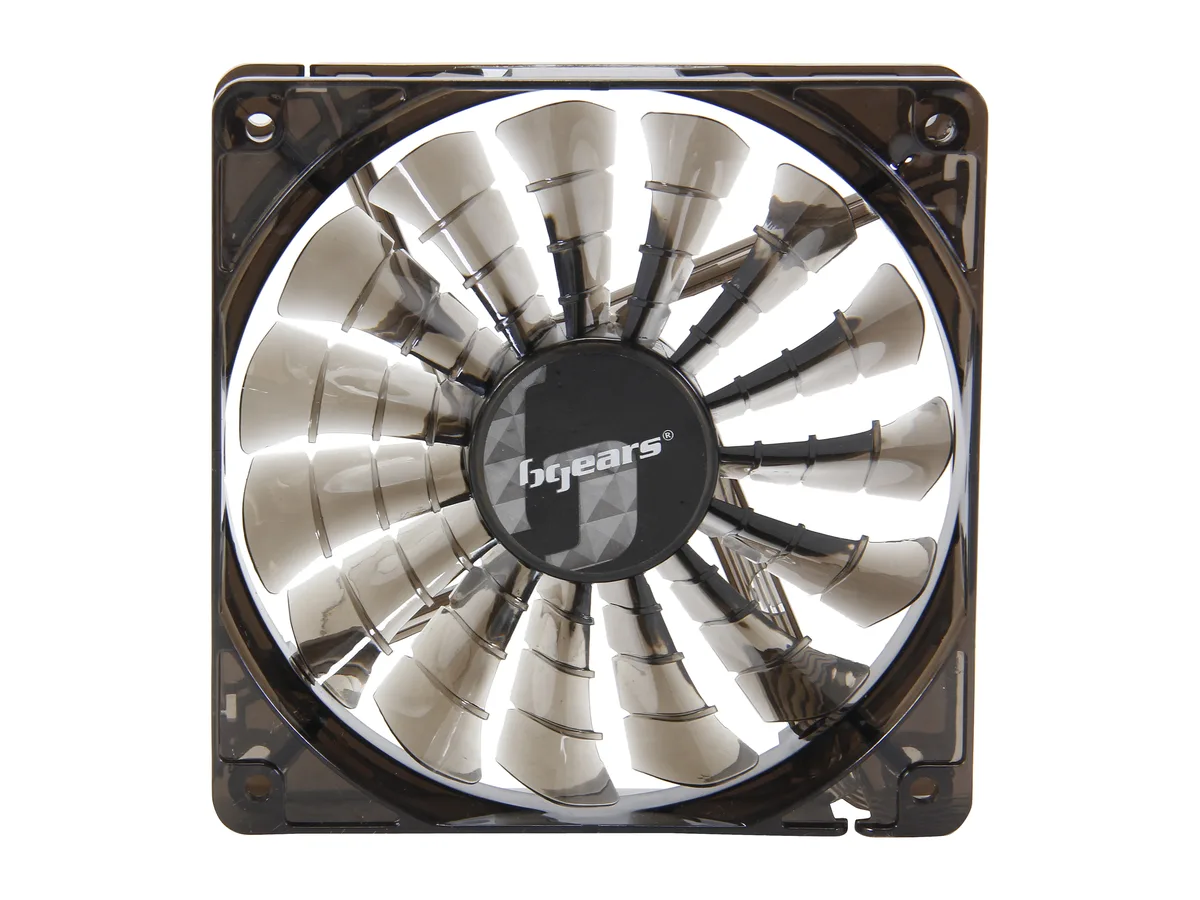

Black 120mm case fan with 15 translucent blades and 4-pin PWM connector

BGears

BGears b-PWM 120 Black case fan 120mm 2000 RPM 110 CFM 2 Ball bearing

SKU CH-PMM0-ES8NS MPN b-PWM 120 Black

A 120 mm PWM case fan with 15 blades, two ball bearings and a 500 to 2000 RPM range delivering 110 CFM airflow

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm

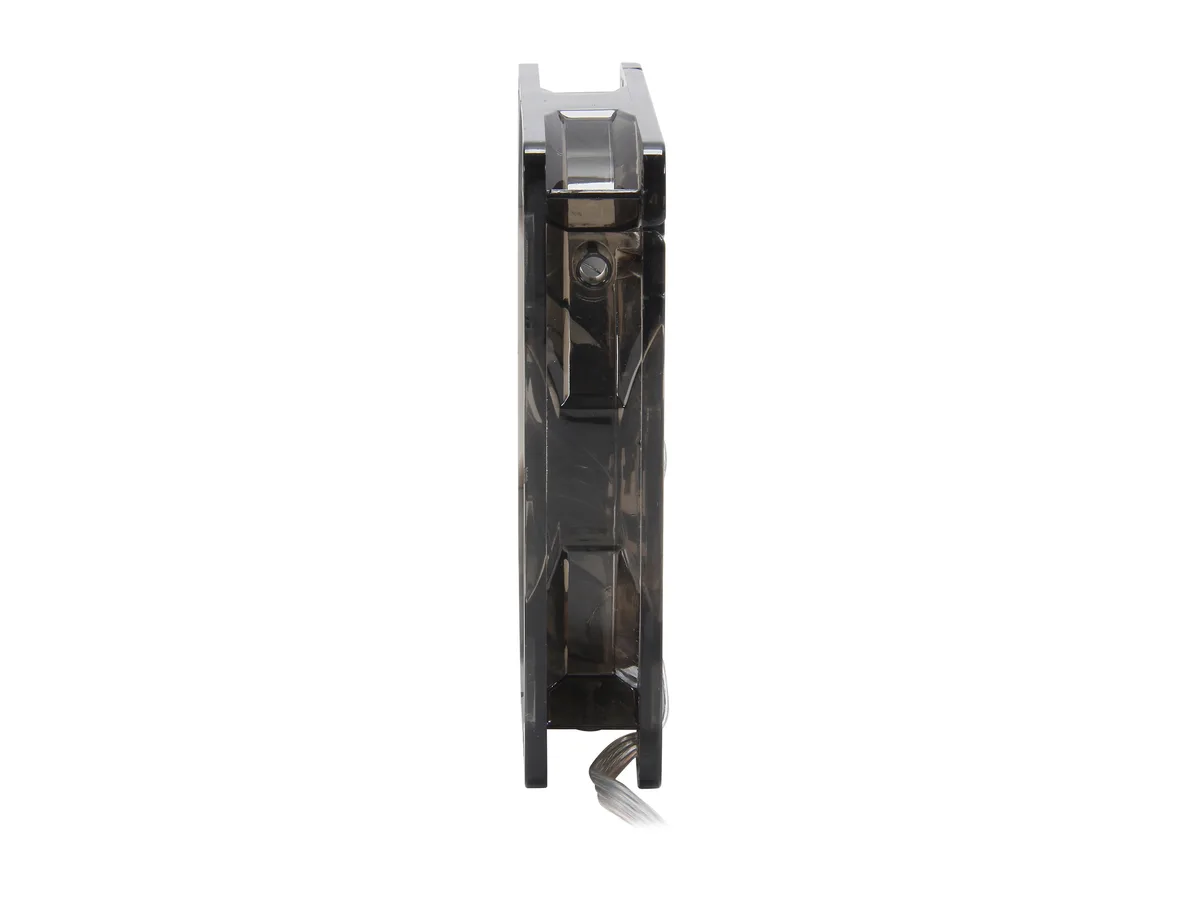

  • Fan Thickness25mm

LED No

  • PWM speed control from 500 to 2000 RPM for quiet or high airflow
  • 110 CFM airflow with 15 aerodynamic blades for strong case cooling
  • Two-ball-bearing design rated for 60000 hours of continuous operation
  • 4-pin PWM plus 3-to-4-pin adapter connects to motherboard or power supply
  • 3 dBA at maximum speed for low-noise performance

Single 120 mm PWM case fan

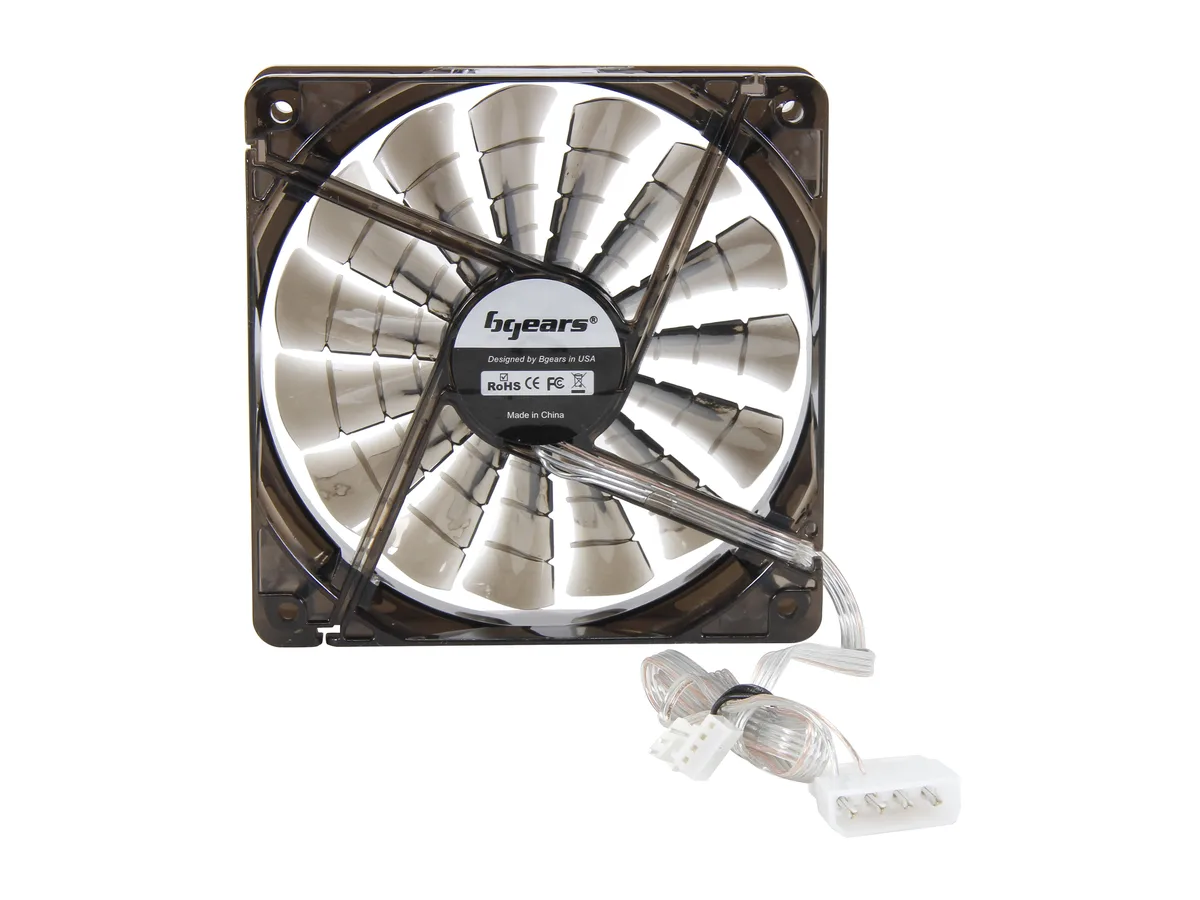

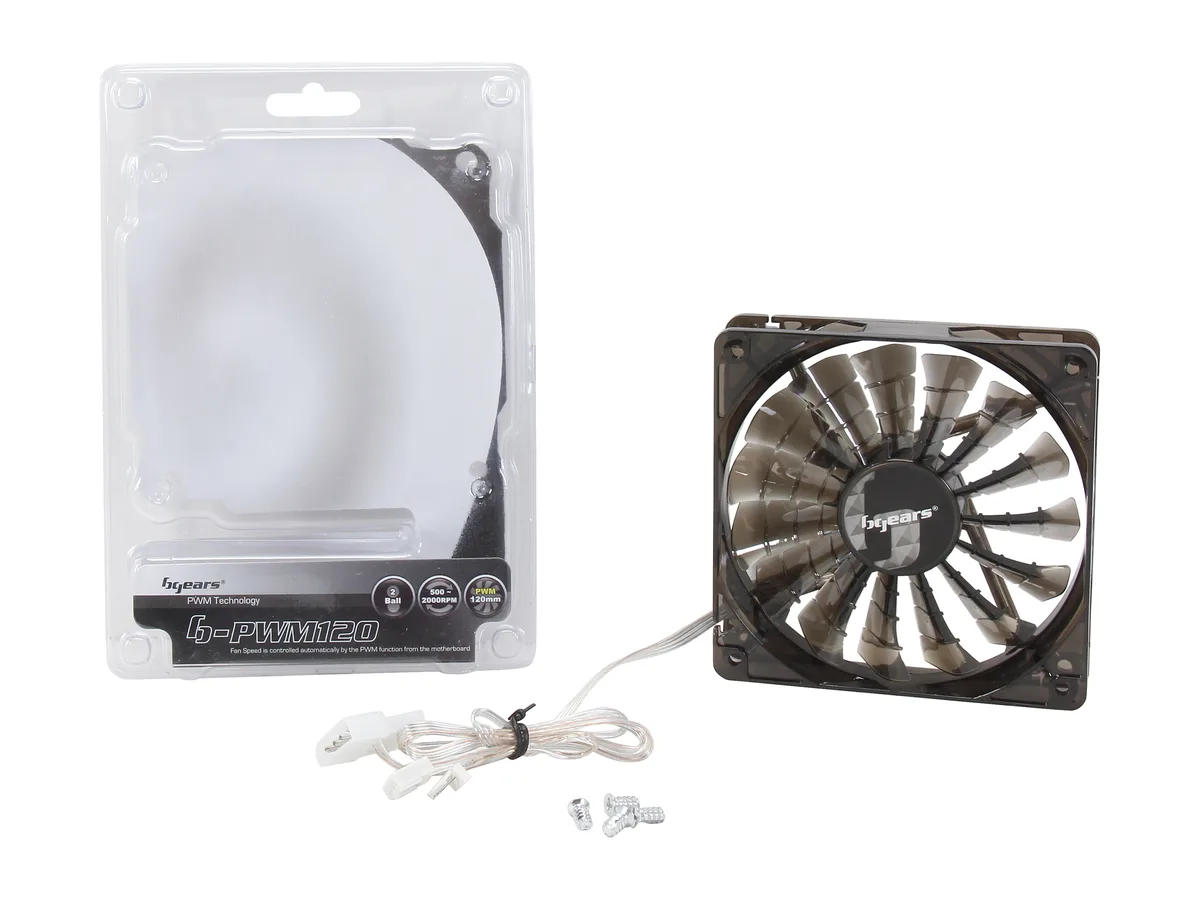

The BGears b-PWM 120 Black is a single 120 mm case fan with a 25 mm frame. It uses a 4-pin PWM connector for automatic speed control between 500 and 2000 RPM. A 3-to-4-pin Molex adapter is also supplied for direct power-supply connection. The unit weighs 102 g and carries a 60000-hour life expectancy rating.

Builders needing high airflow at moderate noise

This fan delivers 110 CFM at its 2000 RPM maximum, producing 37.3 dBA. The 15-blade impeller and 2-ball bearing suit users who want strong airflow for radiators or restrictive meshes without a separate controller. Buyers who need silent operation below 20 dBA or fans larger than 120 mm should look elsewhere.

110 CFM maximum airflow at 2000 RPM

The peak airflow of 110 CFM at 2000 RPM is the key figure for matching this fan to a thermal load. At zero static pressure the flow reaches 1.51 CFM, while maximum static pressure is rated at 3.7 mmH2O. The PWM range of 500 to 2000 RPM lets the motherboard balance cooling and acoustics automatically.

Highlights

  • PWM speed control from 500 to 2000 RPM for quiet or high airflow
  • 110 CFM airflow with 15 aerodynamic blades for strong case cooling
  • Two-ball-bearing design rated for 60000 hours of continuous operation
  • 4-pin PWM plus 3-to-4-pin adapter connects to motherboard or power supply
  • 3 dBA at maximum speed for low-noise performance

Specifications

BrandBgears
Modelb-PWM 120 Black
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness25mm
Bearing Type2 Ball
RPM2000 RPM
Air Flow110 CFM
Power Connector4 Pin
ColorBlack
LEDNo
Shipping weight0.17 kg
Package size191 × 135 × 33 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long before the 2 Ball bearing needs replacement?

The manufacturer rates the 2 Ball bearing for 60000 hours of operation before replacement is typically required.

What limits continuous running at 2000 RPM?

The operating temperature ceiling is 70°C; sustained loads that push the fan housing beyond this will throttle speed first.

How loud and how much power at full 2000 RPM all day?

At 2000 RPM the fan draws 6.84 W and produces 37.3 dBA; the 4-pin PWM connector lets the motherboard lower both when full speed isn't needed.
