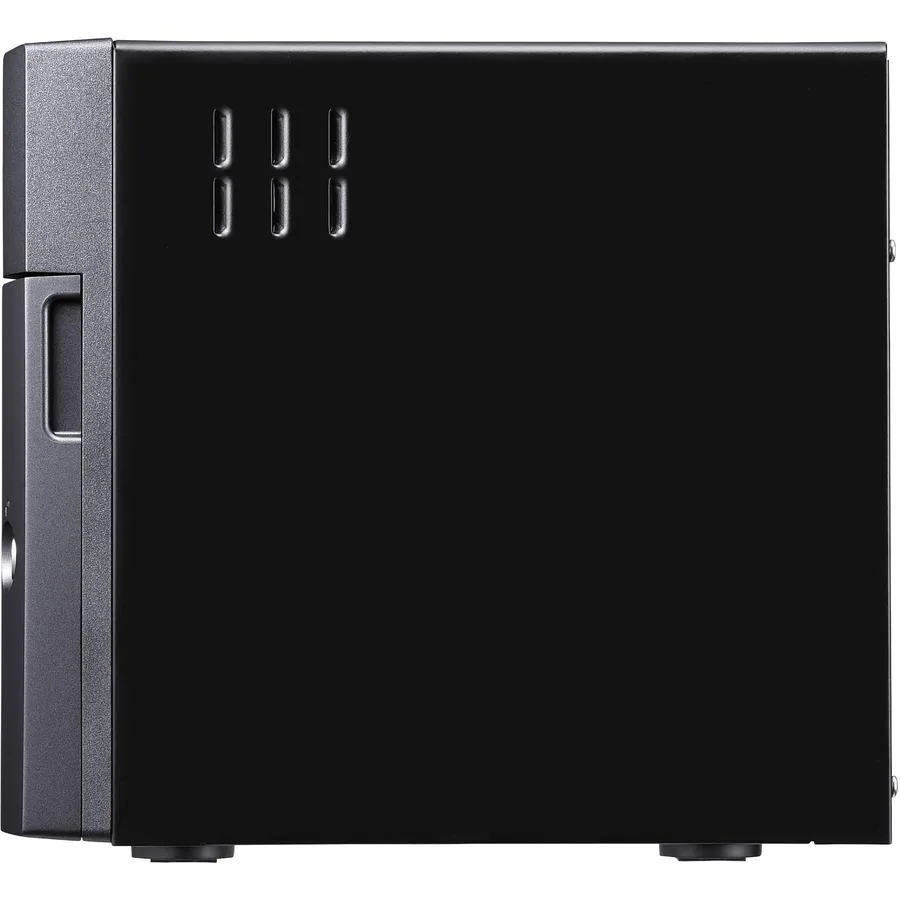

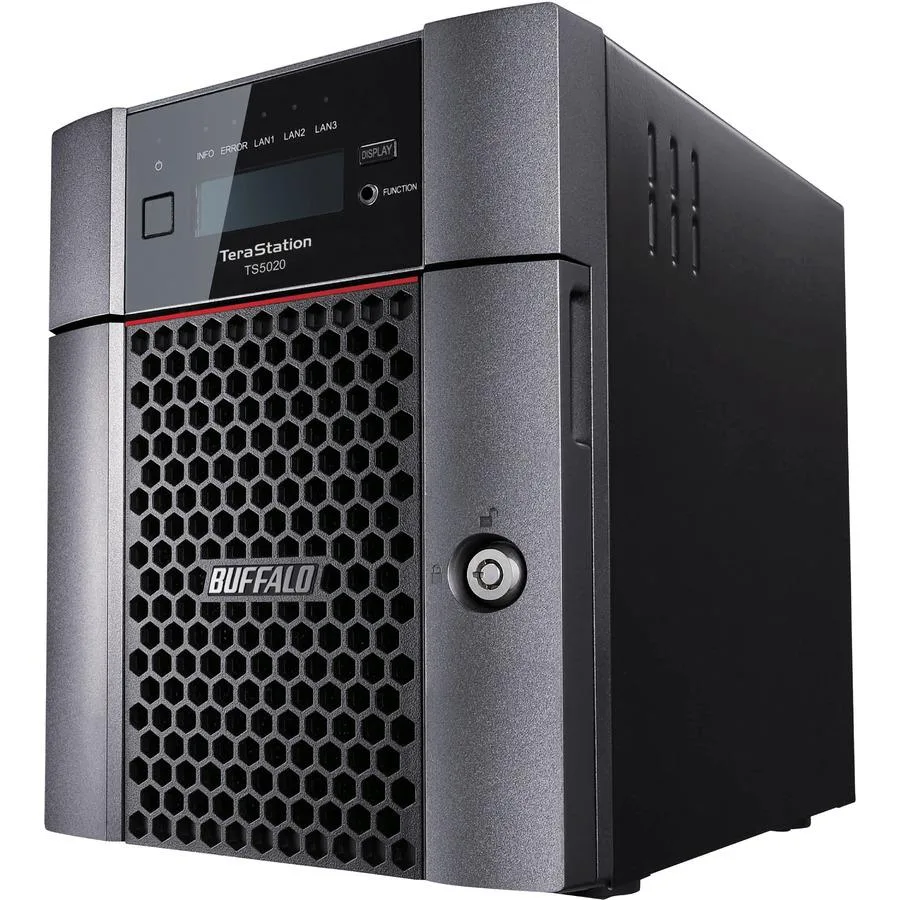

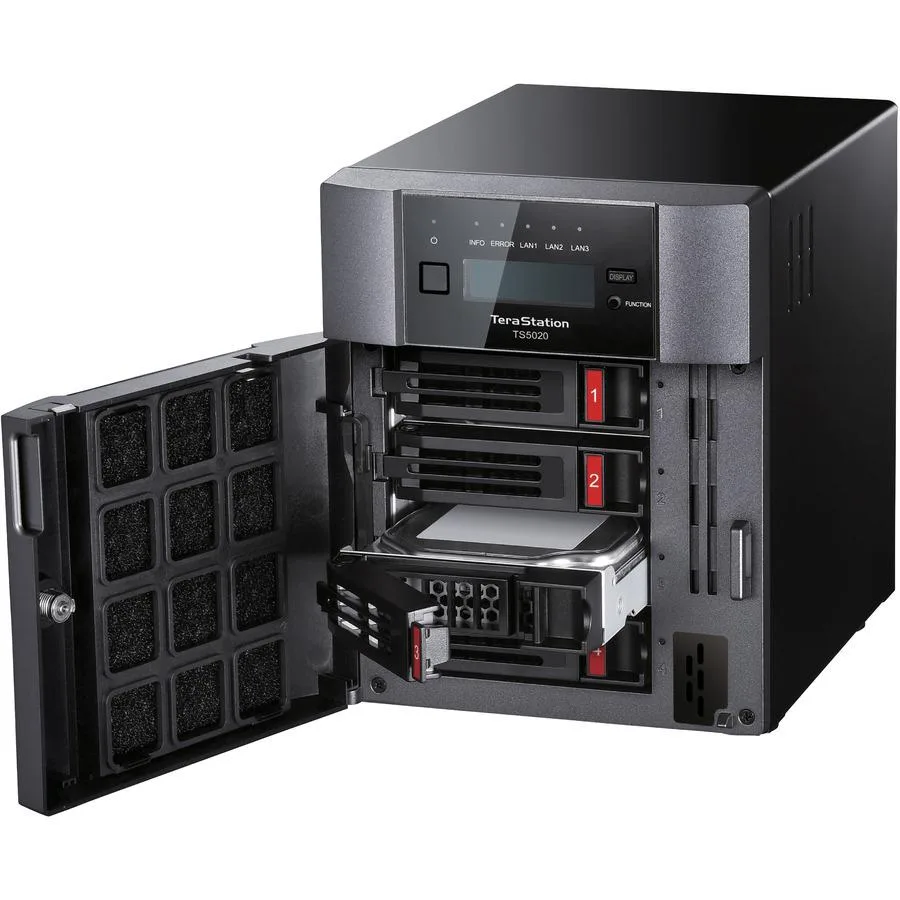

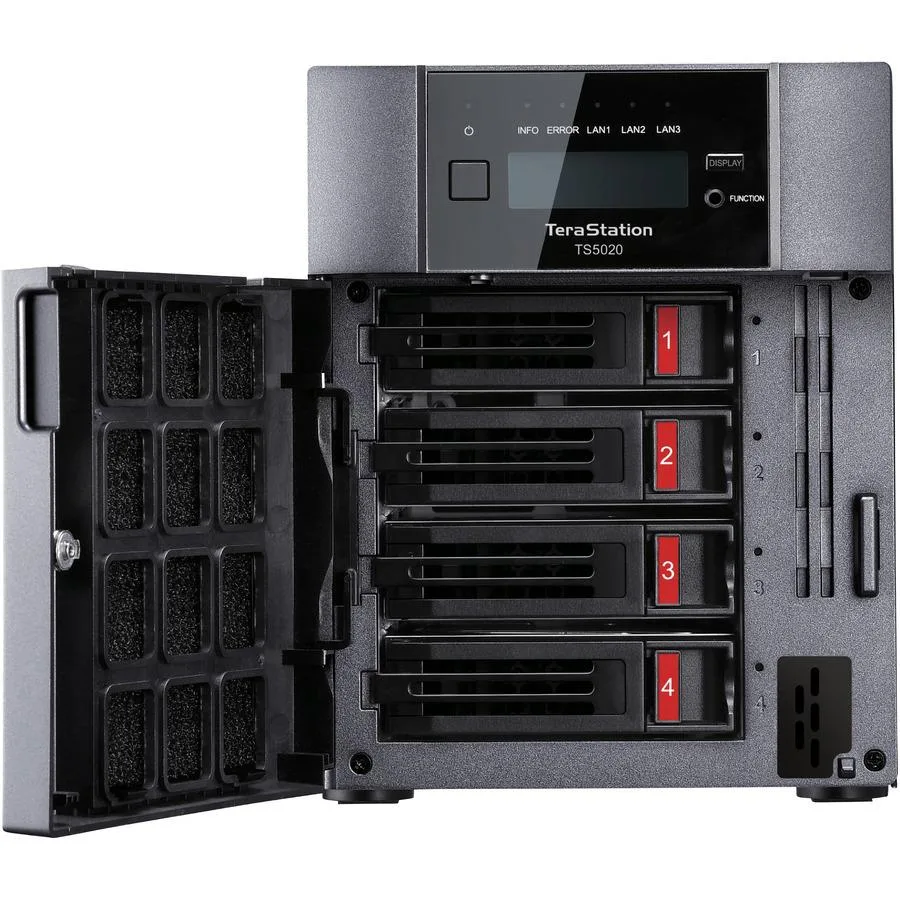

Buffalo TeraStation 5420 4-bay desktop NAS in black finish

Buffalo Technology

Buffalo Technology TS5420DN8004 4-Bay 80TB NAS

SKU CH-92VZ-FD3RQ MPN TS5420DN8004

Four-bay desktop NAS with 80 TB of pre-installed drives, a native 10 GbE port, quad-core processor and RAID 0/1/5/6/10 support

  • TypeDesktop NAS
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Ports1 x 10GbE
  • Port RJ-451 x 10GbE + 2 x 1GbE
  • Port USB2 x USB3.0 + 2 x USB2.0
  • HDD Interface4 x SATA (4 x Bay)

Included HDD Capacity 80TB (4 x 20TB)

Option Fully Populated

  • Ready-to-use storage with 80 TB pre-installed and RAID configured
  • Native 10 GbE port enables fast file transfers without cable changes
  • Quad-core 2.04 GHz processor with 8 GB DDR4 handles demanding workloads
  • VMware and Windows Server 2022 certified for virtualisation deployments
  • AES-256 encryption and two-factor authentication protect business data

Ready-to-deploy 4-bay NAS with 80 TB pre-installed

The TeraStation 5420 arrives with four NAS-grade drives totalling 80 TB and RAID pre-configured so IT teams can mount shares immediately. A quad-core Annapurna Labs AL524 processor at 2.04 GHz and 8 GB of DDR4 memory handle concurrent file protocols and backup jobs without extra provisioning.

Single 10 GbE port plus dual 1 GbE links

One native 10GbE RJ-45 port delivers high-throughput transfers over existing Cat6a cabling while two 1GbE ports provide management or failover paths. Four SATA bays are fully populated, leaving expansion to the two USB 3.0 and two USB 2.0 ports for external targets or UPS signalling.

VMware and Windows Server 2022 certified

Certification means the appliance can serve as a datastore or backup repository in clustered environments without additional qualification. Closed-system firmware, AES-256 volume encryption, two-factor authentication and snapshot recovery are managed through a central console that controls multiple units from one interface.

Highlights

  • Ready-to-use storage with 80 TB pre-installed and RAID configured
  • Native 10 GbE port enables fast file transfers without cable changes
  • Quad-core 2.04 GHz processor with 8 GB DDR4 handles demanding workloads
  • VMware and Windows Server 2022 certified for virtualisation deployments
  • AES-256 encryption and two-factor authentication protect business data

Specifications

BrandBUFFALO
SeriesTeraStation 5020
ModelTS5420DN8004
Part NumberTS5420DN8004
TypeDesktop NAS
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ports1 x 10GbE
Port RJ-451 x 10GbE + 2 x 1GbE
Port USB2 x USB3.0 + 2 x USB2.0
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorAnnapurna Labs Alpine Processor AL524 (2.04 GHz Quad-Core)
Installed Memory8GB DDR4
Included HDD Capacity80TB (5 x 16TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Drive CompatibilityOP-HD20.0N
Supported ProtocolsTCP/IP
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Power Consumption60W
Temperature0°C - 40 °C
Humidity0-80% RH non-condensing
UsageHigh read/write performance with RAID
Dimensions9.1 x 6.7 x 8.5 in
Weight18.1 lbs
Package ContentsTeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Shipping weight7.71 kg
Package size363 × 358 × 310 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 10GbE port become the bottleneck when all four bays are writing at full speed?

The single 10GbE port plus two 1GbE ports handle network traffic, while the quad-core AL524 processor and 8GB DDR4 manage RAID 0, 1, 5, 6, 10 or JBOD across the 80TB of included drives.

How loud and hot does the unit get when it runs 24/7 at the rated 60W power draw?

The desktop chassis measures 9.1 x 6.7 x 8.5 in and weighs 18.1 lbs, operating between 0°C and 40°C with 0-80% non-condensing humidity at 60W consumption.

Which expansion drives are validated for the four SATA bays beyond the factory-installed set?

Buffalo lists OP-HD20.0N as the compatible drive model for the four SATA bays in this 4-bay TeraStation 5020 series unit.
