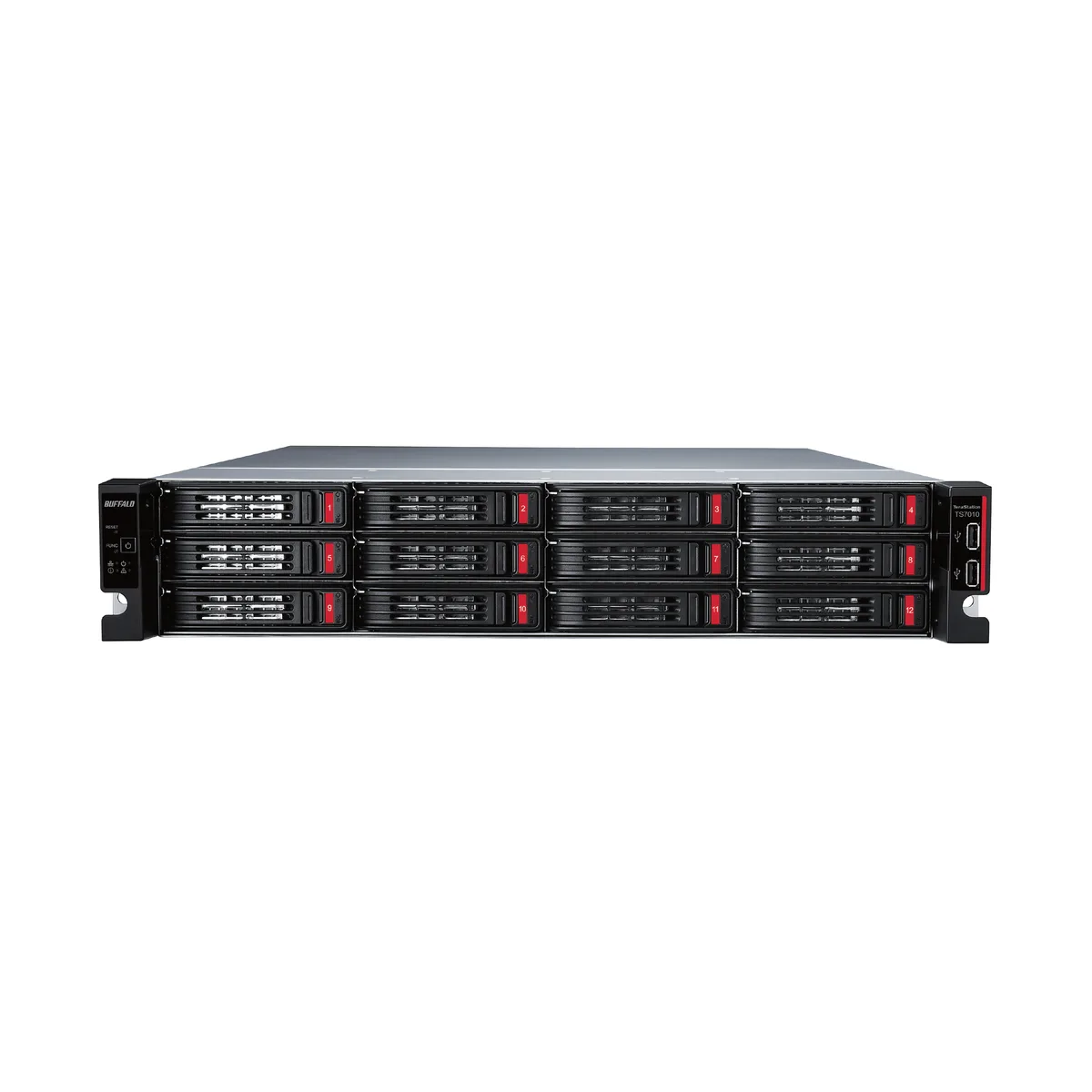

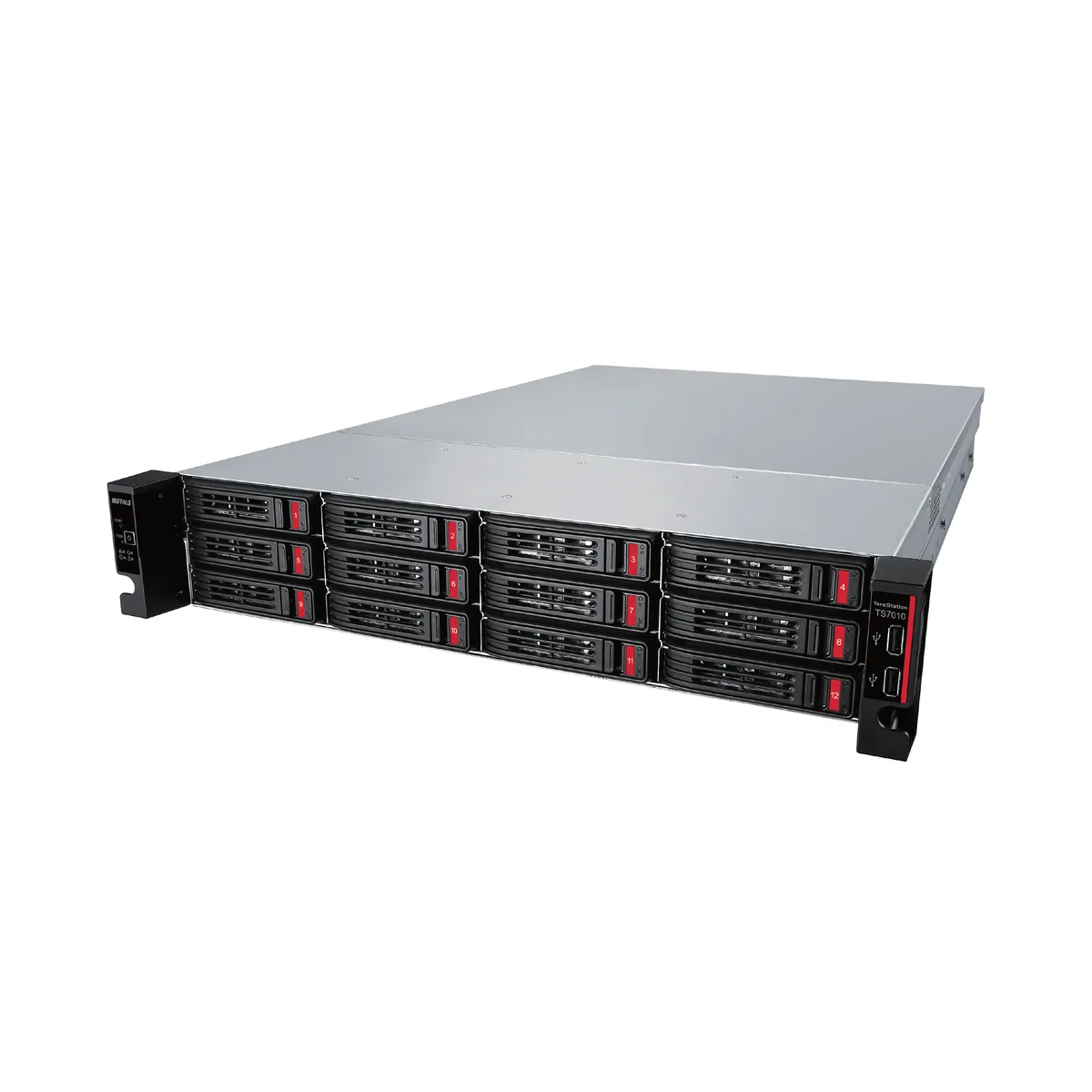

Silver 12-bay rackmount NAS unit with front drive trays and LCD panel

Buffalo Technology

Buffalo Technology TS71210RH24012 240TB 12-Bay Rackmount NAS

SKU CH-8KX8-CAJNT MPN TS71210RH24012

A 12-bay rackmount NAS with 240 TB of pre-installed enterprise drives, 16 GB DDR4 ECC memory, four 10GbE ports and two PCIe Gen 4x8 slots

  • StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T),
  • Port USB2x USB 3.2 Gen 1 2x USB 2.0
  • PCIe2x PCIe Gen 4x8
  • Installed MemoryDDR4 16GB ECC
  • Included HDD Capacity240TB (12x20TB)
  • Drive CompatibilityOP-HDHU2 Series OP-NVSSD Series OP-ECCMEM-16G

Included HDD Capacity 240TB (12x20TB)

Option Fully Populated

  • 240 TB raw capacity with twelve enterprise-grade drives pre-installed
  • Ships in RAID 6 delivering 181 TB usable space out of the box
  • Four 10 GbE ports plus 5 GbE and 2.5 GbE support for high-speed networking
  • Two PCIe Gen 4x8 slots enable SSD caching or 25/40 GbE upgrades
  • Snapshots and Btrfs file system provide instant backup and recovery

Enterprise rackmount NAS with 240 TB capacity

The Buffalo TeraStation 12-bay unit arrives populated with twelve enterprise-grade 20 TB hard drives, delivering 240 TB raw capacity. It ships pre-configured in RAID 6 for 181 TB usable space and can be reconfigured to RAID 0, 1, 5, 10 or JBOD. Four 10GbE ports and dual PCIe Gen 4x8 slots support high-throughput workloads in modern IT environments.

16 GB DDR4 ECC memory and redundant power

Installed DDR4 16 GB ECC memory handles concurrent file services and snapshot operations. Two USB 3.2 Gen 1 and two USB 2.0 ports provide direct-attached backup or peripheral expansion. The internal 100-240 V AC supply operates at 238 W idle, 251 W during data transfer and up to 500 W maximum within a 0-40 °C range.

NASNavigator2 and NovaBACKUP Buffalo Edition

NASNavigator2 simplifies discovery and initial setup across the network. NovaBACKUP Buffalo Edition supplies one server and ten workstation licenses for scheduled backup jobs. A quick setup guide, AC cable and front panel key complete the package for immediate rack deployment.

Highlights

  • 240 TB raw capacity with twelve enterprise-grade drives pre-installed
  • Ships in RAID 6 delivering 181 TB usable space out of the box
  • Four 10 GbE ports plus 5 GbE and 2.5 GbE support for high-speed networking
  • Two PCIe Gen 4x8 slots enable SSD caching or 25/40 GbE upgrades
  • Snapshots and Btrfs file system provide instant backup and recovery

Specifications

BrandBUFFALO
Part NumberTS71210RH24012
StandardsIEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Port USB2x USB 3.2 Gen 1
2x USB 2.0
PCIe2x PCIe Gen 4x8
Installed MemoryDDR4 16GB ECC
Included HDD Capacity240TB (12x20TB)
Drive CompatibilityOP-HDHU2 Series
OP-NVSSD Series
OP-ECCMEM-16G
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Supported ProtocolsTCP/IP
PowerPower Consumption : Max 500W
Data Transfer 251W
Idling 238W
Power Supply : Internal AC 100-240V
Universal 50/60Hz
Temperature32° - 104°F (0° - 40°C)
Humidity10 - 85% non-condensing
Dimensions29.0 x 18.9 x 3.5 in
Weight54.2 lbs
Package ContentsIncluded Materials :TeraStation, Quick Setup Guide, AC Cable, Front Panel Key, and Warranty Statement
Included Software : NASNavigator2, NovaBACKUP® Buffalo Edition (One server and ten workstation licenses - available for download after product registration)
Additional :For compliance documents such as RoHS Declaration, Certificate of Volatility, Certificate of Conformance, or others please contact [email protected] .
Shipping weight30.16 kg
Package size978 × 582 × 259 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What Ethernet standards do the four 10GbE ports support and what speeds can they actually negotiate?

The ports follow IEEE 802.3an for 10GBASE-T and IEEE 802.3bz for 5GBASE-T and 2.5GBASE-T, so they will negotiate 10 Gbps, 5 Gbps or 2.5 Gbps depending on the switch and cable.

What are the physical dimensions and weight of the 12-bay chassis so I can plan rack space?

The unit measures 29.0 inches wide, 18.9 inches deep and 3.5 inches high, weighing 54.2 lbs.

How do I install the pre-loaded drives and which step is commonly missed during first boot?

The 12 enterprise drives ship pre-installed in RAID 6; the step often missed is running NASNavigator2 to discover the unit and completing the web-based initialisation wizard before putting data on it.
