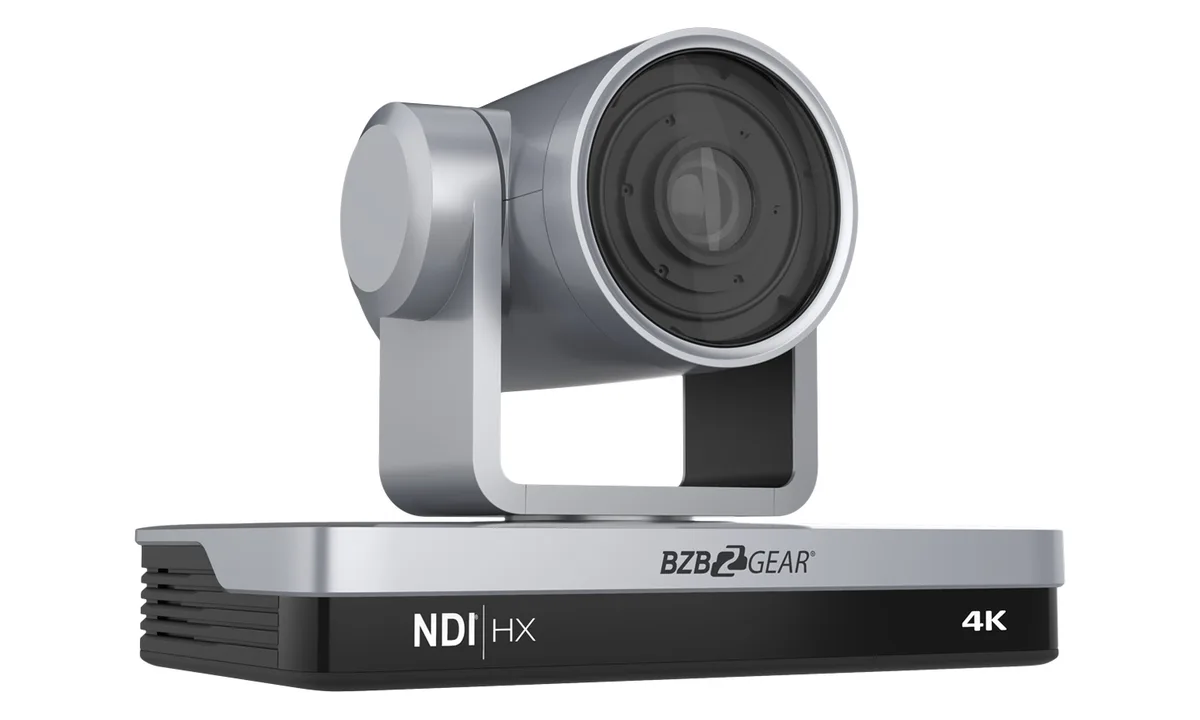

Silver PTZ camera with 12x optical zoom lens, HDMI and USB 3.0 ports, PoE support

BZBGEAR

BZBGEAR BG-4KND-12XUHP 12X PTZ 4K NDI network camera (Silver)

SKU CH-Q4GA-636QG

PTZ network camera with 12× optical zoom, 4K 60 Hz output, NDI 4.0, simultaneous USB 3.0 and HDMI, plus 255 presets

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraPTZ 4K NDI HDMI/USB 3.0 Live Streaming Camera
  • TypePTZ Camera
  • ColorGray
  • Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remot
  • 4K 60fps clarity from Sony CMOS sensor
  • Simultaneous USB 3.0, HDMI and IP streaming outputs
  • NDI 4.0 enables low-latency IP video production
  • 12x optical zoom with fast, stable autofocus
  • Pan 120°/s, tilt 80°/s with 255 preset positions

BZBGEAR BG-4KND-12XUHP 4K NDI PTZ Camera

The BZBGEAR BG-4KND-12XUHP is a 4K PTZ network camera built for live streaming and broadcast production. It delivers 4K resolution at 60 fps through simultaneous HDMI, USB 3.0 and NDI outputs. A Sony 1/2.5 inch CMOS sensor provides 2 megapixel imaging with 12x optical zoom. The unit suits houses of worship, conference rooms, studios and event venues that need remote camera operation.

NDI 4.0 bandwidth and network protocol limits

NDI 4.0 transmission runs over standard IP networks using RTSP, RTMP, ONVIF and GB/T28181 protocols. Video quality and latency depend on available bandwidth; a 1 GbE link is typical for 4K 60 streams. PoE power is supplied through Cat5, Cat6 or Cat7 cabling, so the camera draws no separate AC feed when the switch supports it. Control uses VISCA over IP or cascaded RS232 and RS422 links compatible with RS485.

Installation notes and common pitfalls

Mount the camera, connect a single Ethernet cable for PoE and data, then assign an IP address for web control. USB 3.0 uses a Type B port that falls back to USB 2.0 speeds if the host port is older. Audio enters via a 3.5 mm line input. Preset positions number 255; exceeding that limit or mismatching VISCA baud rates on the RS232/422 chain are the most frequent setup errors.

Highlights

  • 4K 60fps clarity from Sony CMOS sensor
  • Simultaneous USB 3.0, HDMI and IP streaming outputs
  • NDI 4.0 enables low-latency IP video production
  • 12x optical zoom with fast, stable autofocus
  • Pan 120°/s, tilt 80°/s with 255 preset positions

Specifications

BrandBZBGEAR
ModelBG-4KND-12XUHP
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraPTZ 4K NDI HDMI/USB 3.0 Live Streaming Camera
TypePTZ Camera
ColorGray
Networking ProtocolRTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset
ONVIFYes
PortsHDMI, NDI, USB3.0 (Type B, compatible with USB2.0), A-IN, RS232-in & out; RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
Pan/TiltPan: 120°/s, Tilt: 80°/s
Sensor & Detector1/2.5 Inch SONY CMOS Sensor
Pixels2 MP
HD ResolutionHDMI Video Output Format: 4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50
Frame Rateup to 60fps
Lens Typef=3.85 mm~ 43.06 mm ±5%
Optical Zoom12X
AudioDouble track 3.5mm linear Input
Power over EthernetPoE functionality via a Cat5/6/7 Cable
PowerIn: AC110V-AC220V; Out: DC12V/2.5A
Dimension157.5(L)mmx189mm(W)x201mm(H)
Weight2.60kg

Questions about this item

Which zoom range does the BG-4KND-12XUHP cover?

The lens spans 3.85 mm to 43.06 mm, giving a 12X optical zoom that keeps full 4K quality at every focal length.

What does the 4KP60 label mean for live output?

The camera can stream or record 4K resolution at up to 60 frames per second over HDMI, USB 3.0 or NDI simultaneously.

How does the NDI 4.0 connection limit bandwidth in practice?

NDI 4.0 runs over standard Gigabit Ethernet, so a single Cat5/6/7 cable carries video, audio, control and PoE power without extra cabling.
