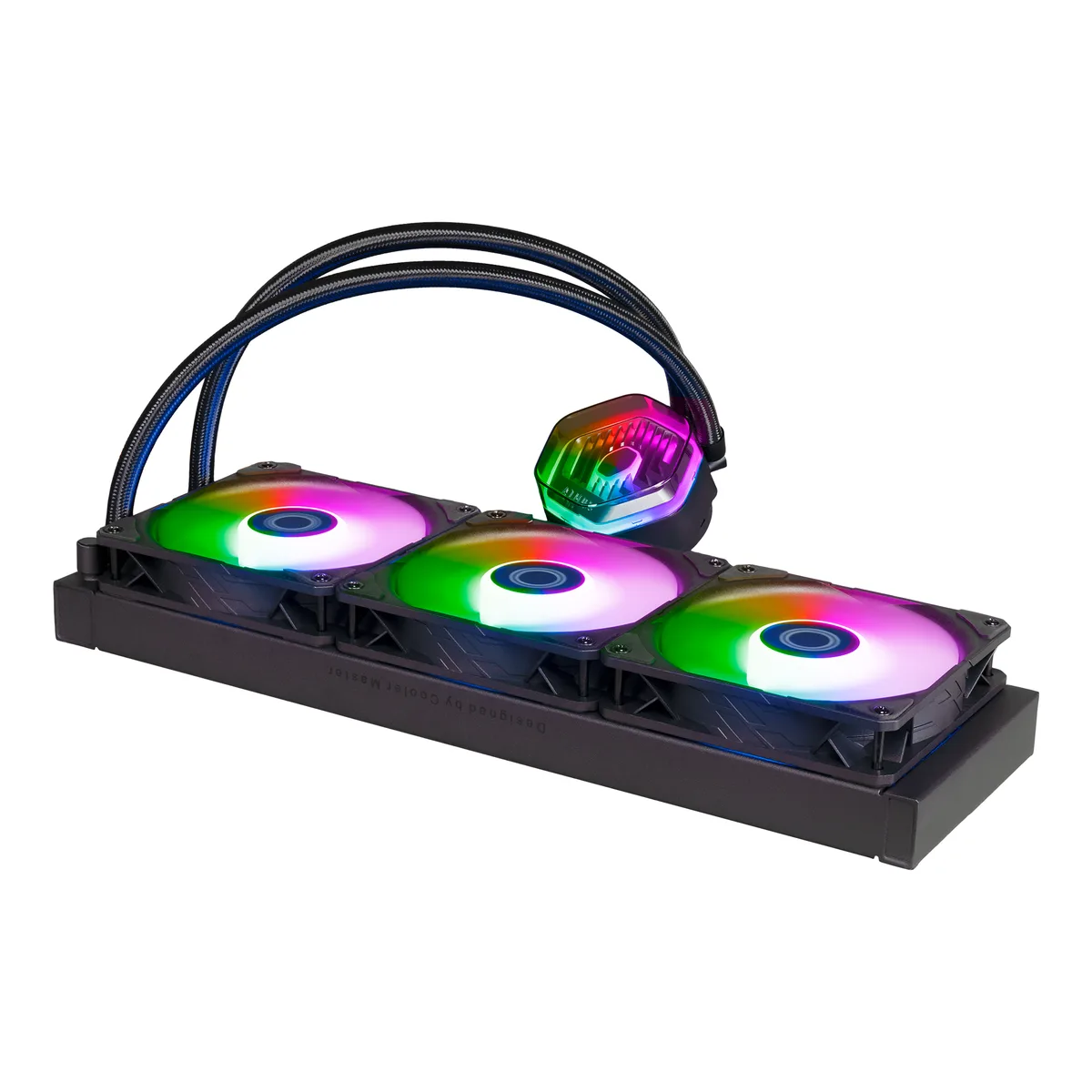

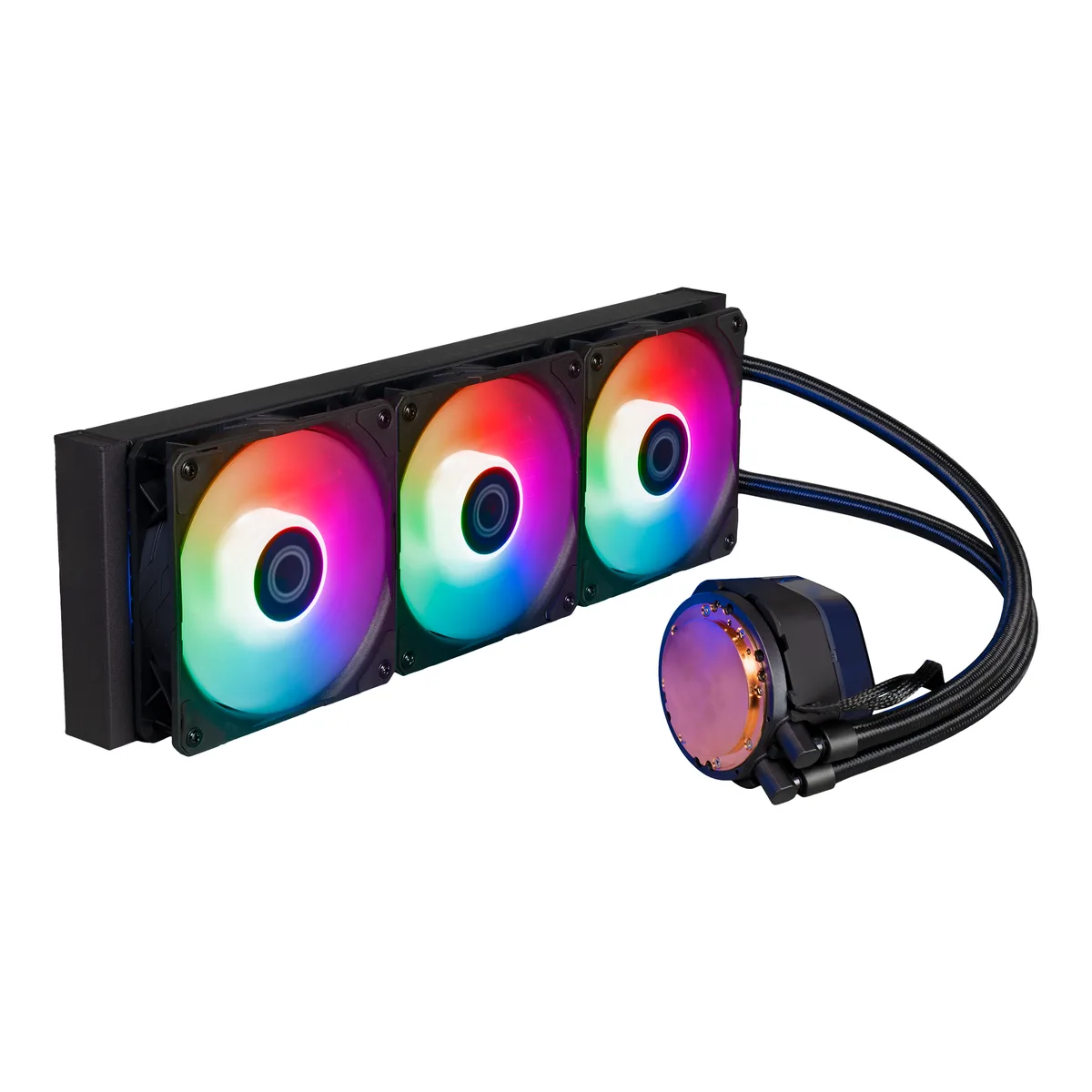

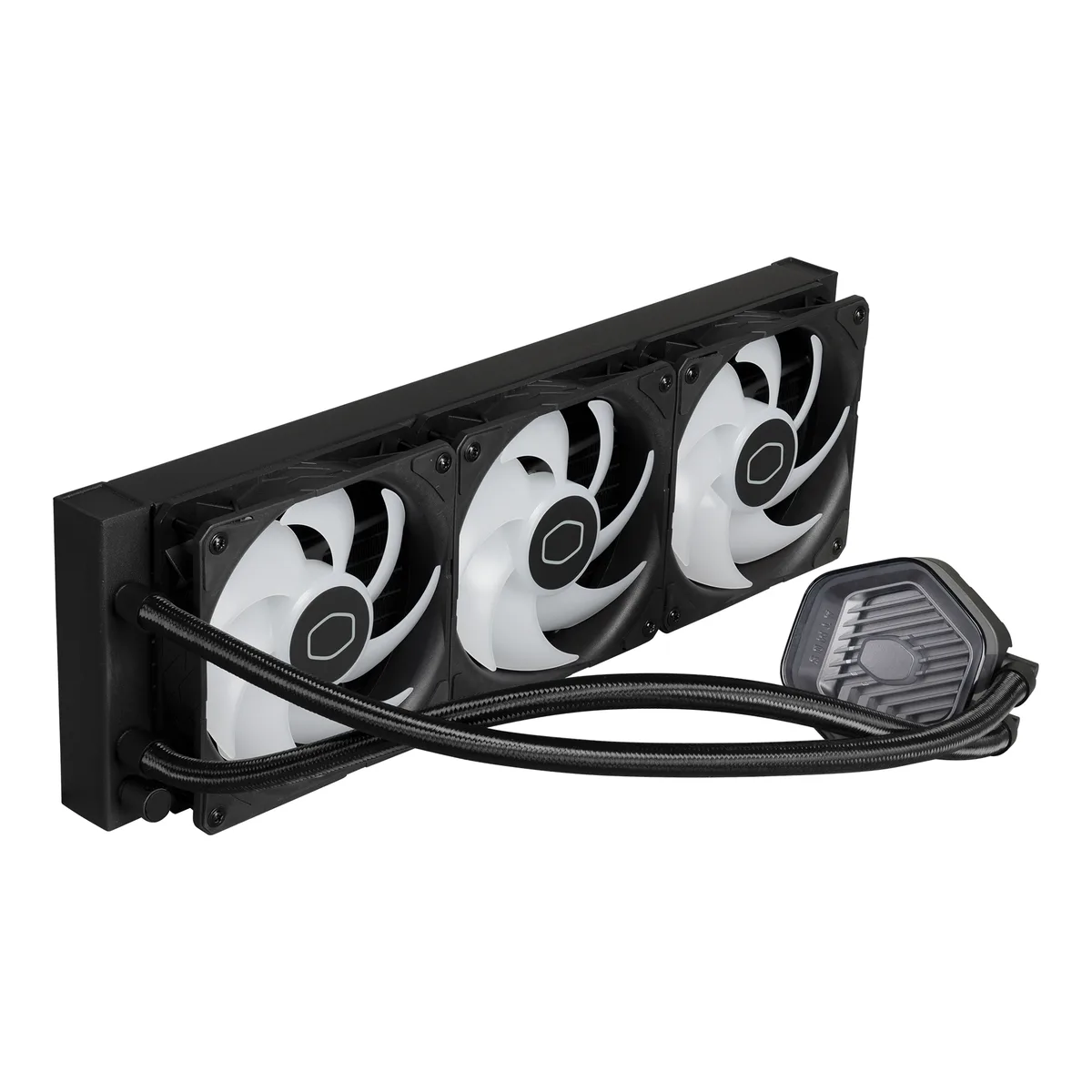

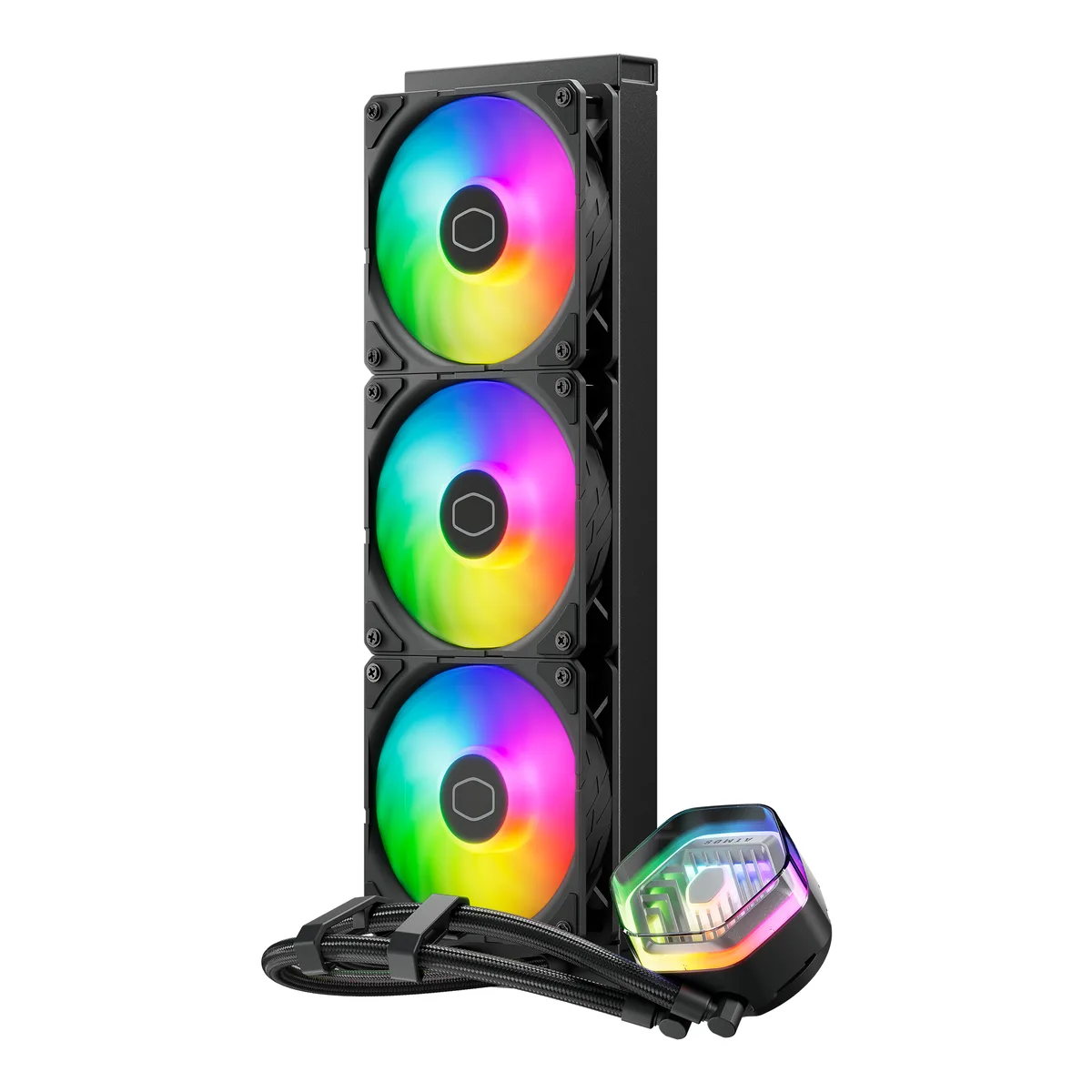

Black 360mm radiator with three 120mm ARGB fans and customizable pump top cover

Cooler Master

Cooler Master MasterLiquid 360 Atmos ARGB liquid cooler MLX-D36M-A25PZ-R1

SKU CH-V125-3W811 MPN MLX-D36M-A25PZ-R1

A 360 mm radiator with three 120 mm PWM fans and a dual-chamber pump covers Intel LGA 1851, 1700, 1200 and AMD AM5, AM4 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 soc
  • Pump Dim.ARGB
  • Pump Noise<25dBA
  • Radiator Size394 x 119.6 x 27.2mm 15.5 x 4.7 x 1.1”
  • Radiator MaterialAluminum

Fan Size 3 Fan Slots (120mm)

Color Black

  • Black
  • White

Struck-through versions exist but are not stocked here.

Option MasterLiquid 360 Atmos ARGB

  • Patented dual-chamber pump targets CPU hot spots with increased water pressure
  • 3D-printable pump cover plus ARGB Gen 2 lighting lets you personalize the cooler
  • SickleFlow Edge 120 mm fans pre-installed for quieter, simpler installation
  • Recycled-plastic pump cover, 35 % recyclable metal parts and 30 % smaller packaging reduce environmental impact
  • Ultra-thin spade fins maximize microchannels for precise heat-spot cooling

Pump design and target user

The Cooler Master MasterLiquid 360 Atmos ARGB is a closed-loop liquid cooler built for desktop CPUs. It fits Intel LGA 1851, 1700, 1200, 1150, 1151, 1155 and 1156 sockets as well as AMD AM5 and AM4. The pump top cover can be replaced with a 3D-printed design and includes Addressable Gen 2 RGB lighting.

Radiator size that decides fit

A 360 mm radiator measuring 394 x 119.6 x 27.2 mm occupies three 120 mm fan slots in the chassis. Buyers must confirm their case supports this length and thickness before purchase. The aluminium radiator uses ultra-thin spade fins to increase microchannel density.

Thermals noise and power draw

The Next Gen dual chamber pump runs below 25 dBA while increasing water pressure toward CPU hot spots. Three Sickleflow Edge 120 mm fans spin from 650 to 2500 RPM, delivering 70.7 CFM at a maximum of 27.2 dBA and 3.61 mmH2O static pressure. PWM control lets the system balance airflow and acoustics automatically.

Highlights

  • Patented dual-chamber pump targets CPU hot spots with increased water pressure
  • 3D-printable pump cover plus ARGB Gen 2 lighting lets you personalize the cooler
  • SickleFlow Edge 120 mm fans pre-installed for quieter, simpler installation
  • Recycled-plastic pump cover, 35 % recyclable metal parts and 30 % smaller packaging reduce environmental impact
  • Ultra-thin spade fins maximize microchannels for precise heat-spot cooling

Specifications

BrandCOOLER MASTER
ModelMLX-D36M-A25PZ-R1
Part NumberMLX-D36M-A25PZ-R1
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD AM5 / AM4 socket
Pump Dim.ARGB
Pump Noise<25dBA
Radiator Size394 x 119.6 x 27.2mm
15.5 x 4.7 x 1.1”
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25mm
4.7 x 4.7 x 1”
Bearing TypeLoop Dynamic Bearing
Fan RPM650~2500RPM±10%
Fan Air Flow70.7 CFM (120 m³/h)
Fan Noise27.2 dBA
Fan Connector4-Pin (PWM)
ColorBlack
LED ColorARGB
Pressure3.61 mmH2O (Max)
Shipping weight2.95 kg
Package size419 × 221 × 142 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How quiet is the pump once it is installed in a system?

The pump runs at under 25 dBA so it stays barely audible even under load.

What fan connector does the cooler use and what speed range does it support?

It uses a 4‑pin PWM connector and the fans spin between 650 and 2500 RPM.

What are the overall radiator dimensions to check case clearance?

The radiator measures 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 in).
