Black 360 mm AIO radiator with three 120 mm ARGB fans and square pump block

Cooler Master

Cooler Master MLY-D36M-A23PZ-R1 360 mm liquid cooler

SKU CH-VJTF-3DAJR MPN MLY-D36M-A23PZ-R1

A 360 mm closed-loop liquid cooler with a dual-chamber pump, ceramic-bearing impeller and three 120 mm ARGB fans for Intel and AMD sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 /
  • Pump Dim.89.00 x 75.00 x 40.00 mm
  • Pump Noise15dB(A)
  • Radiator Size394.00 x 119.60 x 27.20 mm
  • Radiator MaterialAluminum

Fan Size 3 Fan Slots (120mm)

Color Black

  • Black
  • White

Struck-through versions exist but are not stocked here.

Option MasterLiquid PL360 FLUX

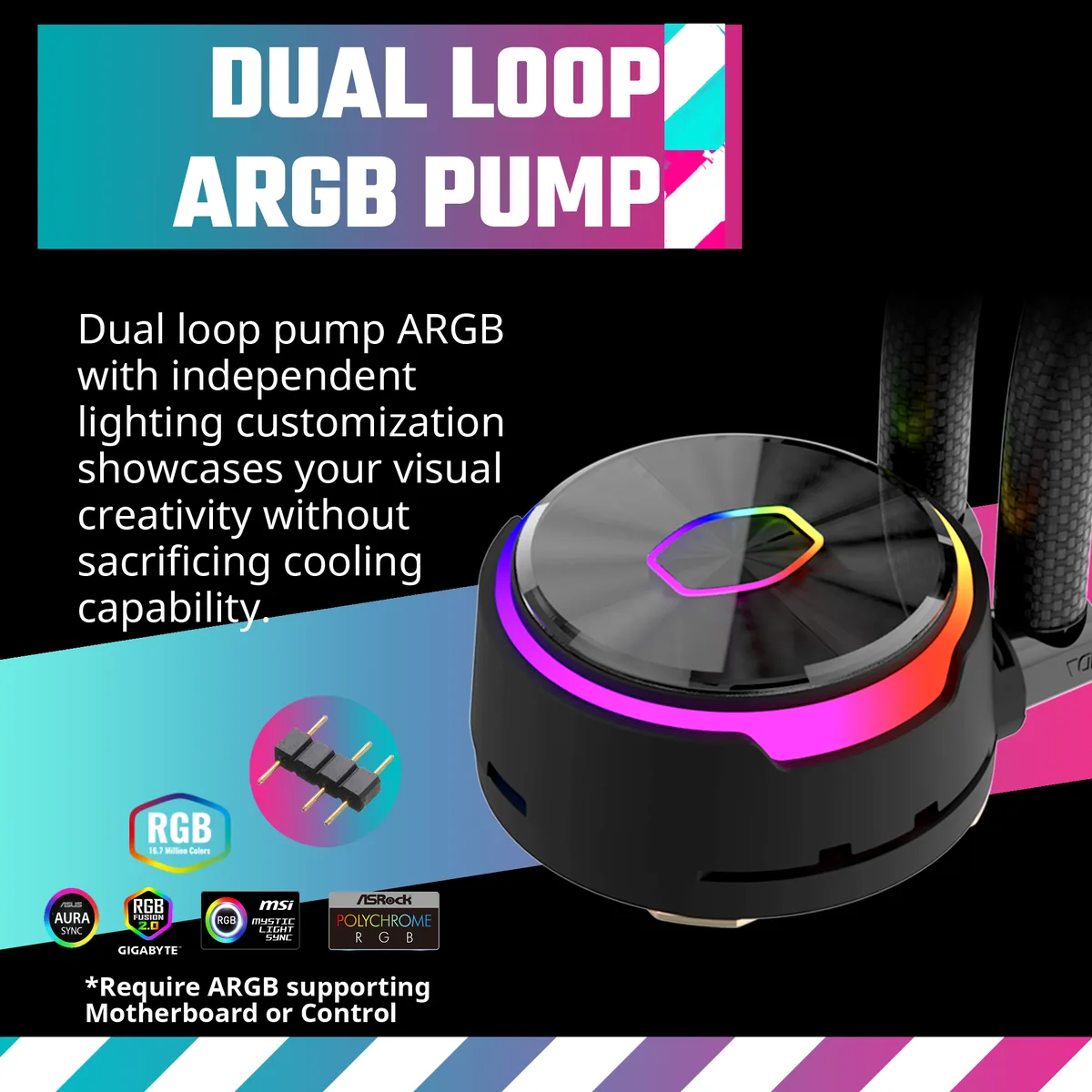

  • Dual-chamber pump runs at 15 dB(A) for quiet operation

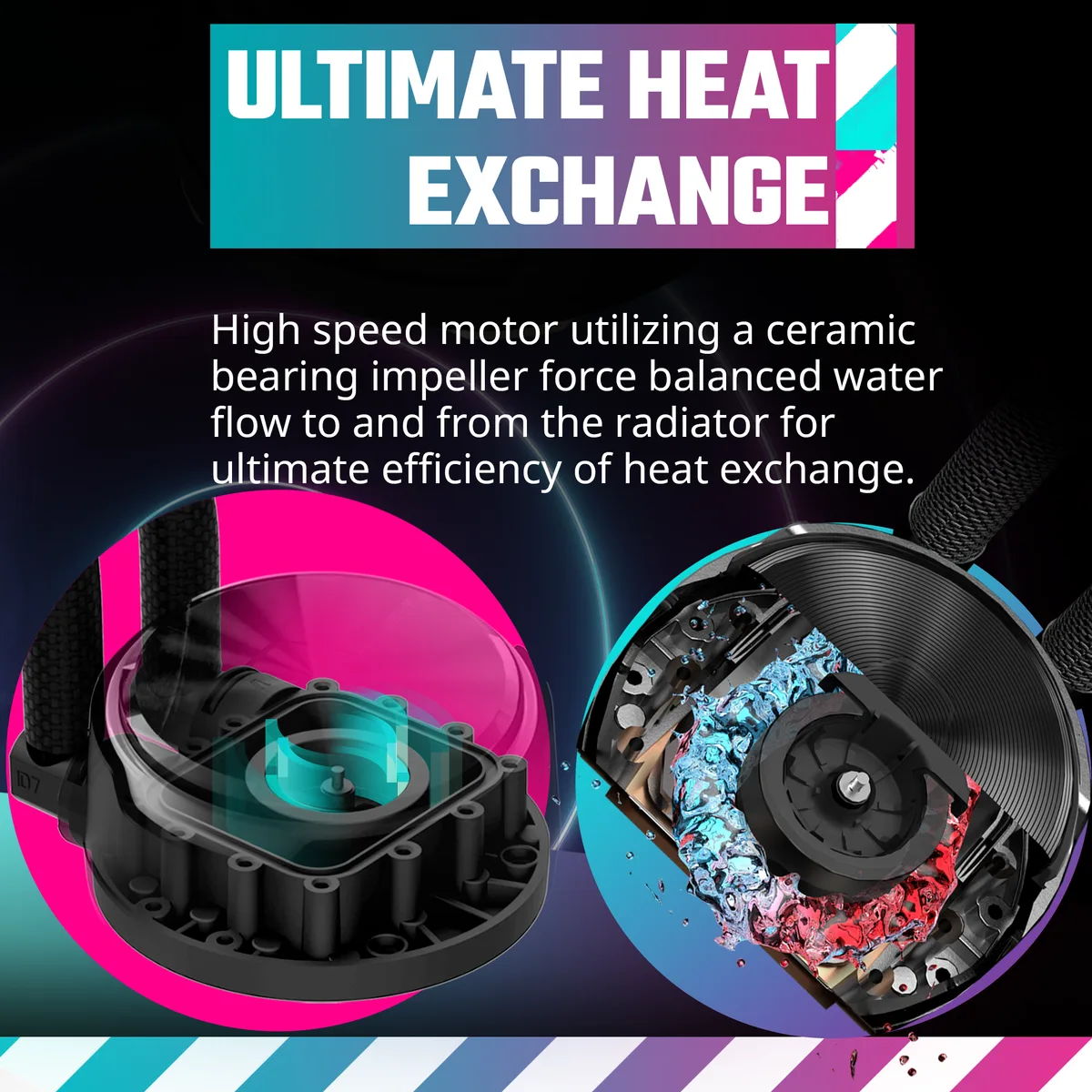

  • Ceramic-bearing impeller balances flow and pressure for efficient heat exchange
  • 360 mm aluminium radiator with 27.20 mm thickness dissipates heat rapidly
  • Three 120 mm ARGB fans deliver 72.37 CFM airflow at up to 2300 RPM
  • Supports Intel sockets 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2066 and AMD AM4, TR4

Dual-Chamber Pump for Targeted Cooling

The Cooler Master MasterLiquid PL360 FLUX is a 360 mm all-in-one liquid cooler built around a compact dual-chamber pump that balances flow and pressure to target CPU hot spots. It supports Intel sockets from LGA 1150 through LGA 2066 and AMD platforms including AM4 and TR4, making it suitable for builders running current mainstream or high-end desktop processors who want a closed-loop solution with addressable RGB lighting.

Radiator Dimensions and Fan Requirements

The aluminium radiator measures 394.00 x 119.60 x 27.20 mm and occupies three 120 mm fan slots, so the case must provide a matching mounting area and clearance for the 25 mm thick fans. The pump block itself is 89.00 x 75.00 x 40.00 mm, leaving the motherboard VRM zone largely unobstructed compared with bulky tower air coolers. An included Addressable Gen 2 RGB controller handles lighting without consuming a motherboard header.

Sustained-Load Acoustic and Thermal Behaviour

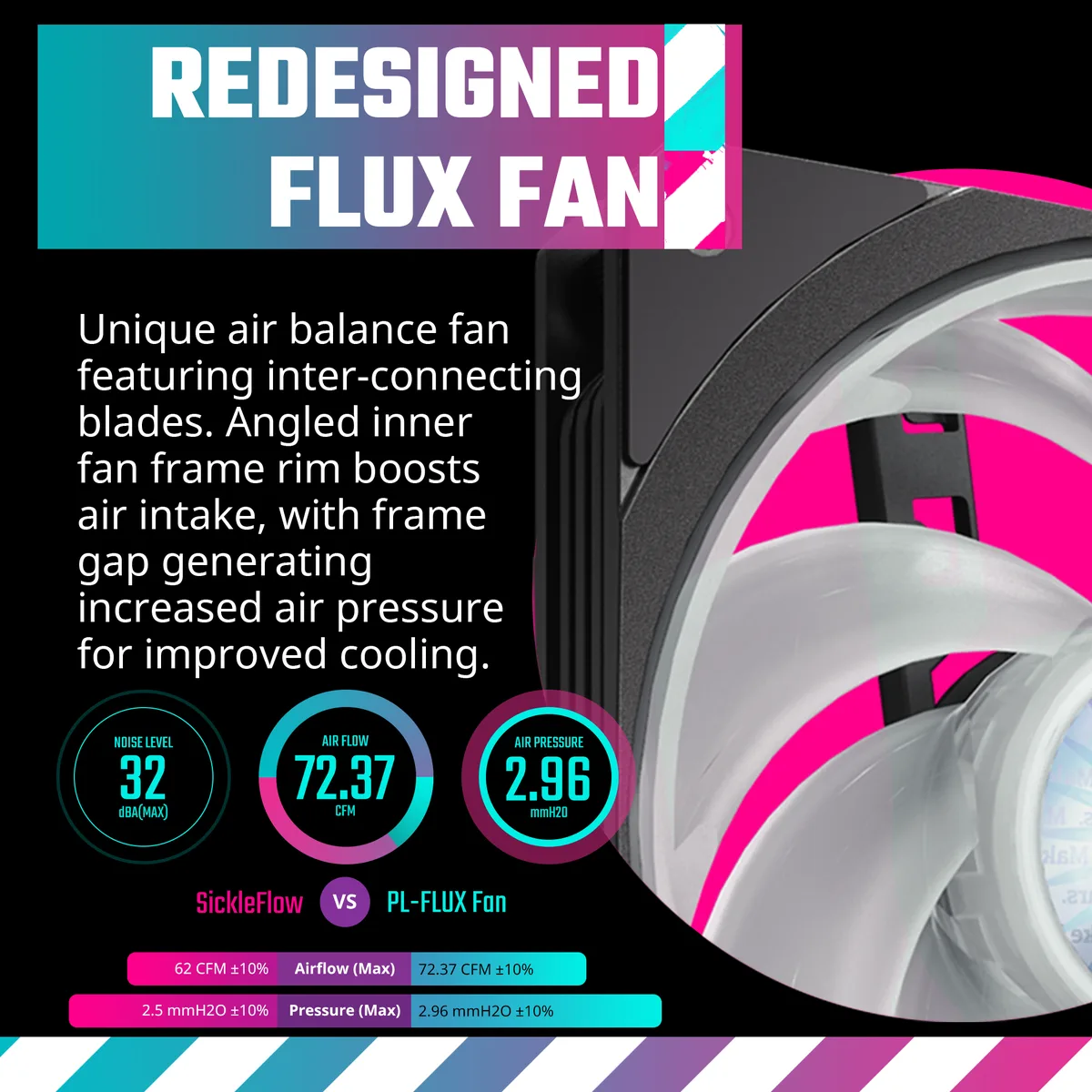

Under continuous load the pump runs at a rated 15 dB(A) while the three PL-Flux fans spin up to 2300 RPM, moving 72.37 CFM each at a maximum of 32 dB(A). The ceramic-bearing impeller and inter-connecting fan blades are designed to maintain stable airflow and pressure over long sessions, and the ultra-thin spaded fins increase microchannel density to keep heat dissipation consistent rather than peaking only in short bursts.

Highlights

  • Dual-chamber pump runs at 15 dB(A) for quiet operation
  • Ceramic-bearing impeller balances flow and pressure for efficient heat exchange
  • 360 mm aluminium radiator with 27.20 mm thickness dissipates heat rapidly
  • Three 120 mm ARGB fans deliver 72.37 CFM airflow at up to 2300 RPM
  • Supports Intel sockets 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2066 and AMD AM4, TR4

Specifications

BrandCOOLER MASTER
SeriesMasterLiquid PL360 FLUX
ModelMLY-D36M-A23PZ-R1
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4
Pump Dim.89.00 x 75.00 x 40.00 mm
Pump Noise15dB(A)
Radiator Size394.00 x 119.60 x 27.20 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Bearing TypeORBS
Fan RPM0~2300 RPM +/-10%
Fan Air Flow72.37 CFM
Fan Noise32 dB(A)
Fan Connector4-Pin (PWM)
ColorBlack
LED ColorARGB
Package ContentsPL360 Flux
Triple PL-Flux Series 120mm Fans
Addressable Gen 2 RGB Controller
Install Tool Kits for AMD/ Intel
Manual
Shipping weight2.68 kg
Package size437 × 231 × 145 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 394 mm radiator fit in my case?

The radiator measures 394.00 x 119.60 x 27.20 mm and uses three 120 mm fan slots, so verify your case supports a 360 mm radiator with that thickness.

How loud is the pump and fans at full speed?

Pump noise is rated at 15 dB(A); each PL-Flux 120 mm fan reaches 32 dB(A) at 2300 RPM.

Which CPU sockets are supported out of the box?

Intel LGA 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2011-3, 2066 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4 are all covered.
