White 360mm AIO liquid cooler with three ARGB fans, square LCD pump block and magnetic top covers

Cooler Master

Cooler Master MLX-D36M-A25SZ-LW 360mm liquid cooler

SKU CH-V518-VP3A3 MPN MLX-D36M-A25SZ-LW

360 mm AIO with dual-chamber pump, three 120 mm ARGB fans, LCD panel and magnetic covers for AM4, AM5, LGA 1700 and 1851 sockets

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Pump Speed3400 ± 3400 RPM
  • Pump Dim.3.6 x 3.6 x 1.5 inch
  • Pump Noise25 dB(A)
  • Radiator Size394 mm

Option White LCD Display

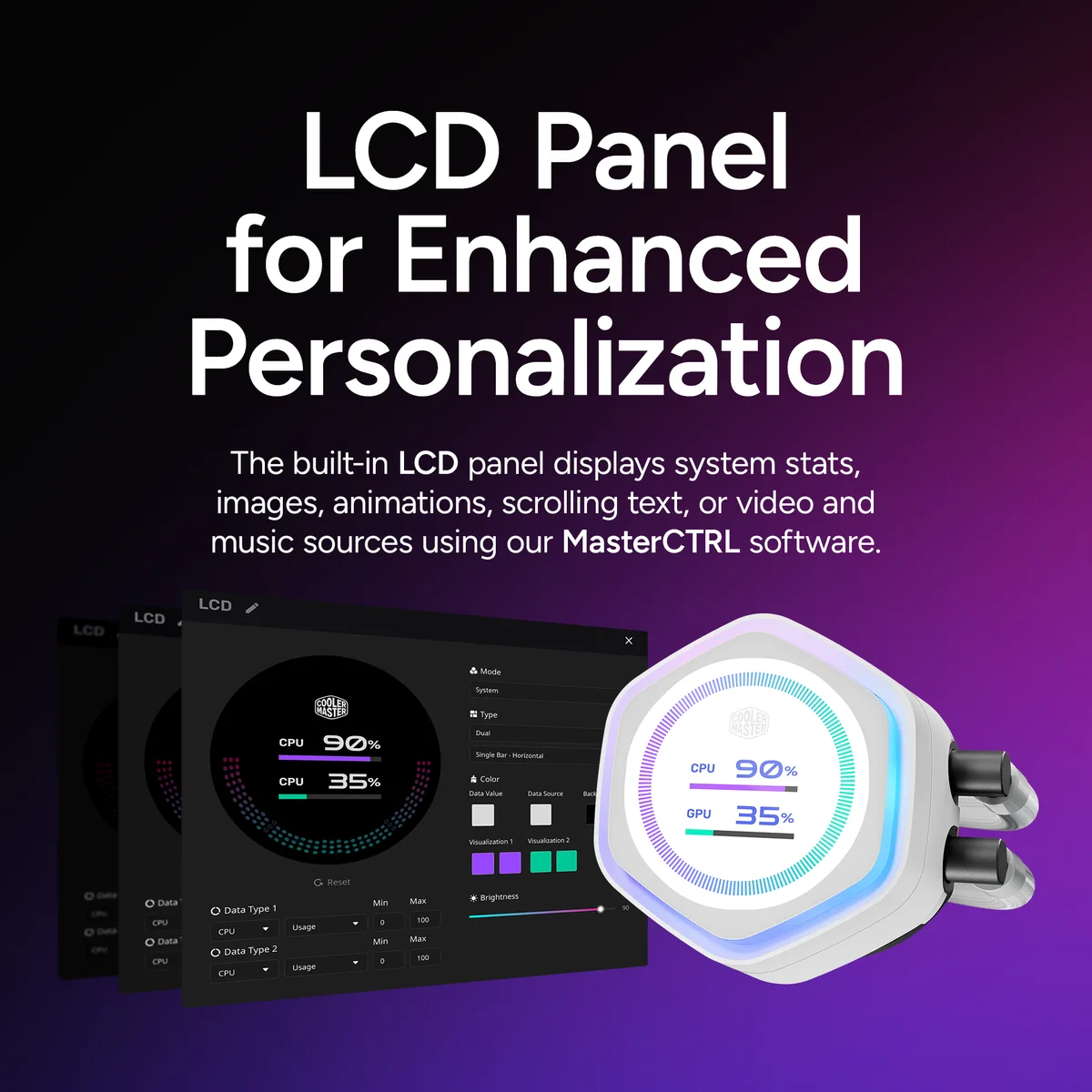

  • Built-in LCD panel shows system stats, images and animations via MasterCTRL software

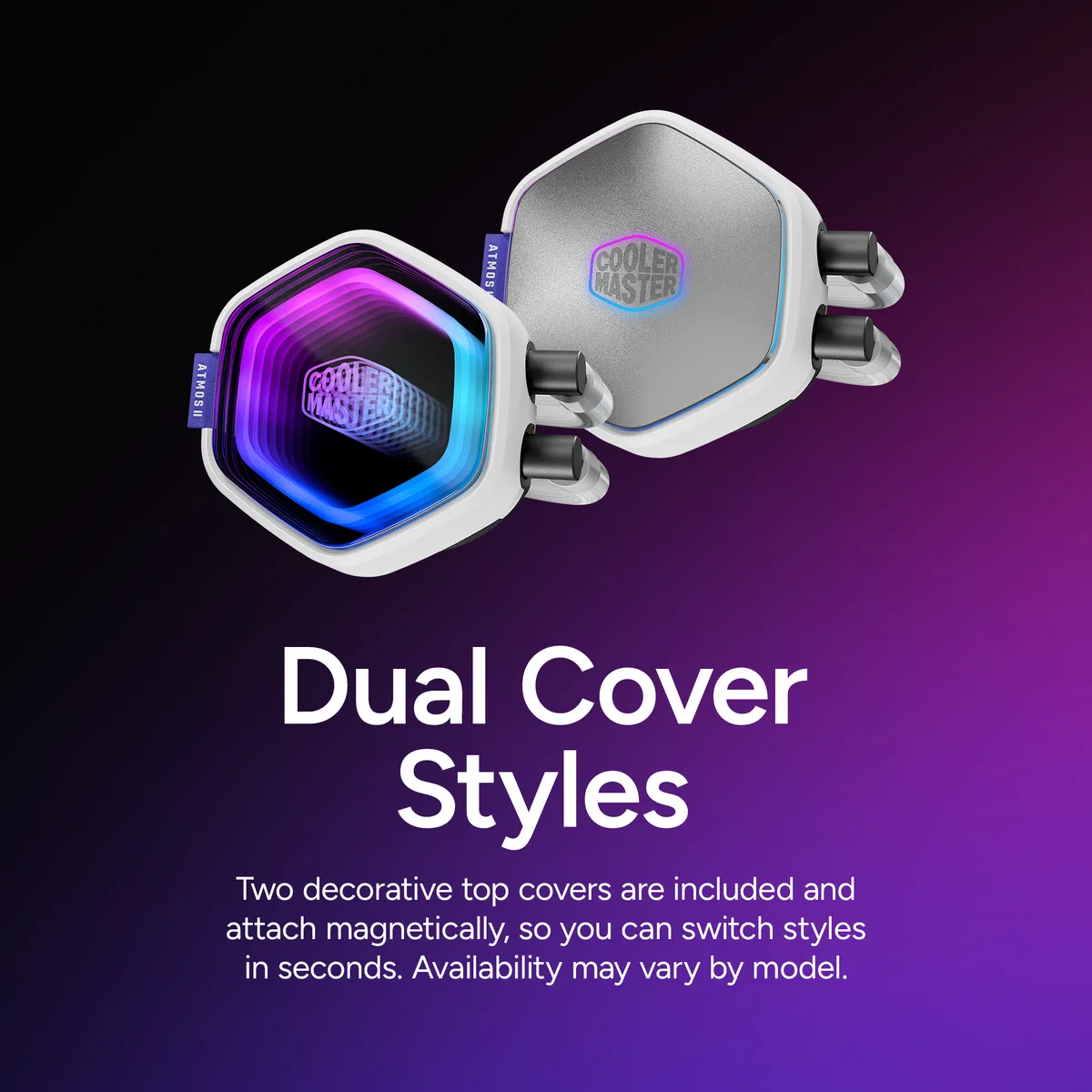

  • Two magnetic top covers included for instant style changes

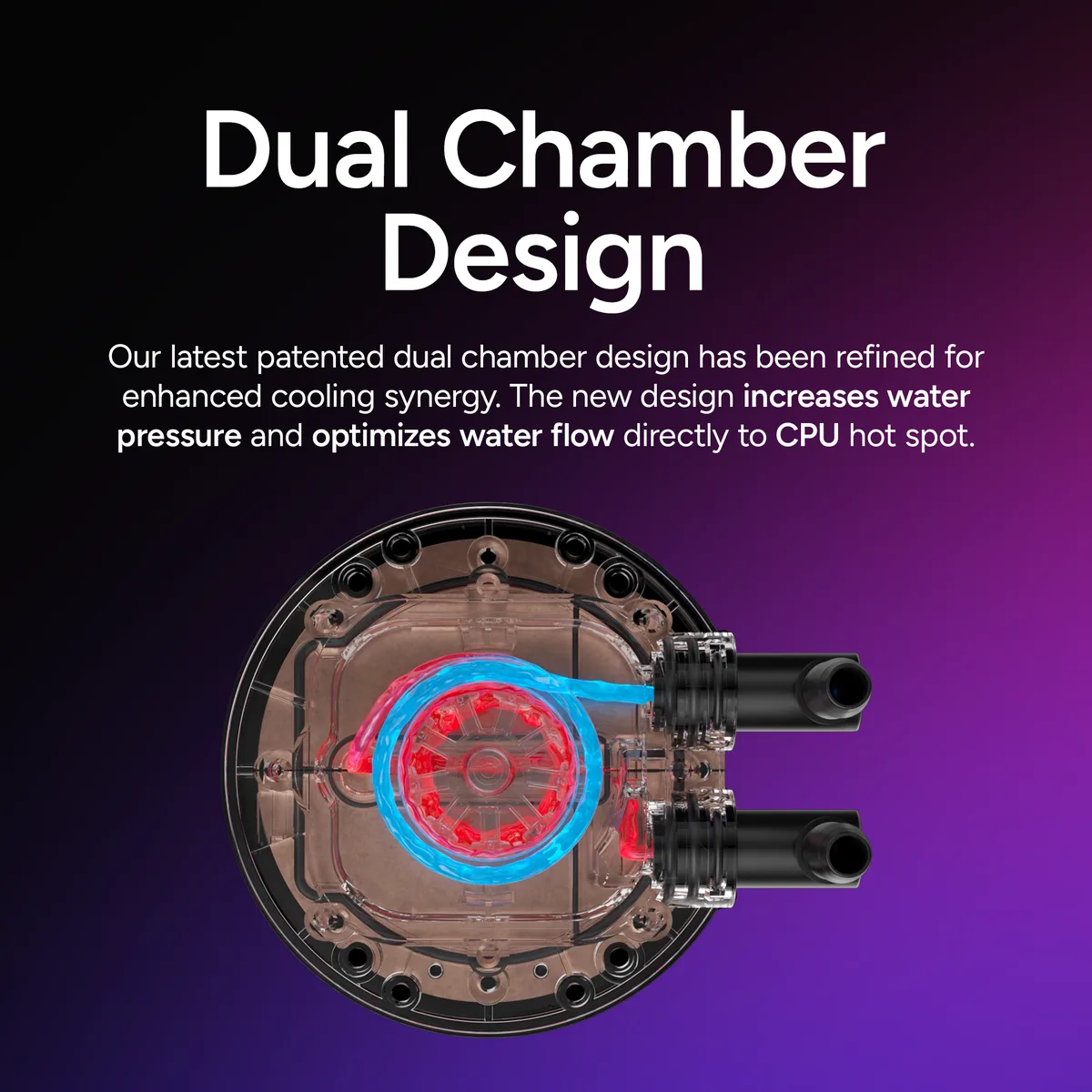

  • Patented dual-chamber pump increases water pressure and targets CPU hot spot directly
  • Offset mounting brackets for LGA 1851 lower core temps by up to 4 °C
  • Pre-installed 120 mm fans and single-cable wiring simplify installation across all platforms

360 mm AIO for mainstream and enthusiast CPUs

The Cooler Master Atmos II 360 uses a 394 mm aluminum radiator and three 120 mm ARGB PWM fans to dissipate heat from modern AMD and Intel sockets. It targets builders who want strong thermal performance with a clean white aesthetic and integrated LCD customisation.

Single 7-pin PWM plus ARGB cable limits routing

All three fans and the pump draw power and lighting control through one 7-pin connector, so the motherboard must supply enough current on a single header. The loop dynamic bearing fans spin between 690 and 2500 RPM, delivering up to 322.8 m³/h of airflow at the cost of increased noise at the top end.

Dual-chamber pump rated for 3400 RPM and 25 dB(A)

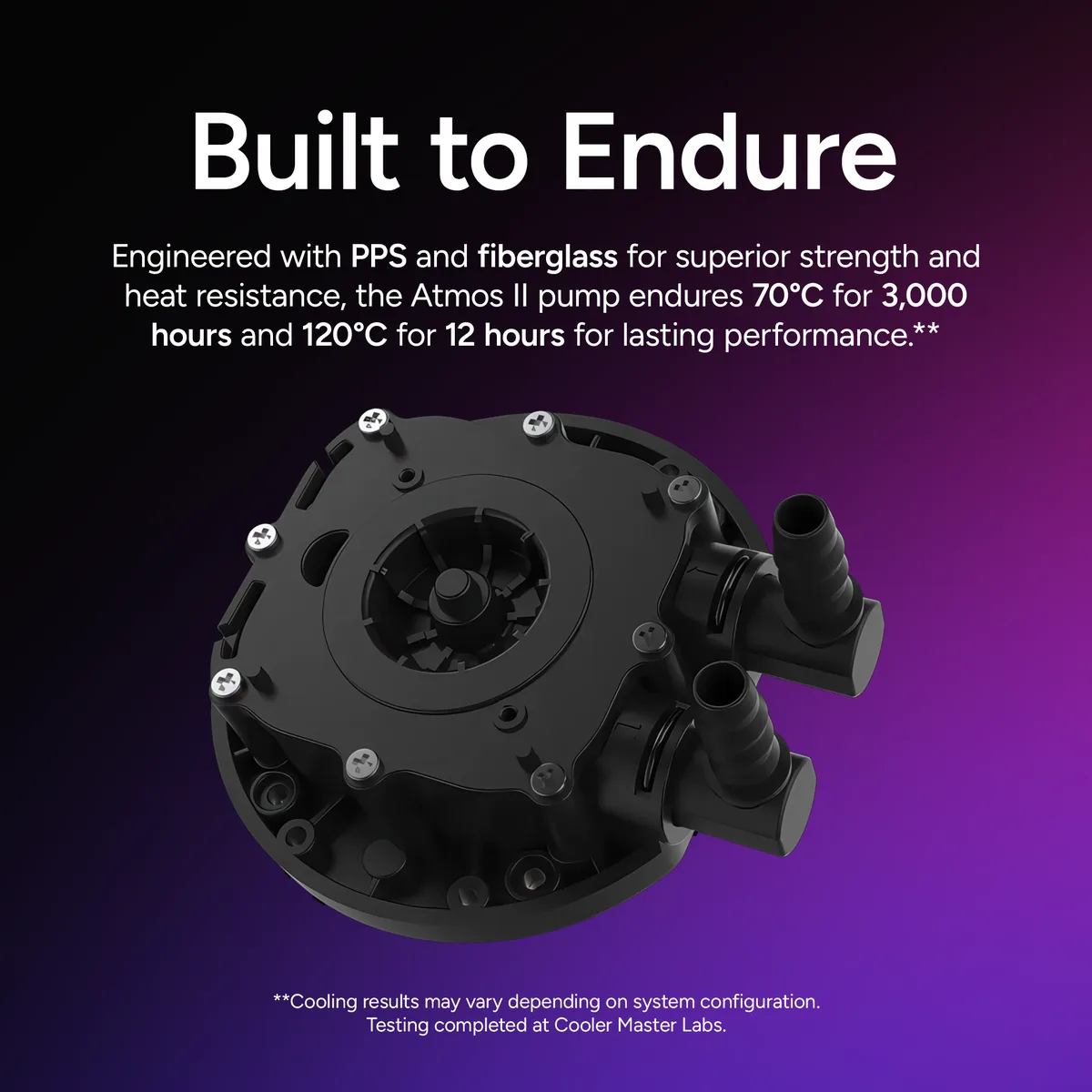

The offset mounting brackets for LGA 1851 can lower core temperatures by up to 4 °C, while the pump is validated at 70 °C for 3000 hours and 120 °C for 12 hours. Builders chasing extreme overclocks or silent operation at idle may find the fixed pump speed and 400 mm tube length restrictive.

Highlights

  • Built-in LCD panel shows system stats, images and animations via MasterCTRL software
  • Two magnetic top covers included for instant style changes
  • Patented dual-chamber pump increases water pressure and targets CPU hot spot directly
  • Offset mounting brackets for LGA 1851 lower core temps by up to 4 °C
  • Pre-installed 120 mm fans and single-cable wiring simplify installation across all platforms

Specifications

BrandCOOLER MASTER
Part NumberMLX-D36M-A25SZ-LW
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Pump Speed3400 ± 3400 RPM
Pump Dim.3.6 x 3.6 x 1.5 inch
Pump Noise25 dB(A)
Radiator Size394 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Bearing TypeLoop dynamic bearing
Fan RPM690 ~ 2500 RPM ± 15%
Fan Air Flow322.8 m³/h (190 CFM)
Fan Connector7-Pin PWM ± ARGB
ColorWhite
LED ColorARGB
Tube Dim.400 mm
Shipping weight2.68 kg
Package size406 × 213 × 137 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which Cooler Master Atmos II 360 variant should I pick for a white-themed build?

This MPN MLX-D36M-A25SZ-LW is the white edition with a 360 mm radiator, three white 120 mm ARGB fans and a white pump housing, so it matches a white build out of the box.

What does the 3400 RPM pump speed actually deliver inside a case?

The dual-chamber pump runs at a fixed 3400 RPM and is rated at 25 dB(A), pushing coolant straight to the CPU hot spot while keeping audible noise low in typical chassis airflow.

How does the 7-pin PWM ARGB connector limit fan control?

Each 120 mm fan uses a single 7-pin cable that carries both PWM speed signals (690–2500 RPM) and ARGB data, so fan curves and lighting sync through one motherboard header per fan.
