White 360 mm radiator with three white ARGB fans and a square white pump block featuring a circular LCD screen

Cooler Master

Cooler Master MLX-D36M-A25SZ-VW 360mm liquid cooler

SKU CH-X3RT-GH5PR MPN MLX-D36M-A25SZ-VW

360 mm AIO liquid cooler with a customisable LCD pump head, three 120 mm ARGB PWM fans and a dual-chamber pump rated at 3400 RPM

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Pump Speed3400 ± 3400 RPM
  • Pump Dim.3.6 x 3.4 x 1.5 inch
  • Pump Noise25 dB(A)
  • Radiator Size394 mm

Option White VRM Fan

  • Lowers VRM temps by up to 10.2°C for stable operation under load

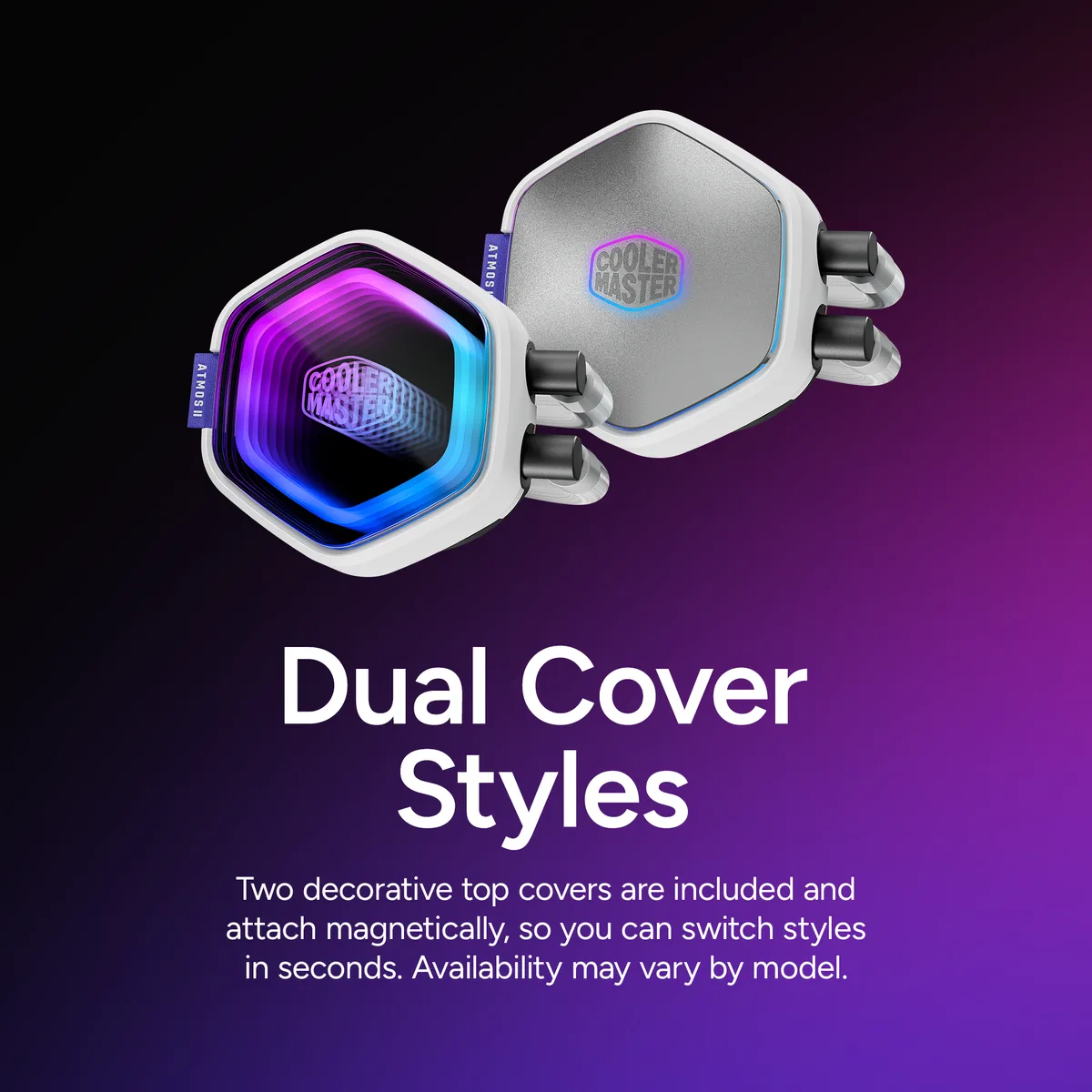

  • Dual magnetic covers let you change the pump look in seconds
  • Single hidden cable routes all three fans for a tidy interior

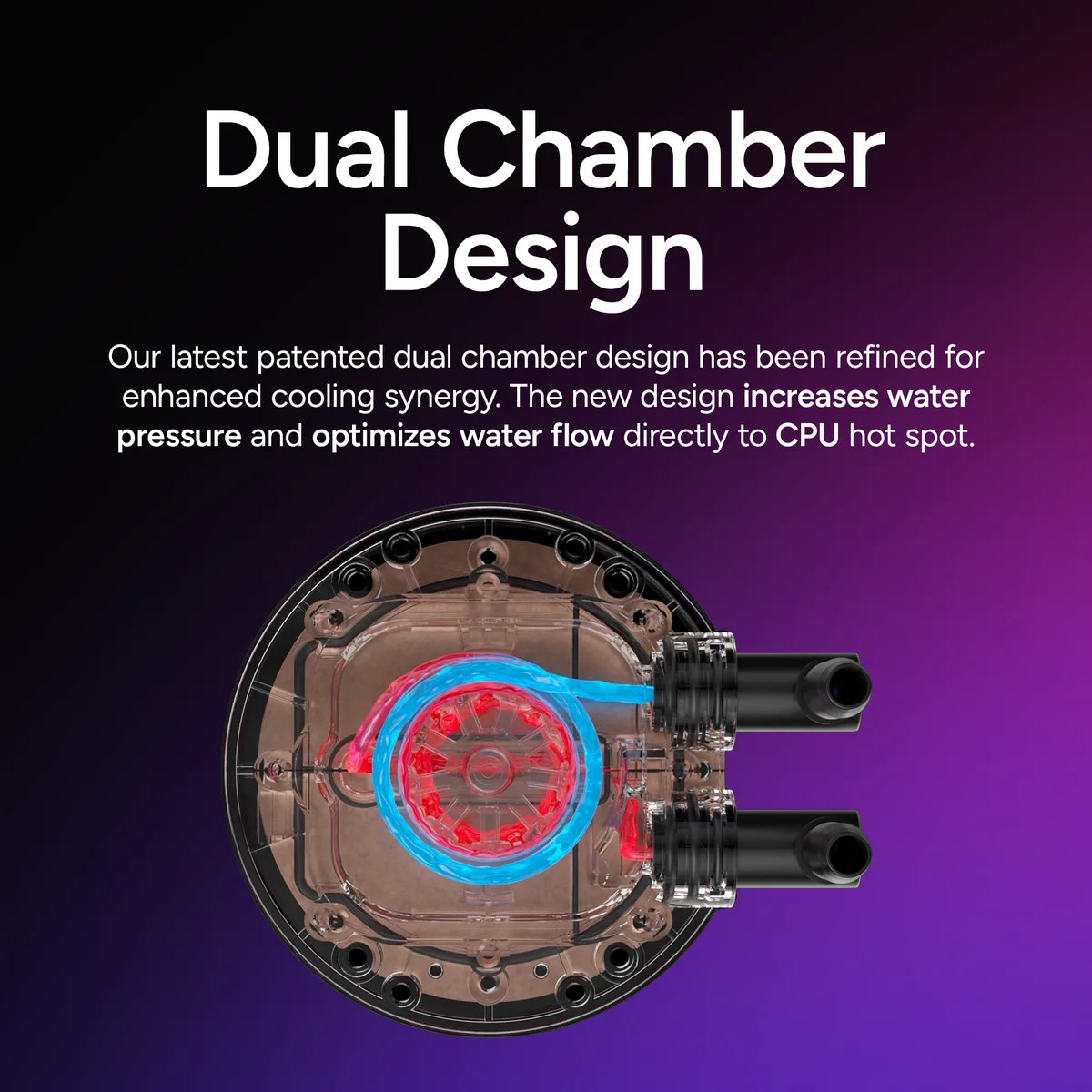

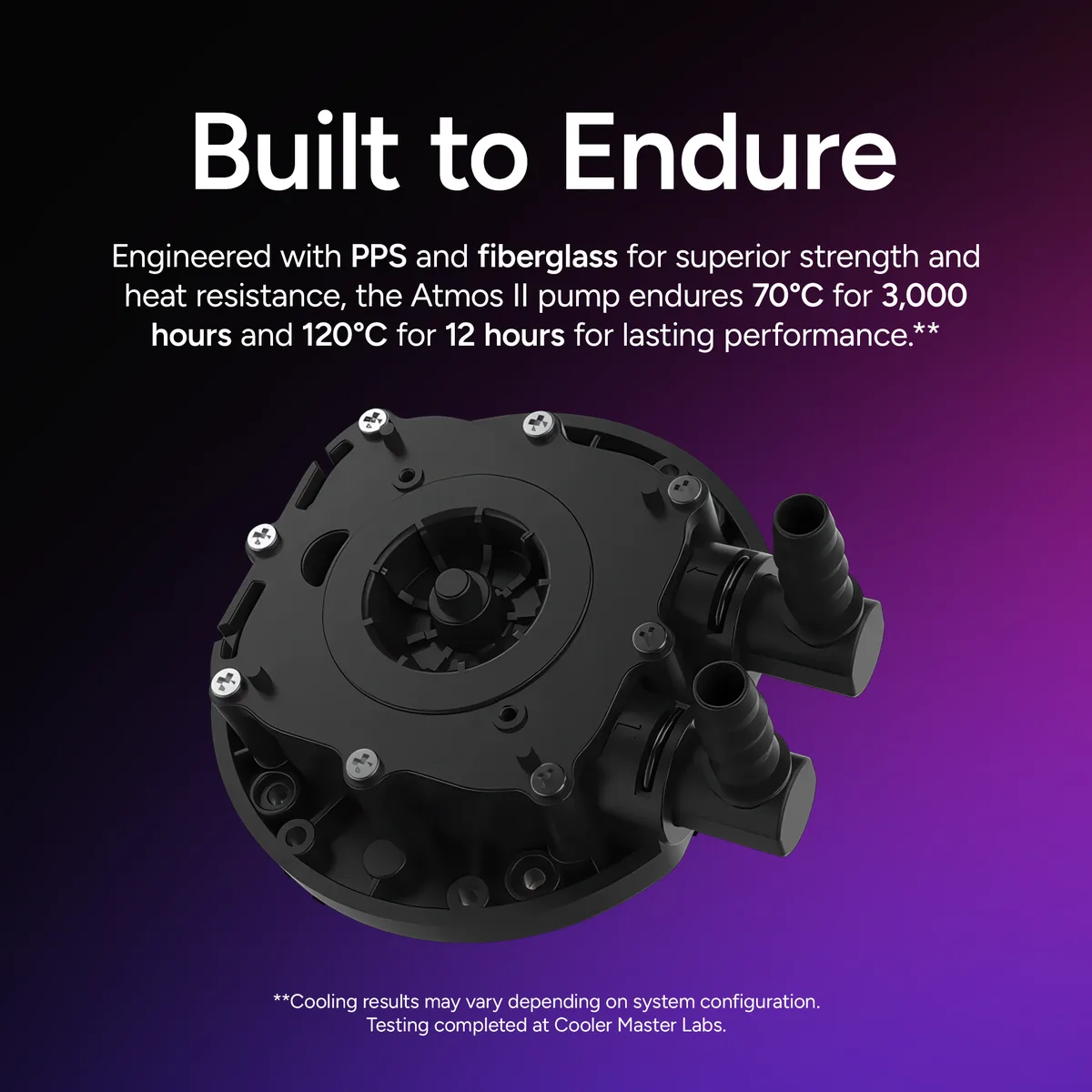

  • Patented dual-chamber pump raises water pressure directly over the CPU hotspot
  • Offset brackets for LGA 1851 cut core temps by up to 4°C

Atmos II 360 LCD AIO Liquid Cooler

This 360 mm all-in-one cooler combines a dual-chamber pump, three 120 mm ARGB PWM fans and a customisable LCD screen on the pump head. It targets enthusiasts building high-performance Intel or AMD systems who want strong thermal capacity plus a visible display for temperatures, images or animations. The white finish and magnetic top covers suit clean, light-themed builds. Pre-installed fans and hidden tube wiring speed up assembly.

Builders wanting integrated monitoring

The LCD screen and single-cable fan hub help users who prefer at-a-glance coolant temps or custom graphics without extra software layers. Offset brackets for LGA 1851 are included for optimal contact on newer Intel sockets. Buyers who need a smaller radiator for compact cases or who want a non-LCD pump head to save cost should look at other models in the range.

394 mm radiator length

The radiator measures 394 mm long, so the case must support a 360 mm class radiator with enough clearance for 394 mm overall length and 30 mm fan thickness. Verify the mounting area and tube routing space before purchase. If the chassis cannot accommodate this length, the cooler will not fit.

Highlights

  • Lowers VRM temps by up to 10.2°C for stable operation under load
  • Dual magnetic covers let you change the pump look in seconds
  • Single hidden cable routes all three fans for a tidy interior
  • Patented dual-chamber pump raises water pressure directly over the CPU hotspot
  • Offset brackets for LGA 1851 cut core temps by up to 4°C

Specifications

BrandCOOLER MASTER
Part NumberMLX-D36M-A25SZ-VW
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Pump Speed3400 ± 3400 RPM
Pump Dim.3.6 x 3.4 x 1.5 inch
Pump Noise25 dB(A)
Radiator Size394 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.14.2 x 4.8 x 1 inch
Bearing TypeLoop dynamic bearing
Fan RPM690 ~ 2500 RPM ± 15%
Fan Air Flow322.8 m³/h (190 CFM)
Fan Noise38.5 dB(A)
Fan Connector7-Pin PWM ± ARGB
ColorWhite
LED ColorARGB
Tube Dim.400 mm
Shipping weight3.11 kg
Package size411 × 216 × 140 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the pump is running at its rated 3400 RPM after installation?

Use motherboard software or BIOS to monitor the pump header; it should report a speed near 3400 RPM and the pump noise should stay around 25 dB(A).

What comes in the box and what must I source separately?

The box contains the 360 mm radiator, pump block with two magnetic covers, three pre-installed 120 mm ARGB PWM fans, offset brackets for LGA 1851, standard brackets for AM4, AM5, LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851, plus all mounting hardware. Thermal paste is not included.

Which version should I choose for an Intel Core Ultra processor on LGA 1851?

This single white 360 mm model includes the required offset mounting brackets for LGA 1851, delivering up to 4 °C lower core temperatures on that socket.
